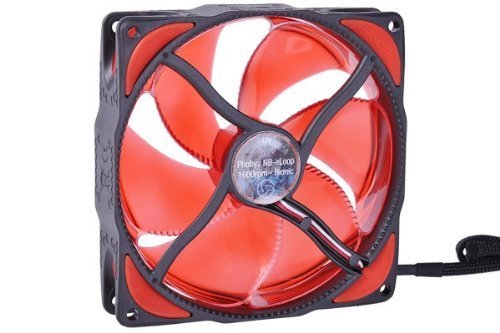

Phobya NB-eLoop 1600rpm Bionic 120mm Case Fan
[Product Information]- Enter your model numberto make sure this fits.
-
Bionic fan chassis (new) • Aerodynamically optimized flow pattern • 4 resonance/interference absorbers (Deepsound Design) • Increased air intake area with diagonal design • Highly linear power output over the whole speed spectrum, air flow optimized • Fiber glass reinforced material concentrated frame made from PBT UL94V0 30%GF
-
NB-EKA 2 Drive (new) • Auto-restart functionality for reliable start-up • Integrated blockage and overload protection • Scalable NB-WideRange electronics • Low start-up voltage • RPM signal lead • AntiDust technology (completely dust-protected motor)
-
NB-NanoSLI 2 magnetic floating bearing (new) • Orientation-invariant lubrication and noise reduction, vertical and horizontal operation without increased noise emission • AntiDust technology (completely dust protected bearing) • Special lubrication with Nano technology for long lifespan and low noise emissions
-
Dimensions : 120x120x25mm Weight: 125g Nominal voltage : 12V Start-up voltage : 6 V Power consumption : 1,01W Nominal speed : 1600rpm (+/- 10%) Pressure head : 1,560mmH2O Air flow : 104 m3/h Noise emission: 22,5 dB/A MTBF (25°C) : 140 000 hrs. Connector : 3 Pin Molex with rpm signal Warranty: 3 years
-
Extent of delivery: 1x Phobya NB-eLoop 1600rpm - Bionic Fan ( 120x120x25mm ) 4x Screws
