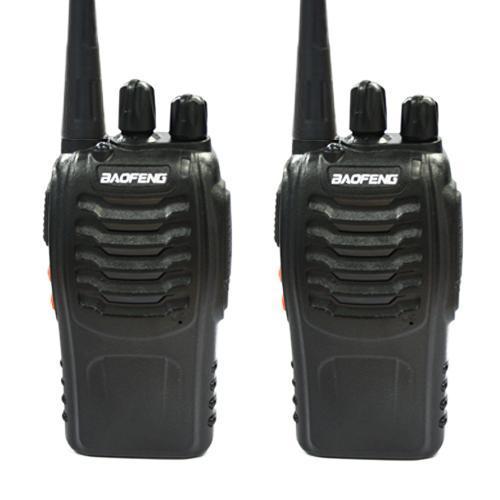

you are buying 2 pcs. 1 set
Brand Name | BAOFENG |
Model Number | 888s |
Type | Handheld |
Dimensions | 110*50*32mm |
Frequency Range | 136-174/400-470MHz |
Storage Channel | 16 |
Talk Range | 3-5km |
weight | 170g |
color | black |
standard accessories | 1charger，1battery，1antenna，1belt clip，1hand stap |
General Specifications |
|
|
|
Frequency Range | vhf136-174/UHF 400-470MHz |
| |
Channel Capacity | 16 |
|
|
Channel Spacing | 25KHz |
|
|
Operated Voltage | 3.7 V |
|
|
Battery | H-1500MAh Li-ion |
| |
Battery Life(5-5-90 duty cycle) About 8 hours |
| ||
Frequency Stability | ±2.5ppm |
|
|
Operated Temperature | -30°c-+60°c |
| |
Antenna Impedance | 50Ω |
|
|
Dimensions (L×W×H) (with battery，without antenna) 110×50×32 mm | |||
Weight (with battery/antenna) 198g | 170 g |
|
|
Communication Range | about 3-5km |
|
|
|
|
|
|
Transmitter |
|
|
|
RF Power Output | 3W |
|
|
Modulation | F3E |
|
|
Spurious Emission | ≤65dB |
|
|
FM Noise | ≤-45dB(W) ≤-40dB (N) |
| |
Audio Distortion | ≤5% |
|
|
Transmitting Current | ≤1.3A |
|
|
|
|
|
|
Receiver |
|
|
|
Sensitivity (12dB SINAD) | ≤0.20 uV |
|
|
Selectivity | 55dB/50dB |
|
|
Intermodulation | ≥65dB |
|
|
Adjacent Channel Selectivity ≥60dB |
|
| |
Spurious Response | ≥60dB |
|
|
FM Noise | 45dB/40dB |
|
|
Audio Power Output | 1000mW |
|
|
Audio Distortion | ≤5% |
|
|
Standby Current | ≈15mA (with battery save on) | ||
