AC 80-300V/100A

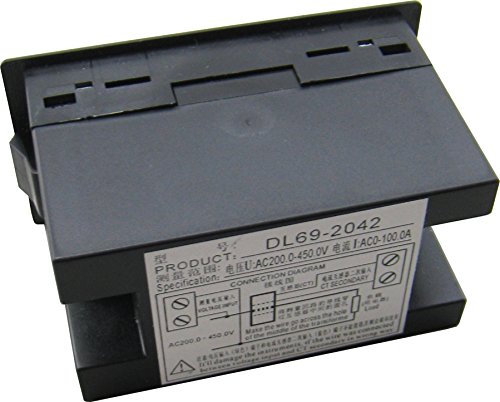

AC 200-450V/100A With Back Shell







AC 80-300V/100A


AC 200-450V/100A With Back Shell

Product Description

Main Specifications：
Measuring:Accuracy: 1% + - 2 words

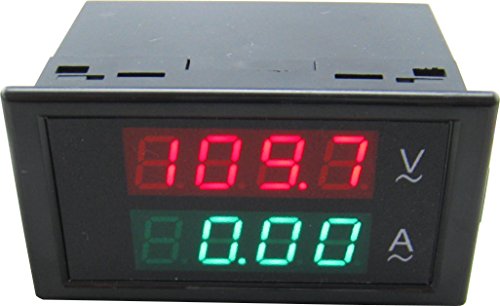

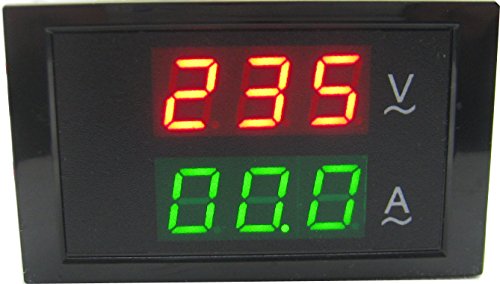

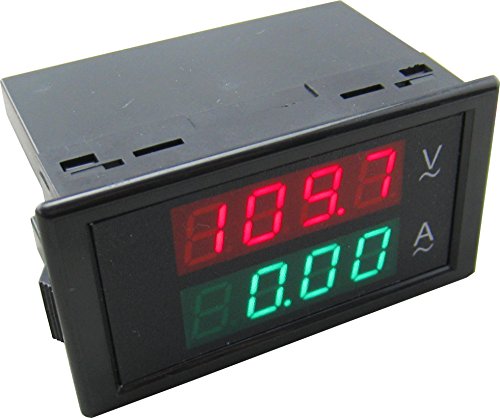

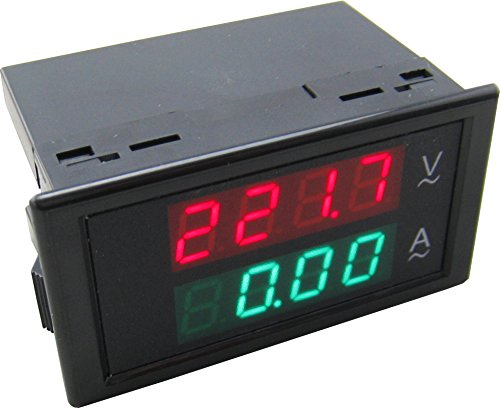

Display: Voltage Display: 4 digits 0.39" red LED digital tube
Current display: 4 digits 0.39" green LED digital tube
Measuring range: AC voltage: AC80-300V (single-phase)
AC current: AC0-100.0A
(Measuring current is less than 10A current display resolution is 0.01A, measuring current display resolution is 0.1A when greater than 10A )
Power Consumption: 0.2VA
Measurement speed: 2 times / s
Dimensions: 79 * 43 * 42mm
Installation size: 76 * 39mm
(This instrument is only suitable for pure AC 50-60HZ the mains, can not be used to measure the square wave, sine wave inverter sine wave output and repair circuit, otherwise the instrument will be permanently damaged)

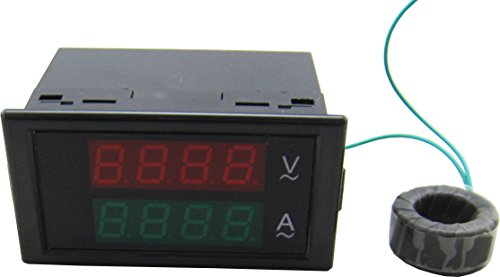

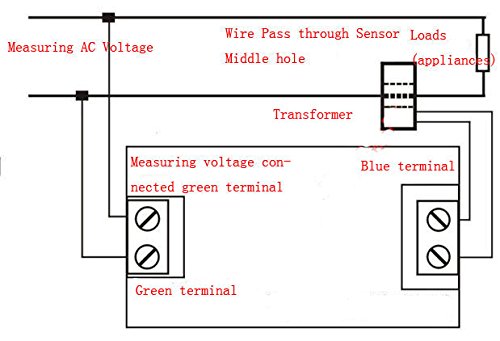

External transformer (hole diameter 15.5mm) meet 21-25 square (mm) standard copper wire therethrough.
packing including:
1x Dual Display Digital AC voltmeter ammeter

Feature

Measuring:Accuracy: 1% + - 2 words
Power Consumption: 0.2VA
Voltage Display: 4 digits 0.39" red LED digital tube Current display: 4 digits 0.39" green LED
Measurement speed: 2 times / s
Measuring range: AC voltage: AC80-300V (single-phase) AC current: AC0-100A
Brand : Yeeco
Item model num : 1500139
MPN(PartNumber) : Y1500139
EAN : 0710882795559
