This mini 4 in 1 ESC supports Oneshot125 (125-250us)， Oneshot42(41.7-83.3us) and Multishot (5-25us)， compatible with a wide range of motors.
Features:
Mini size and easy to install
New BusyBee2 MCU at 48MHz， up to 500k eRPM support
Improved firmware using BLHeli_S
Hardware PWM driver at 36KHz
Supports Oneshot125 (125-250us)， Oneshot42(41.7-83.3us) and Multishot (5-25us)
Adaptive timing， compatible with a wide range of motors
Sychronous rectification technology adds efficiency
Powerful regenerative braking/active braking

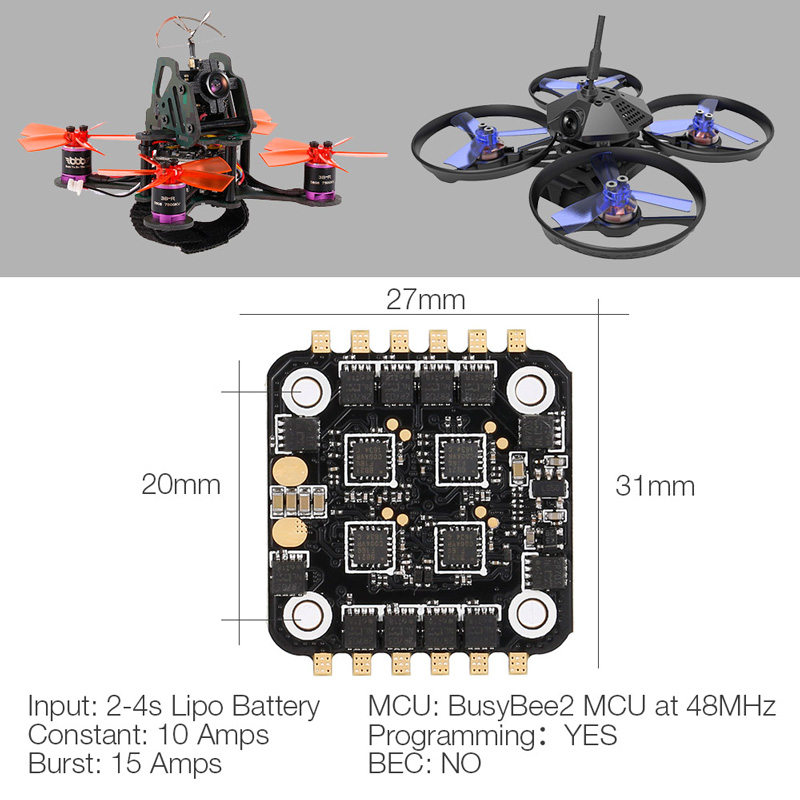

Specifications:
Input: 2-4s Lipo Battery
Constant: 10 Amps
Burst: 15 Amps
Mounting Dimensions: 20 * 20mm
Motor wire: 50mm
Signal wire: 52mm
MCU: BusyBee2 MCU at 48MHz
Mosfet: N-Channel
Programming?YES
BEC: NO
Support: Damped mode， Oneshot125 and Multishot， DSHOT via firmware flash
Dimensions: 31 * 27 * 5mm
Weight: 3.7g
There may be some deviation due to manual measurement.
Package Information:
Package size: 5 * 5 * 1cm / 2 * 2 * 0.4in
Package weight: 6g / 0.2oz
Poly bag package
Package List:
1 * Mini 4 in 1 ESC
1 * Cable and screw set
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
