Item Descriptions:

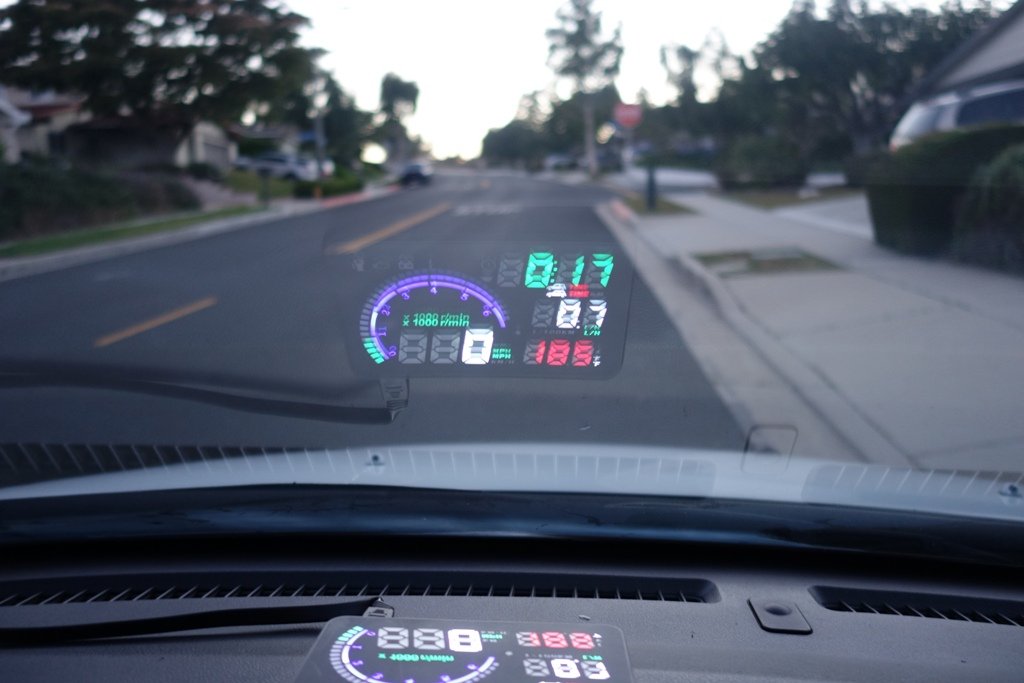

■ Projection display of speedometer / tachometer / water temperature gauge / watch / fuel cost etc on the windshield.

The movement of gaze decreases, the familiar car window scenery changes to near future SF style!

■ With Japanese manual.

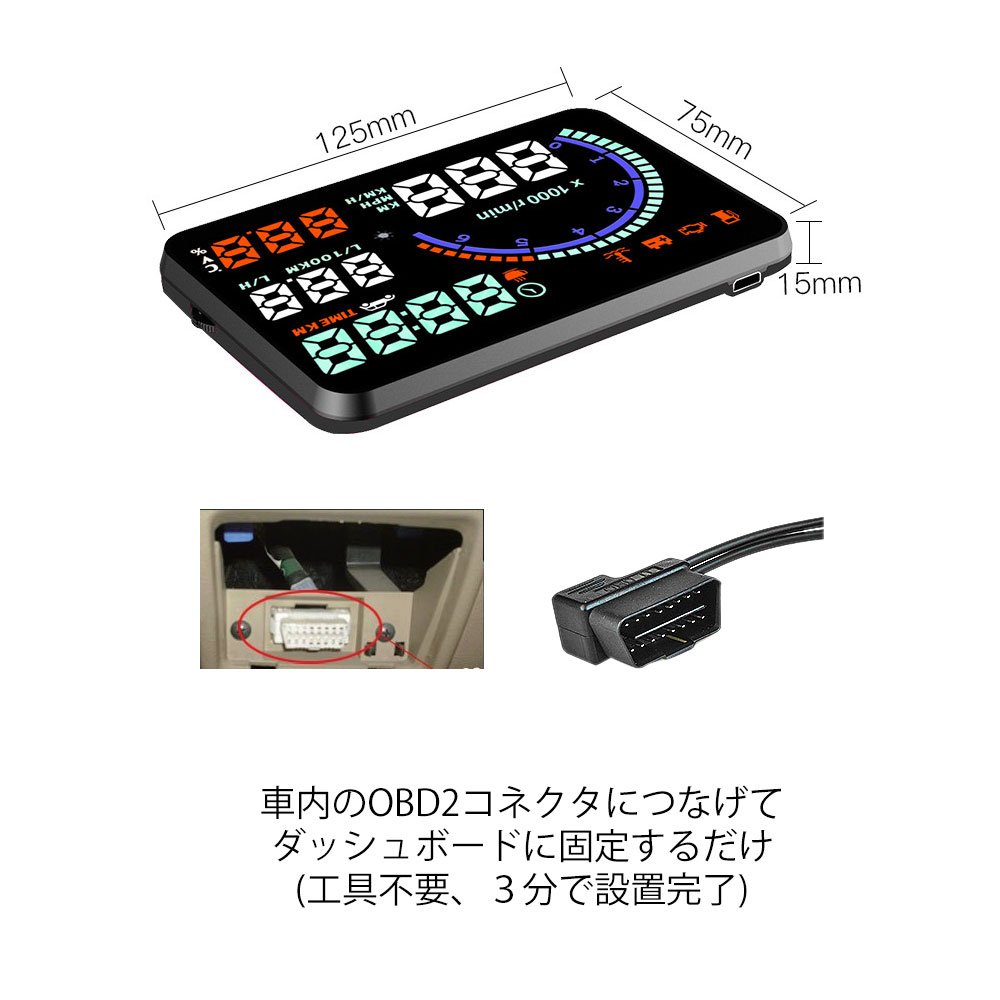

Just connect to the OBD 2 connector * in the car and fix it to the dashboard, tool installation is completed in 3 minutes

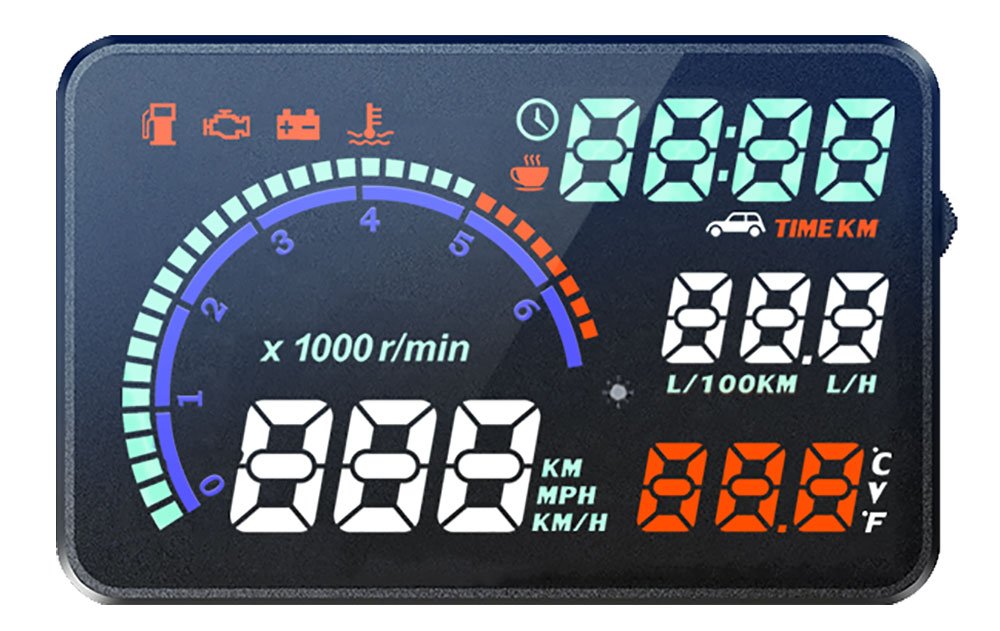

■ 5.5 inches high brightness multi color LED display makes it easy to see even during the day.

Auto power ON / OFF, with automatic brightness control sensor.

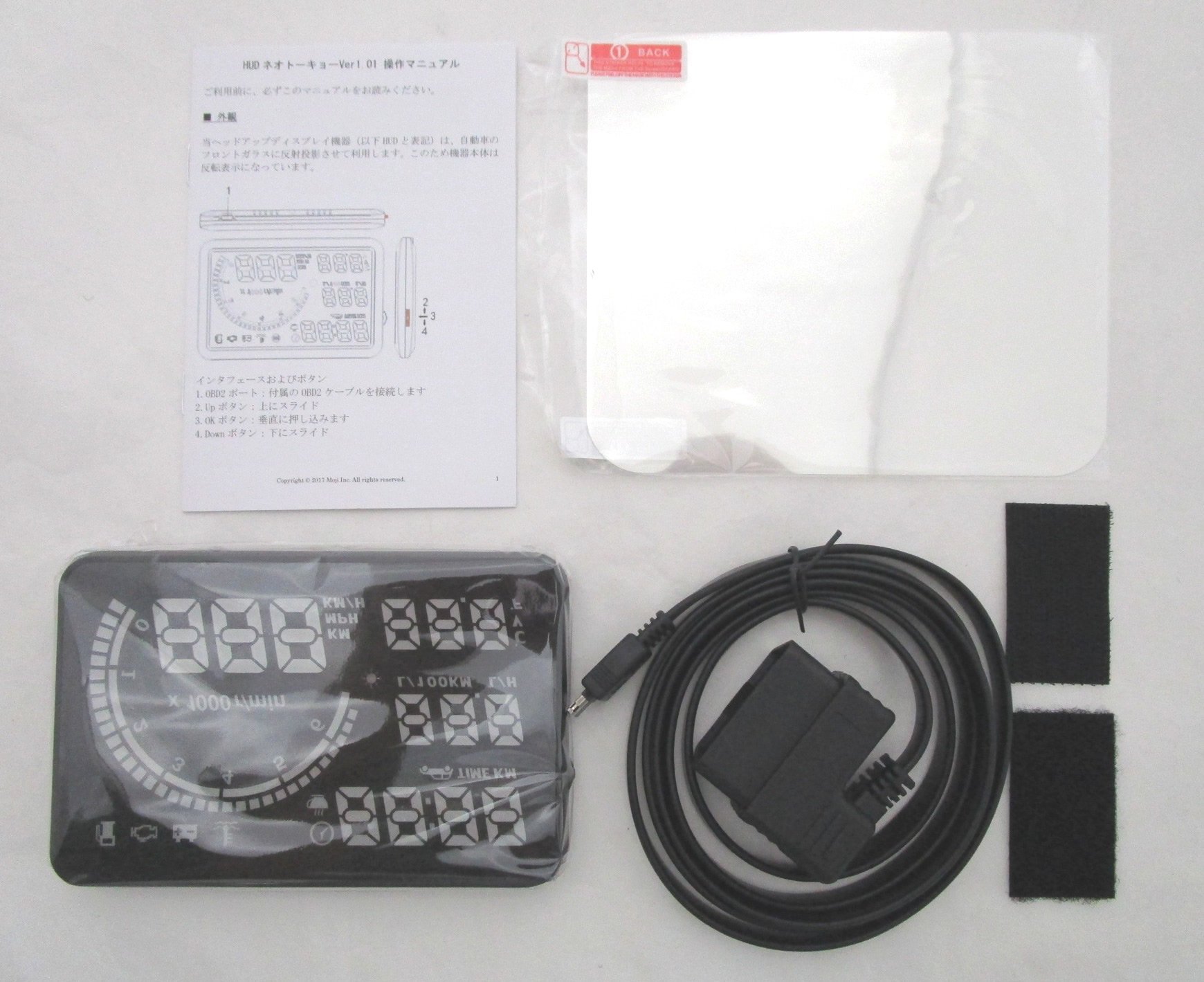

Accessory: Japanese manual, OBD 2 cable, Velcro for fixing, reflective film for display test (14 x 12 cm)

■ Compatible models: New models are on sale from October 2008 onwards, Continued / Imported cars are on sale from September 2010 (hybrid / no diesel)

About OBD 2

The following models are equipped with OBD 2.

1.

New model car: released since October 2008

2.

Continuing car / imported car: released since September 2010

In the previous car,

Even if the OBD 2 connector is equipped, it will not operate correctly because the communication method is different.

Whether your car is compatible with OBD 2, you will ask directly to the car maker, or search on the keyword such as "(model name + year) OBD 2" on the internet or a seal of OBDII CERTIFIED in the engine room

Please make sure that it is affixed.

In addition to OBD 2, it supports European EUOBD standards.

Corresponding protocol: J1850 PWM, J1850 VPW, ISO 9141/14230, CAN H, CAN L

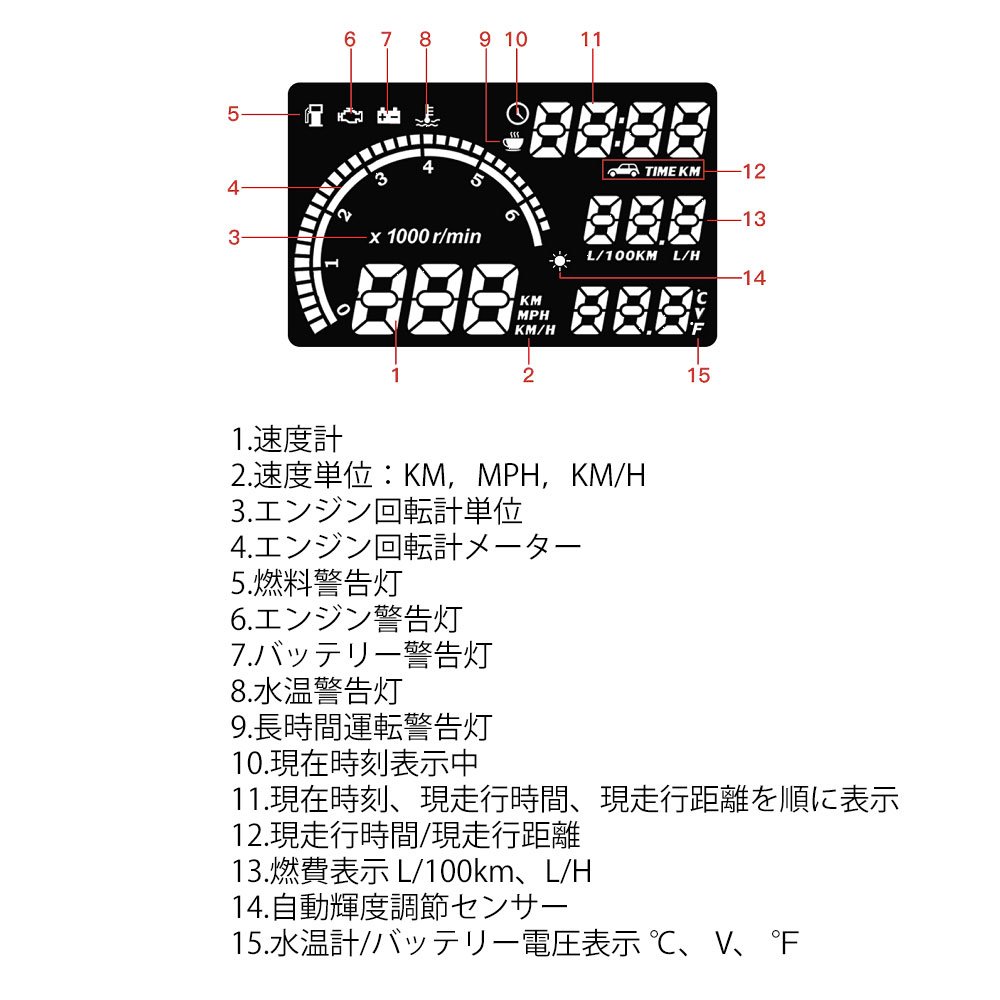

1. Speedometer: Current speed is displayed.

Blinking and warning when speed is exceeded

2. Unit of speed: KM, MPH, KM / H

3. Engine tachometer display

4. Engine Tachometer Meter

5. Fuel warning light: blinking with less than 10% of gasoline (not depending on vehicle type)

6. Engine warning light: Lit when the engine is in trouble

7. Battery warning light: Flashes when the voltage becomes less than 12 V and warning

8. Water Temperature Warning Light: When the water temperature becomes 130 degrees or more or less than 10 degrees, it blinks and warning

9. Long-term driving warning light: Flashes and warns when continuous operation is over 2 hours.

Then blink every hour

10. Current time displayed

11. Display current time, current travel time, current travel distance in order

12. Current travel time / current travel distance displayed

13. Mileage indicator L / 100 km, L / H

14. Automatic brightness control sensor

15. Water temperature gauge / battery warning voltage display ° C, V, ℉

Adopting 5.5 inches high brightness multi-color LED, it is easy to see even during the day.

Auto power ON / OFF, with automatic brightness control sensor.

Accessories: Japanese manual, OBD 2 cable, Velcro for fixing, reflective film for display test

Operating temperature: -20 ° C to + 70 ° C

Power supply voltage: 12 V

■ Frequently Asked Questions

Q. Can I install it in my car too?

A. You can install it if it meets the following conditions.

From this time on, the OBD 2 standard was unified and required to be equipped.

1.

New model car: released since October 2008

2.

Continuing car / imported car: released since September 2010

Hybrid / diesel car not supported

And we are.

Q. I have an OBD 2 connector, but it is an old car before 2008, will it work?

A. In the case of cars before October 2008, even if there is an OBD 2 connector, the communication method will be different, so in many cases it will not work properly.

Q. Where are the producing countries?

A. It is planned in Japan and is manufactured in a factory in China.

I am applying for Product Liability Insurance (PL) insurance in Japan and applying for a registered trademark.

Q. Can you withstand the high temperature of the dashboard?

A. It is designed to be able to operate up to 70 degrees Celsius.

Q. I do not understand the initial setting

A. Even if you do not set anything, if you connect it to the OBD 2 connector, it works for the time being.

If you do not know the settings well, it is recommended that you first connect and try to work, then try using the settings little by little while using them.

Q. Is it necessary to paste a reflective film on the windshield?

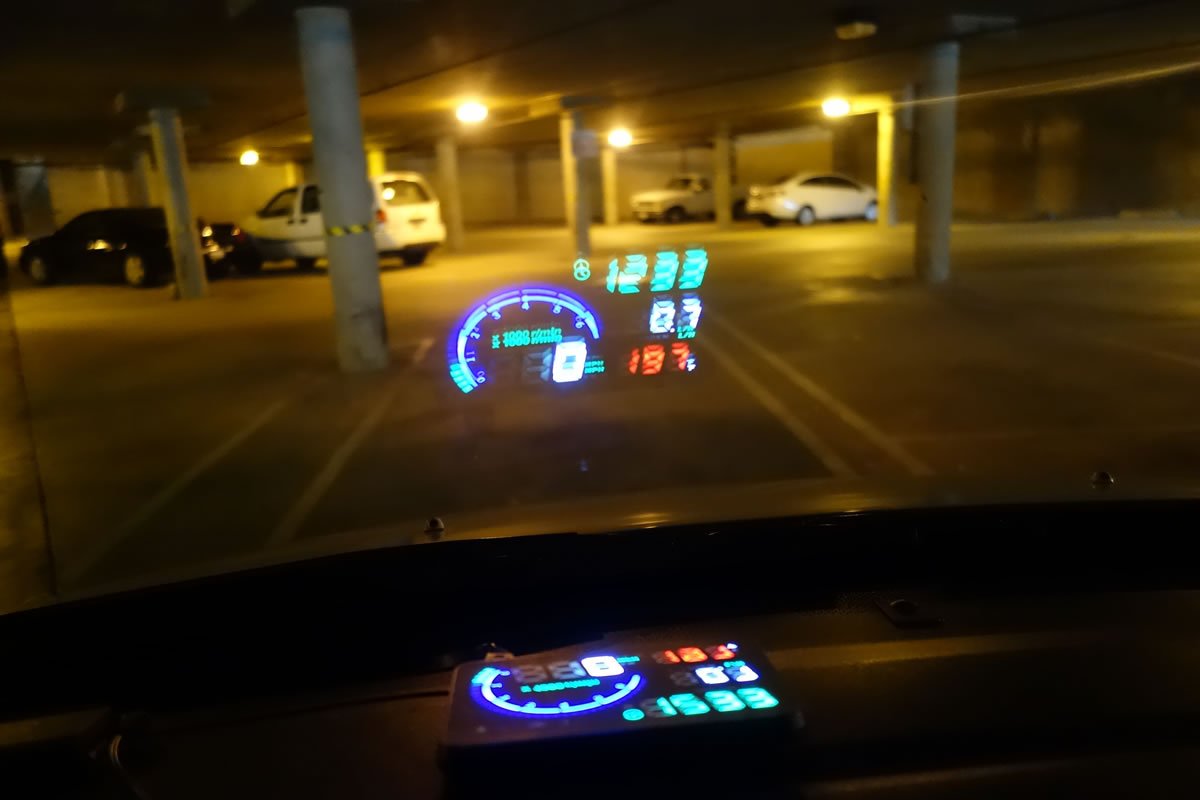

A. Because it adopts high brightness color LED which is easy to see even during the day, it can be used by directly projecting on the windshield.

However, projection images may appear twice depending on the type of glass.

If you are concerned please affix a commercially available film for glass to the projected part (provided that the visible light transmittance of 70% or more is required by law).

* The included reflective film is for display test.

Please do not use on public roads.

Q. Although it is a car with an engine automatic stop starter, it turns off when the engine stops due to signal wait etc.

A. Please change the setting "F - 09" to "001".

Q. Although I turn on the power, it will be short.

Is it the initial malfunction?

A. If the model is not nonconforming, the cause is contact failure of the OBD 2 connector.

If contact is bad, the HUD may not recognize the communication method and may not operate properly.

Please turn on the OBD 2 connector and try again.

There is a possibility that the contact is oxidized, so please try again a few times.

If that's not enough, please contact your dealer.

(At that time, it will be helpful if you can also contact the vehicle type and year type together)

Q. When I turn off the engine the clock will be reset as well

As above, the cause is poor contact of the OBD 2 connector.

Because the watch gets power from OBD 2, it will be reset if the connector loosens while stopping.

Q. When used with other OBD 2 products such as radar detectors, the power supply will be dropped

It can not be used simultaneously with other OBD 2 connected products.

Q. What is the advantage of "HUD NEO TOKYO" over conventional products?

A. It has multiple functions such as clock display, that it is easy to see even during the day by adopting high brightness color LED, that there is support in Japan, with Japanese instructions.

What is "HUD NEO TOKYO"

"HUD NEO TOKYO"

The image of Tokyo in 2020 as seen from the 1980's

It is a head up display series to make driving more fun, with the concept as a concept.

"HUD NEO TOKYO" is a registered trademark application completed by Modji Corporation.

This product is a direct-sale product by the manufacturer.

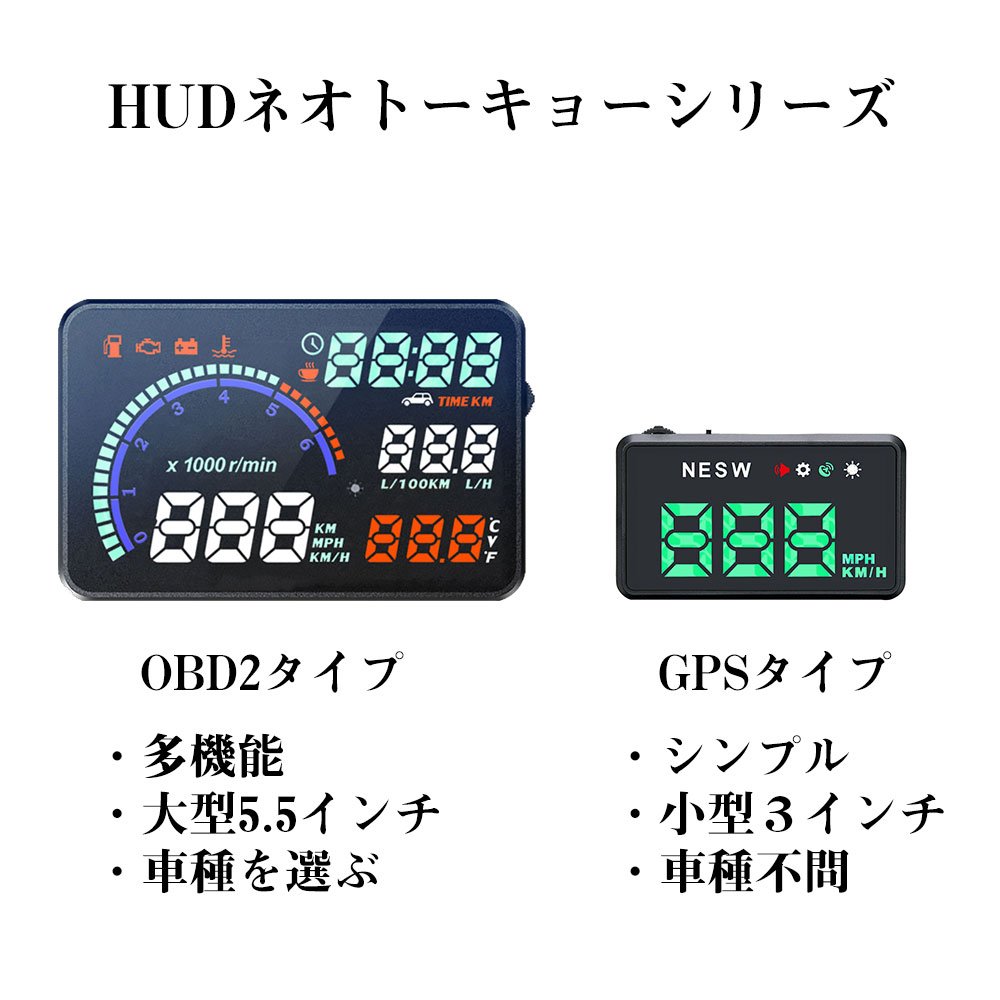

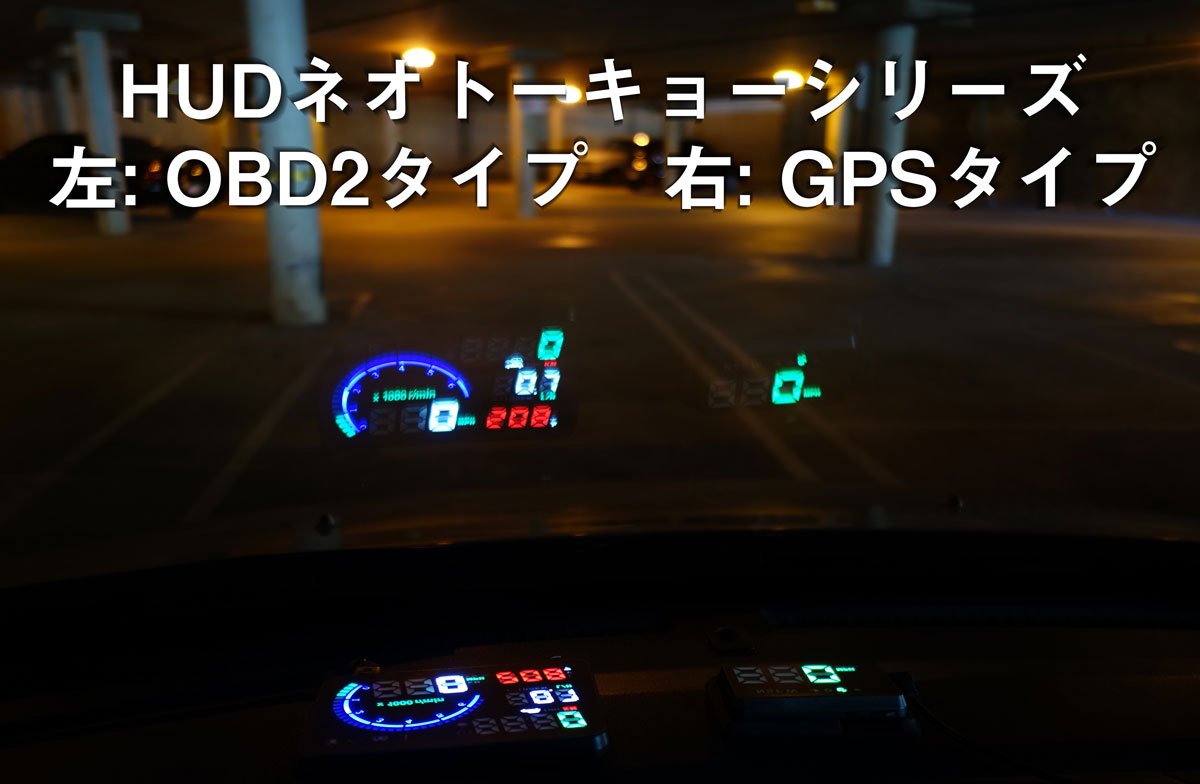

HUD NEO TOKYO GPS-03

https://www.amazon.co.jp/dp/B074MH7RDN

HUD NEO TOKYO GPS-05

https://www.amazon.co.jp/dp/B07831VSBK

Features:

• Speedometer / tachometer / water temperature gauge / clock / fuel consumption etc projected on windshield.
• The movement of gaze decreases, the familiar car window scenery changes to near future SF style!
• With Japanese manual.
• Just connect it to the OBD 2 connector inside the car and fix it to the dashboard, installation is completed in 3 minutes without tools.
• Adopting 5.5 inches high brightness multi-color LED, it is easy to see even during the day.
• Auto power ON / OFF, with automatic brightness control sensor.
• Accessories: Japanese manual, OBD 2 cable, Velcro for fixing, reflective film for display test
• Those who do not match the model, please consider "HUD NEO TOKYO GPS-03" https://www.amazon.co.jp/dp/B074MH7RDN/

Product information:

Shipping Weight: 258 g

Package Dimensions: 5.00 x 13.41 x 17.40 cm
