Item Descriptions:

▼ Product introduction

"6-input 1-output HDMI selector · selector 4K × 2K / 3D / 1080p Full HD compatible with HDCP"

• High resolution

It supports video 4K × 2K output, 3D high quality video is supported, and beautifully high definition HDMI signal can be output.

• Excellent durability

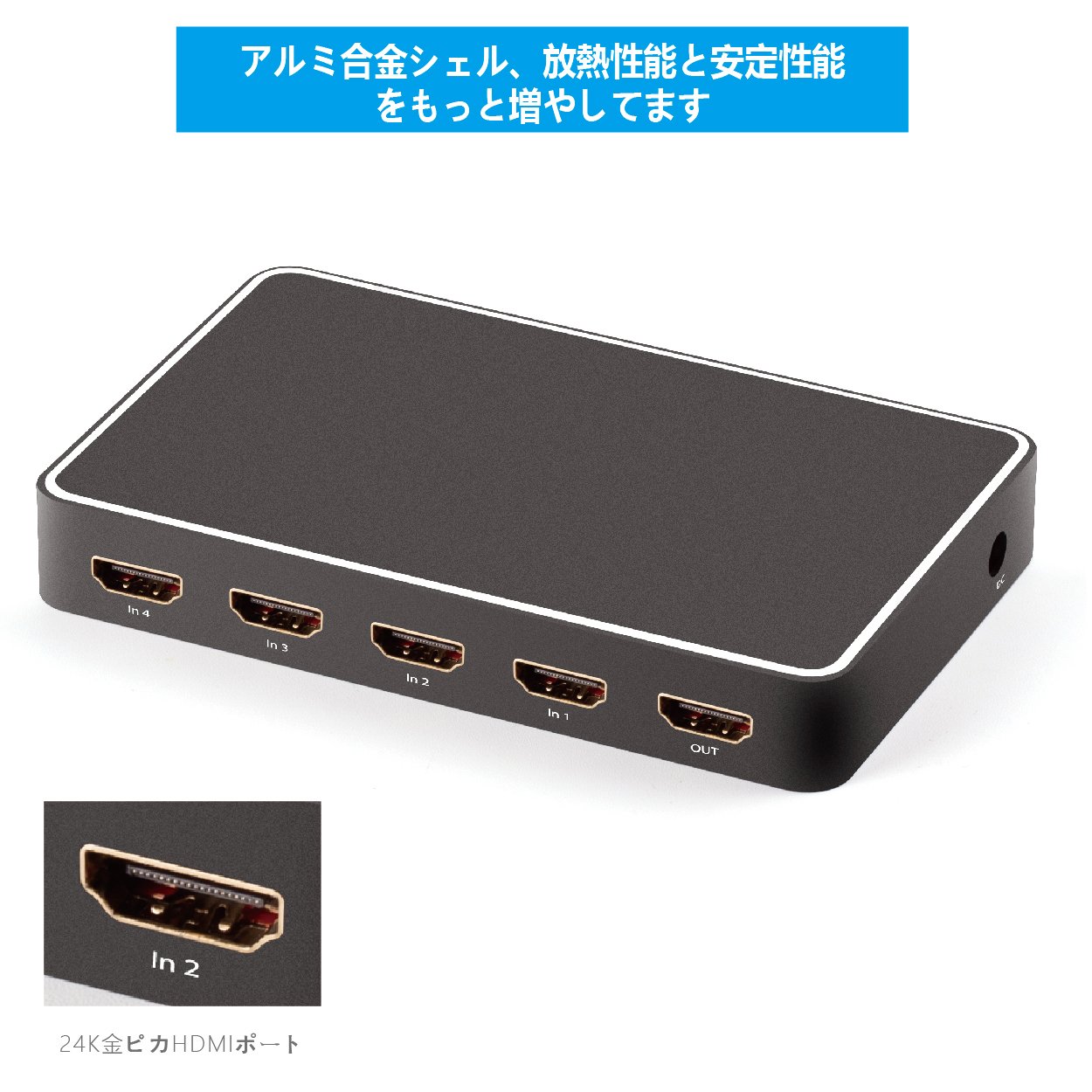

The port is plated with gold, it is strong against rust, it prevents signal deterioration and it can be used for a long time.

• Good quality

By adopting high quality material, avoiding shadows, splash screen etc, you can transmit the original signal with stability and high efficiency.

We are strengthening the cut resistance of internal cables.

The contact resistance is lowered, and image quality sound quality deterioration is prevented.

▼ Product Specification

Input terminal: HDMI terminal X 6

Output terminal: HDMI terminal X1

Applicable equipments: Video equipment with HDMI output terminal as standard equipment · Game console for home use · Personal computer etc.

Supported output devices: TV and PC display standard equipped with HDMI input terminal etc.

Maximum resolution: 4 Kx 2 K @ 30 Hz (Full HD 1080 p image quality supported)

3D compatible: by 1080p @ 60Hz

Supported audio signals: LPCM 7.1 CH, Dolby True HD, DTS-HD Master Audio

Corresponding signal: NTSC / PAL (switchable)

Switching method: body button · IR remote control

Version: HDMI 1.4

Copyright protection: HDCP 1.4 compatible

Power supply specification: DC 5 V / 1A (PSE certification / Japan specification)

Power input: USB charging support

Size: 132 (length) X 20 (height) X 84 (width) mm

Weight: 449 g

▼ Package contents

1 * HDMI switch 6 input 1 output

1 * DC 5 V / 1A adapter (PSE authentication)

1 * IR remote control

1 * Simple manual (English)

▼ Product warranty

We will exchange the product as initial defect within 15 days after purchase.

There are two years' safe quality assurance.

※ Although the warranty card is not attached, we manage the warranty period etc. by order number.

▼ Caution

1. There is no distributor function.

It is impossible to connect one device to multiple displays and switch.

2. If sufficient power is not supplied, the operation becomes unstable.

In that case, please use USB cable while connecting power supply.

Please use it.

※ Please prepare USB cable separately.

3. For products, we are guiding specifications on the product page, but due to product improvement due to product availability, package design and actual product design / specification may change without prior notice.

4. Products and items delivered The design and specifications of the guide may differ, but it is not bad.

5. If you have any questions or concerns, please do not hesitate to contact HEJSNAG Customer Service for any small issues.

Features:

• Please enter model number Confirm this is compatible:
• 【6 port HDMI switching unit】 It is possible to output video by switching 6 video output devices (Blu-ray · STB · PS 3 · camera · PC · game machine etc) to one HD TV · monitor etc. just by connecting
• It is 6X1HDMI selector.
• 【High Resolution · 3D Support】 High definition resolution is available up to 4 KX 2 K (3840 x 2160 @ 30 Hz).
• It is compatible with 3D video and full high definition high definition video so you can enjoy it with high picture quality!
• Encrypt the path for sending and receiving digital signals and support HDCP to prevent unauthorized copying etc of contents.
• Even encrypted data can be read accurately.
• [Remote operation] With convenient remote control, you can respond promptly without touching the direct switch.
• You can also switch with the button on the main unit.
• Both are applicable.
• If power can be supplied from USB and operation becomes unstable, you can connect the USB cable and supply power.
• Wiring is also refreshing, easy to handle.
• [Wide range available] It is possible to connect game machines such as DVD players, Xbox and PCs.
• Ideal for use in living room where many HDMI equipment is.
• It is widely used, for example, it is a multifunctional HDMI switcher indispensable for scenes such as home theater, multimedia, corporate video conference, sales promotion video of sales floor, educational setting, shop front advertisement and advertisement.
• You can see the 6 circuits in use at a glance with the LED light.
• Because it is ultra lightweight and compact type, it can be installed without taking up space and is easy to carry.
• 【Package contents】 HDMI 6X1 switch, DC 5V / 1A adapter (PSE certified / Japan specification), IR remote control, simplified manual (English) ★ There are 2 years quality assurance.
• ★ There is safe quality assurance for 2 years.

Product information:

Shipping Weight: 449 g

Package Dimensions: 5.99 x 11.99 x 16.61 cm
