Item Descriptions:

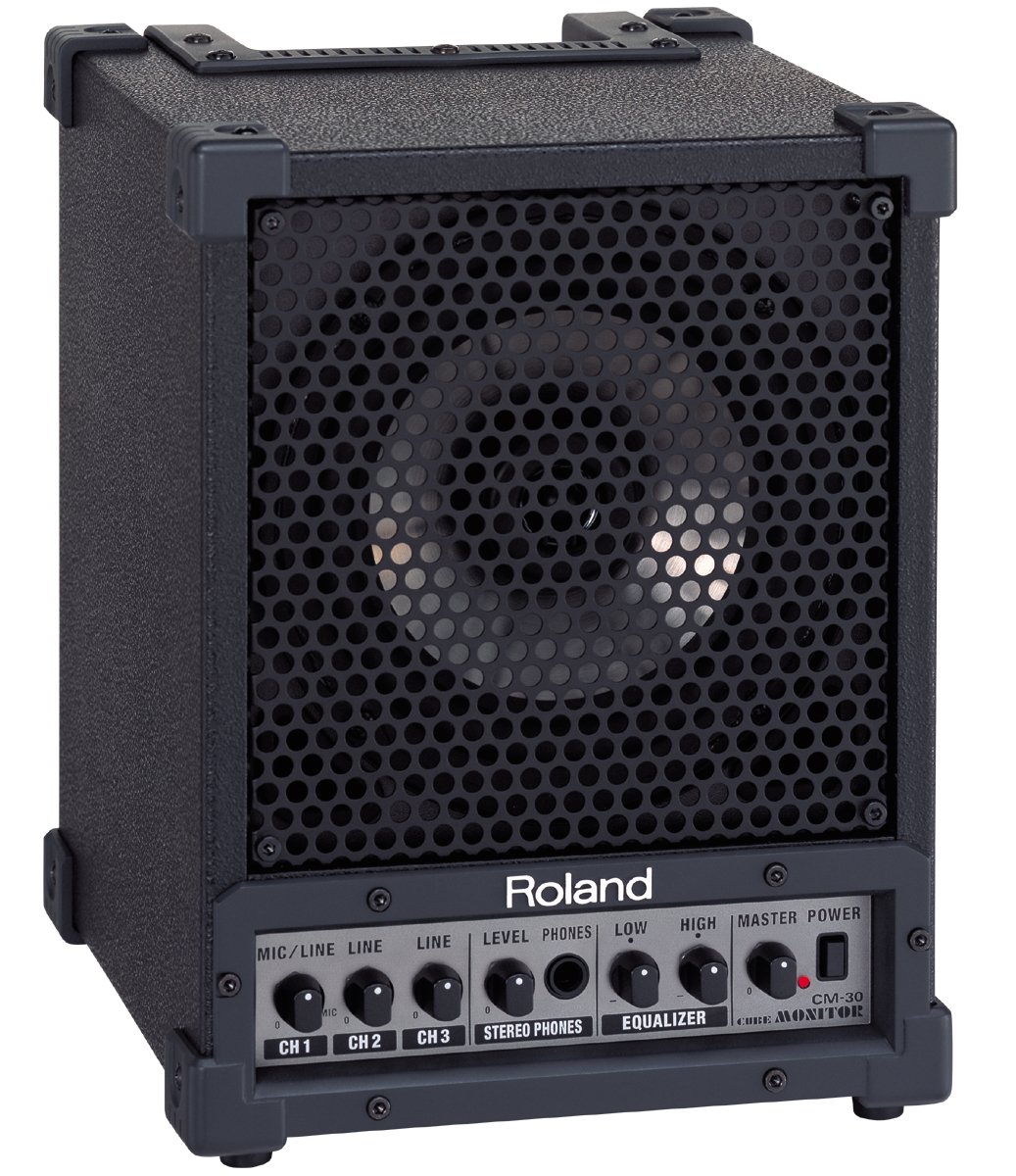

Powerful compact multipurpose monitor amplifier with sound quality and function unique to the CUBE series

CM-30 is a portable mixing monitor that can be used for multi purpose purposes.

A compact output of 30 W is realized.

A new concept monitor amplifier that inherits the robustness of the popular CUBE series and has a variety of mixing functions.

Multifunctional 30 W mixing and monitoring

The CM - 30 is equipped with a compact body but coaxial two - way 6.5 - inch magnetism speaker unit, achieving 30 W output.

As a small-scale PA for live performance in various styles, as well as a simple PA in the store / event etc., as an amplifier for the performance, furthermore a monitor speaker in the live stage, a monitor amplifier of the home practice / stage combination

The best model as well.

Speaker unit has improved rigidity by installing newly developed titanium vapor-deposited PP injection cone, realizing clear sound quality without distortion.

And compact, lightweight design of about 5.6 kg is thorough, equipped with built-in handy grip which is convenient to carry.

Moreover, it is a robust cabinet with a metal grill cover and a corner protector, it can be used with confidence in heavy youth.

In addition, it can also be used by being attached to a general-purpose microphone stand.

By adjusting the height of the microphone stand, it can be installed at the optimum height.

Preamplifier part of stereo specification which can connect / mix various devices

In addition to the microphone / line input (CH 1) equipped with the XLR / standard jack, the CM - 30 is equipped with stereo input CH 2, CH 3 and RCA pin · jack (stereo) AUX IN 1, stereo mini

Jack's AUX IN 2 corresponds to a total of five lines of input.

Mixing / playback can be performed by simultaneously connecting an audio device such as a microphone and an MD / CD player, a keyboard and the like.

Since the preamplifier part is stereo specification, when using headphones, it is possible to monitor in stereo even with CM - 30 alone.

Also equipped with a 2-band equalizer, tone quality adjustment is possible according to the usage environment.

It can be easily set and used in various places / applications.

In addition, since the front panel is equipped with a headphone jack with independent level knob, you can also monitor with headphones at home practice.

Moreover, since the preamplifier part is a stereo specification, when using headphones, it is possible to monitor in stereo even if it is standalone.

Stereo playback & 10 lines input possible with stereo link

It connects two CM-30 with a cable, and it corresponds to a stereo link which can easily perform stereo playback.

Setting is completed by simply connecting STERO LINK OUT (L / R) of one CM - 30 and STEREO LINK IN of the other CM - 30.

Also, by connecting the outputs of both stereo link outs to STEREO LINK IN, the input channel of either CM - 30 becomes valid.

In this case, it is possible to mix up to 10 inputs.

Features:

• Please enter model number Confirm this is compatible:
• Rated output: 30 W, Speaker: 16 cm Coaxial 2 way system (magnetic shield type)
• Control: Channel knob x 3, headphone knob, equalizer knob (LOW, HIGH), master knob, power switch
• Indicator: Power, connection terminal: <CH1> MIC / LINE IN (XLR type, standard type), <CH2, CH3> LINE IN (standard type = L / R <MONO>),
• Stereo link (standard type = IN, OUT <L / R>), AUX IN 1 (RCA pin type = L / R) / 2 (stereo mini type), headphone (standard stereo type)

Product information:

Shipping Weight: 6803 g

Package Dimensions: 29.21 x 31.80 x 34.80 cm
