Item Descriptions:

size:

hdmi to av Black

Car navigation and analog TV revive

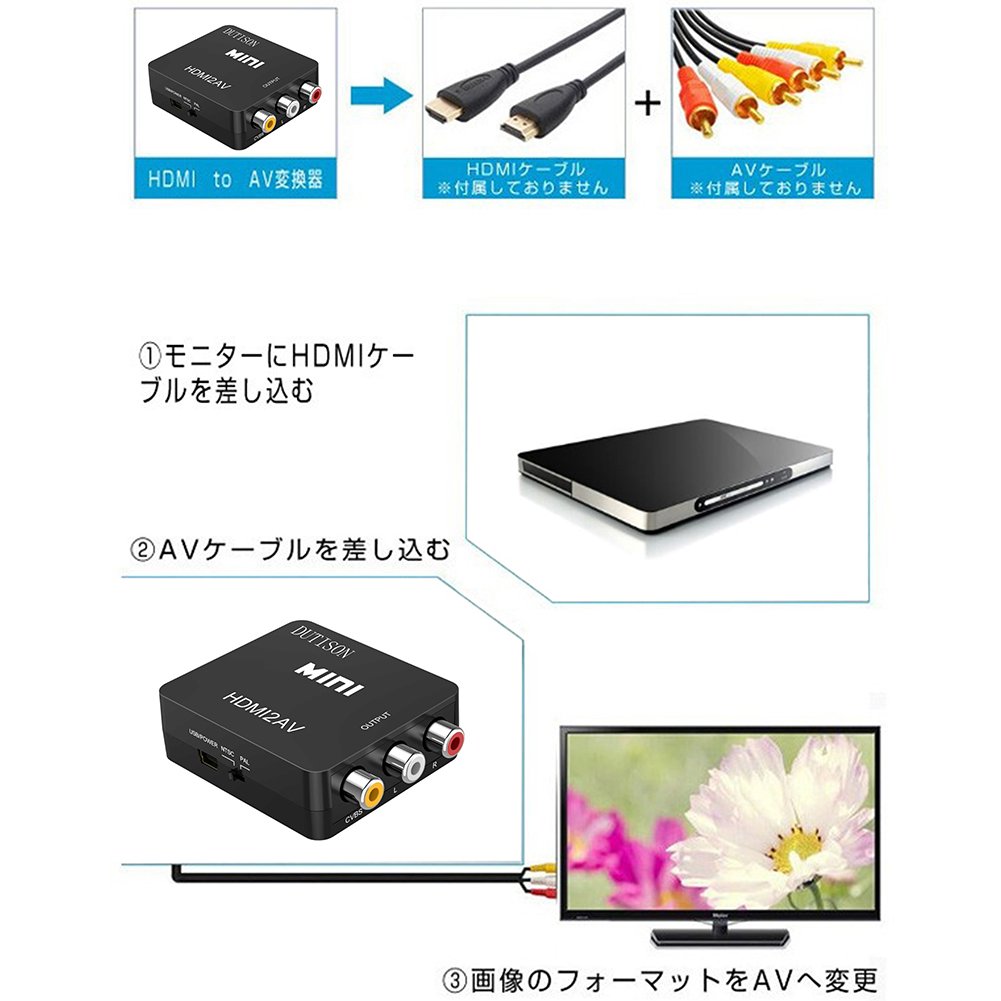

[HDMI 2 AV connection order]

1.

Connect the RCA composite cable to this product and display.

2.

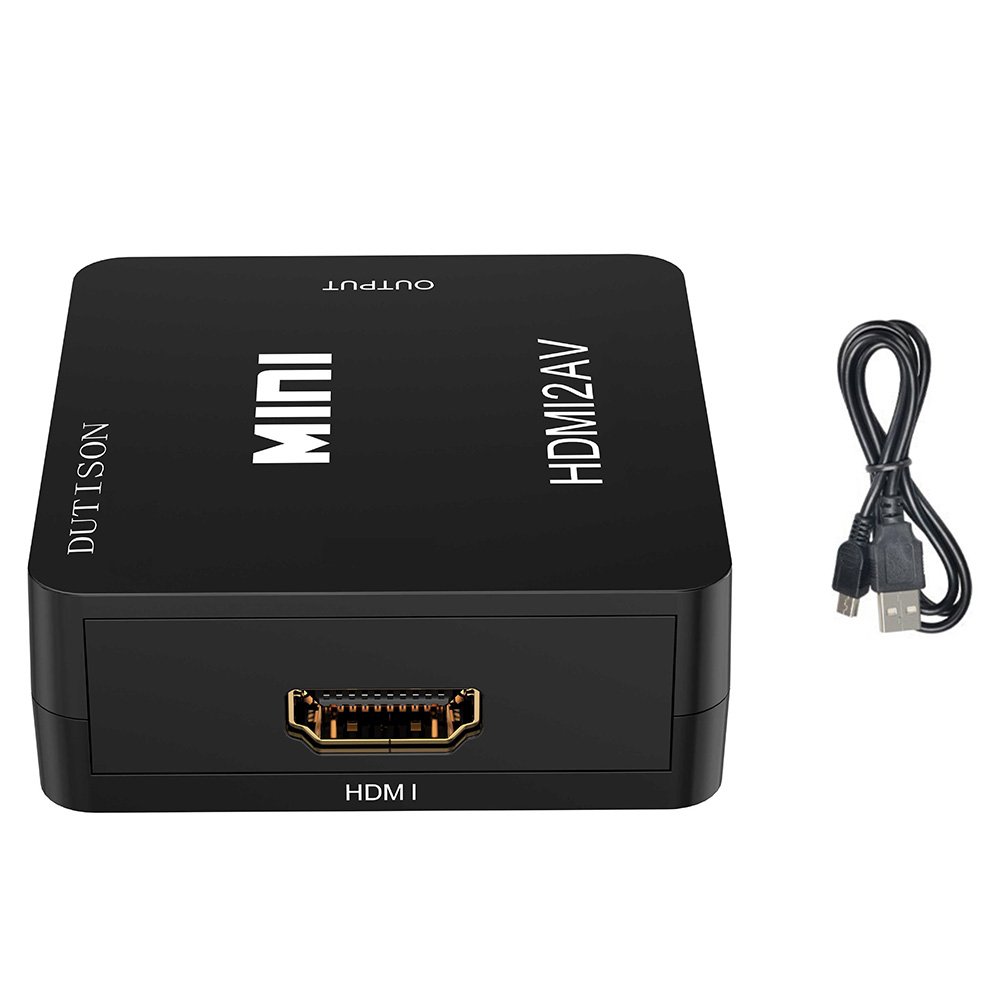

Connect the Mini USB power feed cable to this product and power from 5 V 500 mA / 1A.

3.

Please connect the HDMI cable to this product and HDMI input device (PS, XBox, DVD, PC etc).

【How to check HDMI 2 AV display error】

1.

Make sure that the input signal source has a resolution of 1080P or 1080P or less.

It can not be displayed when the input signal is 1080P or more.

2.

Do not select "Automatic switching" for the resolution of the input signal source.

The signal may not be recognized or switched at automatic resolution.

3.

If you are connecting the HDMI to AV for the first time and the signal is not displayed, restart the signal source device.

Please make sure to supply USB power supply of 4.5 V / 1A or 500 mA.

If it is greater than 5 V or more than 1 A, completely destroy the product.

【specification】

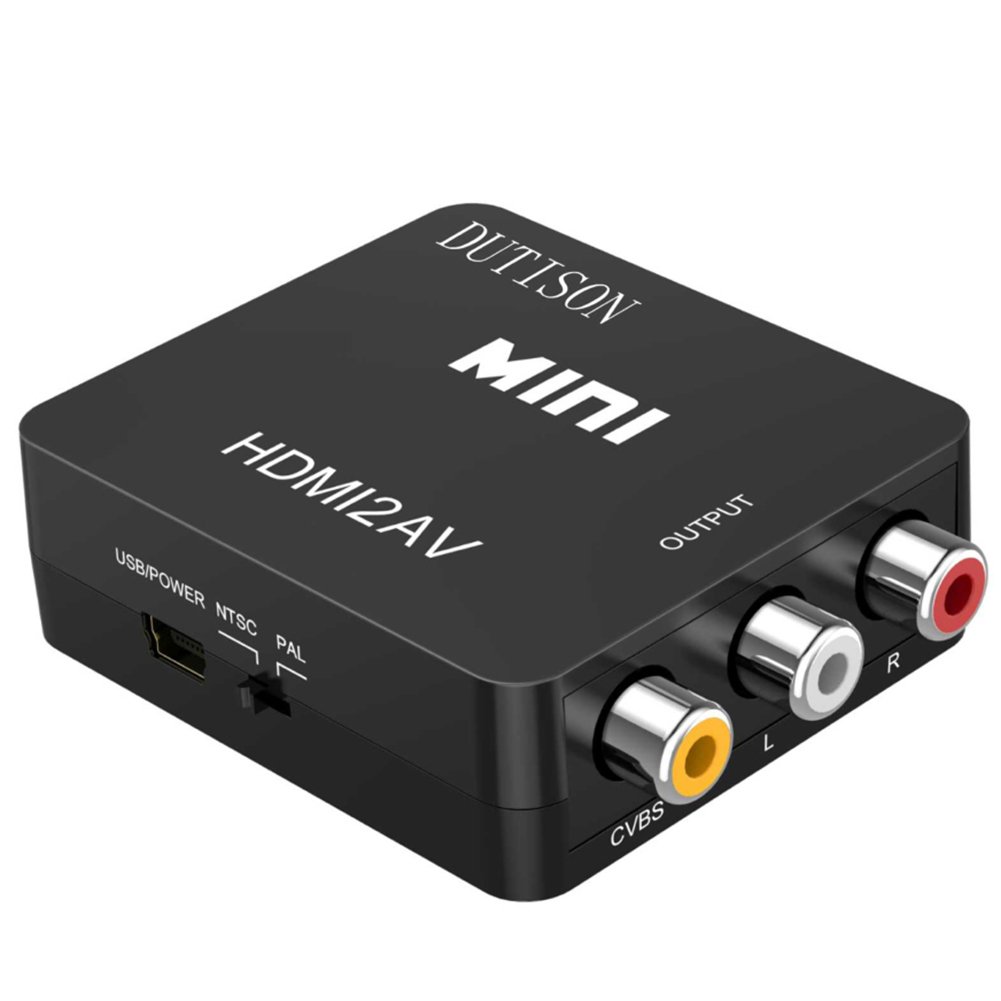

■ Input terminal: HDMI terminal * 1

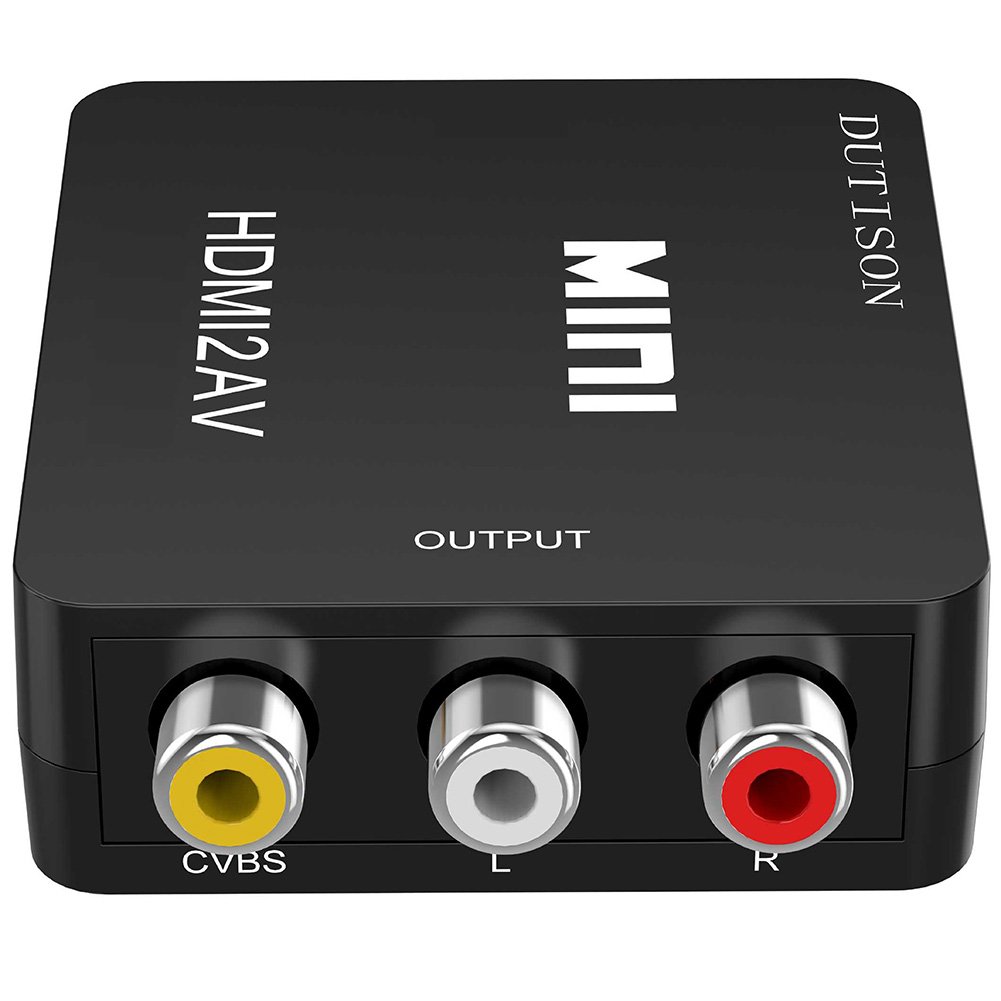

■ Output terminal: AV (3 * RCA) Composite

※ Video / analog audio L / R each * 1

■ Input signal: Signals up to 1080P / 60Hz

■ Output signal: 720P / 1080P (at 60 Hz)

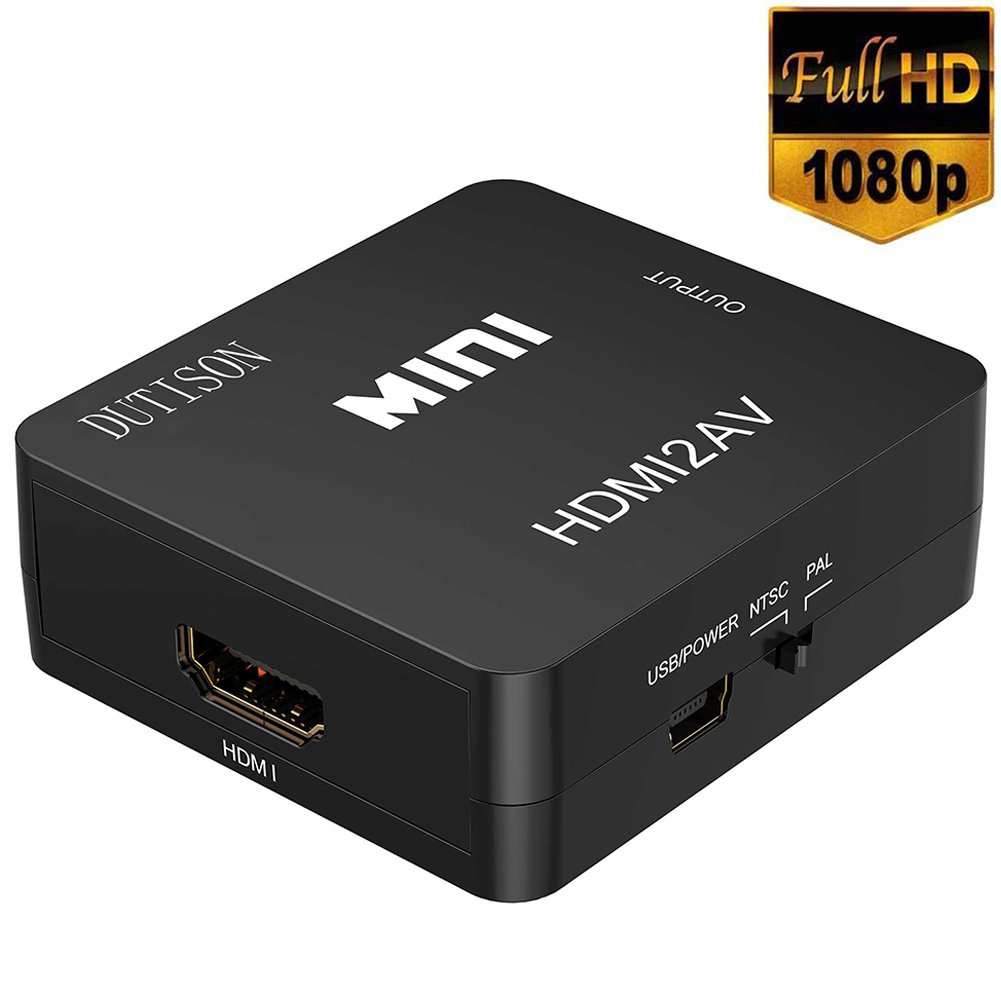

■ Supported signals: NTSC / PAL

■ Power supply specification: DC 5V 1A

■ Size: about 6.3 x 5.5 x 2.0 cm (L x W x H)

■ Color: Black

Weight ■: Approximately 41 g

■ Operating environment: temperature 0 to 60 ° C, humidity 5 to 90%

Resolution: 640 × 480 @ 60 Hz, 800 × 600 @ 60 Hz, 1280 × 720 @ 60 Hz, 1280 × 1024 @ 60 Hz 1360 × 768 @ 60 Hz, 1600 × 1200 @ 60 Hz, 1920 × 1080 @ 60 Hz, 480 P 60 Hz, 480 i 60 Hz,

576i 60 Hz, 720 p 50/60 Hz, 1080 I 50/60 Hz, 1080 p 50/60 Hz

【specification】

■ This product converts HDMI image to composite terminal and outputs it, it does not output HDMI image as it is.

■ Depending on the image source, it may become blurred or characters may be blurred due to resolution reduction during analog conversion.

■ When sufficient electric power is not supplied from the HDMI port such as a mobile device, the operation becomes unstable.

In that case, connect the included USB cable and supply power.

Features:

• Please enter model number Confirm this is compatible:
• 【Specification】 Mini HDMI 2 AV Converter such as HDMI compatible HD camera, game machine, Blu-ray · DVD player, etc. can convert HDMI video signal to analog composite (RCA).
• ※ Can not be used for reverse direction (AV to HDMI).
• It can not correspond to PS4.

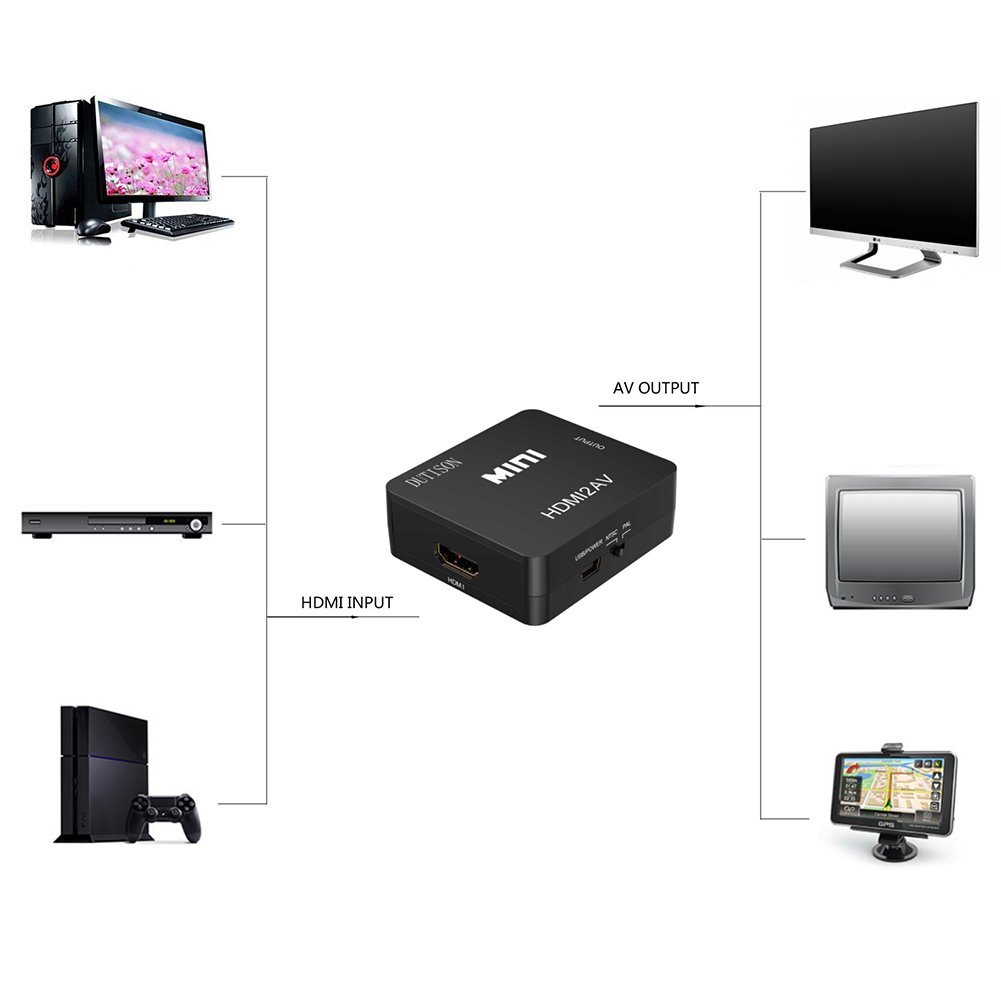

• 【Transfer video & audio at the same time】 You can output analog video & sound source to TV from personal computer, game machine etc compatible with HDMI output!
• It is suitable for AV equipment test, CCTV surveillance, connection between HD PC and old TV, connection between DV and projector, etc.
• It will be a great success at the educational site, business, promotion, conference, exhibition etc.
• [Reliable quality] High-performance IC chip built in HDMI converter.
• To improve the conversion accuracy, it is necessary to reduce the error between the input signal and the output signal.
• This product adopted an IC chip which converts signal more finely and faster than the previous model.
• With this improvement, we succeeded in reducing the error between the input signal and the output signal by about 20% from the previous model.
• [Mini USB power supply] If sufficient power is not supplied from the HDMI port, such as a mobile device, the operation becomes unstable.
• In that case, connect the supplied USB cable and supply from 5 V 500 mA / 1A.
• Resolution: 640x480 @ 60Hz, 800x600 @ 60Hz, 1280x720 @ 60Hz, 1280x1024 @ 60Hz, 1360x768 @ 60Hz, 1600x1200 @ 60Hz, 1920x1080 @ 60Hz, 480P 60Hz, 480i 60Hz 576i 60Hz, 720p50 / 60Hz, 1080I 50 / 60Hz, 1080p50 / 60Hz
• 【Quality Assurance】 We will continue to improve the quality, but there may be defects due to delivery etc.
• Within 3 months, if there are any defects, we will ship new items immediately without returning, so we will be very sorry to trouble you, but please contact us directly.

Product information:

Shipping Weight: 81 g

Package Dimensions: 2.79 x 9.19 x 15.29 cm
