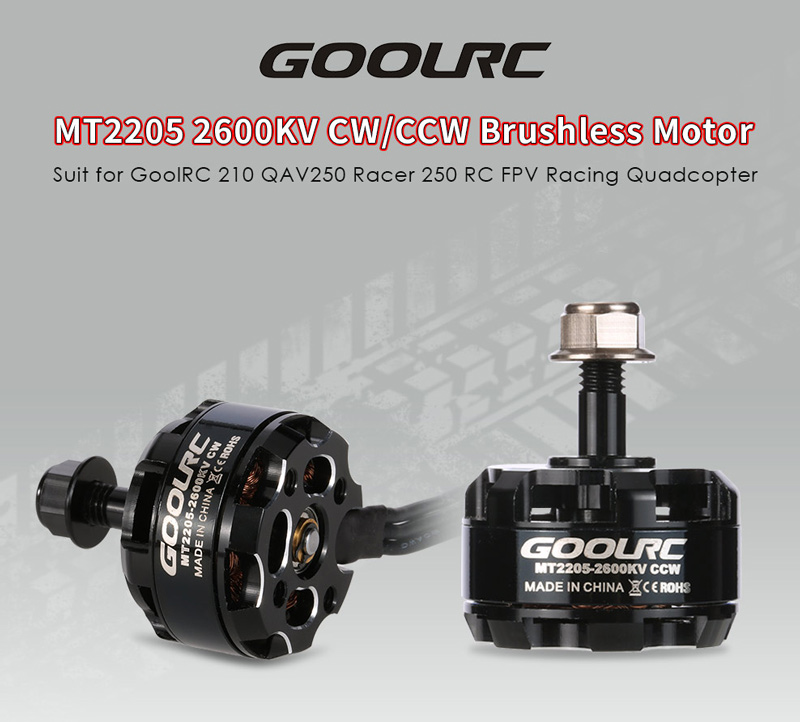

This original GoolRC MT2205 2600KV CW/CCW motor set with high quality and good performance is special for FPV racing drone and DIY player. Good choice for you to enjoy more flying joys.
.jpg)
.jpg)
Features:
14 poles 12 slots hi-torque motor design.
CNC machined 6061 T6 Billet aluminum heatsink can.
High purity copper windings maximizes efficiency.
High RPM ABEC5 oversized bearings.
Precise balanced rotor， smoothness for best reliability and maximum RPM.
Super thin(0.2mm) laminations.
Precise engineering for maximum energy conversion.
Specifications:
Brand: GoolRC
Item Name: CW/CCW brushless motor
Model: MT2205 2600KV
KV: 2600KV

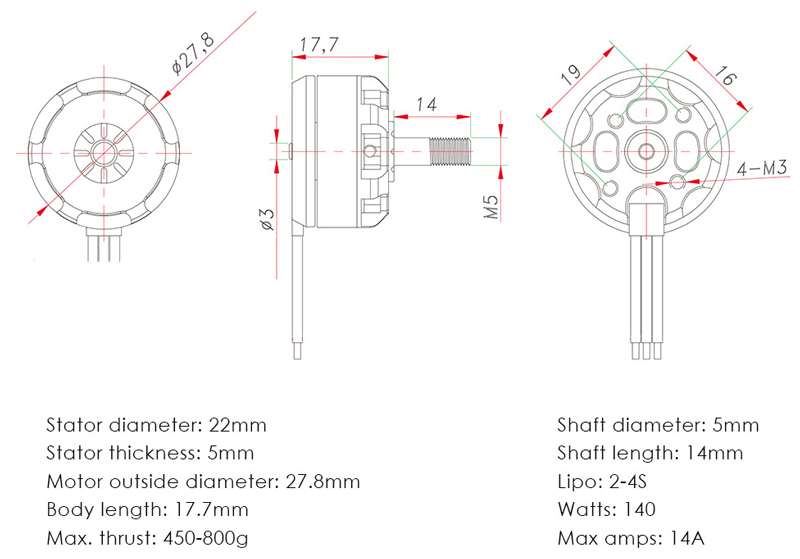

Stator diameter: 22mm
Stator thickness: 5mm
Motor outside diameter: 27.8mm
Body length: 17.7mm
No.of stator arms: 12
No.of stator poles: 14
Shaft diameter: 5mm
Shaft length: 14mm
Lipo: 2-4S
Watts: 140
Max amps: 14A
IO: 0.6A
Resistance: 0.0256
Max. thrust: 450-800g
Item weight: About 31.7g/pcs
Package Information:
Package size: 10.3 * 8 * 6.3cm / 4.0 * 3.1 * 2.5in
Package weight: 157g / 5.5oz
Brand gift box package
Package List:
2 * MT2205 2600KV CW Motor
2 * MT2205 2600KV CCW Motor
$$
$$
$$
$$
$$
$$
$$
$$
