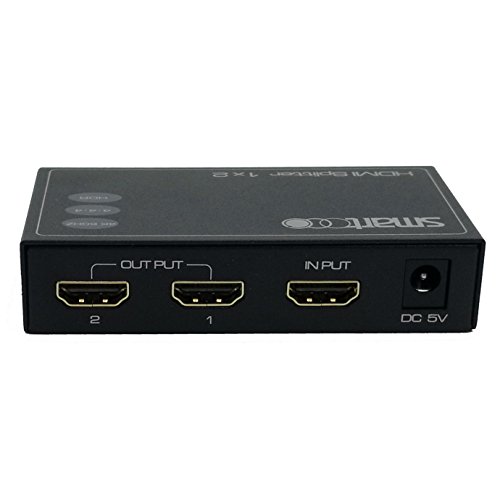

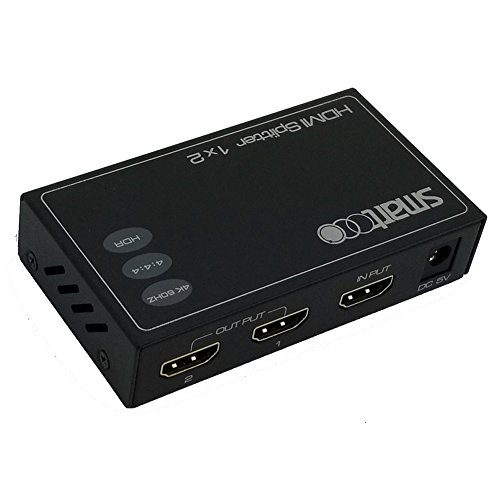

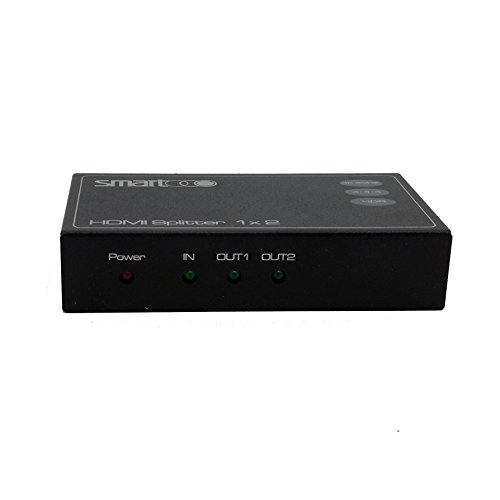

Product Description
Features :
- With HDMI 2.0b Premium Chipset supports HDR, HDCP 2.2, FullHD, UHD, CEC, Deep Color 36bit . Compatible HDMI 2.0b version and lower;
- Supports all common VESA / HDMI resolutions up to 4K 60Hz;
- Supports all current audio formats. Dolby Atmos, DTS: X, LPCM 7.1, DTHD, DD , Dolby True HD etc.;
- Compatible with all current HDR formats, e.g. Samsung SUHD HDR HDR-1000, LG Super Ultra HD HDR 10, Sony 4K HDR Etended Dynamic Range Pro, Panasonic 4K Pro UHD and more;
- HDR BT.2020 compatible up to YCbCr 4K / 24 4: 2: 2 12bit, 4K / 24 4: 4: 4/4: 2: 2 12bit, RGB 4K / 24 12 bit;
- SDR BT.709 compatible up to YCbCr 4K / 30 4: 4: 4 12bit, 4K / 30/60 4: 4: 4 8bit, 4K / 60 4: 2: 2 12bit; RGB 4K / 30/60 8bit;
- Integrated signal amplification and signal processing;
- Possible cable lengths output approx. 25m at 1080p and approx. 10m at 4K / 60Hz HDR by AWG 24 HDMI cable;
- Possible cable lengths Input approx. 20m at 1080p / approx. 5m at 4K / 60Hz HDR by AWG 24 HDMI cable;
- Supports cascade;
- Switch by the button on the product or by IR remote control;
- High quality power supply DC 5V1A, AC 100-240V;
- Dimension (L x W x H): 95.5X53X21(mm) /3.76"x2.09"x0.83";
? Net Weight: 134g/0.3lbs;

Box contents:
1. Main unit 1pcs ;
2. 5V/2A Power Adaptor 1pcs;
3. User Manual 1pcs.

NOTE: The splitter is upgraded to HDMI2.0b physically, but the manual is not updated. And the splitter requires higher standard and quality of HDMI cable with 2.0b, pure copper wire, AWG24 within 5 meters. So when you found a direct connection of the source and TV works normally but with issues of passing HDR when use this splitter, please make sure you get a proper cable. We've tested PS 4 PRO and XBox One S at 4K HDR.
