Item Descriptions:

size:

HSC 8 6-4

Product Features:

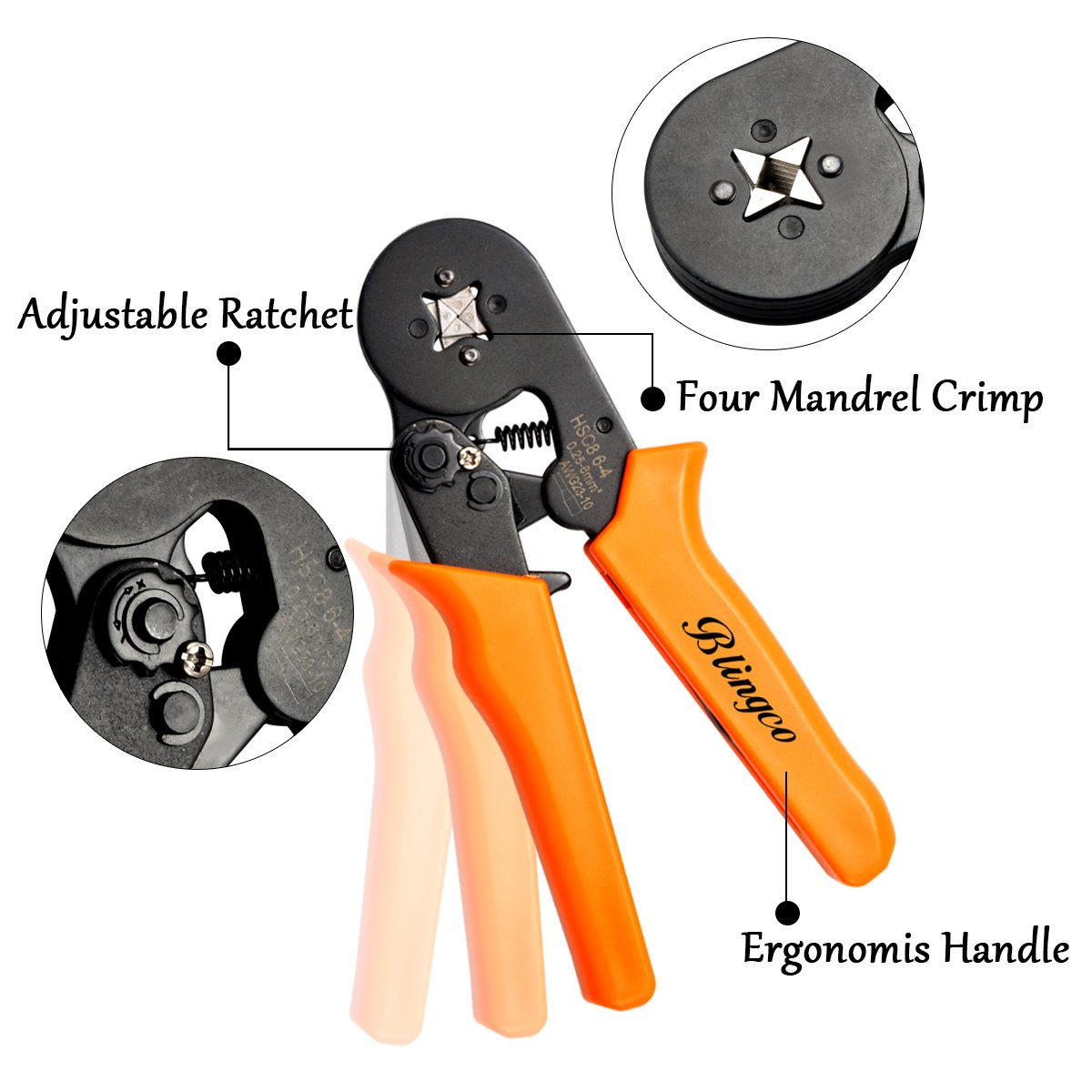

It is a very easy-to-use crimp tool that reduces the adjustable sawtooth steel structure, labor saving, ergonomic conforming design, necessary grip strength to the utmost limit

Special handle design Easy to grip and easy to grip according to the uneven surface of many people's hands, peel off the surface of a special four surface crimp structure, terminals, ferrules etc. quickly and cleanly

High quality steel material raw material international safety standard guarantee

Notes:

1 This item is a tool to use when doing various electric path related work mainly such as electric wire, electric wire, etc. Please be careful of your own safety by all means when working dangerously.

Please understand beforehand that the head office is not responsible in the event of a postponement due to user's carelessness

2 If your terminal or ferrule etc. is too big in diameter, there is a possibility not to put it in the crimping mouth of this pliers, at that time it will be replaced with another thin electric wire or a smaller size of a ferrule, ferrule ferrule, terminal

please.

(Crimp ferrule range: 0.25 - 6.0 mm², AWG 23 - 10)

Product standard:

Color: Orange

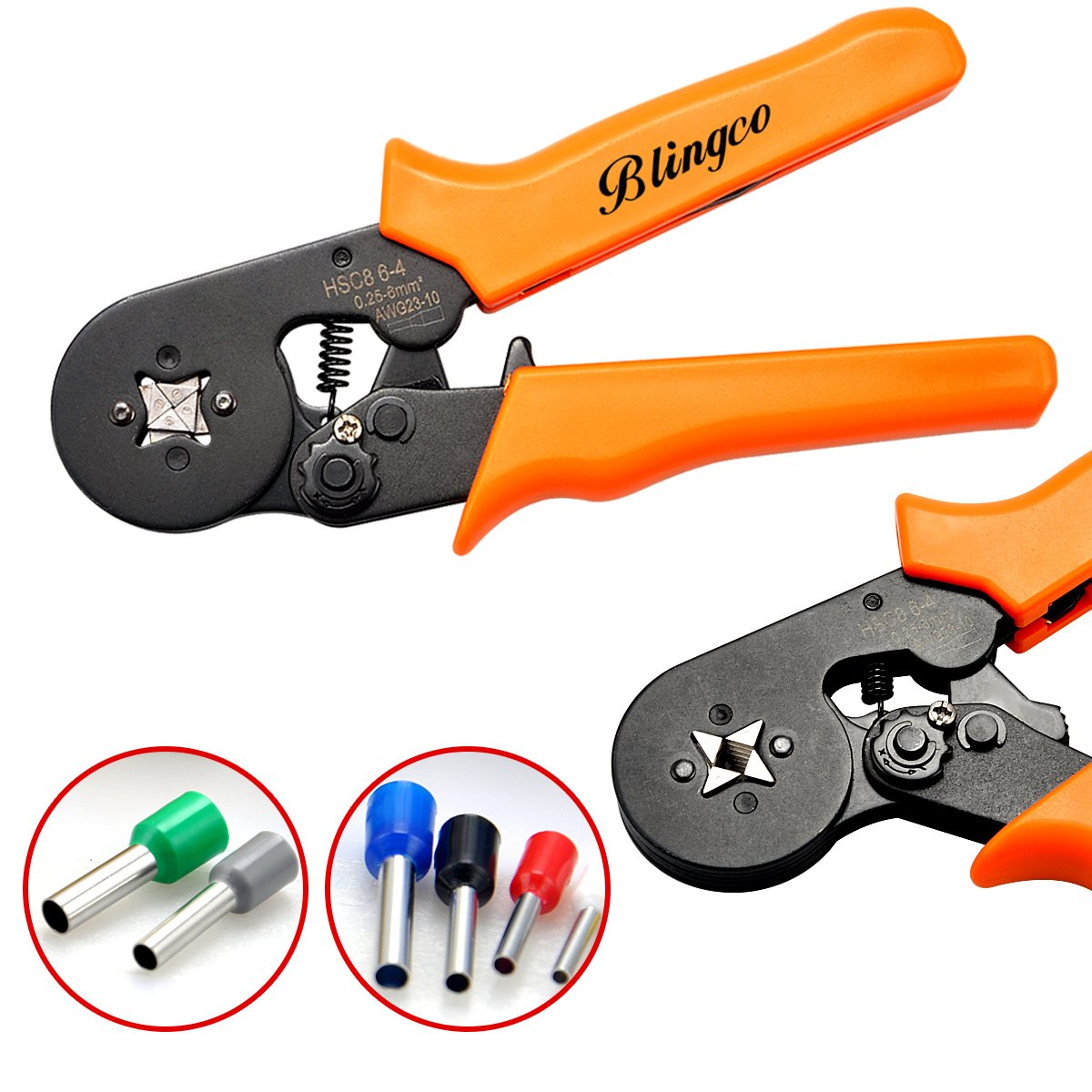

Name: ferrule terminal crimping pliers

Material: Nylon high carbon steel

Crimp range: 0.25 - 6.0 mm²

AWG: 23 ~ 10

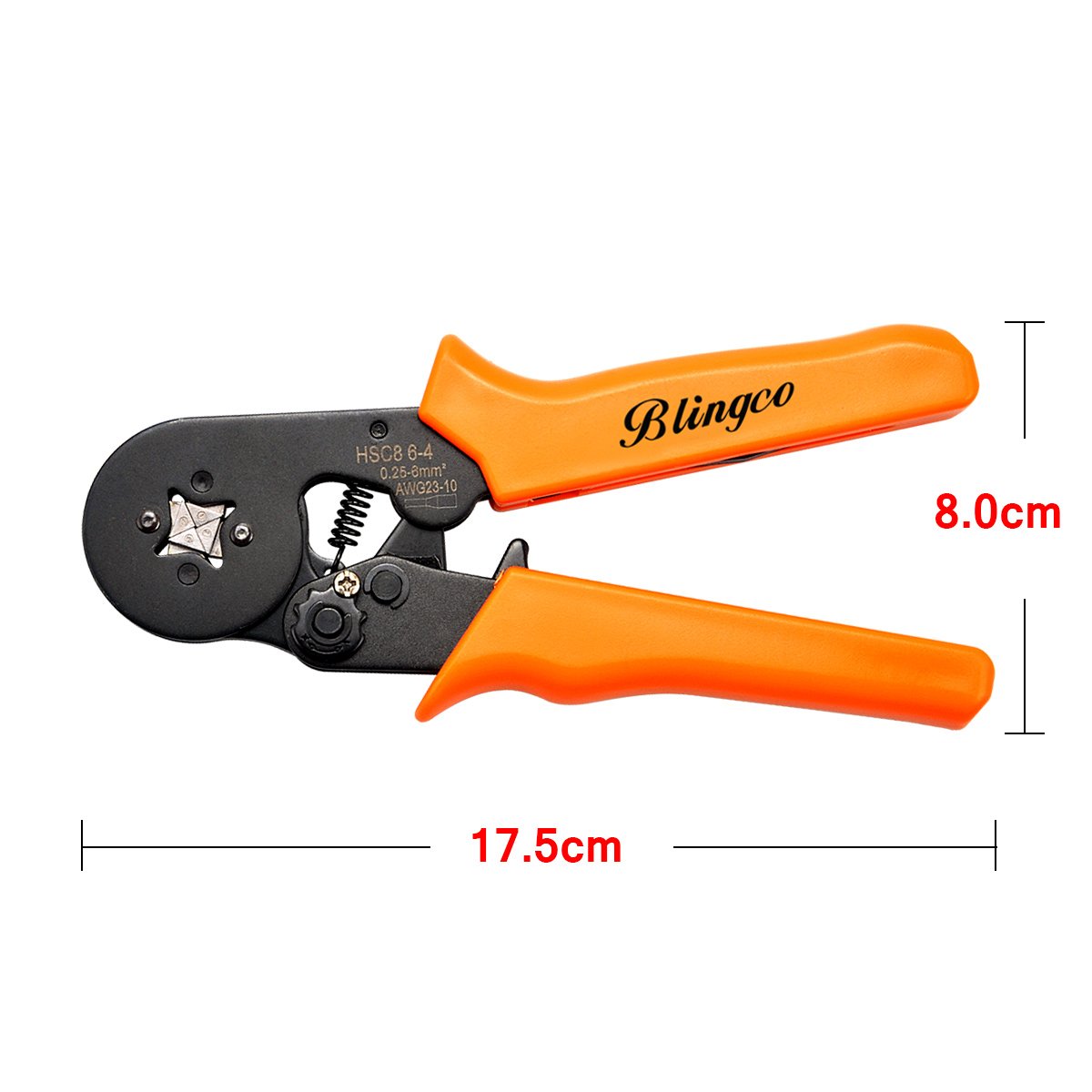

Overall length: 175 mm

Effectively improve the stay design grip strength according to ergonomics

Adjustable sawtooth, lever motion structure to reduce fatigue feeling to the utmost

High quality steel structure, applicable to long-term crimping work

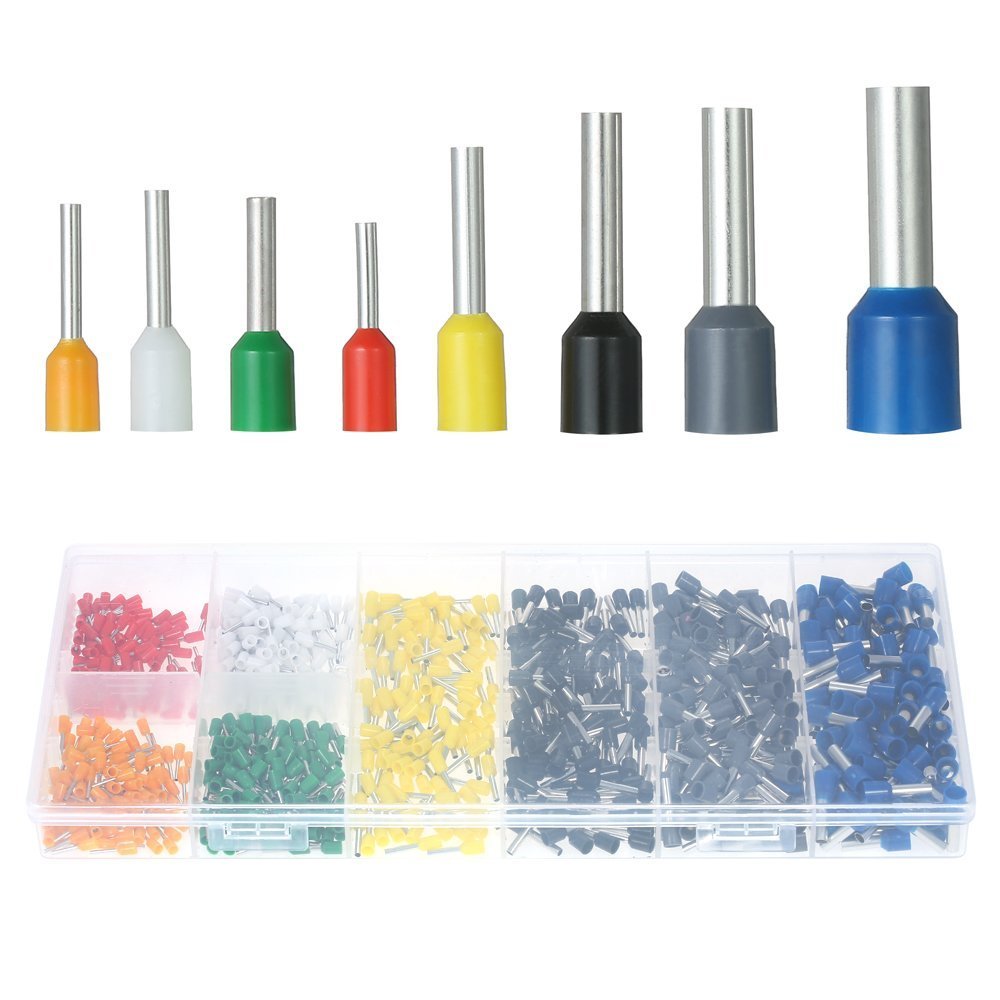

Ferrule terminal standard:

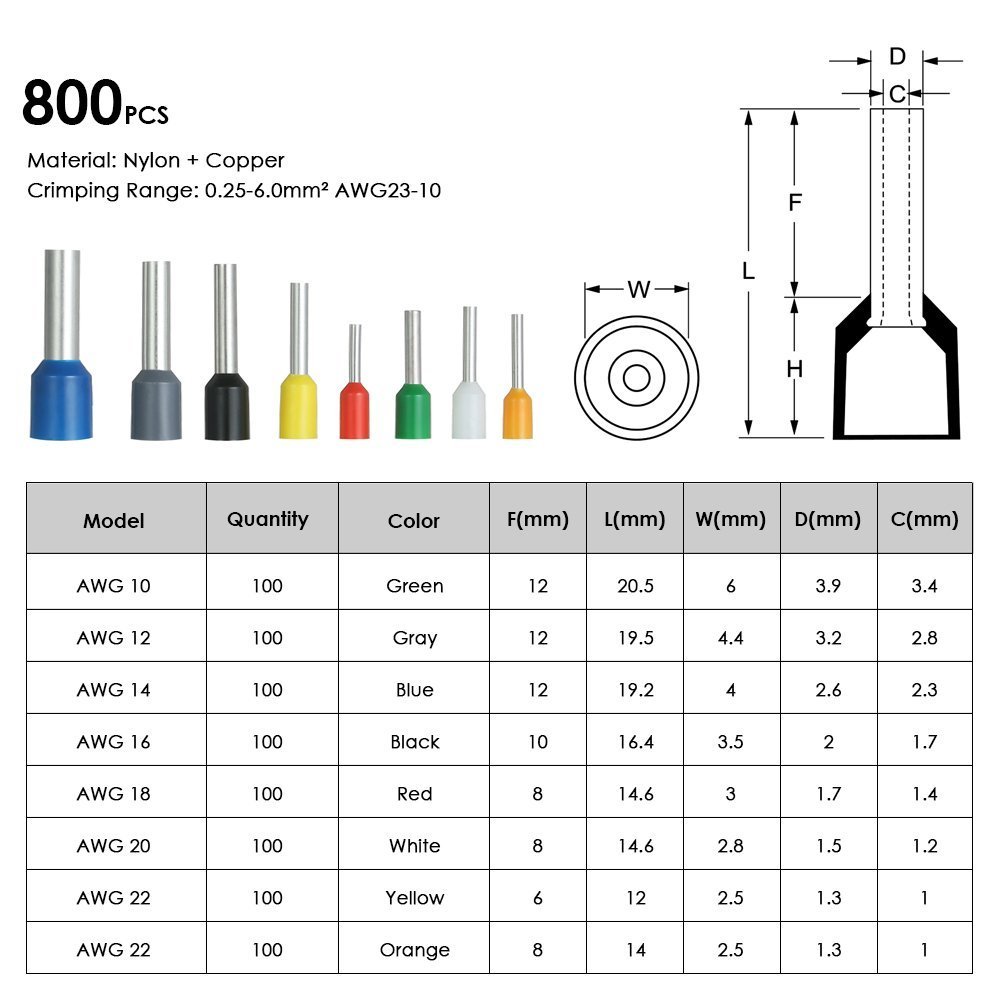

AWG 10 (Green): F: 12 mm, L: 20.5 mm, W: 6 mm, D: 3.9 mm, C: 3.4 mm

AWG 12 (Gray): F: 12 mm, L: 19.5 mm, W: 4.4 mm, D: 3.2 mm, C: 2.8 mm

AWG 14 (Blue): F: 12 mm, L: 19.2 mm, W: 4 mm, D: 2.6 mm, C: 2.3 mm

AWG 16 (Black): F: 10 mm, L: 16.4 mm, W: 3.5 mm, D: 2 mm, C: 1.7 mm

AWG 18 (Red): F: 8 mm, L: 14.6 mm, W: 3 mm, D: 1.7 mm, C: 1.4 mm

AWG 20 (White): F: 8 mm, L: 14.6 mm, W: 2.8 mm, D: 1.5 mm, C: 1.2 mm

AWG 22 (Yellow): F: 6 mm, L: 12 mm, W: 2.5 mm, D: 1.3 mm, C: 1 mm

AWG 22 (Orange): F: 8 mm, L: 14 mm, W: 2.5 mm, D: 1.3 mm, C: 1 mm

F: Length of copper pipe

L: Length of the entire terminal

W: Length of ferrule insulated collar part

D: Diameter of copper pipe

C: inner diameter of copper pipe

how to use:

1 Firstly, pull out the outer cover of the cable to expose the core wire

2-conductor cable is inserted into the ferrule contact and then crimped with specified crimping pliers

3 Connected to crimpable cable, only connected to use related equipment completed

Features:

• Labor-saving design: Rectangular crimping ratchet design, weight saving It is precisely designed according to ergonomics and can reduce grip strength up to 30% than ordinary crimping pliers.

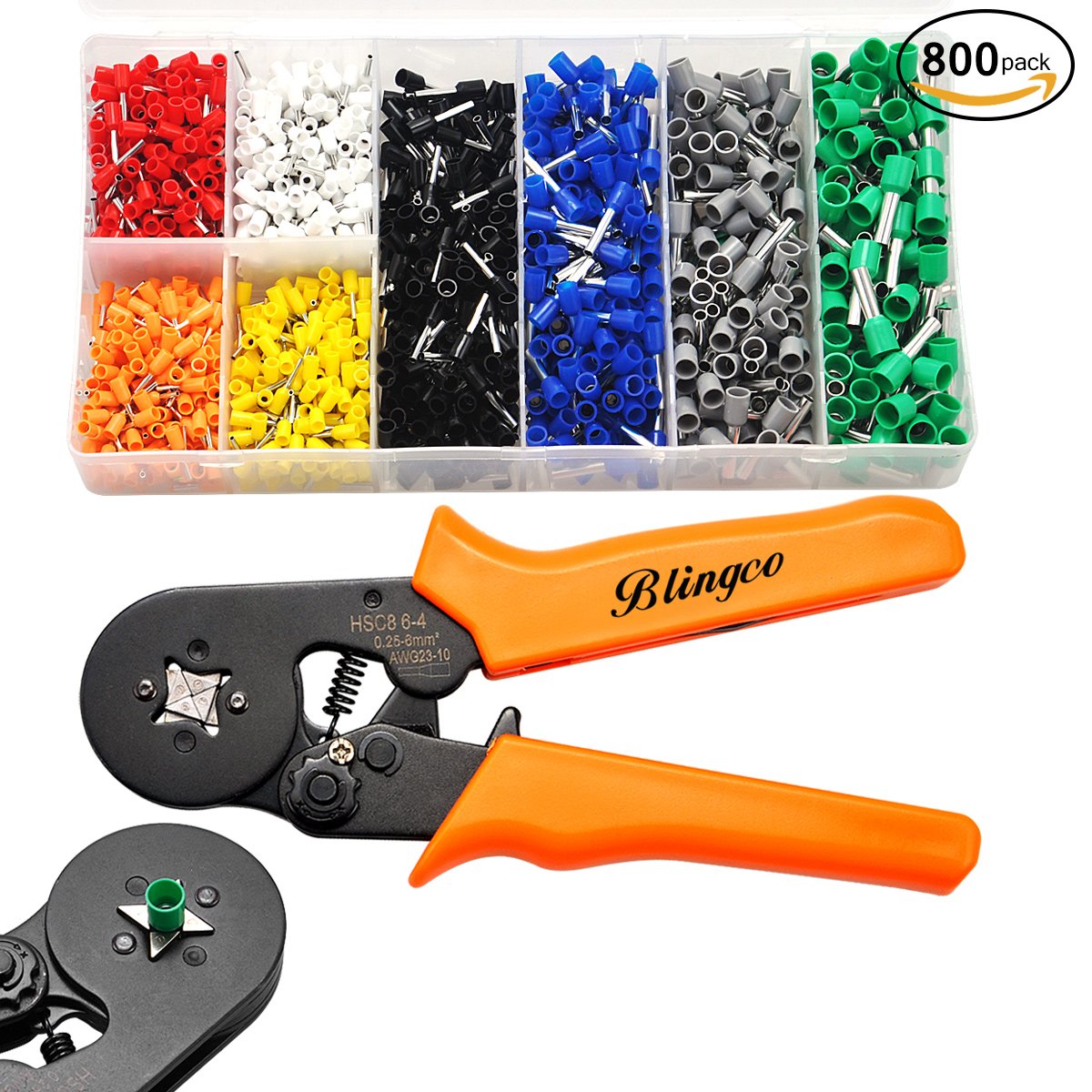

• Application to electric pliers pliers: With ferrule terminal (Phoenix terminal, bar terminal) box of 800pcs, because it is an insulating cover design, we can quickly solve problems related to electric wire.
• Four-sided square crimping: It can cut the cut face of square, disciplined quadric square crimping pliers, terminals and wires cleanly.
• Serrated crimping surface: Crimping range: 0.25 - 6.0 mm AWG: 23 - 10.
• High material structure: High quality high carbon steel steel structure according to international safety standards, 100% safety secured.

Product information:

Shipping Weight: 662 g

Package Dimensions: 5.99 x 12.19 x 22.61 cm
