Product Description

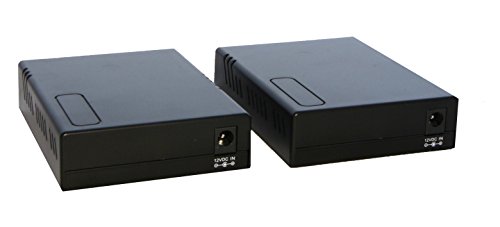

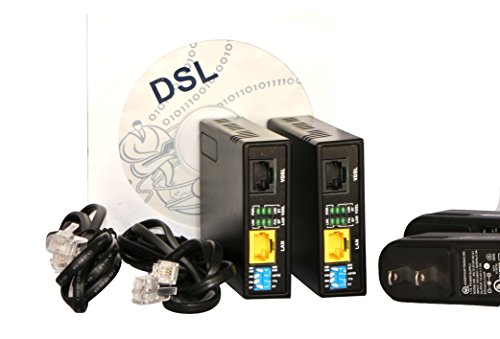

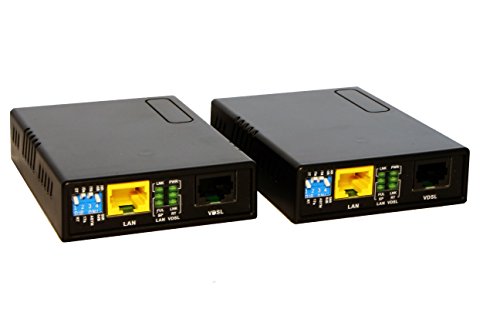

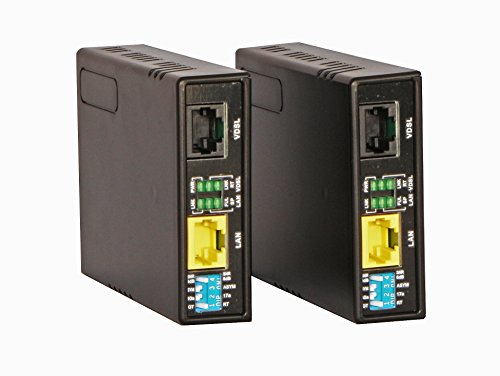

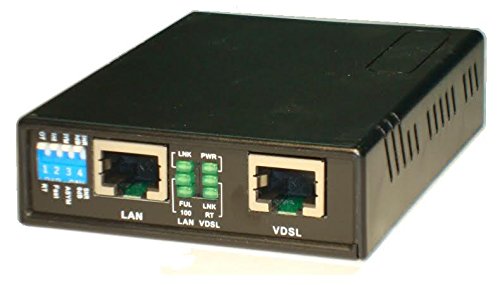

Tupavco TEX-100 VDSL2 Ethernet Extender is a high-speed, Long Reach Ethernet Extender with one RJ45 Ethernet port and one RJ45 VDSL port. Bridge modem use VDSL2 technology to extend Ethernet service over single-pair phone line. TEX-100 VDSL2 Ethernet Extender features 100Mbps of symmetric data rate.

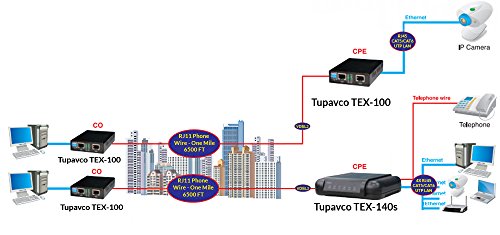

Use two TEX-100 VDSL2 in CO and CPE mode to establish a point-to-point connection.

Features
-Support flow control on Fast Ethernet port via PAUSE frame or Back Pressure
-IEEE 802.1Q VLAN tag transparent
-Easy PnP installation
-Selectable CPE and CO mode and VDSL2 profile (17a or 30a) via DIP switch are built in the same unit
-Selectable VDSL2 profile mode (17a or 30a) for high data rate
-Symmetric mode support the band plan G.997 and provide the symmetric transmission on both down and upstream
-Asymmetric Provides highest line rate in short range
-Selectable target SNR margin
Specifications
-DIP Switch:CO/CPE mode,30a/17a Profile,Symmetric or Asymmetric,SNR margin 6dB/9dB
-LED:ACT/LNK,10/100Mpbs,Half/Full Duplex,CO/CPE,Idle/Trained/Link
-LAN Interface:RJ-45,IEEE 802.3/802.3u/802.3x,10/100 Base-T Auto-Negotiation,Auto-MDI/MDI-X
-VDSL Interface:RJ-45,DMT Encoding,ITU-T G993.1/993.2/G.997.1,Surge Protector

Performance - AWG24 Wire:
17a VDSL Profile-Down/Up stream
1000ft-100/72 Mbps
2000ft-42/46
3300ft-18/13
4000ft-16/7
5000ft-12/3
6000ft-9/2
6500ft-5/2
30a VDSL2
1000ft-100/100 Mbps
2000ft-40/45
2000ft-40/45
3000ft-22/19
4000ft-16/7
5000ft-12/3
6000ft-8/2
7000ft-5/2

The actual data may vary depending on copper wire and environment.

Feature

High Speed Ethernet Extension Kit up to 7000FT (One Mile) Distance Away
Allows connectivity by using over existing copper phone wire where new cabling or wireless are not possible
Plug and Play Easy Install ● No Driver or Software Installation needed ● 100/100Mbps for both Upstream and Downstream within 1000FT or 22/19 Mbps for 3000FT long range connections ... up to 7000FT ● Compatible with third party DSLAM ● IEEE 802.1Q VLAN tag transparent
Selectable CPE and CO mode via DIP switch ● Selectable VDSL2 profil mode (17a or 30a) ● Selectable target band plan: Symmetric/Asymmetric ● Selectable target SNR margin (6dB or 9dB)
High Speed Broadband to Motels, Hotels, Clinics, Hospitals, Apartment Buildings, Schools, Dorms and other Facilities.With its high performance and plug-n-play design, TEX-100 VDSL2 Ethernet Extender is the ideal Long Reach Ethernet solution for ISPs and carriers to quickly deploy a high-speed IP-based network for triple play (video, voice and data) services.
Brand : Tupavco
Item model num : TEX-100
EAN : 0741360889125
