Product Name

HongYue Wall-mounted Glass Touch Panel LED Dimmer Switch Brightness Controller DC 12-24V for Single Color LE

Product Code: PROD400025892

Product Information

원본상품명: Wall-mounted Glass Touch Panel LED Dimmer Switch Brightness Controller DC 12-24V for Single Color LE
임포트 상품
병행수입 상품
미국 판매물


Technical Details


Product Details

Product Dimensions

Item Weight: 3.2 ounce (View shipping rates and policies)

ASIN : B017CS1QT6


Product Description


Features:

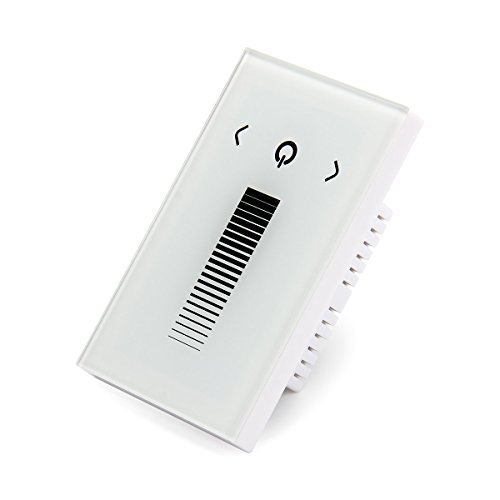

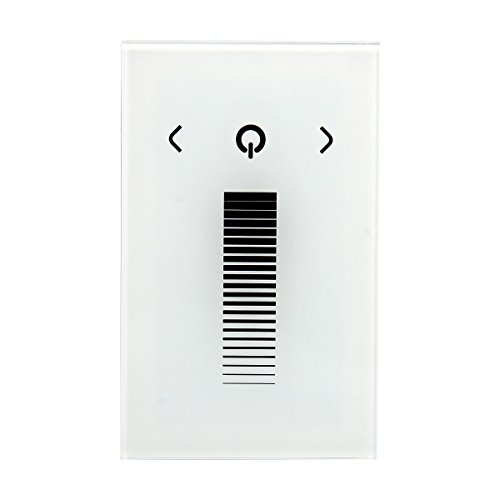

Touch panel is made of glass, fashion, smooth and against scratches
Quickly increase/reduce 255 levels static state brightness
Has the wiring convenient, use the advantages of simple.
Compatible with most 12V-24V single color LED light strips
Adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake.
Specifications:
Color: White
Working temperature:-20~60??
Power supply voltage: DC 12-24V
Output: 1 channel
Connect way: common anode
Output current:<8A
Output power: 12V:<96W, 24V:<192W
Static power consumption:<1W
Net weight:127g
External dimension: L74 X W120 X H41.8mm

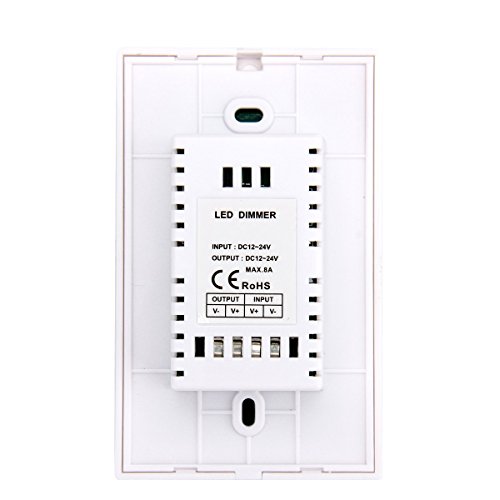

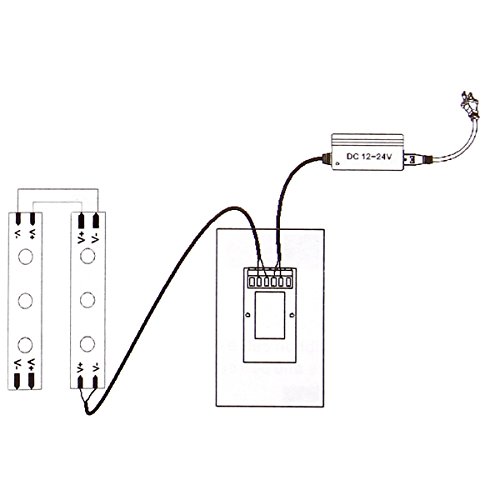

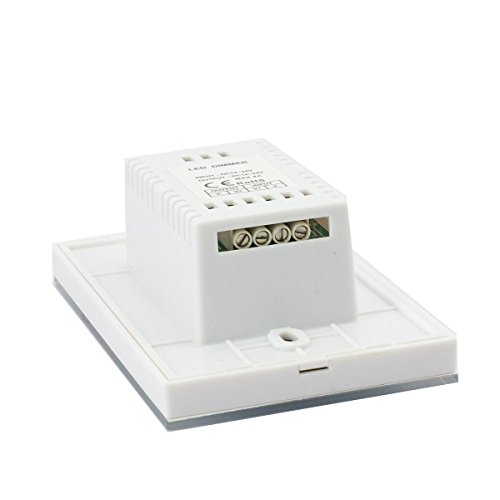

Interface Instruction:
Input:power input pins, input voltage range is 12-24V
Output: power output pins, output voltage is 12-24V, output maximum current is 8A;
Package Included: 1x Glass Touch Pannel Controller 1x User Mannul
