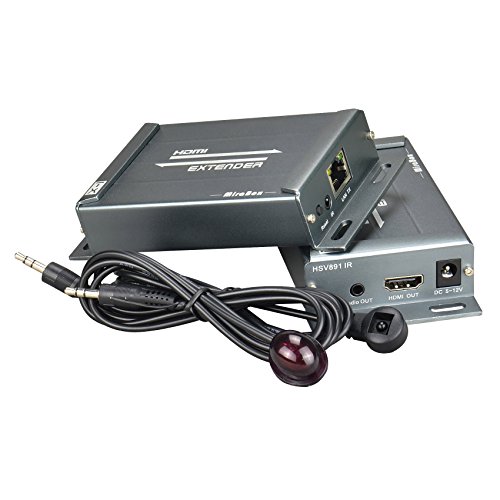

Product Description

Introduction:

This product not only can work as other normal HDMI extender by CAT5/6 cable up to maxim 150 meters, but also can transmit HDMI data over local network.
The data could be transmitted over switch, router and other ethernet device, and extend the transfer distance to over 20km.
It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from one sender to multiple receivers.
HSV891IR supports sending IR remote control signal from receiver side to sender side which could be used to control HDMI source devices.
HSV891IR also integrate HDMI audio extractor that could extract stereo audio out from HDMI signal and output via 3.5mm jacket.
HSV891IR have many professional designs which suitable for various application scenario, especially for engineering project usage.
Such as 5V-12V wide range power supply, mountable aluminum alloy shieding.

Technical Specification:


Standard Power Input:5V-12V
Power Consumption:3W
HDMI Port:HDMI A type Female
Link Connection:UTP/STP CAT5e/6
Working Mode:
Point to Point mode
Broadcast mode( Point to MultiPoint)
Cascade mode
Transfer Distance:
Point to Point Mode:
CAT5 100meters maximum
CAT5e 120meters maximum
CAT6 140meters maximum
Cascade Mode:
20Km maximum
Audio Output Port:3.5mm jacket
Audio Output Format:L/R Stereo analog audio
THD:<0.1%
SNR:110dB
Resolution Supported:1080p@50Hz / 1080p@60Hz / 1080p@24Hz1080i@50Hz / 1080i@60Hz720p@50Hz / 720p@60Hz /576i@50Hz / 480p@60Hz
Latency:120ms point to point
Ethernet Bandwidth:100M
Package Contents:

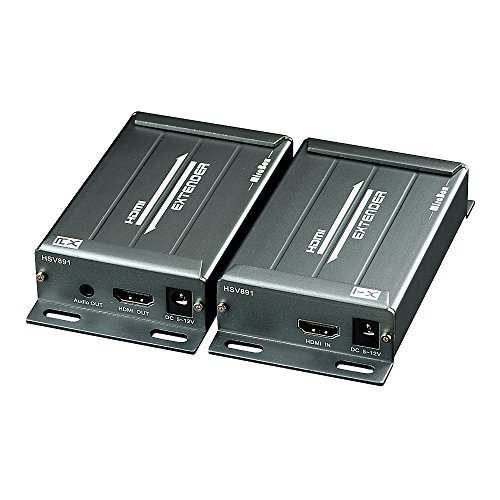

Sender *1

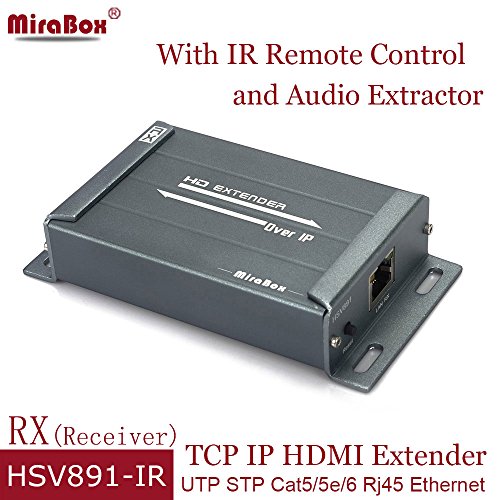

Receiver *1
Power Adaptor 5V *2
Manual *1

Feature

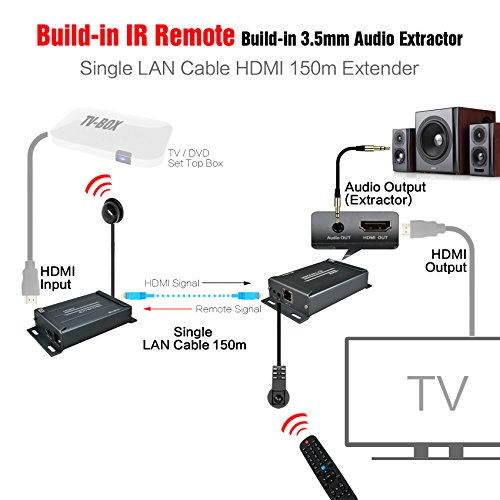

COST-EFFECTIVE SOLUTION- Extend HDMI audio/video signals over a cost effective CAT5/5e/6/6e cable up to 525ft, Connect your HDMI source device (PC, game console, Blu-ray player, media player) to the Transmitter, run a CAT5/5e/6/6e cable from the Transmitter to Receiver, then connect your HDTV/projectors from a remote location to the Receiver with an HDMI cable; An HDMI cable is required and sold separately.

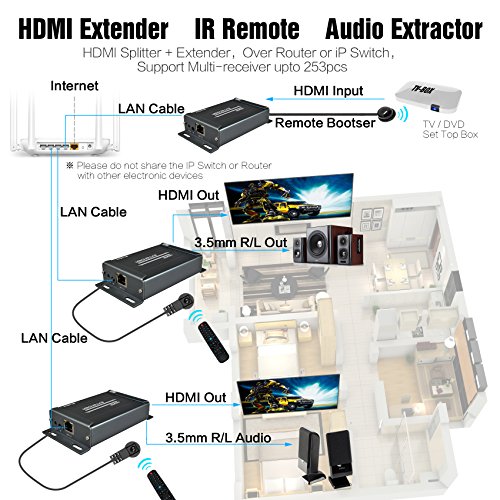

HDMI SPLITTER + EXTENDER, OVER ROUTER OR IP SWITCH, SUPPORT MULTI-RECEIVER UPTO 253pcs- The connection like: hdmi source---HSV891IR Sender---CAT5/5e/6/6e cable---switch---CAT5/5e/6/6e cable---Multi-HSV891 IR Receivers---Monitor, HDTV, Projector, or other HDMI screen.

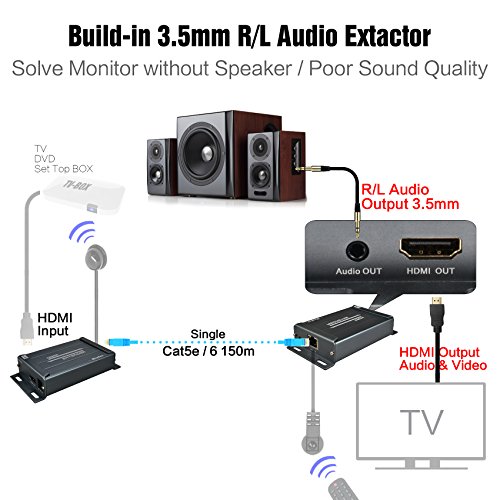

BUILD-IN 3.5mm R/L AUDIO EXTRACTOR- Solve Monitor Without Speaker / Poor Sound Quality; Resolution Supported- 1080p@50Hz / 1080p@60Hz / 1080p@24Hz / 1080i@50Hz / 1080i@60Hz / 720p@50Hz / 720p@60Hz / 576i@50Hz / 480p@60Hz

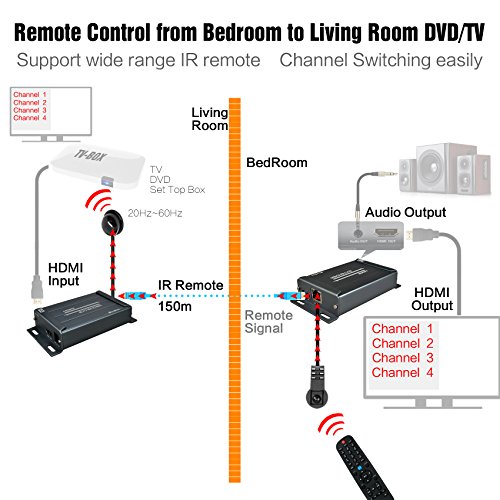

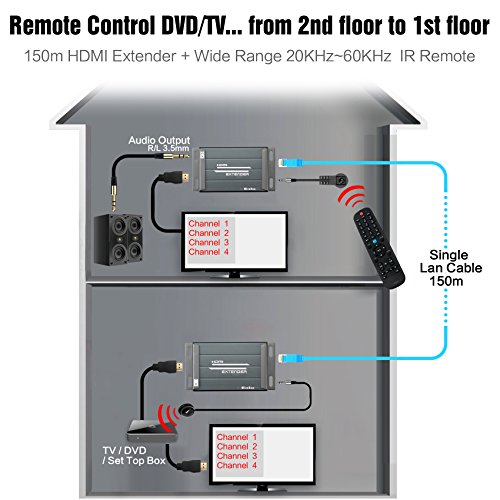

IR REMOTE CONTROL(20~60KHZ)- Allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a CAT5/5e/6/6E cable for convenience
EASY INSTALLATION - Just Plug and Play, No driver required; Surface mountable metal housing with included brackets allows easy placement; Sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference * Note: A good quality CAT5/5e/6/6E cable is essential in delivering quality content; CAT6/6E is recommended for better performance
Brand : Mirabox
Item model num : HSV891-IR
MPN(PartNumber) : HSV891-IR
EAN : 0710670606364
Product Dimensions(LxWxH) : 12x9x3cm ; 499 g
Package Dimensions(LxWxH) : 21x16x8cm ; 499 g
