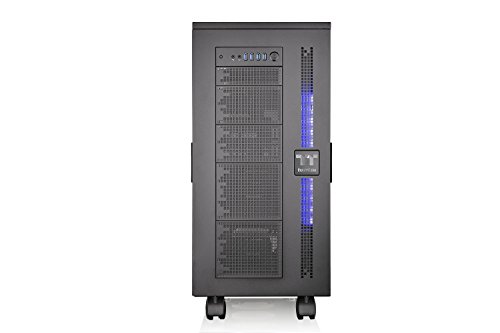

Thermaltake Core W100 Extreme Water Cooling XL-ATX Fully Modular/Dismantle Stackable Tt LCS Certified Super Tower Computer Case CA-1F2-00F1WN-00















Core WP100-Computer case


Core WP200-Computer case


Core WP200-Pedestal case


Core WP100-Pedestal case

Product Description

Thermaltake Core W100 Black Extreme Cooling XL-ATX Fully Modular/Dismantle Stackable Tt LCS Certified Super Tower Chassis CA-1F2-00F1WN-00
Key Features:

Fully Modular/Dismantle

Extreme Liquid Cooling Capacity

Interchangeable Front LED Lighting

Extreme Storage and MB Support

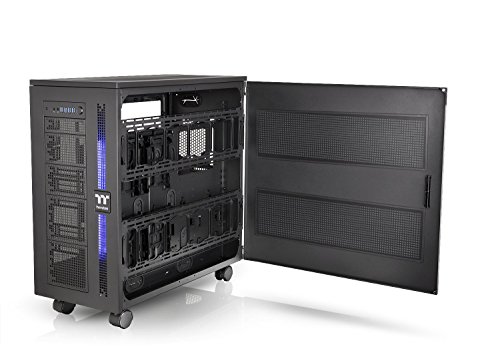

Suicide Side Panels

Warranty: 3 Years

Product Description:

Redefine your cooling expectations with the Thermaltake Core W100 XL-ATX Super Tower Chassis. Designed for a Premium level of expandability; for both Air and Liquid cooling configurations, with a distinctive design from standard chassis. With no screw unturned, the W100 is fully modular and comes fully unassembled allowing users flexibility for replacement of any panel. Gain more with extended motherboard support and extreme cooling options to accommodate users who need ideal clearance and cooling. Expand the limits with the stackable Core P100 Pedestal (Sold Separately) allowing externally-modular upgrades for even more cooling and power capabilities. Dive into a new world of possibilities with the Core W100 from Thermaltake.

Specifications:

Case Type: Super Tower

Dimension (H x W x D): 677 x 310 x 678 mm (26.7 x 12.2 x 26.7 inch)

Net Weight: 8.7 kg / 19.2 lb

Side Panel: Transparent Window

Color: Exterior & Interior : Black

Material: SPCC

Drive Bays:

-Accessible: 3 x 5.25"

-Hidden: 6 x 3.5" or 2.5" (HDD Cage),4 x 3.5" or 2.5" (Behind the M/B tray)

Expansion Slots: 10

Motherboards: 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX), 12" x 13" (E-ATX), 13.6" x 10.4" (XL-ATX)

I/O Port: USB 3.0 x 4, HD Audio x 1

PSU: Standard PS2 PSU (optional)

LCS Upgradable: Supports 1/2", 3/8", 1/4” water tube

Fan Support:

Front: 3 x 120mm, 3 x 140mm

Top: 4 x 120mm, 4 x 140mm, 3 x 200mm

Rear: 1 x 120mm, 1 x 140mm

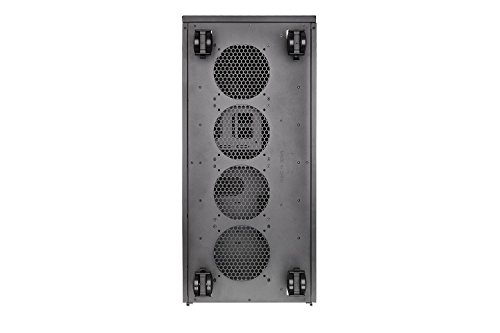

Bottom: 3 x 120mm, 3 x 140mm

Right Side: 8 x 120mm, 8 x 140mm, 6 x 200mm

Radiator Support:

Front: 1 x 360mm, 1 x 420mm

Top: 1 x 480mm, 1 x 560mm, 1 x 600mm

Rear: 1 x 120mm, 1 x 140mm

Bottom: 1 x 140mm, 1 x 280mm

Clearance:

CPU cooler height limitation: 200mm

VGA length limitation: 470mm(with HDD rack),635mm(without HDD rack)

PSU length limitation: 180mm (With Three Bottom Fan), 220mm (With Two Bottom Fan)

Feature

Fully Modular/Dismantle Design: Provides multiple configurations and flexibility for PC Enthusiasts with a fully breakdown construction design
Premium Quality: Constructed from SPCC material for ideal fitment of components
Motherboard Support: Covering a wide range from Mini ITX to XL-ATX motherboards
Large Window: Equipped with a Large, 3/16" thick acrylic window improving overall structure support and crystal clear viewing
Extreme Liquid Cooling: Support up to 600mm radiator applications with various cooling configurations for full custom liquid cooling builds
Brand : Thermaltake
Item model num : CA-1F2-00F1WN-00
MPN(PartNumber) : CA-1F2-00F1WN-00
EAN : 0841163063002
Product Dimensions(LxWxH) : 68x31x68cm ; 25197 g
Package Dimensions(LxWxH) : 73x67x34cm ; 25197 g
