Product Description
Description:

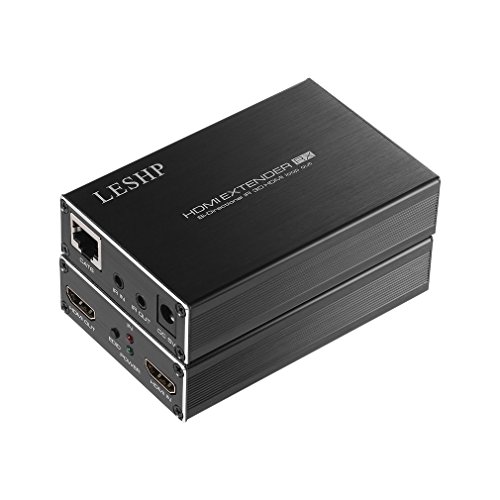

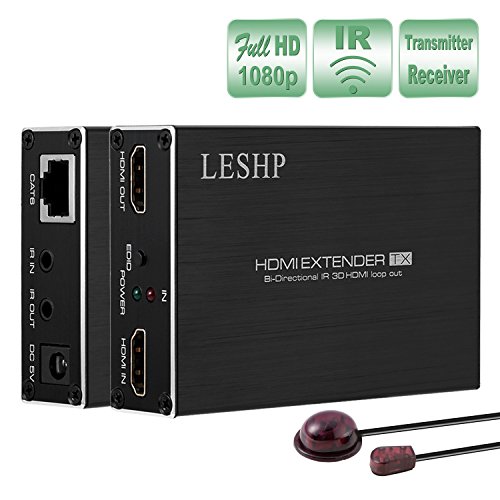

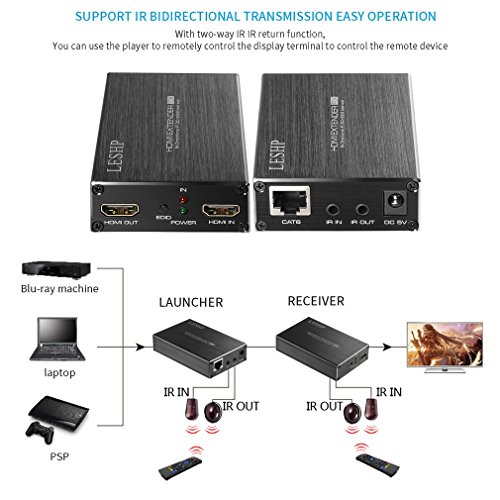

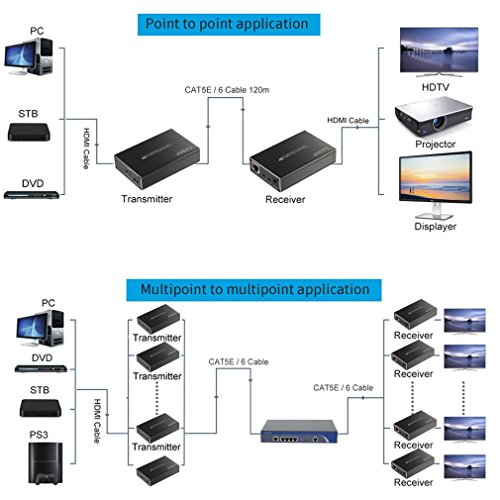

The HDMI Extender over single Cat5e or Cat6with bi-directional IR extends high definition video and audio signal and IR, at a distance of up to 60m/200ft over a single Cat5e/6 cable. Also, it can distribute a HDMI signal to local HDMI output port. Features EDID management, which allows and encourage sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances. Deep color video, DTS-HD or for Dolby TrueHD audio is supported and compatible with the extender. In addition, the extender is also equipped with bi-directional IR pass through which allows for source and display control.

Specifications:

Brand name: LESHP
Plug type: US
Color: Black
Video bandwidth: Single-link 165Mhz(4.95Gbps)
Video support: 480i/480p/720p/1080i/1080p @ 60Hz
Audio support: Surround Sound(up to 7.1ch) or stereo digital audio.

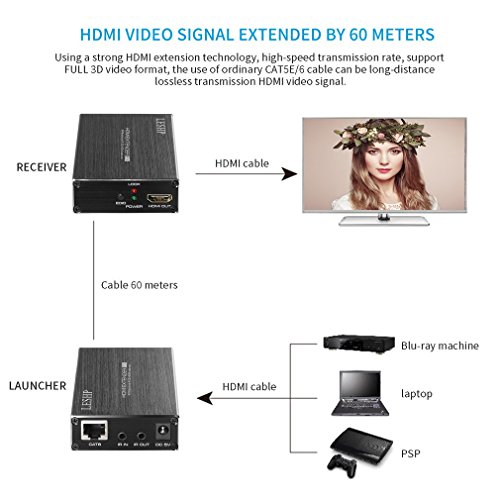

Transmission range: HD(1080P 24-bit color)- up to 60m/200ft
Input TMDS Signal: 3.3 volts
Input DDS signal: 5.0volts/P-P
PCB stack-up: 4 layouts

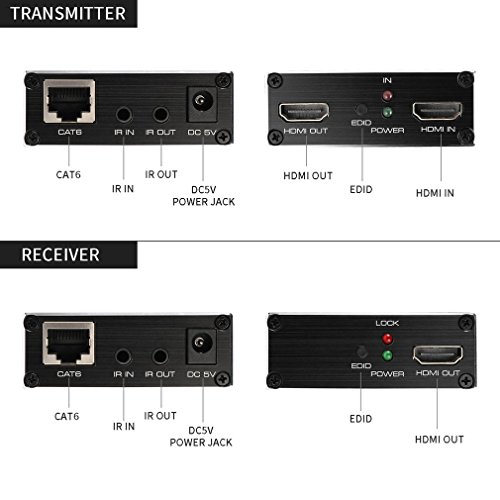

HDMI connector: Type A 19pin female
RJ-45 connector: WE/SS 8P8C
3.5mm connector: (TX and RX)IR Receiver/IR Blaster
Housing: Metal enclosure
Power supply: 5V1A DC
Power consumption: 2.5watts(TX), 1.2watts(RX)
Operation temperature: 32-104°F
Storage temperature: 20-90% RH(no condensation)
Size: 99 x 64 x 24mm
Net weight: 367g

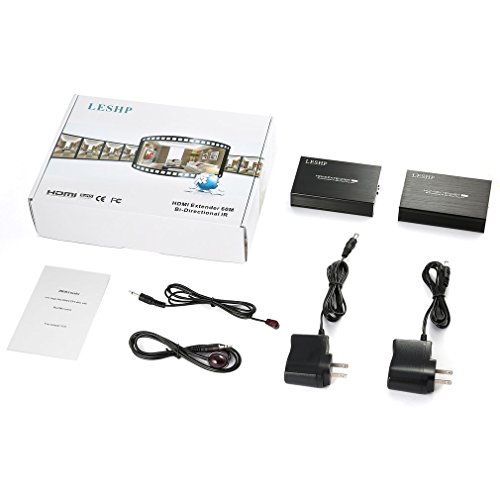

Package includes:

1 x HDMI transmitter
1 x HDMI receiver
1 x Winband IR TX cable
1 x Winband IR RX cable
2 x Power adaptor
1 x User manual

-Used for a pair extension of this HDMI CAT6 cable to extend HD signal up to 200ft(60 meters), and can achieve full 1080P, which not only broke the HDMI cable transmission length limitations, but also more convenient and flexible, the majority of customers are more cost savings.
