Item Descriptions:
【specification】
● Image sensor: 1/4 inch CMOS horizontal resolution 750 TV book
● Standard · Number of pixels: NTSC: 768 (H) × 494 (V)
● Synchronization: Internal
● Minimum illuminance: 0 lux Floodlight lit
● Lens: 4-9 mm megapixel zoom
● LED for floodlight: 42 pieces Diameter 5 mm
Infrared reaching distance: 40 m
● Gamma correction: 0.45
● Video output: BNC 1.0 Vp - p 75 ohm
● S / N ratio: 48 dB or more (when AGC OFF)
● Power supply: 12 VDC power consumption 1 W or less
● Electronic shutter: NTSC = 1 / 60s-1 / 100,000s
● Operating temperature: -10 ° C to + 50 ° C
● Storage temperature: -20 ° C to + 60 ° C
Weight ●: 740 g
Dimensions: 160 (L) x 87 (W) x 90 (H) mm
● Installation conditions: outdoor allowed

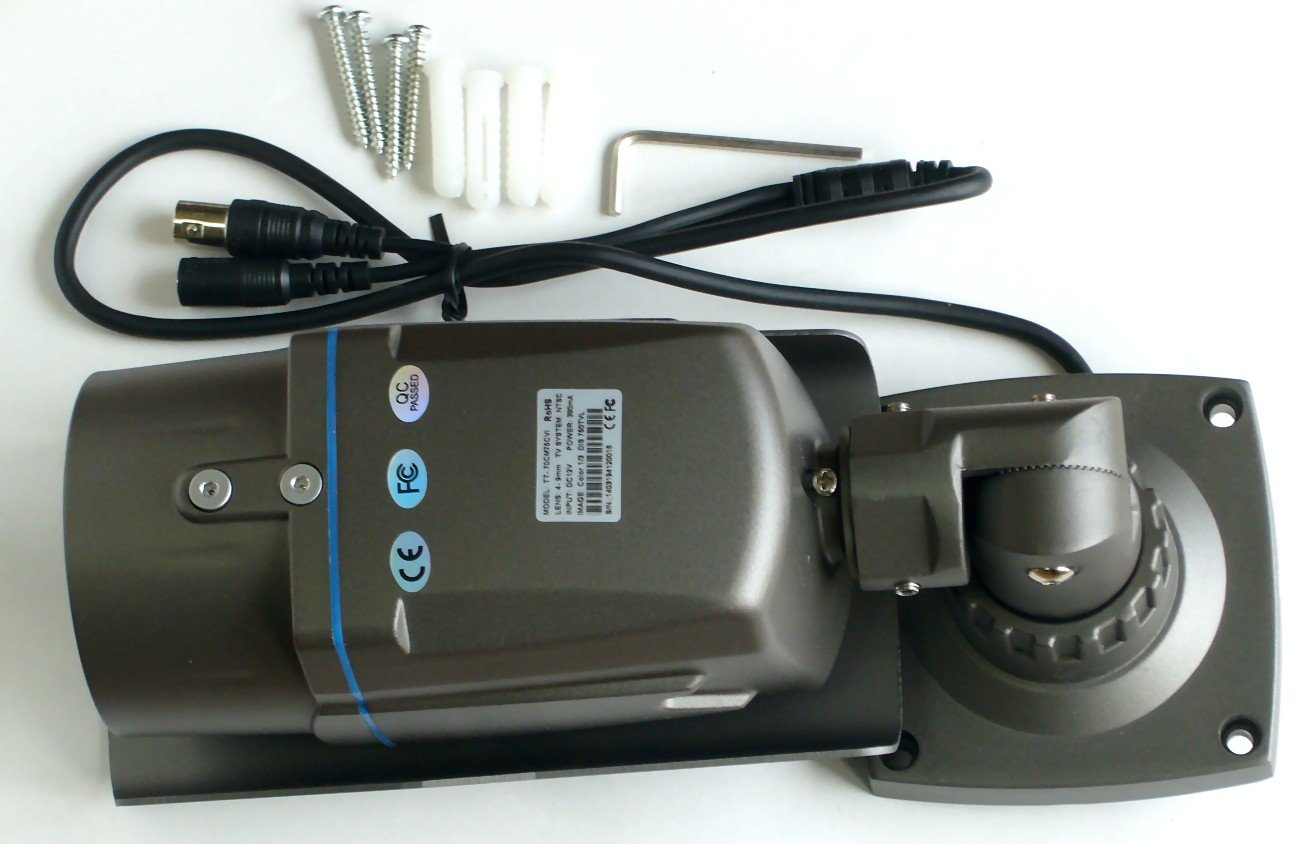

【Product contents】
● Camera body (integrated cable length 60 cm)
● Mounting screws, Allen wrench
● Instructions (English, created Aisil Japanese)
● Monitoring appeal sticker 115mm x 75mm

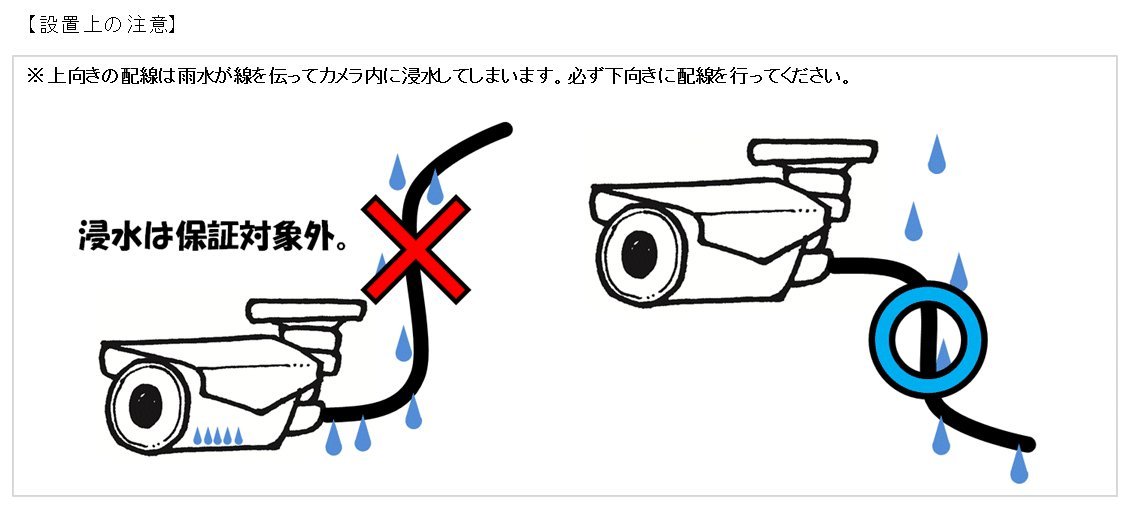

【Precautions on installation】
* Rainwater travels through the line and will flood inside the camera for upward wiring.
Be sure to wire downward.
Features:
- It is a surveillance camera that can be used outdoors with a zoom lens, waterproof.
- Built-in infrared projector that can shoot even in the dark.
- 1/4 "CMOS imaging element realizes high resolution, 480 vertical lines.The mounting bracket can be mounted anywhere on the floor, wall or ceiling by adjusting the angle.
- The focal length of the lens can be adjusted with 4-9 mm.
- Built-in infrared removal filter.
- There are 42 LEDs for floodlighting, so you can shoot a thing over there for 40 meters.
- It is easy to adopt not only in companies and shops at affordable prices but also in private management classrooms and private rooms.
- Power supply DC 12 V is sold separately.
- 【12V1A - PSE】 and 【12V1A - APSE】 can be used.
- It is initial failure 2 weeks correspondence.
Product information:
Shipping Weight: 957 g
Package Dimensions: 12.39 x 14.81 x 28.40 cm
