Xiaomi Xiaoyi YI Dome Home IP Camera
112 Wide Angle 720P
360 PTZ Shooting
WiFi Webcam
Two-way Voice Call
Infrared Night Vision

Garansi Distributor 1 Tahun
Yi Dome Home Camera
International Version English !!

































XIAOMI YI HOME 1080P

Highlights





Pictures

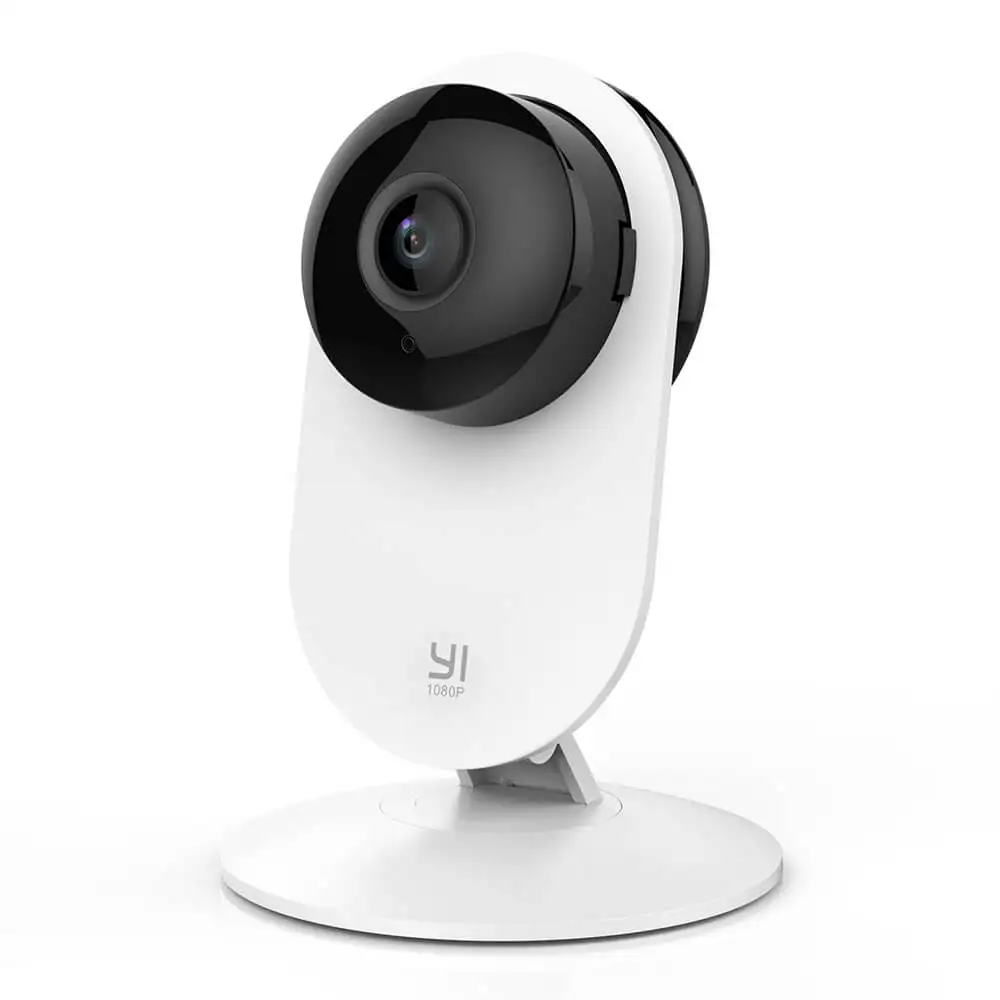

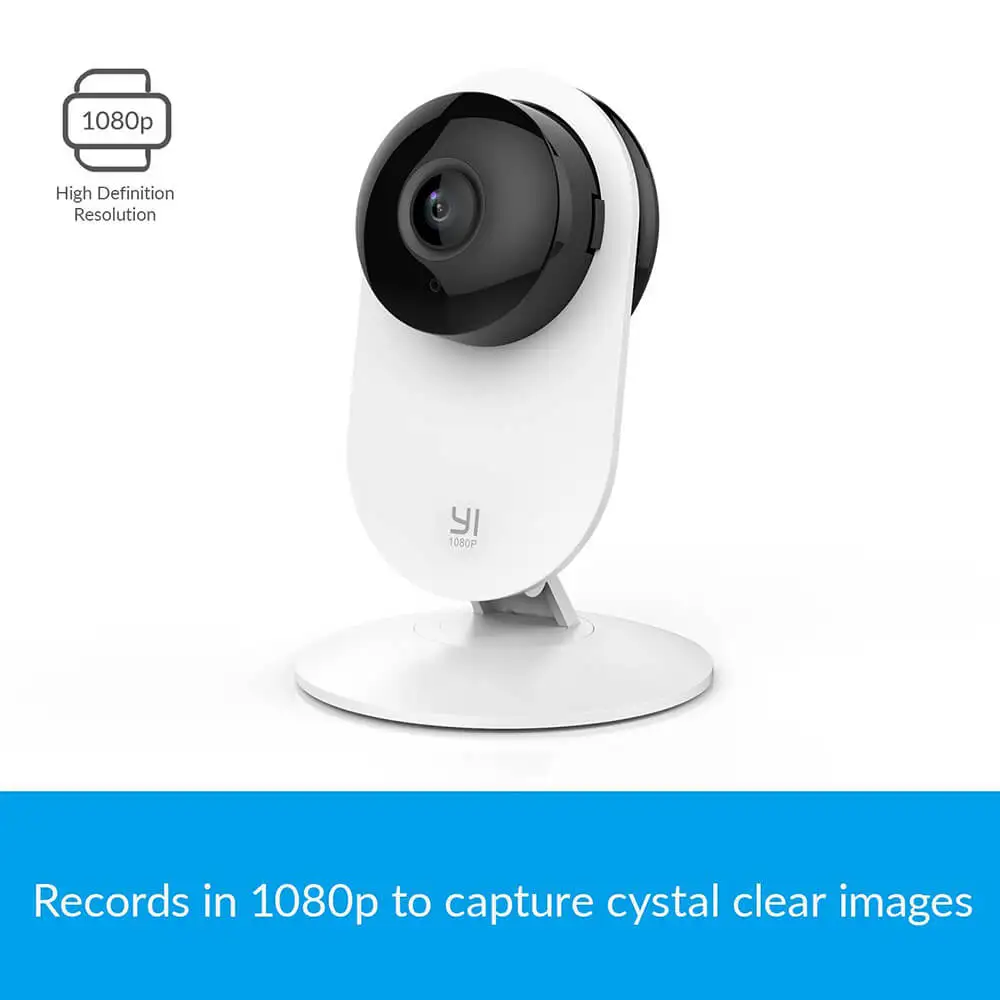

Xiaomi YI 1080P Home Camera (2)Xiaomi YI 1080P Home Camera (3)Xiaomi YI 1080P Home Camera (7)1Xiaomi YI 1080P Home Camera (6)

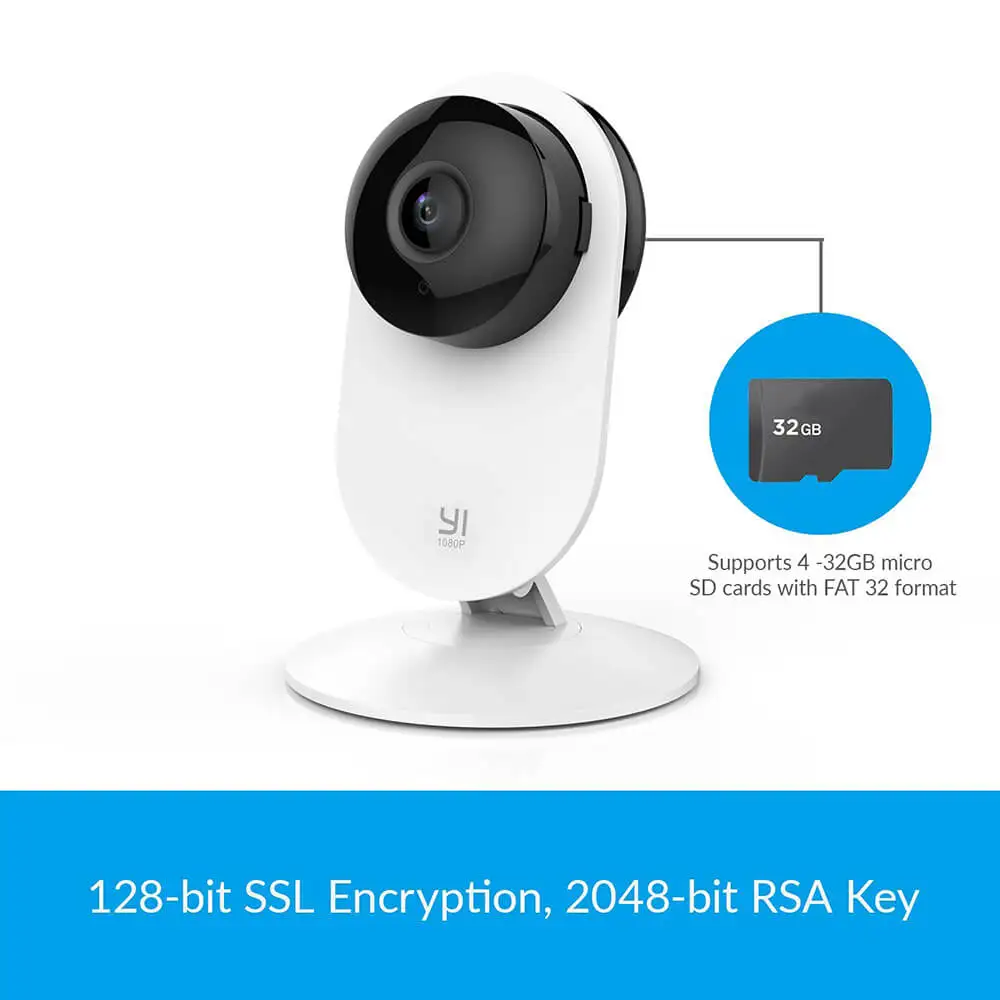

128-Bit SSL Encryption, 2048-Bit RSA Key

Leading security protection and an optional PIN code to access your videos. Supports 8-32GB microSD cards; FAT32 format.

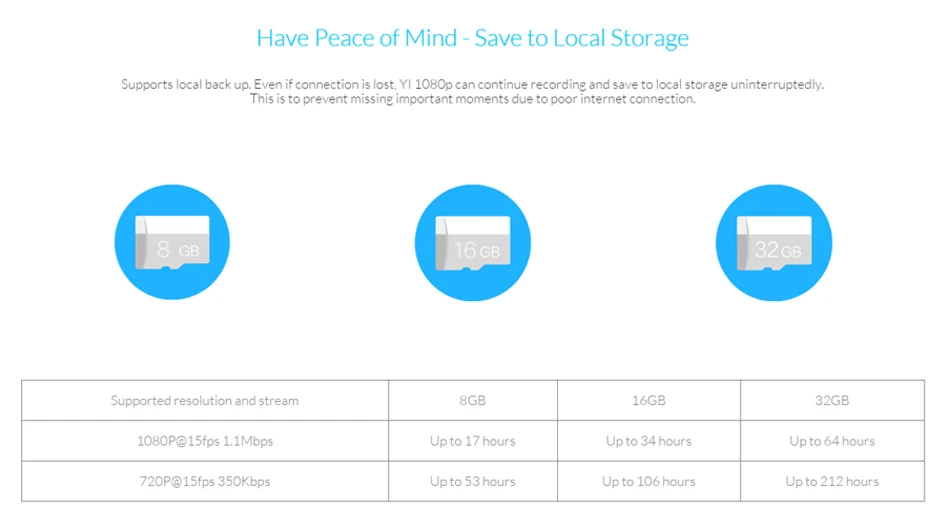

An 8GB SD card can record up to18 hours.
When the card is full, it will automatically delete the first hour of video and continue recording (automatic cycle).



Xiaomi YI 1080P Home Camera (5)

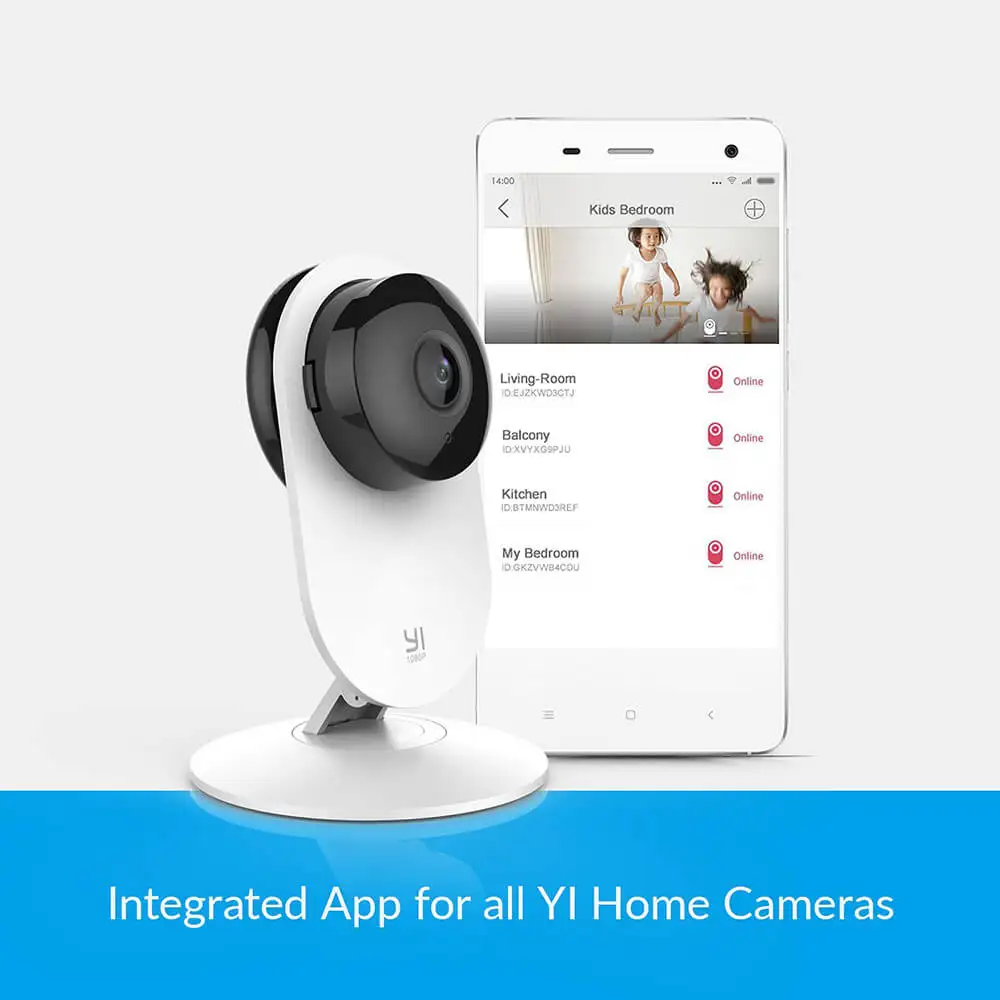

Integrated App For All YI Home Cameras

Monitor and control YI Home Camera in one convenient app.
Experience a user-friendly, yet powerful and intuitive user interface to customize your settings according to your preferences: Activity Alerts, Camera Sharing, Customize Schedules, and more.
Available on iOS and Android.



Xiaomi YI 1080P Home Camera (4)

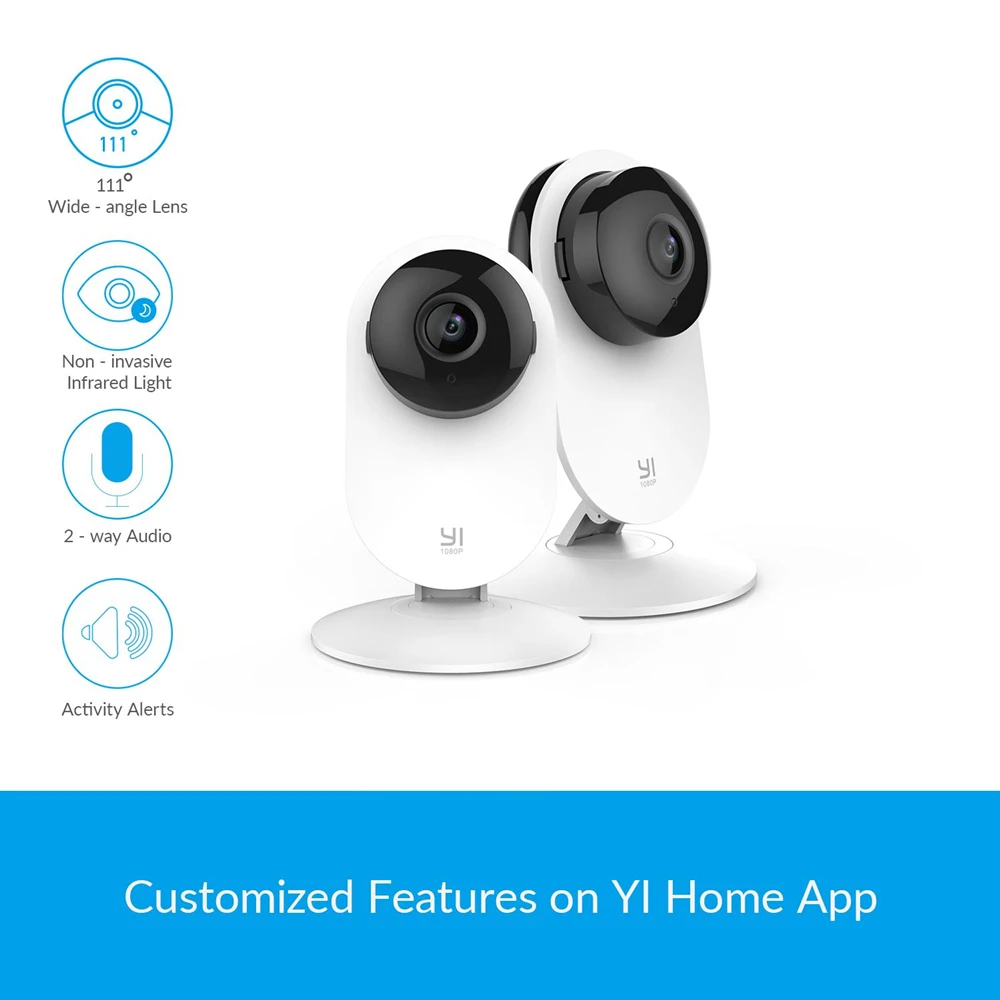

Customized Features On YI Home App

Customizable features on your YI Home App: Define Activity Zone, Alert frequency, Night Vision IR Lighting Controls, Alert Schedules, Camera Sharing, Motion Detection Sensitivity Levels, and more!
You can also extend the coverage area with 111° Wide-angle and 4x Zoom.



HTB1XV64PXXXXXXxXFXXq6xXFXXXc



Wide Angle/1080P/Full Panorama

With Full HD resolution, f/2.0 aperture and 111 Degree wide-angle lens, the camera provides complete coverage in crystal-clear images.
With a simple double-click, you can zoom (up to 4x) and focus in the smallest details.
Through an integrated gyroscope support, you can have a complete panoramic view by simply panning your mobile phone left and right.



2



Motion Detection

YI Home Camera always keeps an eye on things that are important to you.
With built-in high accuracy motion detection technology, the camera sends notifications to your mobile phone alerting when, where, and what movement was detected, so you always stay on top of things that matter!



3

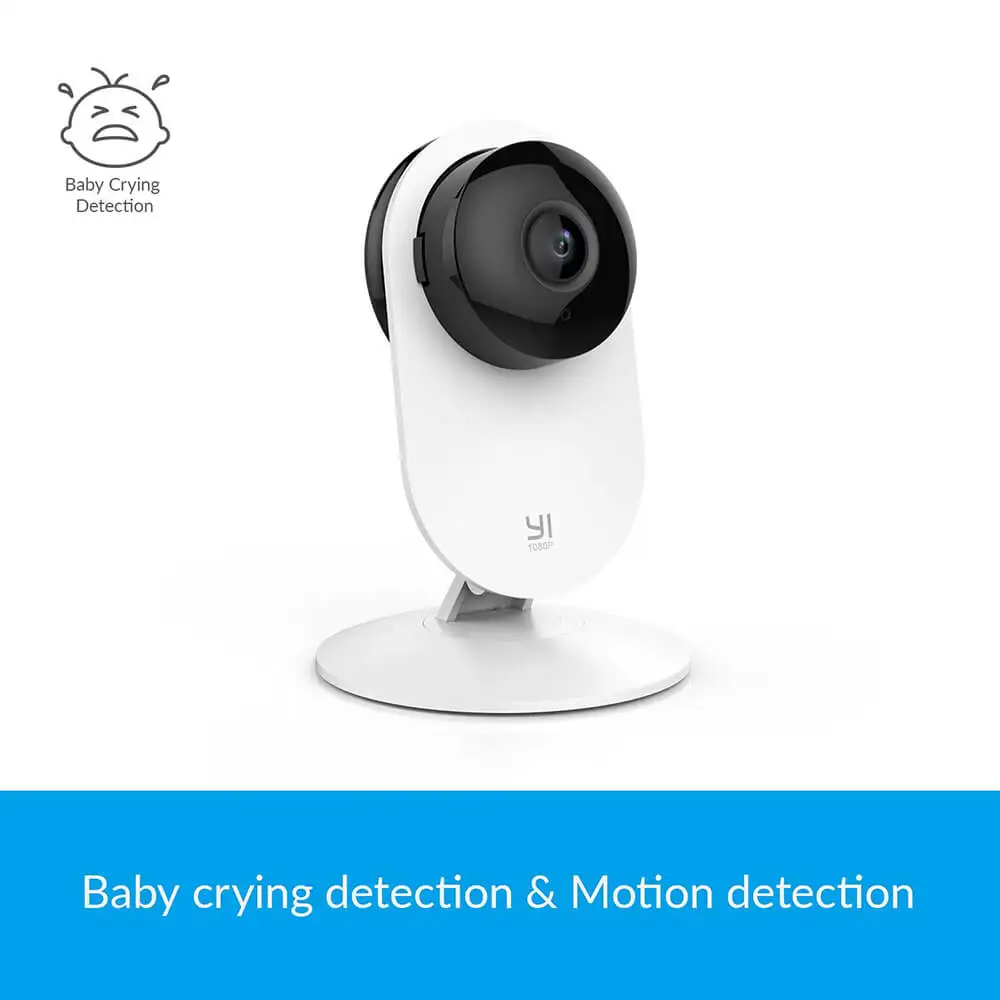

Baby Crying Detection

With the cutting-edge baby crying technology, any sound your baby makes can be picked up within 5 meters away from the camera and sent to you in a 6-second video clip.
The advanced Baby Crying Detection will alert you at the first cry of your baby, with an alert sent directly to your phone.



4

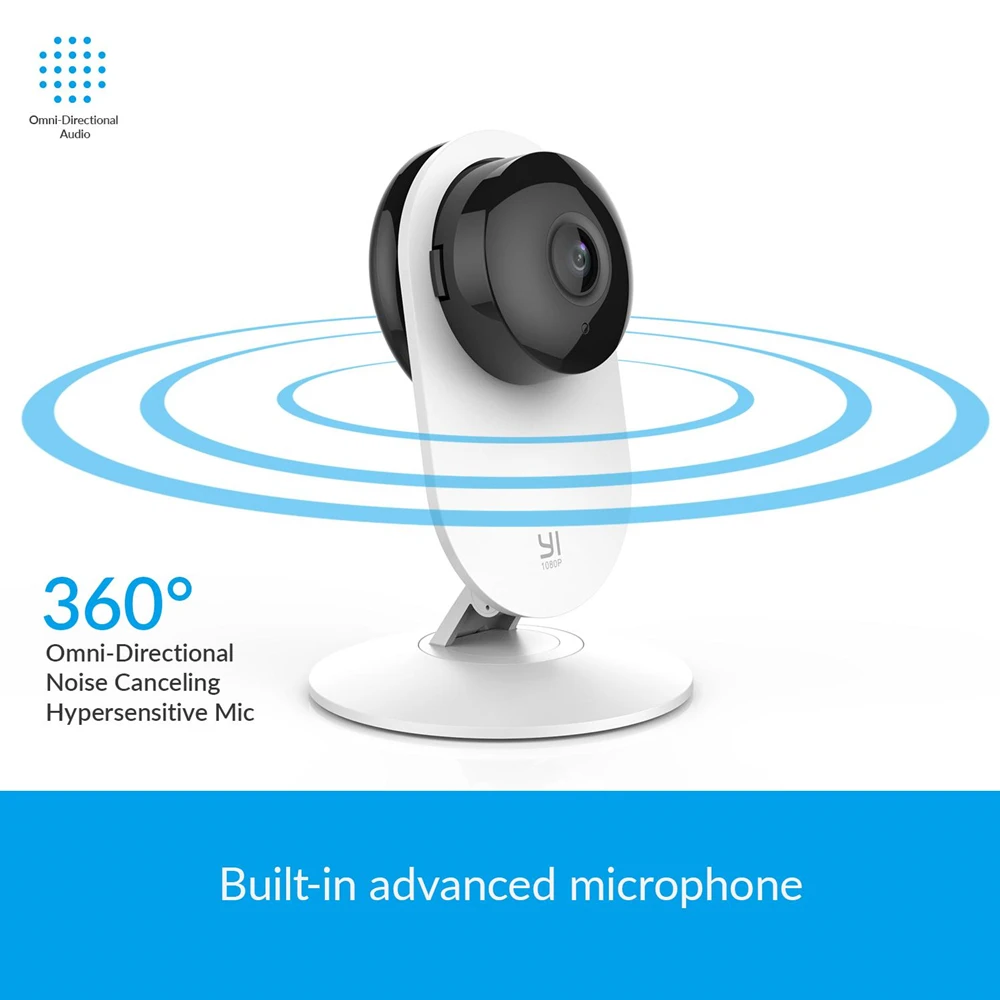

2-Way Audio

Built-in advanced microphone and speaker for clear 2-way Audio conversations.
You can not only see and hear what's happening at home, but experience a smooth conversation anytime, anywhere.
Never miss a moment, even when you're not there.



HTB1I7HTPXXXXXaSXFXXq6xXFXXXP



YI Cloud

Keep all your data safe, secure and protected.
YI Cloud uses 2048-bit RSA private key for key exchange with the YI Cloud Service, providing the most efficient compression and the highest protection of data.



5

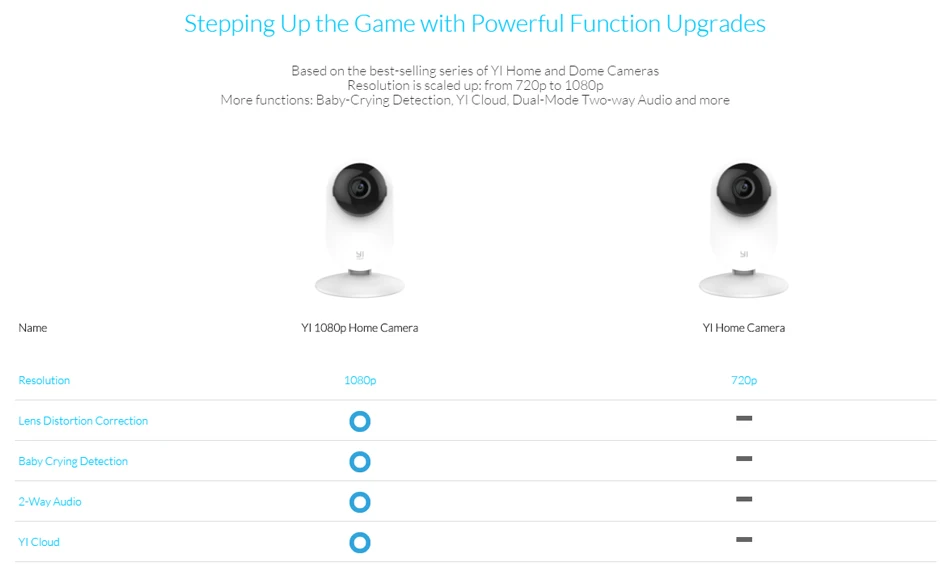

-1_01-1_02



Specifications



General

Brand:YI

Color:White

Specification

Viewing Angle:111 degree wide-angle

Image/Audio Enhancing:3D Noise Reduction, 4X digital zoom, LDC

Image Sensor:1/2.7" 2MP CMOS sensor

Video Streams:1080p/15 fps

Infrared Night Vision:8*940nm IR LEDs (Non-invasive, perfect for baby monitor)

Alert Information:Motion Detection, 7-days activity alert video storage in YI cloud free of charge

Smart Features:Real-time Activity Alerts/Baby Crying

Microphone/ Speaker:Two-Way Audio, Dual Modes: Intercom/Hands-free

Local: Class 4 and above, 8-32G Micro SD Card Cloud: Standard, and Premium plan available

Mobile: Android/iOS (Windows Phone not supported) in 1 integrated app, up to 12 devices PC: Windows XP and above (Mac OS available soon)

Video Compression Format:H.264

Dimensions & Weight (Main Product)

Product size (L x W x H):11.50 x 8.00 x 3.00 cm / 4.53 x 3.15 x 1.18 inches

Product weight:0.280 kg

Package size (L x W x H):26.50 x 11.00 x 6.00 cm / 10.43 x 4.33 x 2.36 inches

Package weight:0.350 kg

Package Contents

1 x IP Camera

1 x USB Cable







Device performance

1080p High Definition

112 Degree Wide Angle Lens

LDC Distortion Correction

Night Vision IR

Two-way Audio

Motion Detection

Baby Crying Detection

View Livefeed from PC

YI Cloud Service

Weight dimension

Dimension: 80mm x 114 mm x 32 mm

Weight: 135g (Net Weight)

Shot

Lens Material: Glass

Night Vision: 8x940nm Enhanced IR Lights

Night Vision Range: Up to 9m

Field of View: Horizontal (94.5 Degree), Vertical (49 Degree),?Diagonal (112 Degree)

Storage

MicroSD Card(8-32GB), YI Cloud

Language

Integrated Microphone/Speaker

Work environment

Connection: Wi-Fi: 2.4GHz

Wi-Fi Protocol: 802.11bgn

Wireless Encryption: WEP/WPA/WPA2 Encryption

Power: DC5V-1A (Via MicroUSB)

Compatible Devices: iOS7.0 or Android 4.0 and above

Minimum bandwidth (upstream) requirement: 1Mbps

Packing list

YI 1080p Home Camera/ AC Adapter/ USB Cable/ User Manual (with Warranty Card)




YI HOME VERSI 2 1080P

Highlights



1080p HD Smart Video Technology
Its sleek design houses an advanced Ambarella S2LM IP camera SoC, enabling super low bit rate H.264 video compression and featuring a powerful ARM Cortex A9 CPU;
it leverages Ambarella's SmartAVCTM, a low bit rate video streaming technology, to achieve a saving of 40% in video size while preserving superb 1080p HD live video quality.

First-class Night Vision
Build with best in class Panasonic 1/2.8 inches CMOS sensor with vMaicovicon technology for a clear image even in conditions of very low light;
11 pieces of 940nm infrared LED beads;
no light pollution, so baby or pet will not be disturbed by light;
cannot be detected by intruders.

Two-way Audio
Advanced compression algorithms yields even better sound quality, supporting a sampling rate of up to 48 KHz;
360° noise-canceling hypersensitive microphone for much clearer voice quality while eliminating excess environmental noise.

Enhanced Motion Detection & Alert
The latest motion detection technology reduces false alerts by identifying moving objects with better precision and reducing the impact of light changes and other interfering factors.
Intelligent vision analysis algorithms only send alerts when appropriate movement is detected.

Best Security & No Subscription Fees
We use 2048-bit RSA private key for key exchange with the YI Cloud Service, and encrypt data using AES-128.
Encoding with h.264HP level 5.1/ROI/LBR (SmartAVC), providing most efficient compression and the highest protection of data.
No monthly subscription fees: Secure your videos on a micro SD card, own your video content and access video history anytime.
Supports 8GB - 64GB SD micro SD cards with FAT32 format.

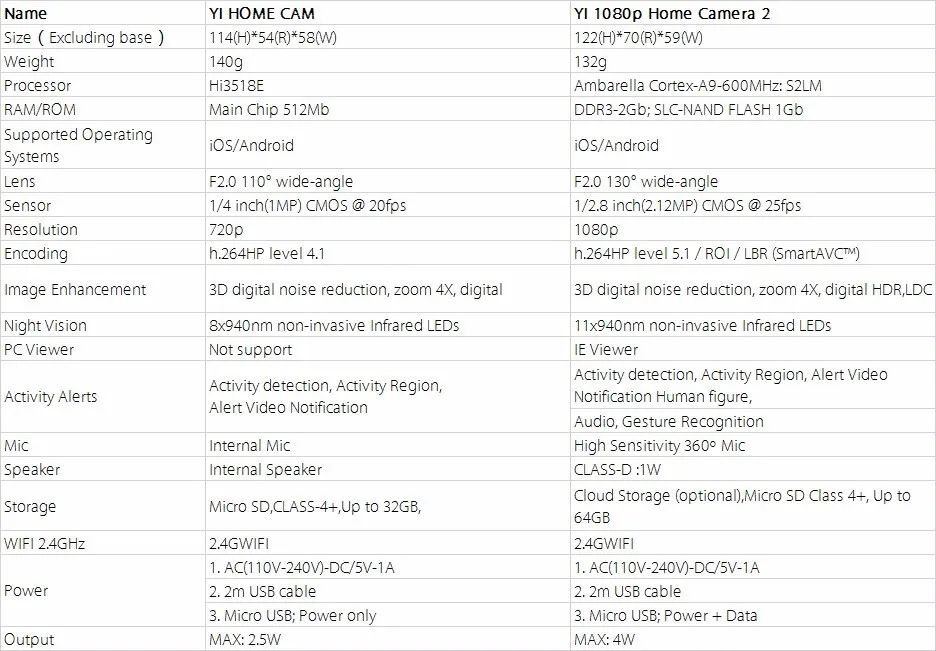

YI Home Camera 1 & 2 Compare

YI Home Camera 1&2 Compare



Pictures

YI Home Camera 2

Arrival of Computer Vision Technology from Seeing to Thinking



XIAOMI YI HOME CAMERA 2 SMART WIFI IP CAMERA (2)





1080P Full HD brings superb clarity and color vibrancy

YI 1080p Home Camera 2 is powered by new generation Ambarella S2LM chipset, low-power 28nm CMOS sensor, integrated ARM Cortex-A9 CPU, and H.264 HP 5.1 encoding technology. F2.0 large aperture with 6 layers of Optical Lens provides true clear and bright pictures during both day and night time.


XIAOMI YI HOME CAMERA 2 SMART WIFI IP CAMERA (12)



130 Degree ultra wide-angle extends the view to every corner

YI 1080p Home Camera 2 sports a 130° Ultra wide-angle to maximize the field of view. Proprietary Smart HDR technology dynamically calibrates and balances the exposure to achieve brighter and clearer images, full of details and vivid color. We practically removed all the restrictions on where user can place the camera.


XIAOMI YI HOME CAMERA 2 SMART WIFI IP CAMERA (14)



Ambarella S2LM - World Class Master Processor

YI 1080p Home Camera 2 uses the latest generation of S2LM chipset from Ambarella, which an US based leading HD chip maker in the global electronics industry. In order to efficiently transmit 1080p HD video over the Internet, YI 1080p Home Camera 2 is able to leverage Ambarella's SmartAVC™, a low bit rate video streaming technology, to achieve a saving of 40% in video size while preserving superb image quality and flow. Combining with the industry-grade Panasonic MN3422X Series Image Sensor, YI 1080p Home Camera 2 provides superb video quality with high sensitivity, low noise and low power consumption.


XIAOMI YI HOME CAMERA 2 SMART WIFI IP CAMERA (16)



Stay connected with whatever from wherever you are



XIAOMI YI HOME CAMERA 2 SMART WIFI IP CAMERA (18)



Gesture Recognition

YI 1080p Home Camera 2 can recognize a special hand gesture and will then activate the camera. Special moments can be stored securely with high quality details and accessed just a finger tip away. You can show a hand gesture in front of the camera within 2 meters, a video of 10 seconds will be recorded and sent to your mobile phone through our YI Home app. Use simple hand gestures to interact with the camera – easy, fun and convenient.



XIAOMI YI HOME CAMERA 2 SMART WIFI IP CAMERA (19)



Human Detection

Using characteristics of human figure imaging, together with graphic image processing, YI 1080p Home Camera 2 can detect and locate humanoid targets in moving images based on human figure models from huge collections of sample data , and extract humanoid features , train and retrain the model using SVM . Humanoid features are extracted and matched dynamically in real time to the offline models.



XIAOMI YI HOME CAMERA 2 SMART WIFI IP CAMERA (21)



Baby Crying Detection

Innovative audio identification of baby crying sound . Through the audio identification technology, the camera can identify the mood of the voice and send alert to you when your baby is crying. To distinguish itself from other alerts , the words "Baby Cry" will be displayed as the alert message.





XIAOMI YI HOME CAMERA 2 SMART WIFI IP CAMERA (23)

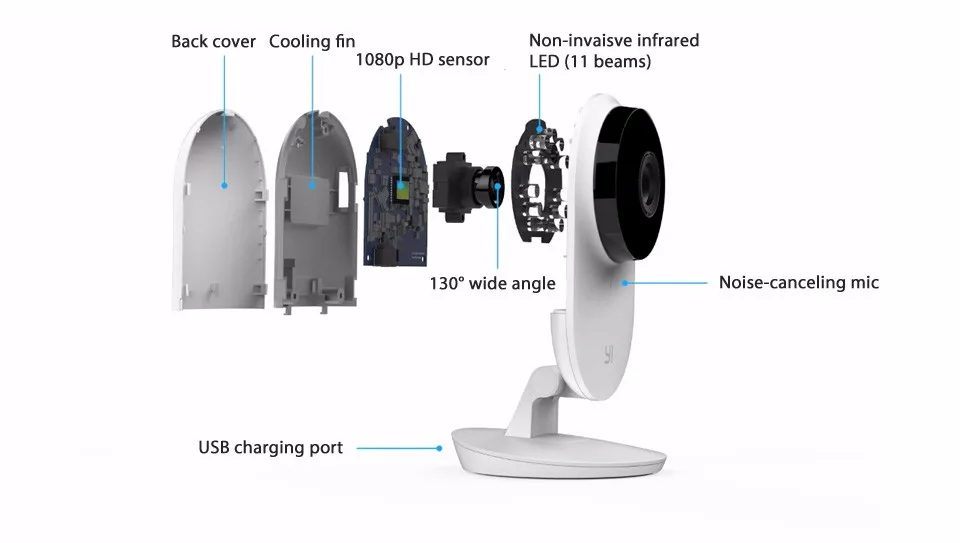

Elegant Design, Sophistication in its Simplicity

The design of YI 1080p Home Camera 2 is an extension of YI's first generation products and the result of professional design by our team members from Germany, Mainland China and Taiwan. Its smooth shape resembles a new-hatched egg; the wave-shaped base is a natural extension of the curves as a result of the designers repeated scrutiny. Static and action in one, sophistication in its simplicity.

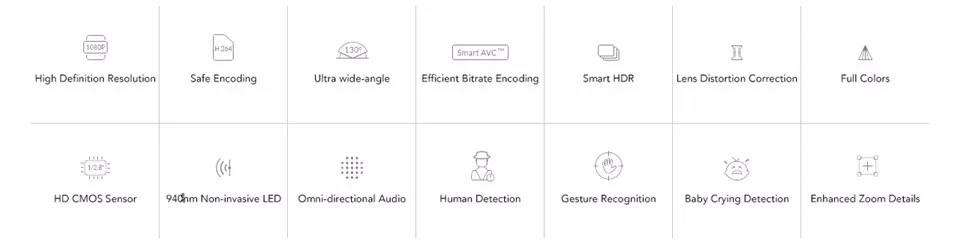

4X Digital ZoomActivity Zone AlertIntelligent DetectionYI HOME CAMERA 2 (1)YI HOME CAMERA 2 (2)YI HOME CAMERA 2 (3)YI HOME CAMERA 2 (4)YI HOME CAMERA 2 (5)

FAQ



Q: How to connect YI Home Camera 2 with your cell phone?

A: Here are 3 steps:

1. Download the YI Home APP

2. Plug in the power cable

3. Connect to your phone

XIAOMI YI HOME CAMERA 2 SMART WIFI IP CAMERA (27)



Specifications



General
Brand YI
Model YI Home Camera 2
Quantity 1 Piece
Color White
Specification
Processor Ambarella Cortex-A9-600MHz: S2LM
RAM/ROM DDR3-2Gb; SLC-NAND FLASH 1Gb
Support Platforms IOS/Android
Lens F2.0 130º Wide Angle
Sensor 1/2.8 inch(2.12MP) CMOS @ 25fps
Resolution c
Encoding h.264HP level 5.1 / ROI / LBR (SmartAVC™)
Image Enhancement 3D digital noise reduction, zoom 4X, digital PTZ HDR,LDC
Night Vision 11x940nm non-invasive Infrared LEDs
PC Viewer IE Viewer
Activity Alerts Activity detection, Activity Zone, Alert Video Notification Human figure, Audio, Facial Detection
Mic High Sensitivity 360º Mic
Speaker CLASS-D :1W
Storage Cloud Storage (optional),Micro SD Class 4+, Up to 64GB
WIFI 2.4GHz Working Mode: Station Mode, Self-adaption;
Working Center Frequency : 2450MHz
WIFI Working Frequency : 2412MHz – 2472 MHz
2.4GHz Channels: 802.11/b,1-4; 802.11/g,6-13; 802.11/n,CS15-22;
WIFI TX Power: 802.11/b=18dBm; 802.11g/n=16dBm
Modulate Data Rate : 1Mbps / 2Mbps / 5.5Mbps / 11Mbps(DSSS); 6Mbps / 7Mbps / 9Mbps / 12Mbps / 18Mbps / 24Mbps / 36Mbps / 48Mbps / 54M bps(OFDM);
CS0-CS7(802.11n,20MHz)
Encryption: AES/WEP 64bit/WEP 128bit/WAPI/WPA2
Safety Standards EN60950-1
Power AC(110V-240V)-DC/5V-1A;  2m USB cable;  Micro USB; Power + Data
Output MAX:4W
Working temperature -10°C– 60°C
Working humidity 10%-90%
Dimensions & Weight (Main Product)
Product size (L x W x H) 122(H)*70(R)*59(W)
Product weight 132g
Package Contents
1 x YI Home Camera 2
1 x User Manual
1 x USB Cable

YI DOME HOME 360 1080P

Highlights





Pictures

1080P Xiaomi YI Dome Home Camera (1)

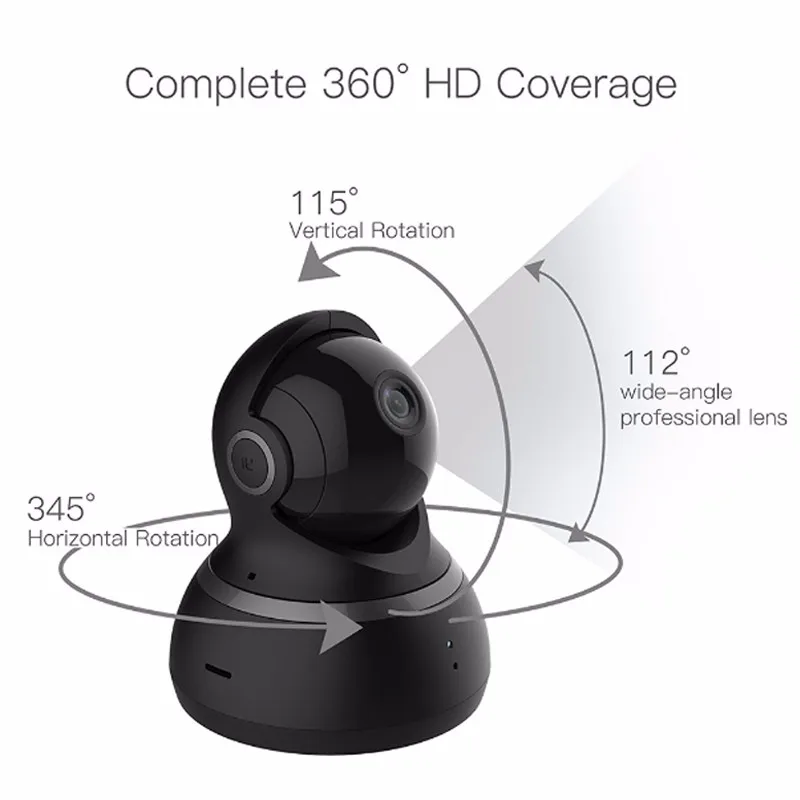

345 Degree Horizontal & 115 Degree Vertical Rotation Range Create a Complete 360 Degree Coverage

Features 112 degree wide-angle professional grade lens and Bidirectional Rotation range. YI Dome Cam 1080p records and captures complete panoramic scenes in High-Definition with practically zero blindspots. Automatically returns to "Auto-masking" mode (lens goes under cover) for extra sense of security ensuring no recording without your permission when not in use.

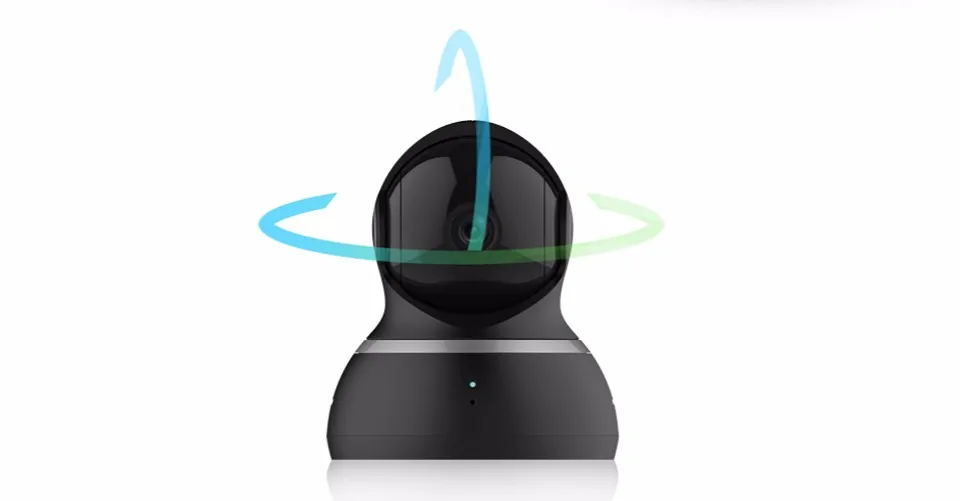

1080P Xiaomi YI Dome Home Camera (2)



1080p HD Enhanced Image Quality

High-definition image quality is crucial to monitoring your home when you're away. With 1080p HD quality and 2 million pixels in just a simple tap you can zoom (up to 4x) and see even the smallest details.



1080P Xiaomi YI Dome Home Camera (3)

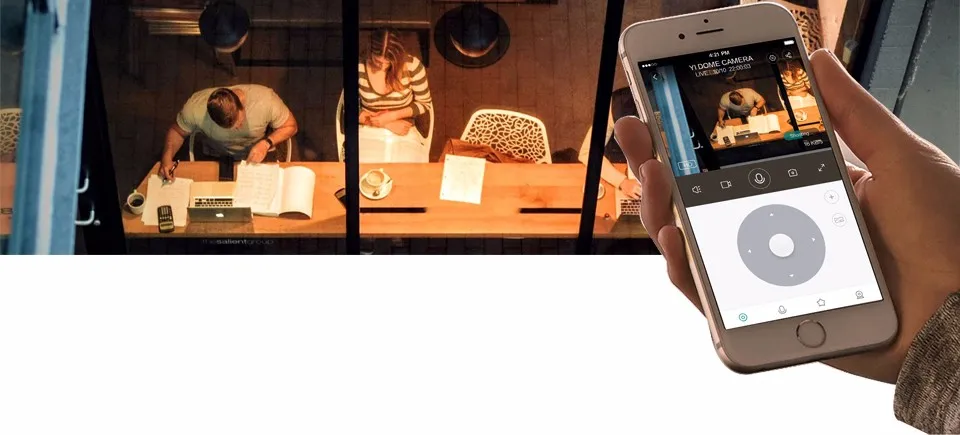

Manage Settings and Access Real-Time 360 Degree Viewing with YI Home App

Our intuitive Navigation System puts you in full control of your house at any angle, any way you like! You can even take a Panoramic Image of your house. View YI Dome Camera 1080p along with your other YI Home Cameras in one integrated app.



1080P Xiaomi YI Dome Home Camera (4)



10-Second Motion Tracking Alerts, Tracks, and Captures Every Movement with clear details

Advanced motion algorithms detect moving objects and automatically captures and tracks their movement trajectory. Smart motion tracking keeps up with everything, so you don’t have to.



1080P Xiaomi YI Dome Home Camera (5)



Sensitive Motion Detection Algorithm Keeps You Safe On The Front Line

Precise Motion Detection is the camera’s safety hallmark. Any slightest movements are accurately picked up and alert you immediately.



1080P Xiaomi YI Dome Home Camera (6)



Baby Crying Detection

Innovative audio identification of baby crying sound. Through audio identification technology, the camera can identify the mood of the voice and send alert to you when your baby is crying. To distinguish itself from other alerts, "Baby Cry" will be displayed as the alert message.



1080P Xiaomi YI Dome Home Camera (7)

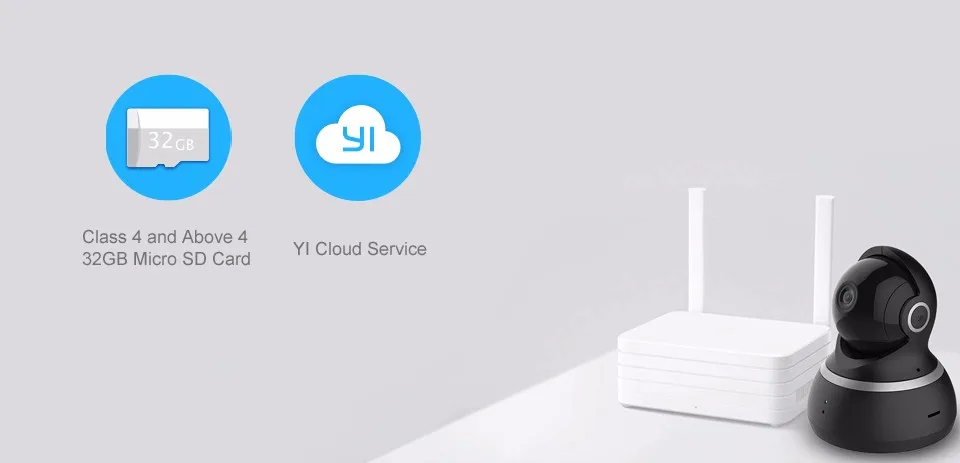

Simple and Flexible Storage Options:
Local and Cloud (available soon) Made Available Just For You.

YI Dome Cam 1080p loop records motion detected or continuous videos on local storage (Class 4 and above MicroSD card sold separately). A 32G MicroSD card can hold up to 80-hour-long video of continuous recordings. Double the assurance by securing your video on our YI Cloud (available soon).



1080P Xiaomi YI Dome Home Camera (8)

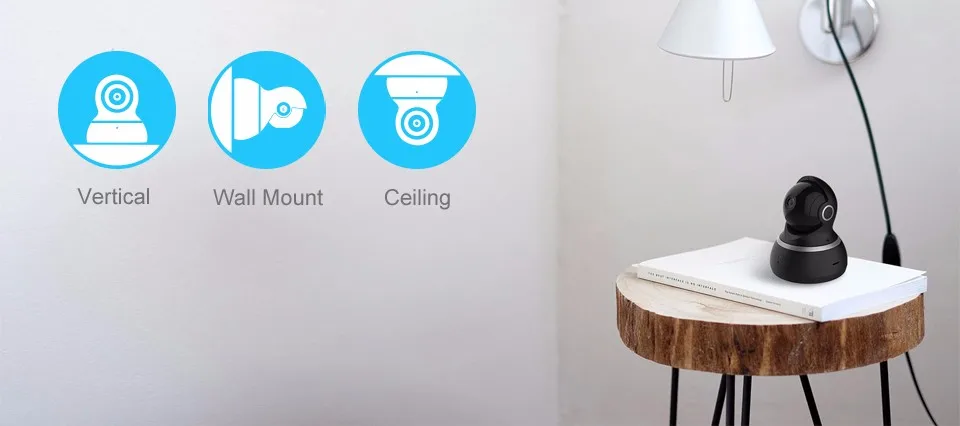

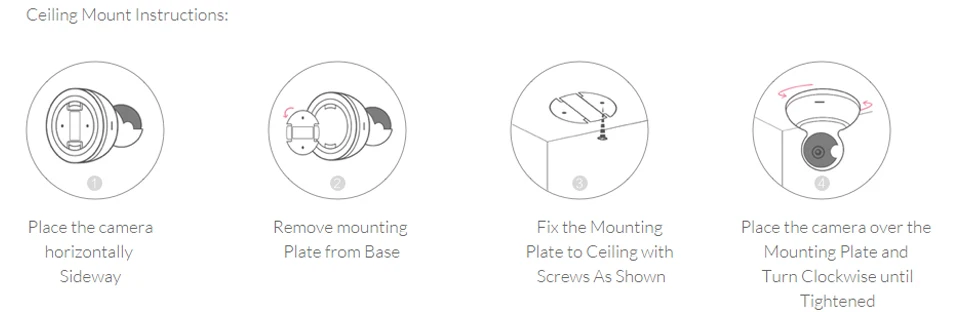

Multiple Installation Options

Quick and versatile installation. Place YI where it suits you best.
Hang it on the wall or mount to the the ceiling.



1080P Xiaomi YI Dome Home Camera (9)

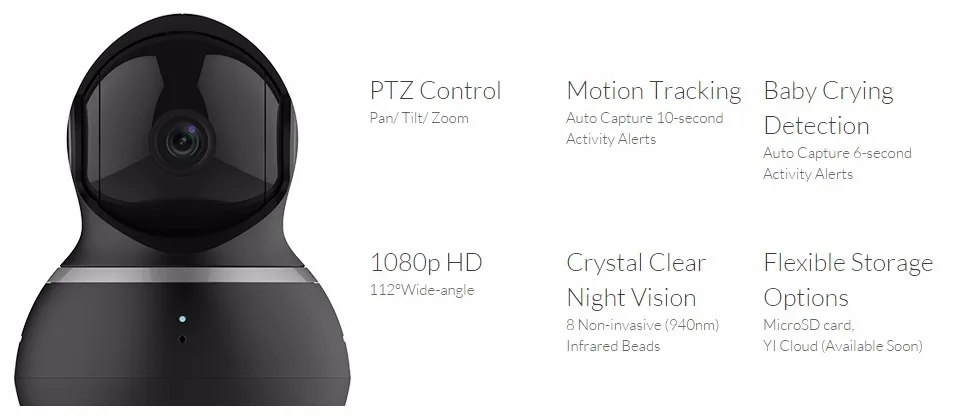

1080P Xiaomi YI Dome Home Camera (10)1080P Xiaomi YI Dome Home Camera (11)



Two microphones for symmetrical appeal.

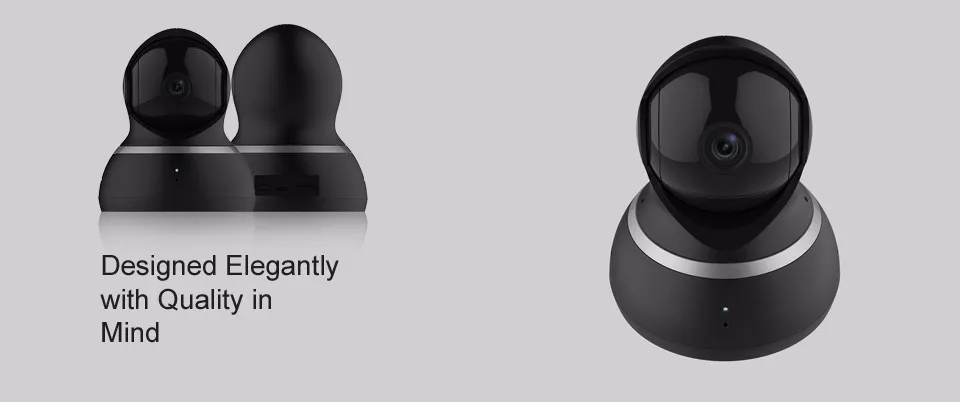

1080P Xiaomi YI Dome Home Camera (12)



Dimensions



1080P Xiaomi YI Dome Home Camera (13)

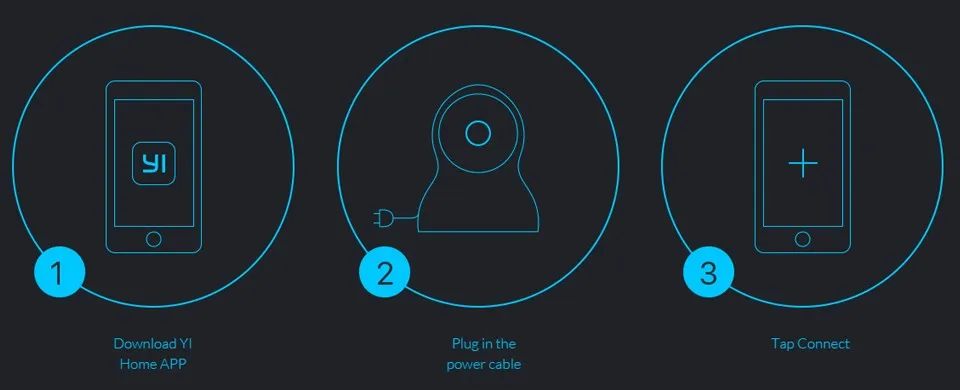

Lightspeed Installation
Just Takes Three Steps!

Set-up in 3 simple steps! Open the YI Home App and quickly connect with the people and place that are important to you.



1080P Xiaomi YI Dome Home Camera (14)

1080P Xiaomi YI Dome Home Camera (15)



Product Real Photos





2 3 4 5 6

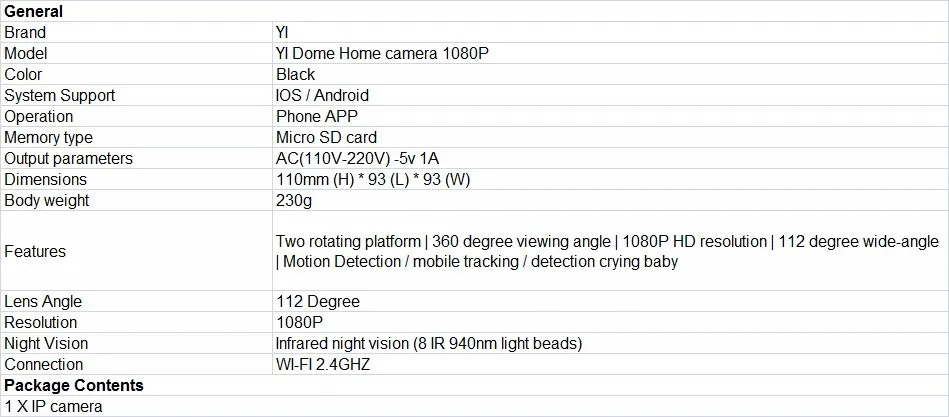

Specifications
