Item Descriptions:

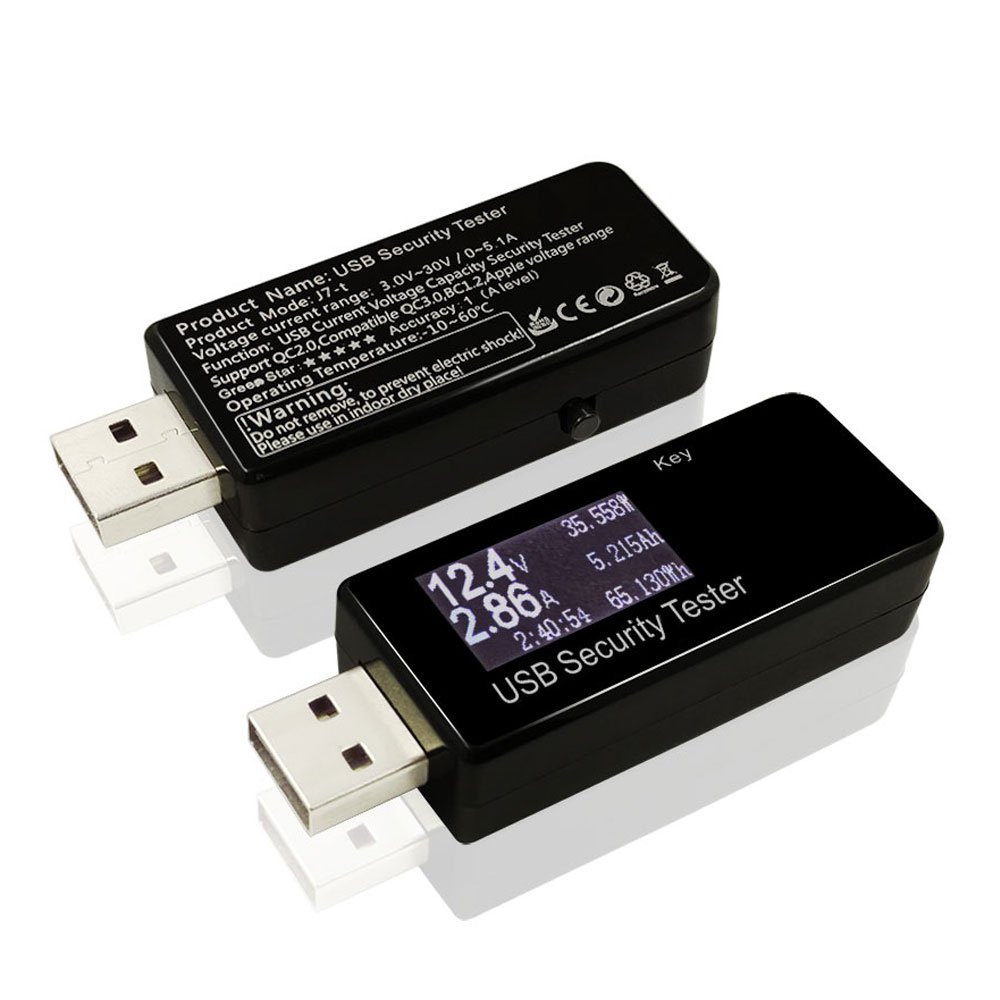

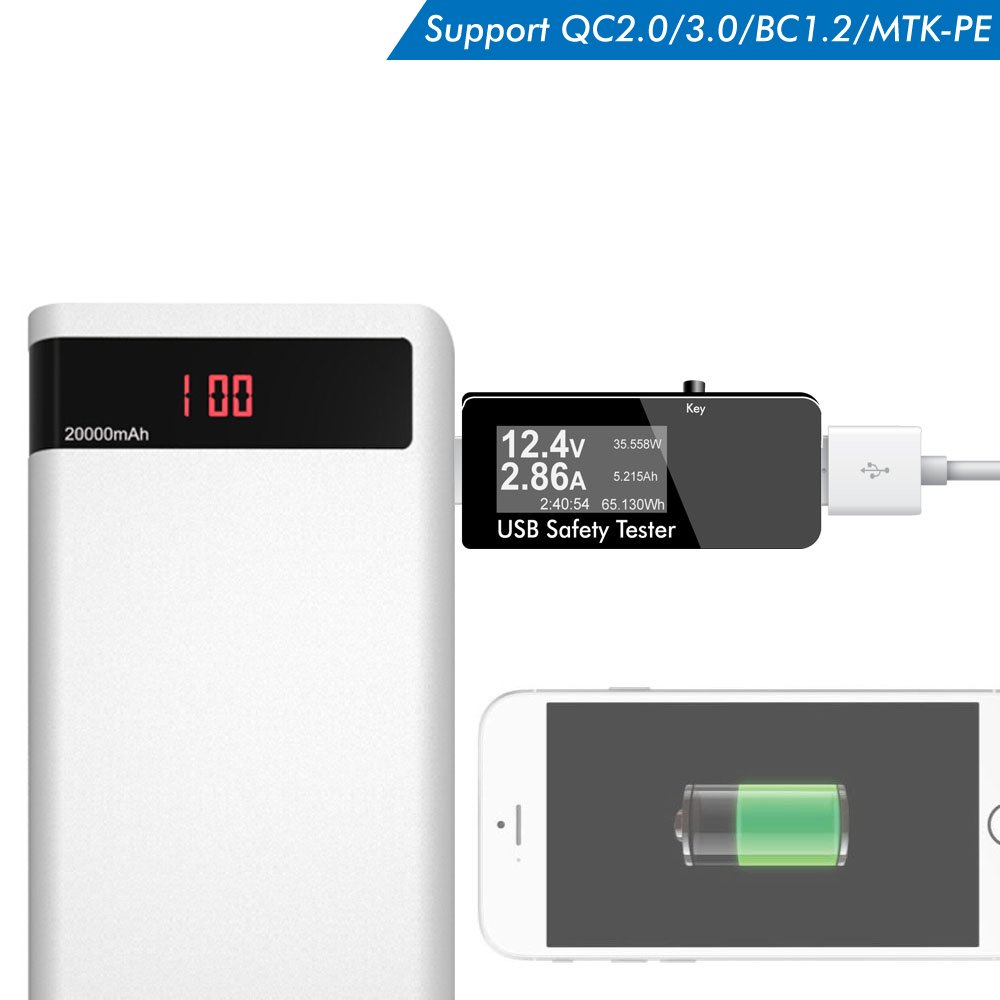

Current voltage tester compatible with QC 2.0 / 3.0 (rapid charge).

3-30V

The voltage,

0 - 5.1 A

The current can be measured.

In case

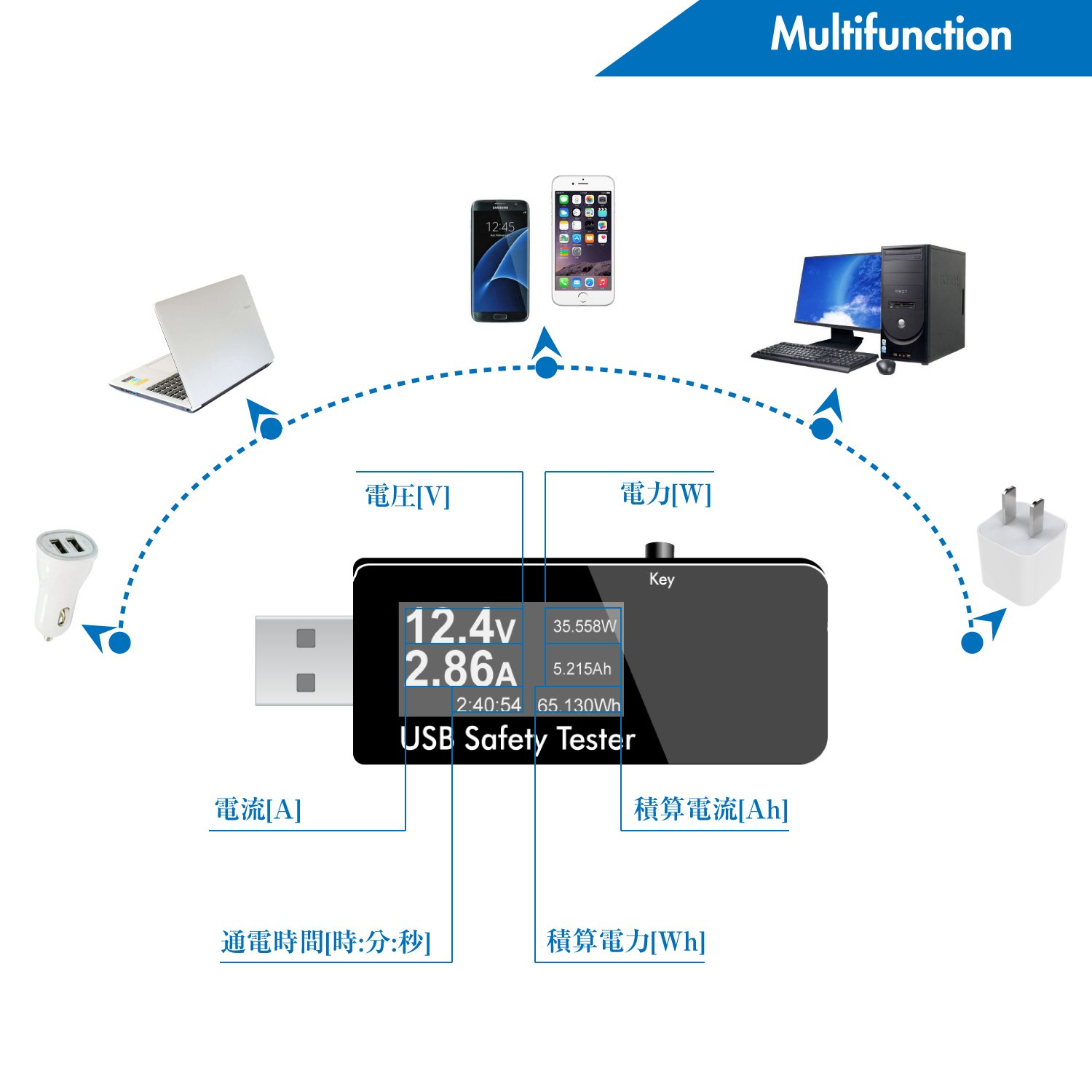

Power / capacity / time / watt / simultaneous display correspondence.

We grasp the voltage and current situation and protect the ball battery, iPhone, Android smartphone etc. of each company.

In case

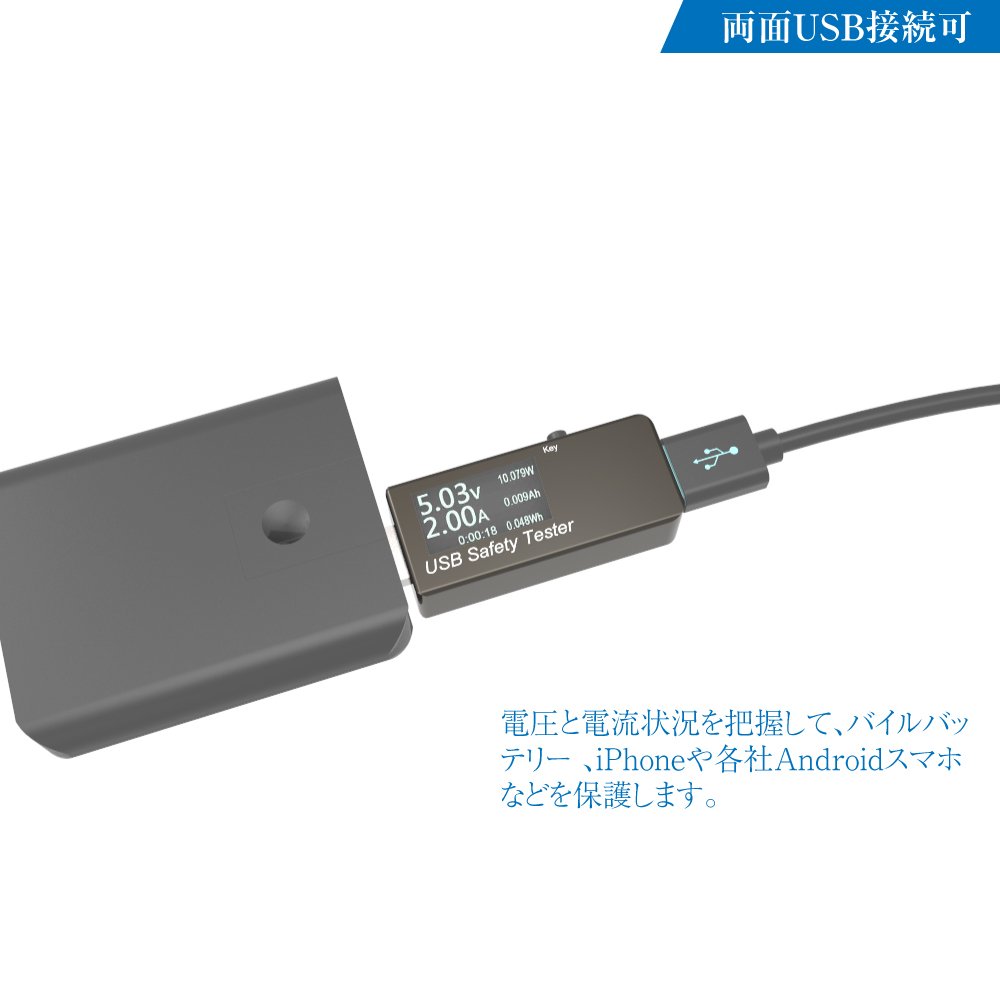

Because it is a convenient double-sided plug type USB connector, it is OK either face upwards or face downwards!

Easy to use.

Compact and easy to carry, no additional power supply required.

Data can be recorded when disconnecting, which is attached to the decoupling memory function.

In case

1 How to reset the screen

Key button 3 times consecutive push → Integrated electric power (Wh)

Key button 4 times consecutive push → energization time (hour: minute: second)

Key button long press → Full reset

2 How to reset the screen

Key button 2 times continuous push → current

Key button 3 times consecutive push → power

Key button 4 times continuous push → energization time

Key button long press → Full reset

Language changeover:

On 3 screens

, Key button continuation

6 times

Pushing it will switch Chinese / English display.

Measurement range:

Voltage: 3-30 V (Accuracy: 0.01 V)

■ Current: 5.1 A (Accuracy: 0.01 A)

Capacity: 0-99999 mAh (Accuracy: 0.001 Ah)

■ Power Consumption: 0 - 9999999 mWh (Accuracy: 0.001 Wh)

Time: 0 - 999 h 59 min 59 s (Accuracy: 1 s)

■ Power: 0-299.999 W (Accuracy: 0.001 W)

■ Temperature: 0 to 80 ° C

■ Resistance: 1-999.99 Ω

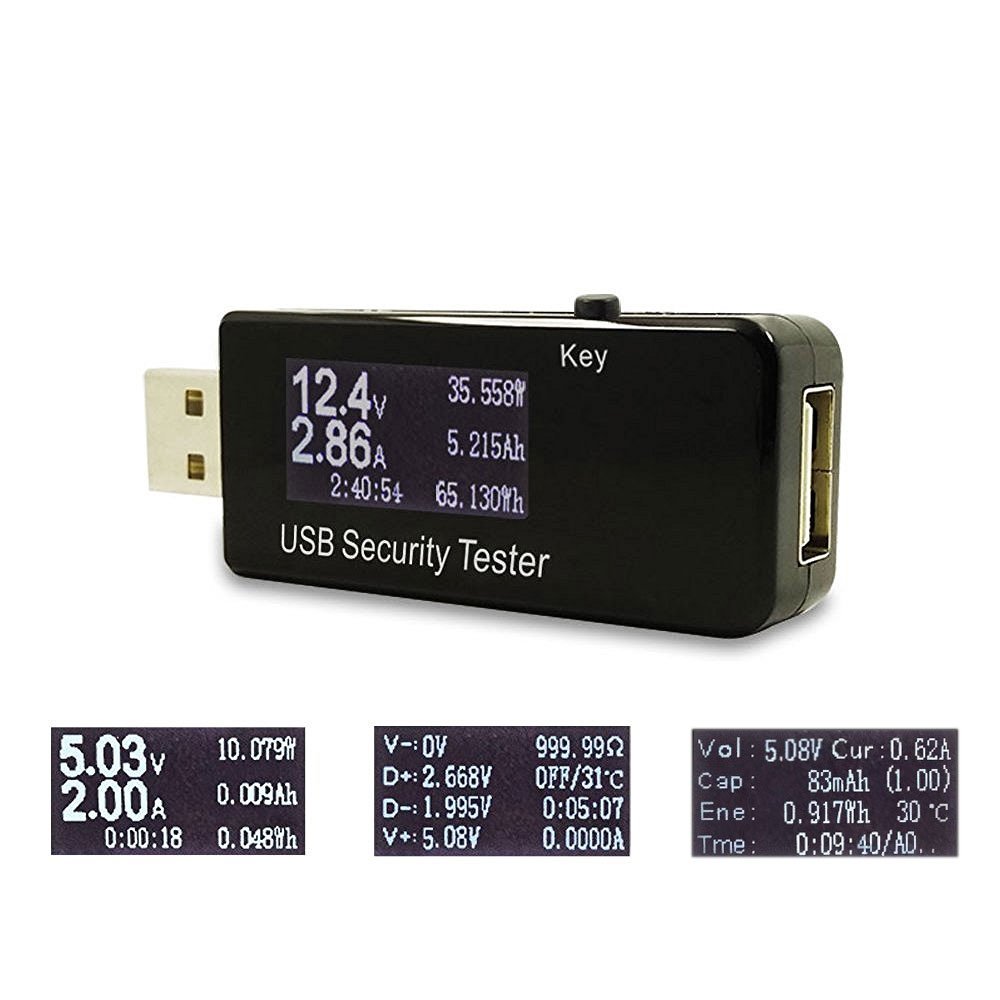

You can switch the display by pressing KEY.

Press and hold KEY to erase the data.

[Data reset by long press]

Points to note:

※ Because it is made in China, there may be some dirt / scratches on the main body.

In case

* Do not use for important communication devices or devices that exchange large amounts of data.

※ No instructions, please refer to this page for usage.

In case

* Be sure to back up the various memory of the connected device before use.

* The liquid crystal display of the product picture is an inlay picture provided by the manufacturer.

Actually it becomes a darker display.

【Note】 Recently there are many fakes, so our products are all

Belever Tokyo

It sells,

Amazon.co.jp

Will ship.

There are recently no permission of our company There are exhibitors who sell this item without permission, so please be careful when purchasing.

In case

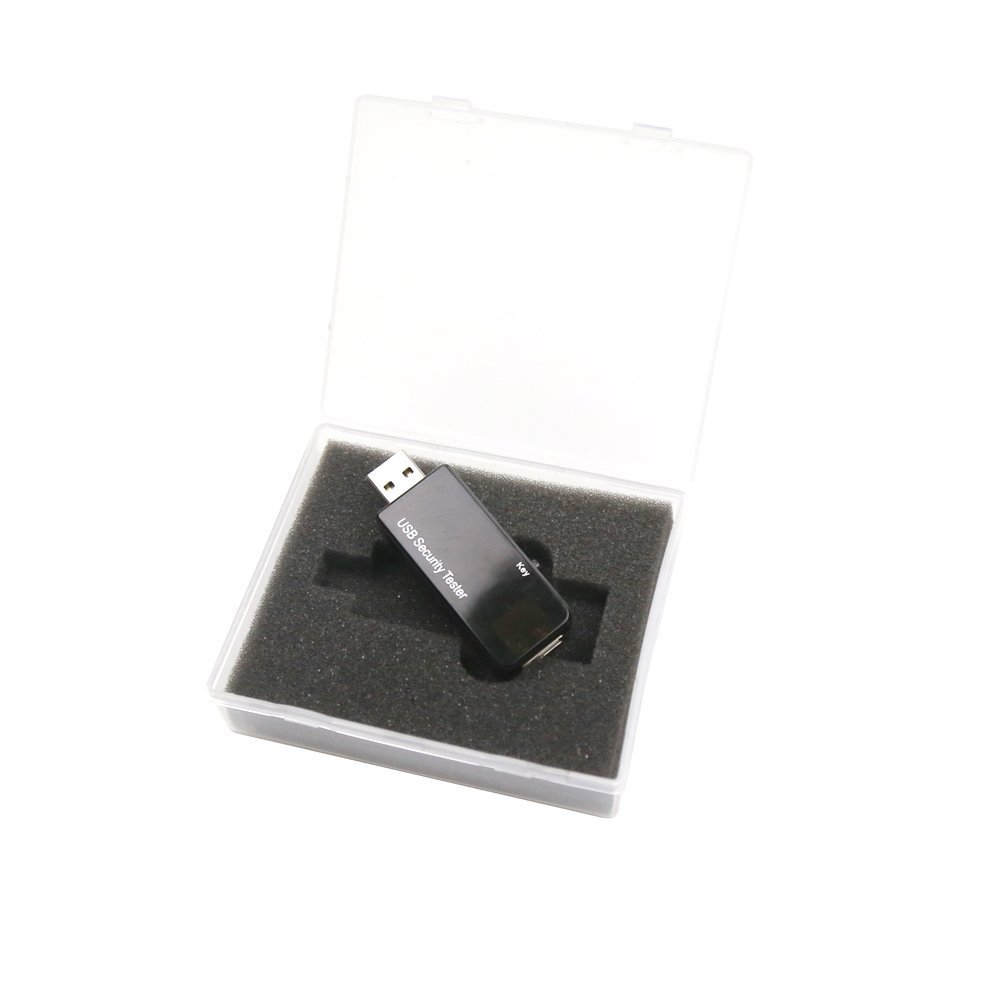

plastic case

Attached, please use with confidence.

Features:

• Please enter model number Confirm this is compatible:
• [Attention] Because there are many fake items recently, I will explain the information of the item.
• All our products are sold by Belever Tokyo and shipped by Amazon.co.jp.
• There are recently no permission of our company There are exhibitors who sell this item without permission, so please be careful when purchasing.
• Current voltage tester compatible with QC 2.0 / 3.0 (rapid charge).
• Voltage of 3 to 30 V can be measured.
• Power / capacity / time / watt / simultaneous display correspondence.
• We grasp the voltage and current situation and protect the ball battery, iPhone, Android smartphone etc. of each company.
• Double sided USB connection possible, easy to use.
• Compact and easy to carry, no additional power supply required.
• Measurement range: voltage U = 3-30 V, current I = 0 - 5.1 A.
• Size: 67 mm * 14 mm * 14 mm

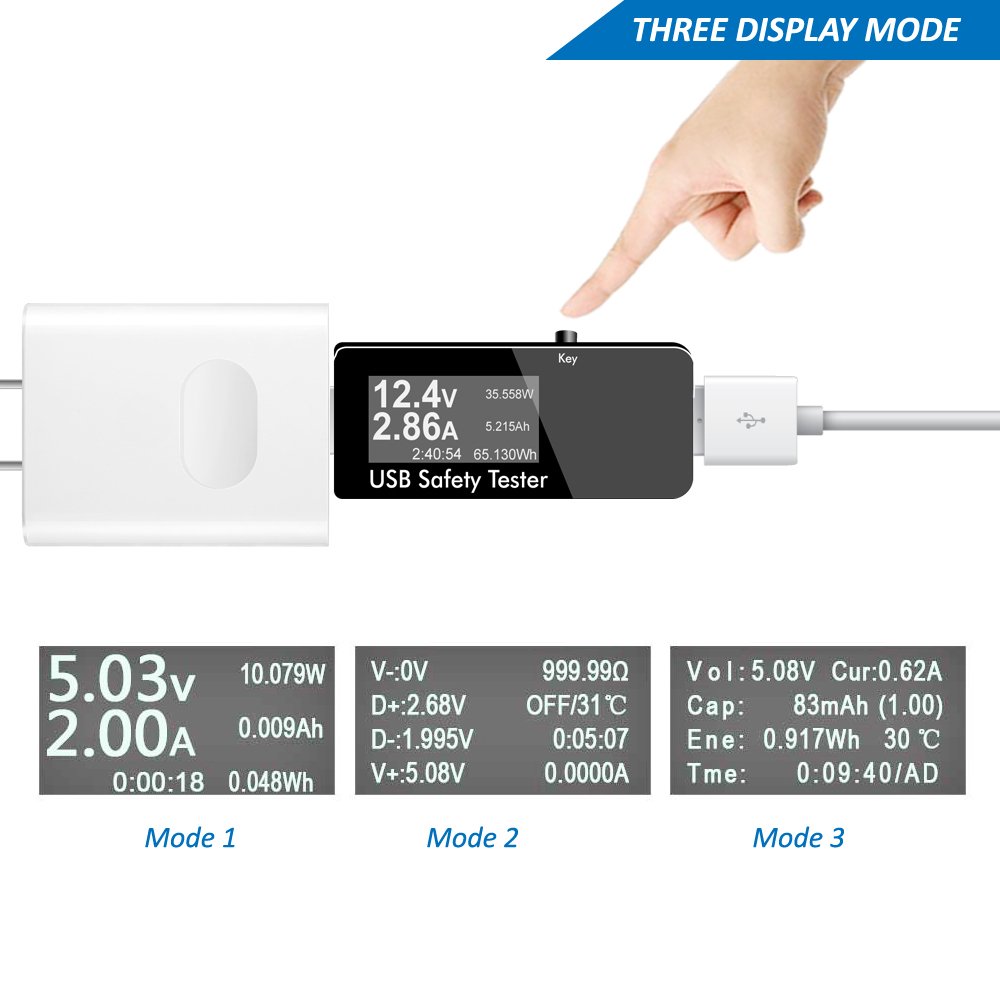

• Switch display: Press KEY to switch display.
• Press and hold KEY to erase the data.

Product information:

Shipping Weight: 45 g

Package Dimensions: 3.00 x 8.89 x 10.31 cm
