Item Descriptions:

Product introduction

Unit exchange type camera system Camera unit

From Amazon

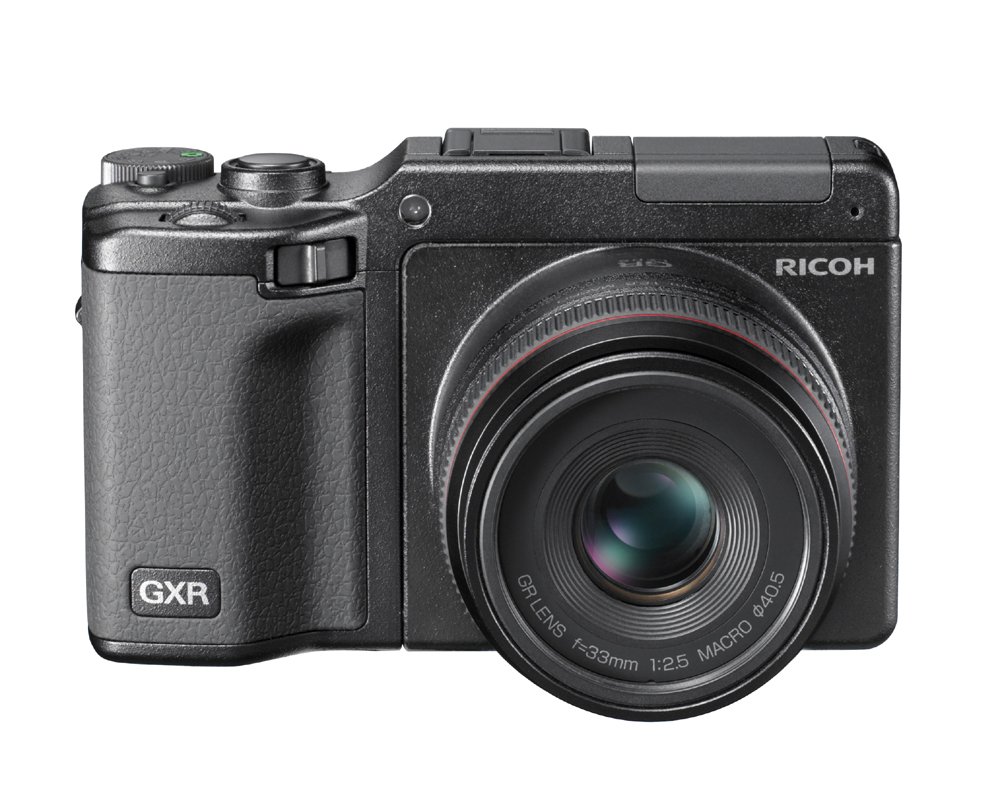

A completely new style of camera "RICOH GXR" that does not have an imaging element in the body and removes / combines a unit combining "lens + imaging element + image processing engine"

Ideal form of digital camera.

Matching is always required for factors that determine image quality.

Factors that determine the image quality of a digital camera are "lens", "image pickup element", "image processing engine".

As with compact cameras, the unit interchangeable camera system always provides the highest image quality without separating these three factors.

Adopting the best matching image pickup device that can draw out the maximum level of competence for each lens, we developed individual engines constantly pursuing the completeness of image quality.

World's smallest and lightest *.

Miniaturization of size has been here by unitizing the main photographic parts

Lenses and imaging elements have their own size depending on their characteristics.

The degree of freedom of the combination dramatically improved miniaturization of the overall size of the camera.

In a single lens reflex body, it is necessary to design with a margin so that any lens can be tolerated, but in the case of a unit interchangeable type it is always possible to design with the minimum size.

* Flash built-in lens exchange type digital camera, when lens is installed.

As of September 14, 2009, I studied Ricoh.

※ The main unit and the camera unit are sold separately.

Like a compact camera, it can be handled easily.

Due to the slide-in / mount structure, ease of use that was not found in SLR is realized.

The slide-in / mount structure is a revolutionary unit mount type that does not expose delicate parts such as lenses and imaging devices at all.

■ Easy unit exchange

Flat mounting structure with no lens or imaging element exposed.

Easy to replace the unit even outdoors.

■ Structure preventing the entry of garbage

Attention-oriented camera unit with GR lens "GR LENS A12 50 mm F 2.5 MACRO" ※ The main unit and camera unit are sold separately.

■ 50mm f / 2.5 single focal length "GR lens" mounted

Equipped with high quality macro lens that combines Ricoh's optical technology

■ APS-C size 12.3 megapixel CMOS sensor mounted

Suitable for portrait and macro shooting, it is a sensor that matches a single focal length 50 mm lens making use of blurring taste.

■ Third generation image engine GR ENGINE III installed

By installing an image processing engine which grasps GR's pedigree and combining CMOS sensor, it was possible to obtain high speed.

※ What is GR lens ※

We define "GR LENS" as having overall ability to exceed a certain level in overall lens characteristics centered on MTF characteristics, distortion aberration, and chromatic aberration.

Features of 50 mm f / 2.5 single focal "GR lens"

· Using high refraction glass for luxury, successfully achieving compatibility of small size, light weight and high image quality.

· High resolving power and high contrast are achieved to the peripheral part.

- Reduction of chromatic aberration of magnification - Color difference of coma aberration, thoroughly eliminating color blur of image.

- Corrected distortion aberration to a level that does not need to rely on electrical correction.

· Reduced vignetting from opening the aperture, realizing a spot blur keeping the diameter of the circle to the edge of the screen.

· By adopting the floating mechanism, high depiction power is realized up to the corners of the screen in macro mode.

· Maximum shooting size 1/2, minimum shooting distance 0.15 m (7 cm from the lens tip) achieved.

· Adopt manual focus ring.

It is suitable for strict focusing such as macro shooting.

Focus ring can also be used during autofocus, realizing focusing on sticking.

Wide angle 24 mm, camera unit with optical 3 × zoom mounted "RICOH LENS S10 24 - 72 mm F 2.5 - 4.4 VC" ※ The main unit and camera unit are sold separately.

■ Wide angle 24mm optical 3X zoom lens mounted

· Macro mode that can shoot close up to 1 cm at the wide end and 4 cm at the telephoto end

· Aspheric surface, special low dispersion glass, high refractive index and low dispersion glass.

Comprising of 11 lenses in 7 districts, compact size and descriptive power are compatible at a high level.

- Distortion aberration, chromatic aberration, and reduction of peripheral light amount at the wide end are effectively suppressed.

High sensitivity CCD sensor mounted

· High sensitivity CCD sensor with 1 / 1.7 size, 10 million pixels.

· Sensor shift type Equipped with a camera shake correction mechanism.

■ Smooth Imaging Engine IV installed

By combining with the CCD sensor, it is possible to shoot high-resolution images with high definition and low noise, demonstrating the depiction power that has never been before.

Outstanding mobility

■ Magnesium alloy body combining portability and durability

Adopted lightweight and highly rigid magnesium alloy for the exterior.

Impact resistant, durable body realized.

In addition, heat dissipation and electromagnetic shielding which are important for digital cameras are also high level.

Withstood abuses of photographers, demonstrate high motion accuracy and stability.

■ Rubber grip that realizes a high holding characteristic that fits in hand

GXR, which realizes the mobility comparable to that of a compact camera, also sticks to the shape and material of the rubber grip, it is convenient and high in ease of preparation.

■ Quickly call up the setting "DIRECT button"

Adopted buttons that can directly call up the setting items that change frequently to full on the liquid crystal screen.

You can select from the "Dark", "Thin", "Normal", "Image OFF", and darkness of the display on the DIRECT screen, allowing you to set while checking the background image.

■ Unit replacement type unique functions and settings stored in the camera unit

The setting contents are stored in both the body and the camera unit, and it is possible to change the reading source at the time of attaching the lens depending on the setting.

Always shoot quickly with preference settings according to lens characteristics.

■ Intuitively and quickly operate "ADJ. Lever" & "Up / down dial"

GR DIGITAL, twin dial before and after the body succeeded in the GX series enables quick operation.

LCD screen sticking to easy to see

■ As a viewfinder, realized reliable image quality as a viewer 3.0 type 9200 dots liquid crystal monitor

Reality of the image at framing, high-definition high contrast LCD monitor pursuing ease of function setting as well as image search and focus confirmation immediately after playback is adopted.

Even the subtle taste of each camera unit, realistically reproduced.

■ Manual focus ring seeking commitment focusing ※

In the camera unit equipped with manual focus, the focus ring can be used at both MF and AF.

※ "GR LENS A12 50 mm F 2.5 MACRO" only

■ Overwhelming searchability during playback, "Micro thumbnail display" "Display by date"

The micro thumbnail display that can list 81 images can quickly find the captured image.

Also, it is possible to display "thumbnail by date" that can display 63 thumbnails per shooting date.

Features:

• Please enter model number Confirm this is compatible:
• [Compatible models] Ricoh GXR
• [Number of effective pixels] 12.3 million pixels [Zoom] Digital 4 times [Maximum shooting resolution] 4288 × 2416

Product information:

Shipping Weight: 381 g

Package Dimensions: 9.40 x 9.60 x 13.59 cm
