Product Description

The module has 16 push buttons. You can make usual keypads for enter numbers, symbols, or navigate and selections in the program. There are pull-up resistors of different values for each button. This makes it possible to connect all the 16 keys to taking only one analog port of the microcontroller. The button consists of two parts: a cap, which can be applied to any character, and a transparent cover which can prevent blurring of the text and add light.

Connection:

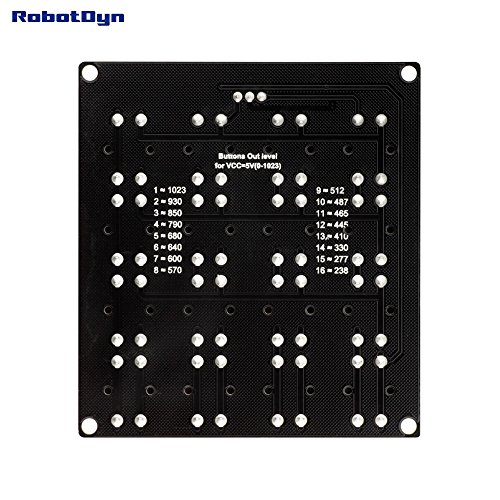

After connecting power to the module and pressing at least one key contact at "OUT" will stress the appropriate level. Conformity stresses the buttons pressed, you can find out how on the board and in the table below (values are valid out when powered from 5v).

Product official page:
http://robotdyn.com/catalog/buttons_control/button_keypad_4x4_module/
* For get a detail information of product, instruction, schematic diagram, dimension diagram, guide and software, Pls visit to official page of product.

RobotDyn(R) - registered trademark in USA.
Zhuhai RobotDyn Technology Co.,Ltd - Developer and manufacture.

Feature

This 4x4 Keypad Matrix 16 push buttons with one analog signal out.
The button consists of two parts: a cap, which can be applied to any character, and a transparent cover which can prevent blurring of the text and add light.
Brand : RobotDyn
MPN(PartNumber) : Matrix Button Keypad
EAN : 6970622931386
Product Dimensions(LxWxH) : 12x9x2cm ; 118 g
Package Dimensions(LxWxH) : 9x8x2cm ; 118 g
