Item Descriptions:

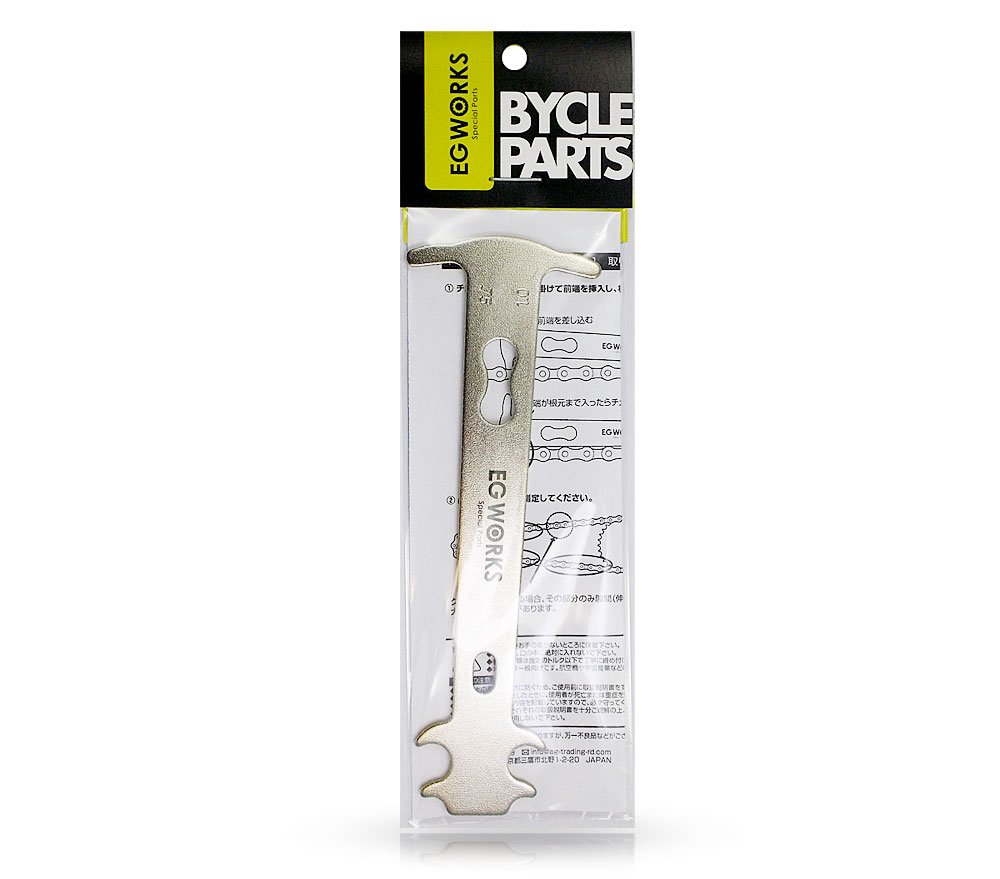

EGWORKS high precision chain checker CCR-1

■ Dense and high precision.

Compact appearance, but excellent precision.

I am confident in accuracy and construction.

Accuracy varies depending on the manufacturing factory, but our company is highly accurate and stable, good construction

Manufactured at the Taiwan factory.

In addition, we are producing with quality control guarantee.

Chain checker is a fine measuring instrument.

Since high level accuracy is required, we stuck to accuracy.

■ It can measure elongation of 0.75% and 1.0%.

Corresponds to chains from 6th to 11th, and can measure elongation of 0.75% and 1.0%.

In the case of the 6th to 10th speed chain, it is recommended to replace with 1.0%, in the case of the 11th speed chain it is 0.75% elongation

We recommend replacement.

Even if it is used more than that, the chain itself will not cut,

Wear sprocket etc., unexpected trouble may occur due to poor speed change.

There are products measuring 0.5% and 0.75% on the street, but it is meaningless to measure 0.5%

Depending on chain brands, long initial elongation occurs at 1000 km and 0.5% goes through

Because there is (since it is the initial growth to the last, elongation slows down afterwards), this 0.75%

A checker that can measure 1.0% is practical.

■ Compact and good handling.

In the case of a checker with a length, a checker is required for small diameter cars, strongly sloping cars, deformed frame cars

There are times when you have difficulty putting in difficulties measuring.

Even the usual frames are a bit difficult.

Especially when you need to pull out, there are many cases where you need force, accidentally

Zaku!

And hit it on the frame.

Measurement accuracy will increase if there is a length, but it is totally overwhelmed if it is difficult to use.

That point CCR - 1 is 140 mm very compact and easy to put in and take out.

Of course I will not take up the place even in the tool box.

■ High endurance specification.

Carbon steel is used for the material.

In addition luxuriously thick high-quality luster chromate treatment protects the surface and prevents rust and prevents deterioration.

I stuck to the processing from materials to processing, I made it toughness specification that can withstand use for many years.

The logo mark is a silk printing rather than a fine special laser engraving.

It is a special processing which raised rust prevention by reacting with the plating layer while engraving.

In addition to directing a very high sense of luxury and possessing possessions not elsewhere, peeling off due to aging and being ephemeral

We are preventing appearance.

<Spec>

Measurement values: 0.75% and 1%

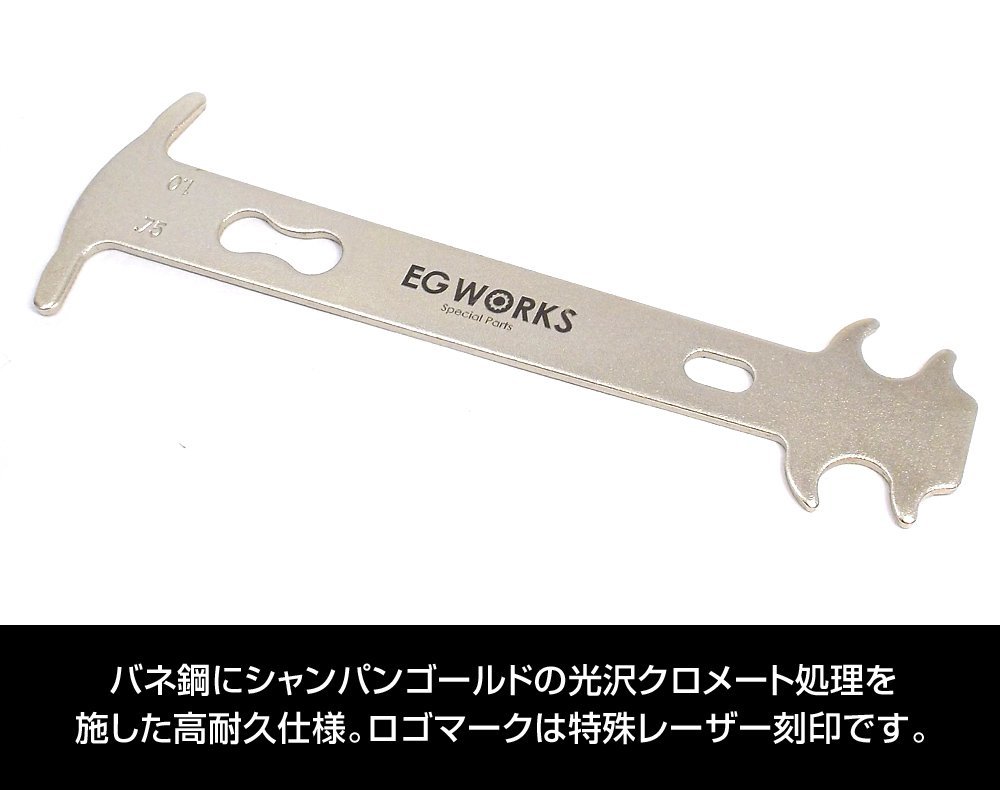

■ Material: gloss chromate treatment on carbon steel, special anti rust laser engraving

■ Dimension: 140 x 50 x 2 mm

Weight ■: about 36 g

■ Color: Champagne gold

■ Made in Taiwan

Features:

• High precision chain checker that corresponds widely to chain from 6th to 11th.

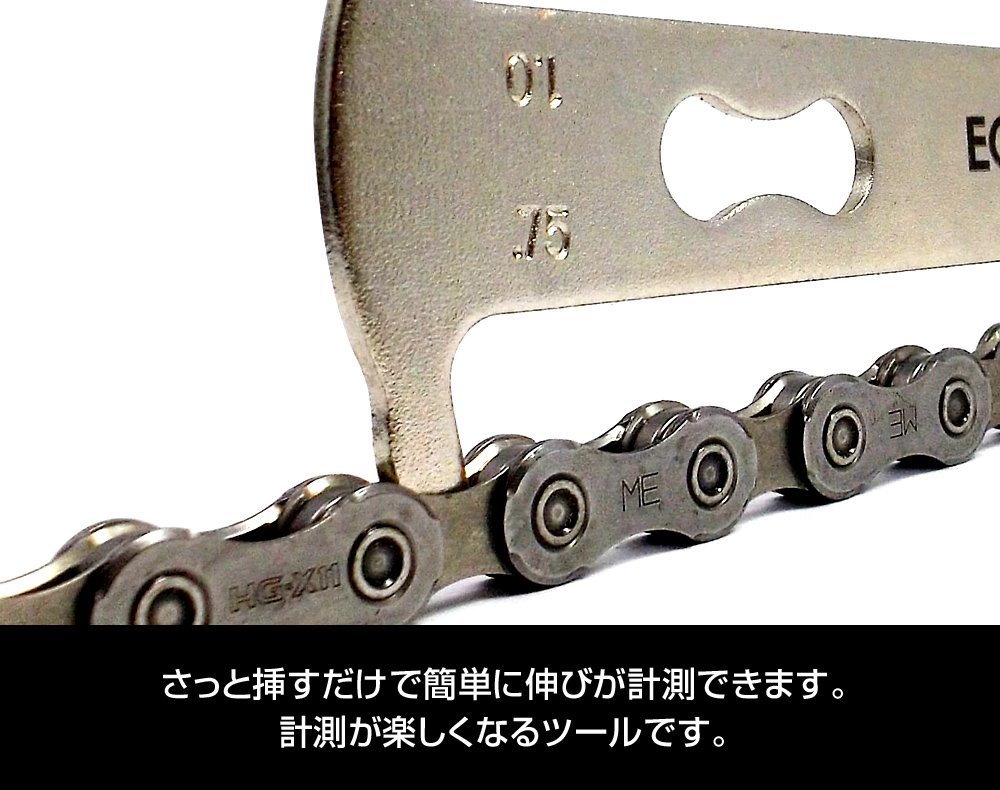

• Easily measure chain elongation simply by inserting it.
• High carbon steel is used as material, high quality durability specification with high quality luster chromate treatment.
• High quality and high precision products produced at factory guaranteed precision.
• Secure domestic inspection / domestic shipment.

Product information:

Shipping Weight: 40 g

Package Dimensions: 0.61 x 5.59 x 18.80 cm
