Specification:
100% brand new and high quality
Charge module- Linear charging.
It has MICRO USB female
It still retain the input voltage wiring solder joints can be very convenient to DIY
Specifications:
Current- 1A adjustable.
Charge precision- 1.5%.
Input voltage- 4.5V-5.5V.
Full charge voltage- 4.2V.
Led indicator- red is charging Green is full charged.
Input interface- micro USB.
Work temperature- -10 to +85.
Inversed polarity- NO.
Size: 27X17mm.
NOTE:
1. Ampere meter can only be connected to 5v input end of the module.
2. It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH current of 400 is enough.
3. The connection wire should not be too thick.
4. Make sure the connect point is good.
5. If the input voltage is too high like 5.2v the current will be less than 1000mA it is normal. It is protect function auto-substract the charging current to avoid burn damage to chip.
6. NO Reveral polarity.
Package Included:

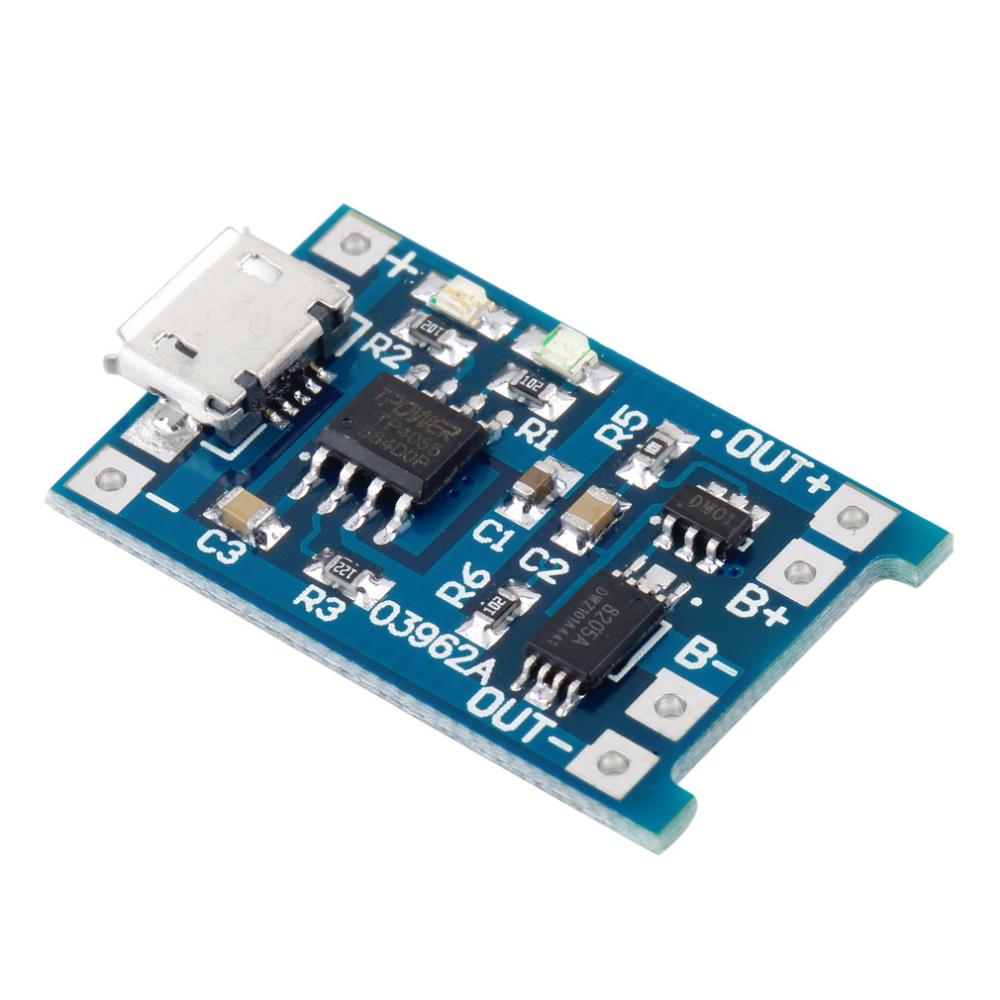

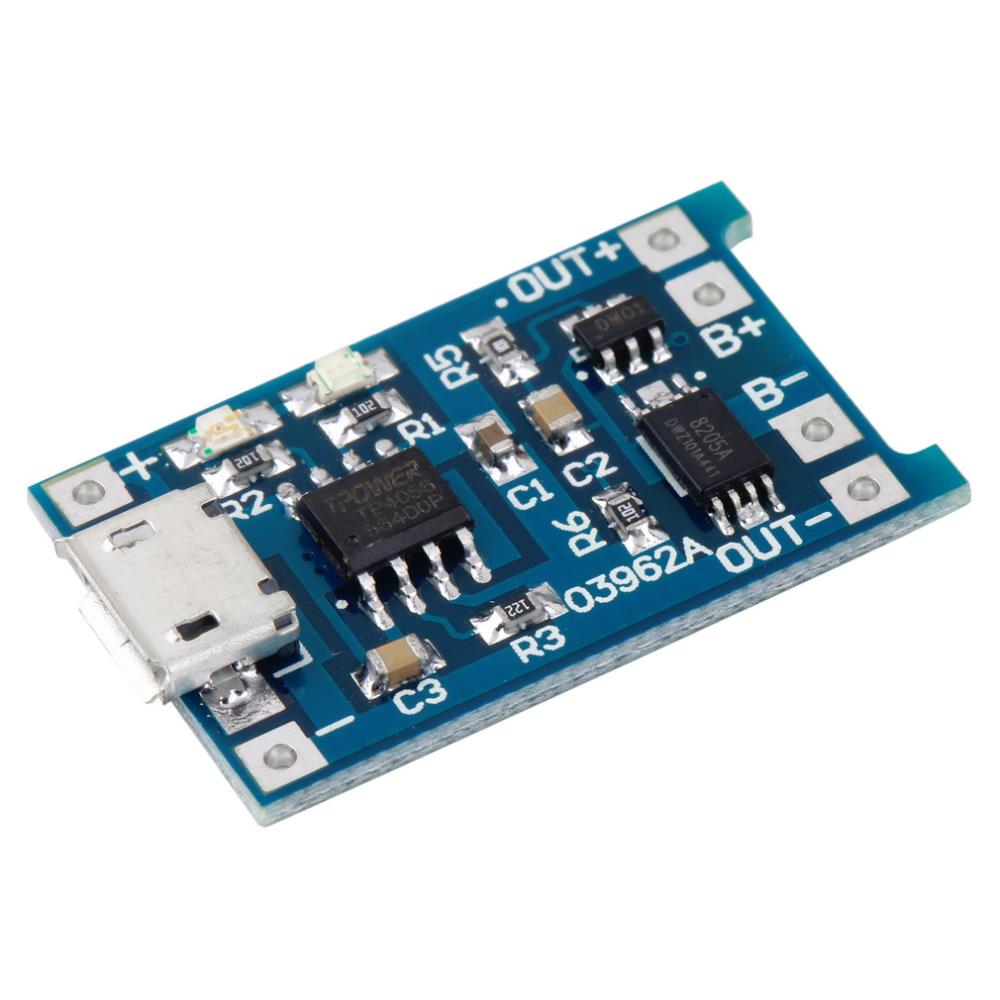

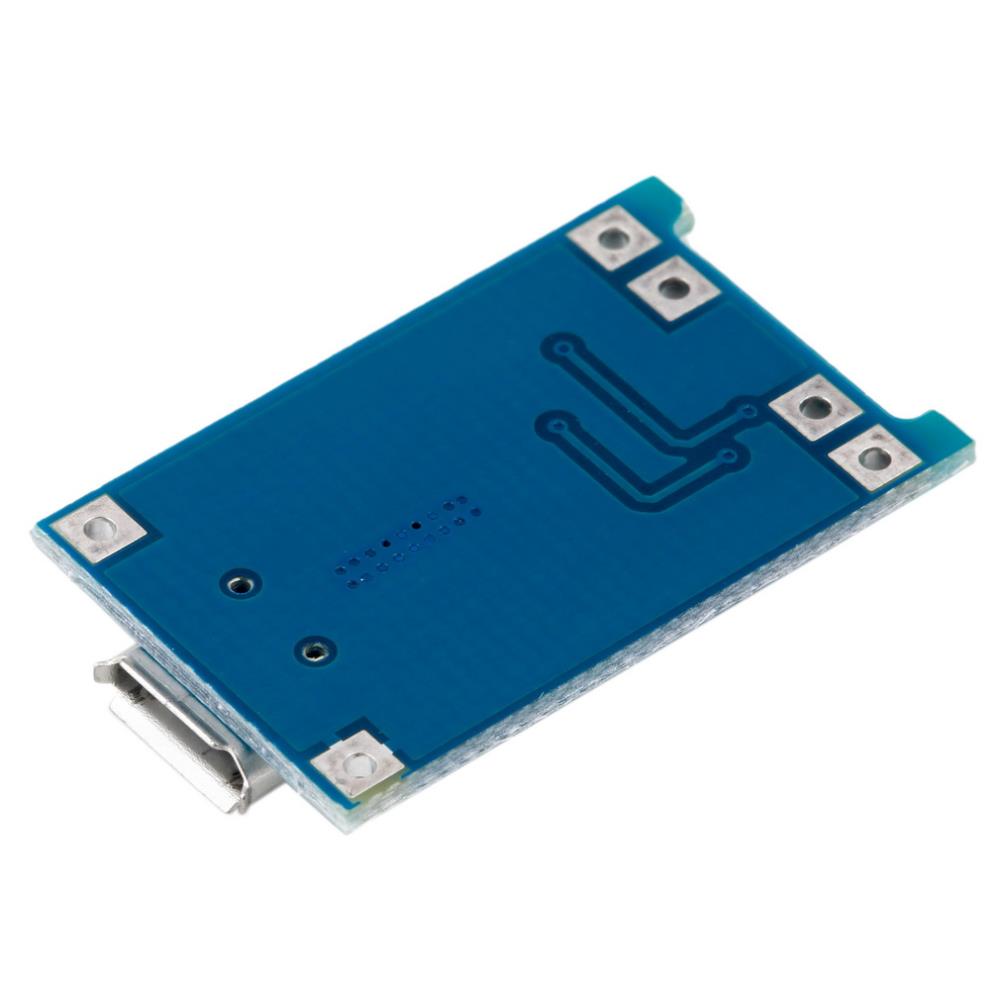

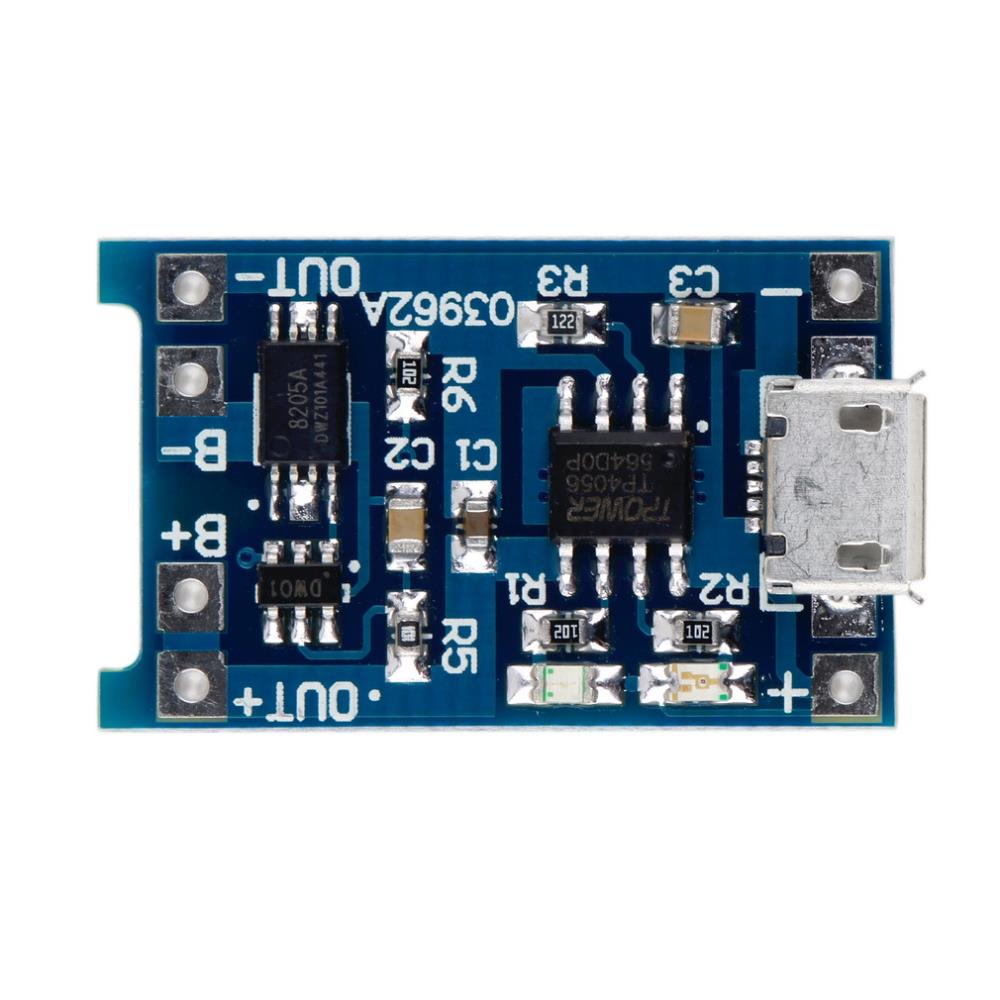

1 x5V Micro USB 1A 18650 Lithium Battery Charging Board Charger Module
