Product introduction

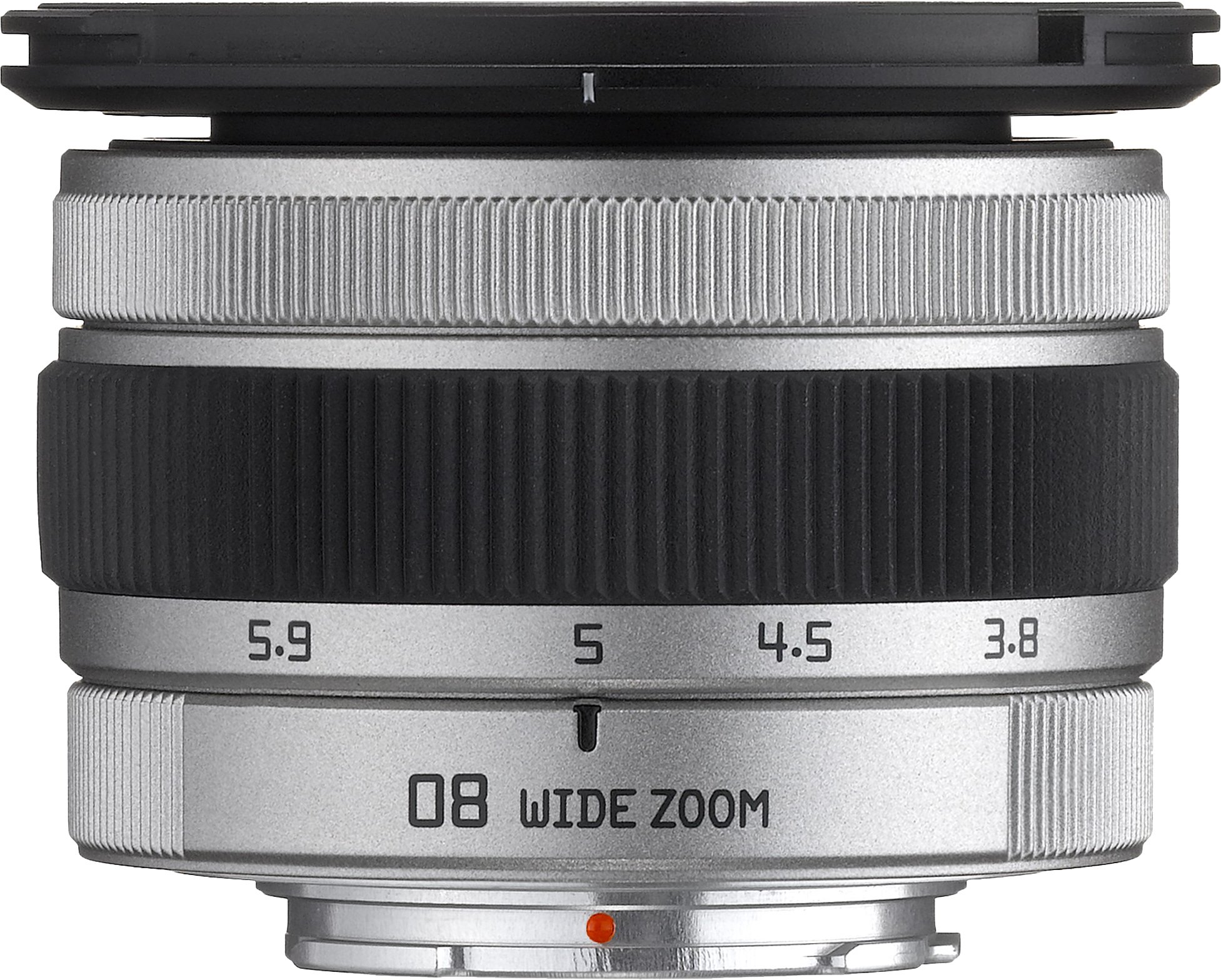

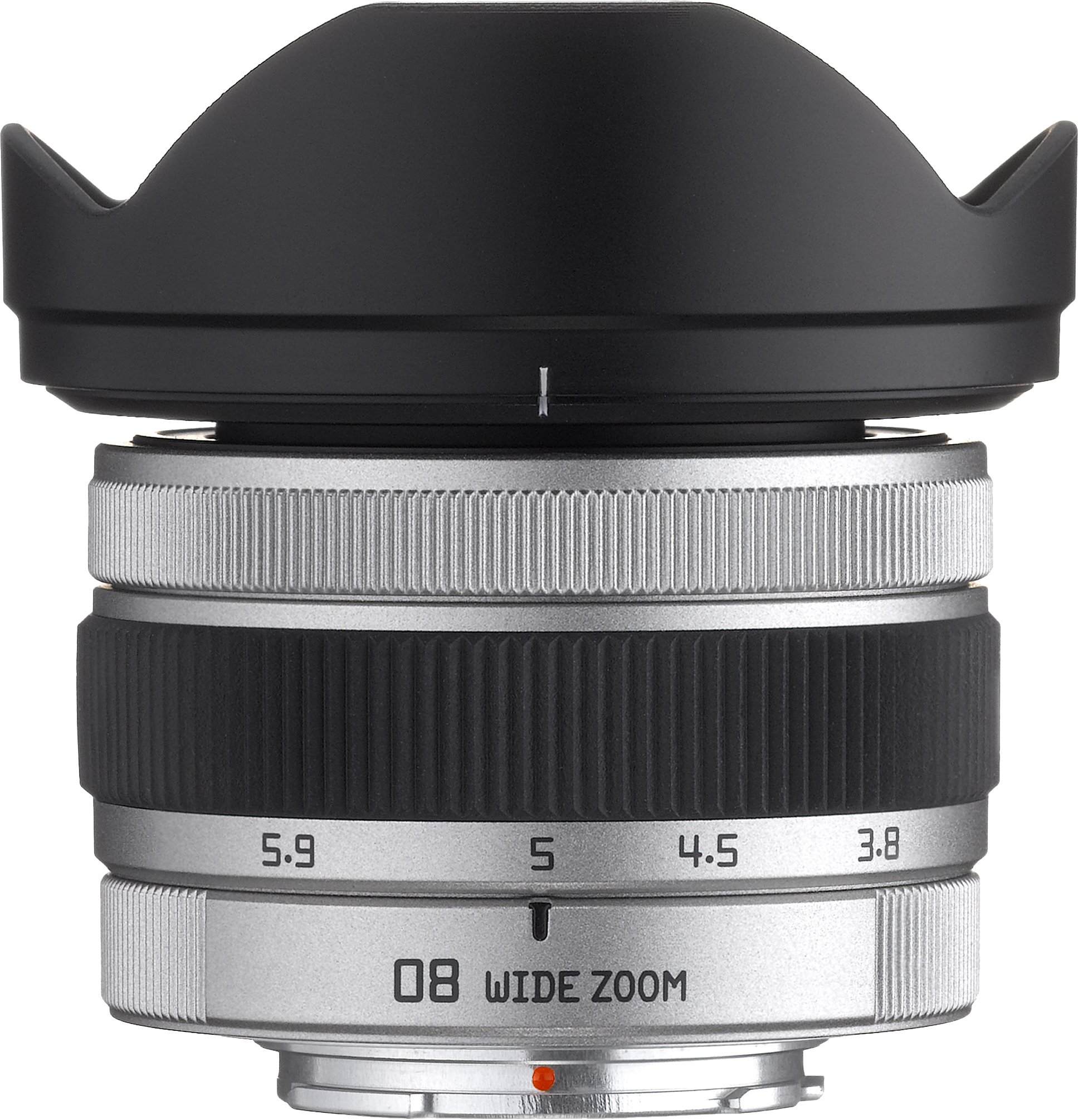

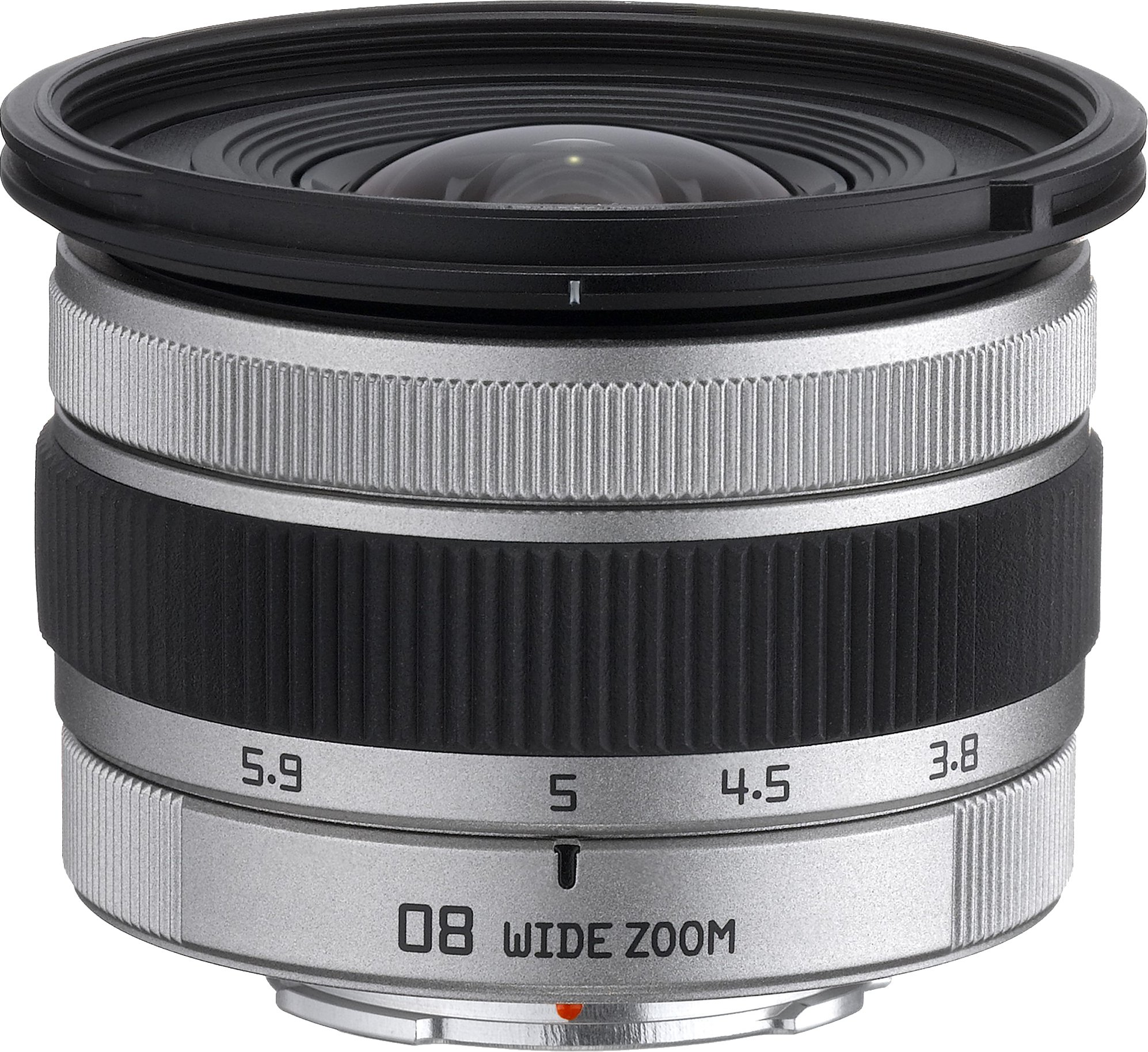

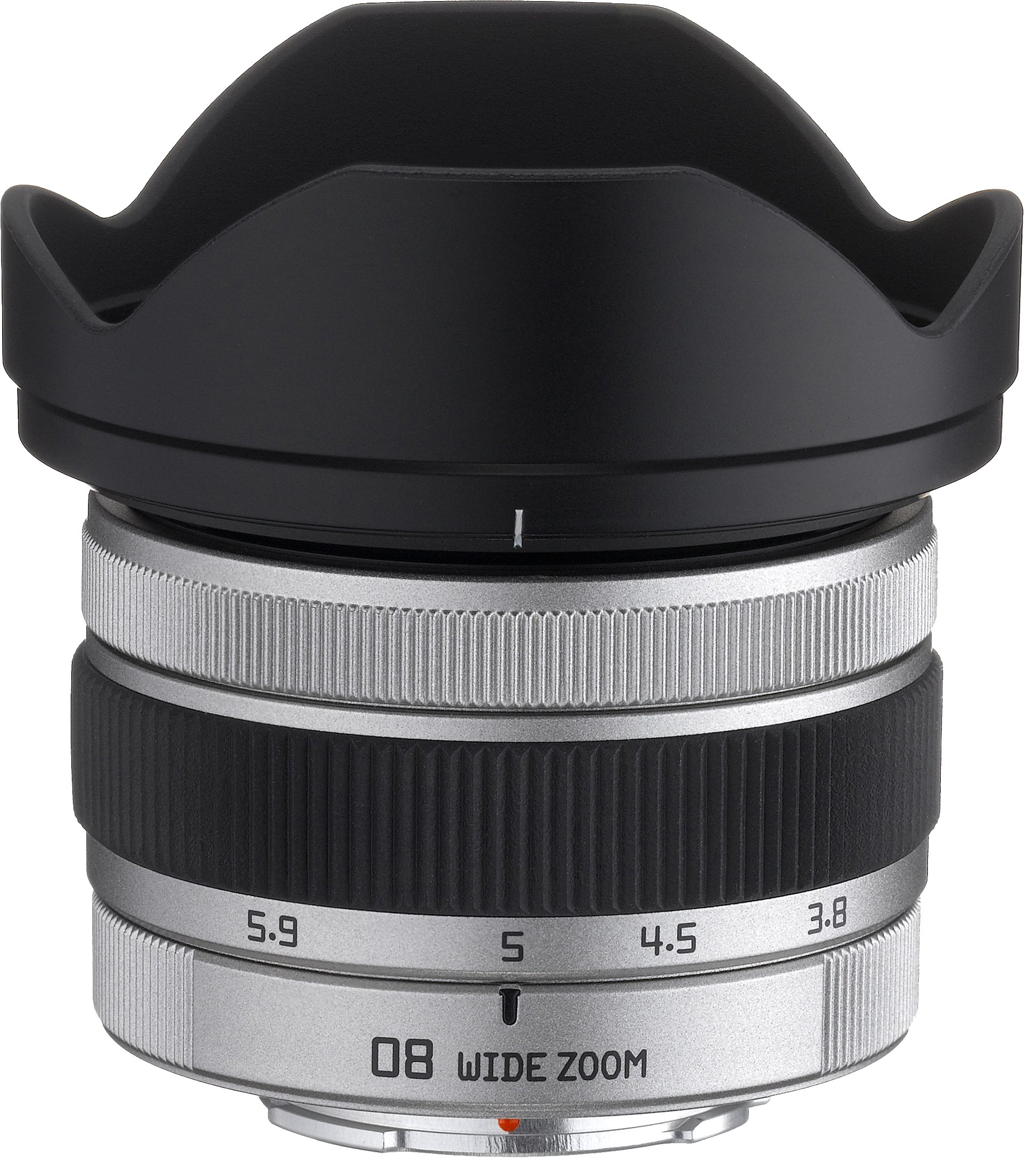

Compact and lightweight design
By adopting three glass mold aspherical lenses, we achieved the shortest lens length of about 38 mm for the Q mount zoom lens, and weighs about 75 g in size and weight.
Various things such as the size that can be carried easily and the scenery that emphasized the perspective and the vast expanse that can not distance to the subject, taking advantage of the angle of view equivalent to 27 mm equivalent from the focal length of 17.5 mm in 35 mm format conversion
It can be used for various purposes.
In addition, we adopted aluminum cutting cam barrel, and realize a smooth high-quality operation feeling.
High depiction performance
Distortion aberration is greatly reduced by adopting a large uneven glass mold aspherical lens for the 1st lens.
Furthermore, by using two sheets of ED (special low dispersion) glass and one piece of anomalously low dispersion glass, it is possible to correct chromatic aberration well in the entire zoom range, realize a sharp and clear high resolving power from the center to the periphery
It is.
Other
By adopting the inner focus method, high speed and silent auto focus driving is realized.
After focusing in AF, adopt "Quick-Shift Focus System" which allows manual focusing without switching operation.
SP (Super Protect) coating which is strong against dirt is adopted on the front of the lens.
Built-in lens shutter adopting ND filter and multistage iris diaphragm.
From Amazon
Wide angle zoom that allows you to capture narrow spaces that can not be distance to the subject, landscape photos that emphasize perspective and vast expansions
By adopting three glass mold aspheric lenses, we realized compactness and light weight of approximately 38 mm in lens length and weight of approximately 75 g for the Q mount zoom lens.
It can be used for various purposes such as the size that can be easily carried around and the scenery that emphasizes the perspective at a vast space that can not be distance to the subject, taking advantage of the 35 mm equivalent focal length equivalent to 17.5 mm to 27 mm equivalent angle of view
In addition, aluminum cutting cam cylinder is adopted, realizing a smooth, high-quality operation feeling.
Example
Q mount lens comparison table
Lens name
01 STANDARD PRIME
02 STANDARD ZOOM
03 FISH - EYE
04 TOY LENS WIDE
05 TOY LENS TELEPHOTO
06 TELEPHOTO ZOOM
07 MOUNT SHIELD LENS
08 WIDE ZOOM
Lens type
Standard monofocal
Standard zoom
Fish eye
Wide angle single focus
Telephoto single focus
Telephoto zoom
Standard monofocal
Super wide-angle zoom
Focal length
(Converted to 35 mm format)
When installing Q7 ※
8.5 mm
(39.0 mm)
5-15 mm
(23.0 - 69.0 mm)
3.2 mm
(16.5 mm)
6.3 mm
(33.0 mm)
18 mm
(94 mm)
15 - 45 mm
(69.0 - 207.0 mm)
11.5 mm
(53.0 mm)
3.8 - 5.9 mm
(17.5 - 27.0 mm)
Open aperture value
F1.9
F 2.8 to F 4.5
F 5.6
F 7.1
F8
F 2.8
F9
F3.7 to F4
Angle of view
When installing Q7 ※
58 °
87 ° - 35 °
173 °
67 °
26 °
35 ° - 12 °
44.5 °
102 ° - 77 °
Lens configuration
5 groups 8 sheets
7 groups 8 pieces
5 groups 6 sheets
3 groups 4 pieces
3 groups 3 pieces
10 groups 14 pieces
1 group 1 sheet
8 groups 10 sheets
Shortest shooting distance
0.2 m
0.3 m
(Zoom all area)
0.09 m
0.07 m
0.27 m
1.0 m
(Zoom all area)
0.03 m
0.25 m
Maximum shooting magnification
About 0.05 times
About 0.06 times
About 0.06 times
About 0.15 times
About 0.08 times
About 0.05 times
About 0.03 times
Filter diameter
40.5 mm
40.5 mm
40.5 mm
49.0 mm
49.0 mm
Maximum diameter × length
45.5 × 23.0 mm
48.5 × 48.0 mm
40.6 × 30.5 mm
40.6 × 25.0 mm
40.6 × 19.5 mm
50.0 × 56.0 mm
(When collapsible lens is stored)
40.8 × 6.9 mm
54.0 × 38.0 mm
Weight (Weight)
Approximately 37 g
Approximately 96 g
Approximately 29 g
Approximately 21 g
Approximately 18 g
Approximately 90 g
Approximately 8 g
Approximately 75 g
Other
Built-in lens shutter
Built-in ND filter
SP coating
Built-in lens shutter
Built-in ND filter
SP coating
SP coating
Built-in lens shutter
Built-in ND filter
SP coating
Built-in lens shutter
Built-in ND filter
SP coating
