Item Descriptions:
specification:
Brand: FEELWORLD
Model: FW1018S
Display screen: 10.1 "IPS
Physical resolution: 1280 * 800
Aspect ratio: 16: 10
Brightness: 650 cd / m 2
Contrast: 1: 800
Viewing Angel: 178 ° / 178 ° (H / V)

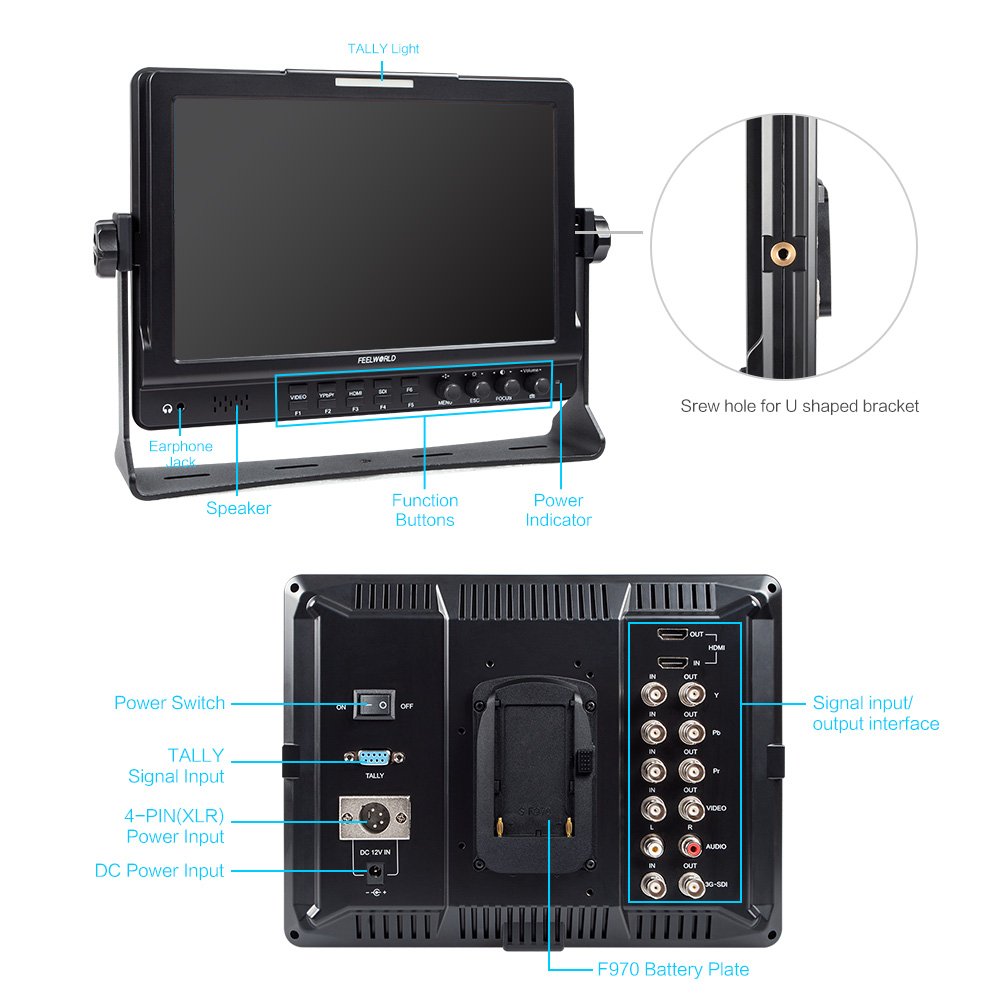

Input: 3G-SDI & HDMI & YPbPr & Video & Audio (L / R)
Output: 3G-SDI & HDMI & YPbPr & Video
Audio: Speaker & earphone slot
TALLY: RS232 D-sub 9 pin
SDI format: 480i / 576i
720p (60 / 59.94 / 50/30/29/25/24 / 23.98)
1080p (60 / 59.94 / 50/30 / 29.97 / 25/24/24 fps / 23.98 / 23.98 fps)
1080i (60 / 59.94 / 50)
HDMI format: 480i / 576i / 480p / 576p
720p (60 / 59.94 / 50/30/29/25/24 / 23.98)
1080p (60 / 59.94 / 50/30 / 29.97 / 25/24/24 fps / 23.98 / 23.98 fps)
1080i (60 / 59.94 / 50)
Input voltage: DC 6 - 36 V
Power consumption: ≤ 12 W
Operating temperature: -20 ℃ -55 ℃
Storage temperature: -30 ° C - 65 ° C

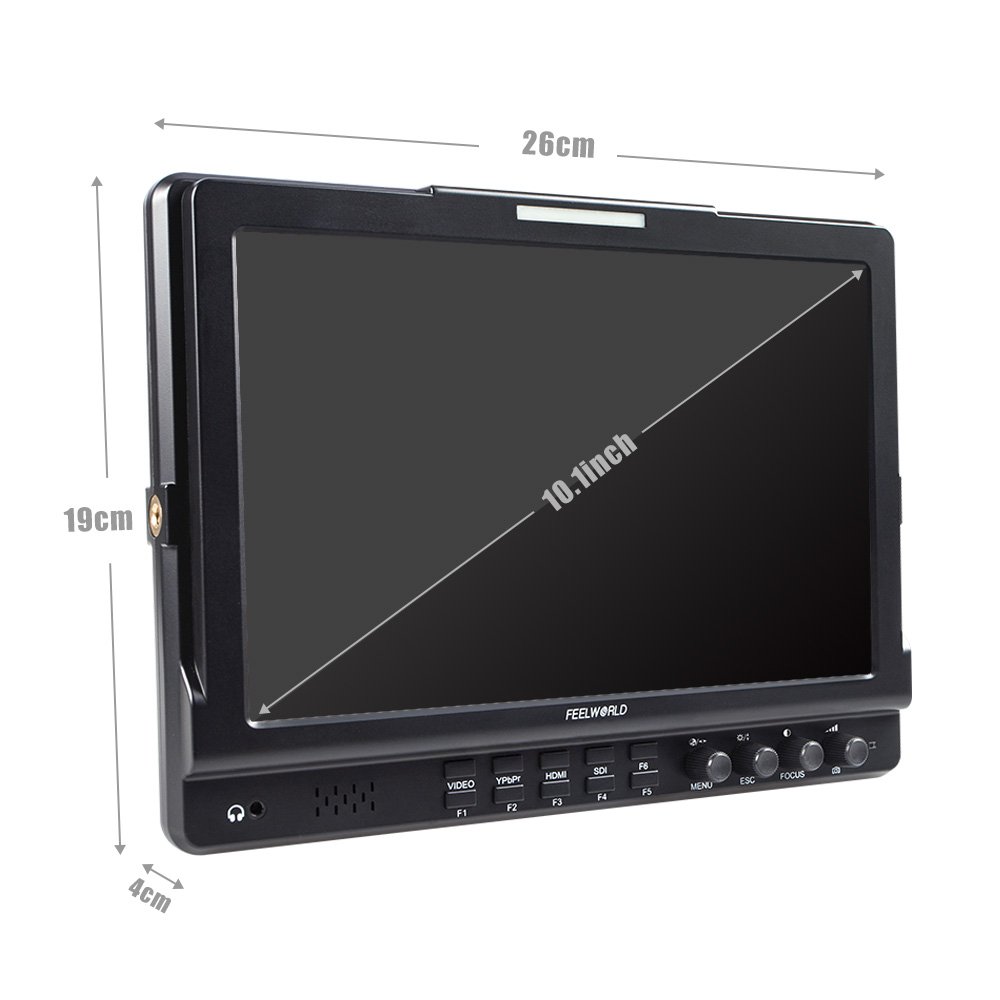

Item size: Approx.
26 * 19 * 4 centimeters / 10.2 * 7.5 * 1.6 inches
Item weight: 823 g / 1.8 lb
Package size: Approx.
30.5 * 8.5 * 26.5 cm / 12 * 3.3 * 10.4 inch
Package weight: 1643 g / 3.6 lb
Caution:
XLR connector, power adapter and battery are not included.

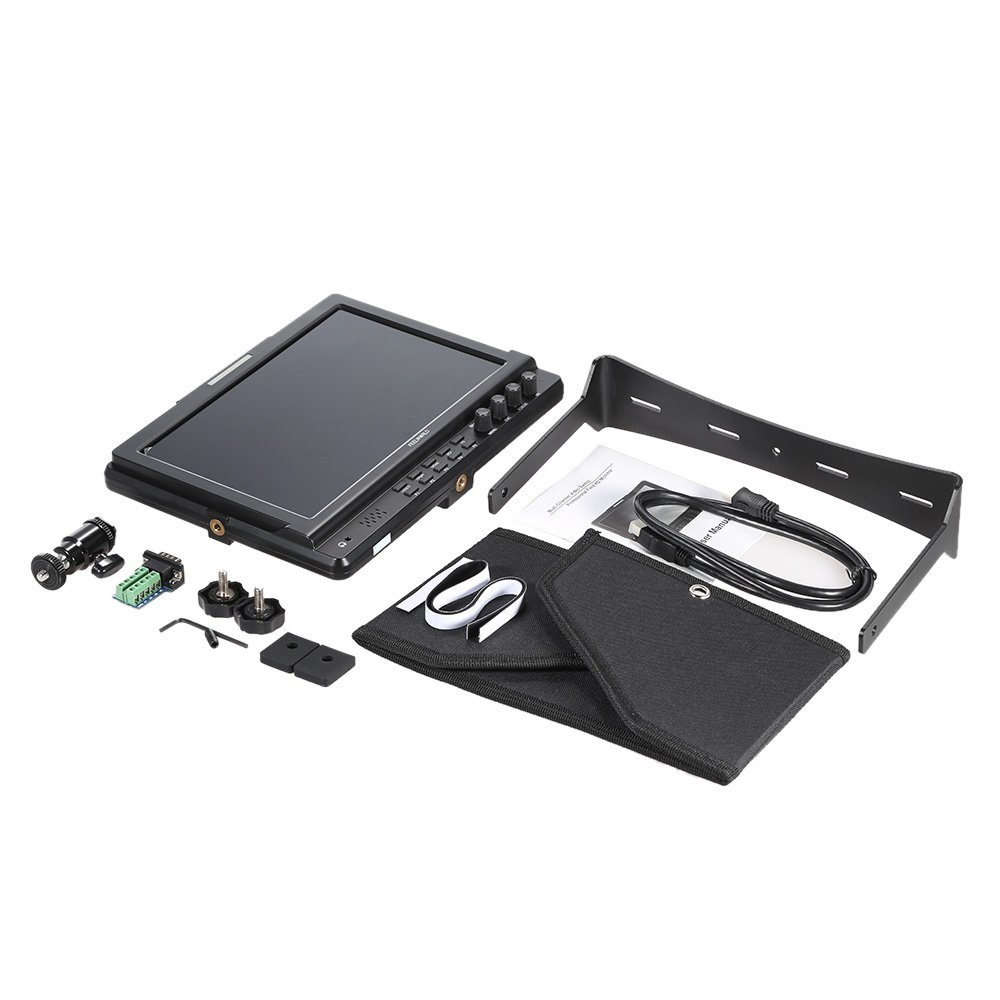

Package list
1 * Monitor
1 * Hot shoe mount
1 * Sunshade
1 * F 970 Battery Plate
1 * mini HDMI cable
1 * Tally kit
1 * U bracket
2 * 1/4 "screw
1 * User manual (English)
Features:
- Please enter model number Confirm this is compatible:

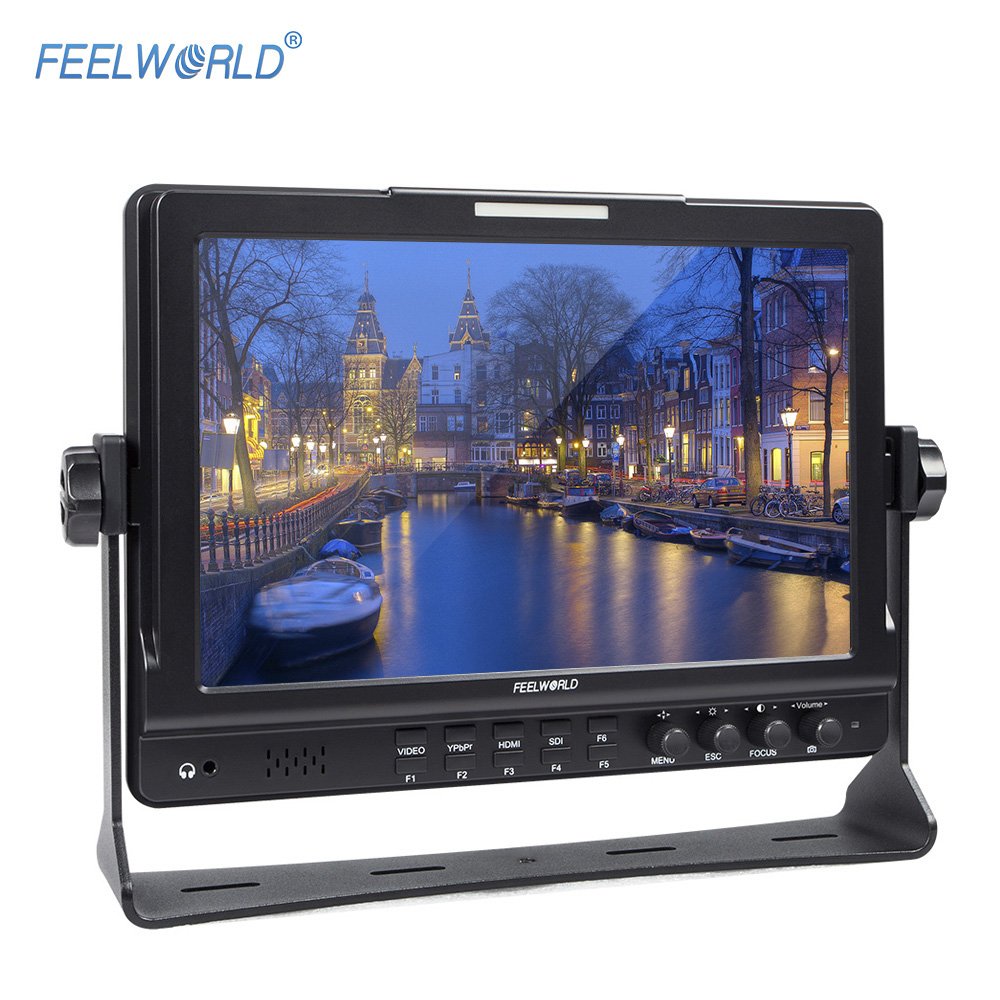

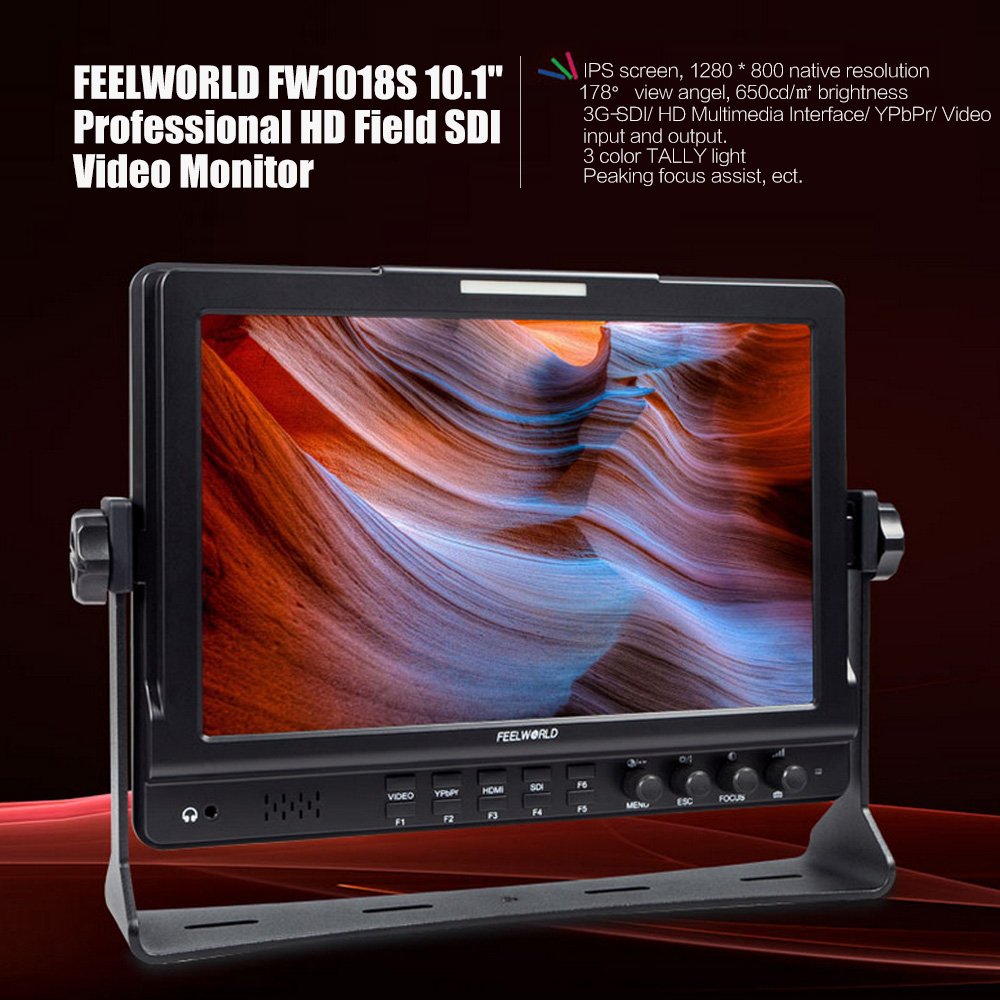

- HD video monitor with 10.1 inch IPS screen with native resolution of 1280 * 800.
- 178 ° wide viewing angel, 800: 1 contrast and brightness output up to 650 cd / m 2.
- Supports HDMI / 3G-SDI / YPbPr / video input and output.

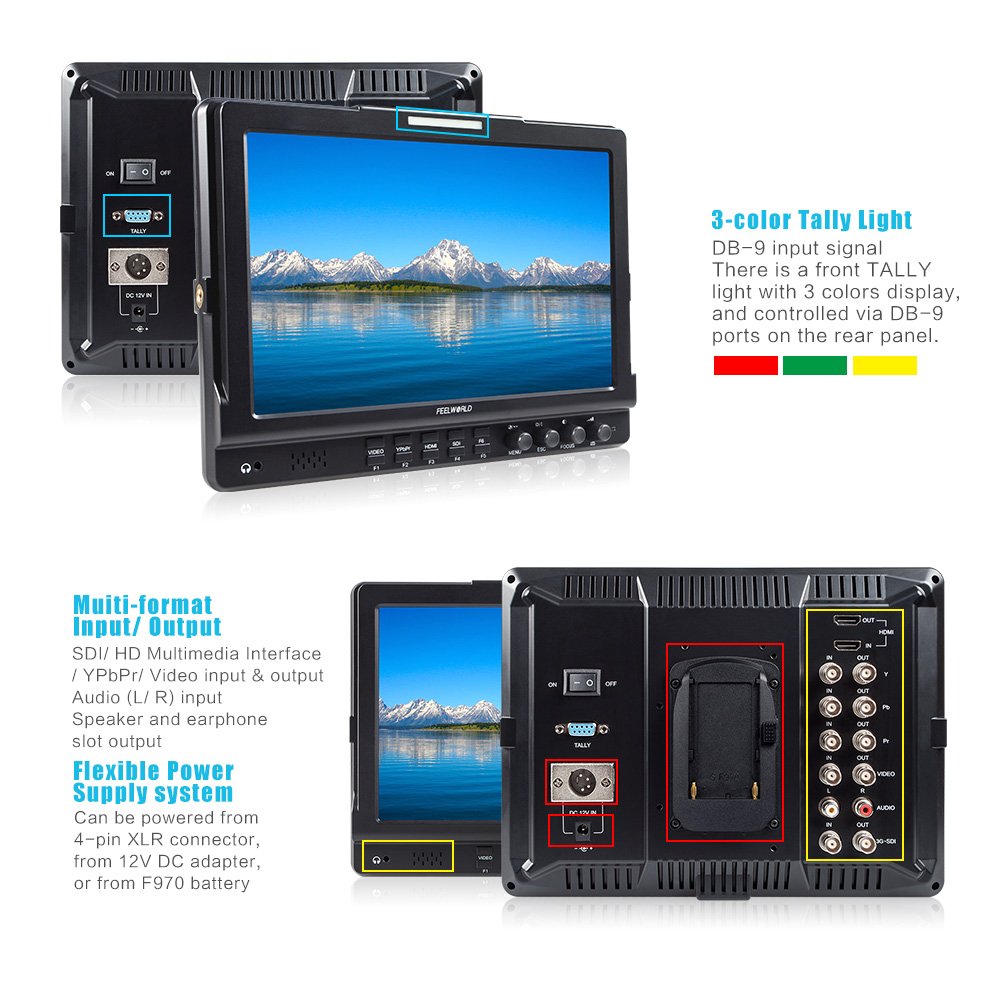

- Features three color display (red / green / yellow) and is controlled via tally light and DB - 9 port.
- Provide F1 - F6 user - definable button for setting shortcut function.

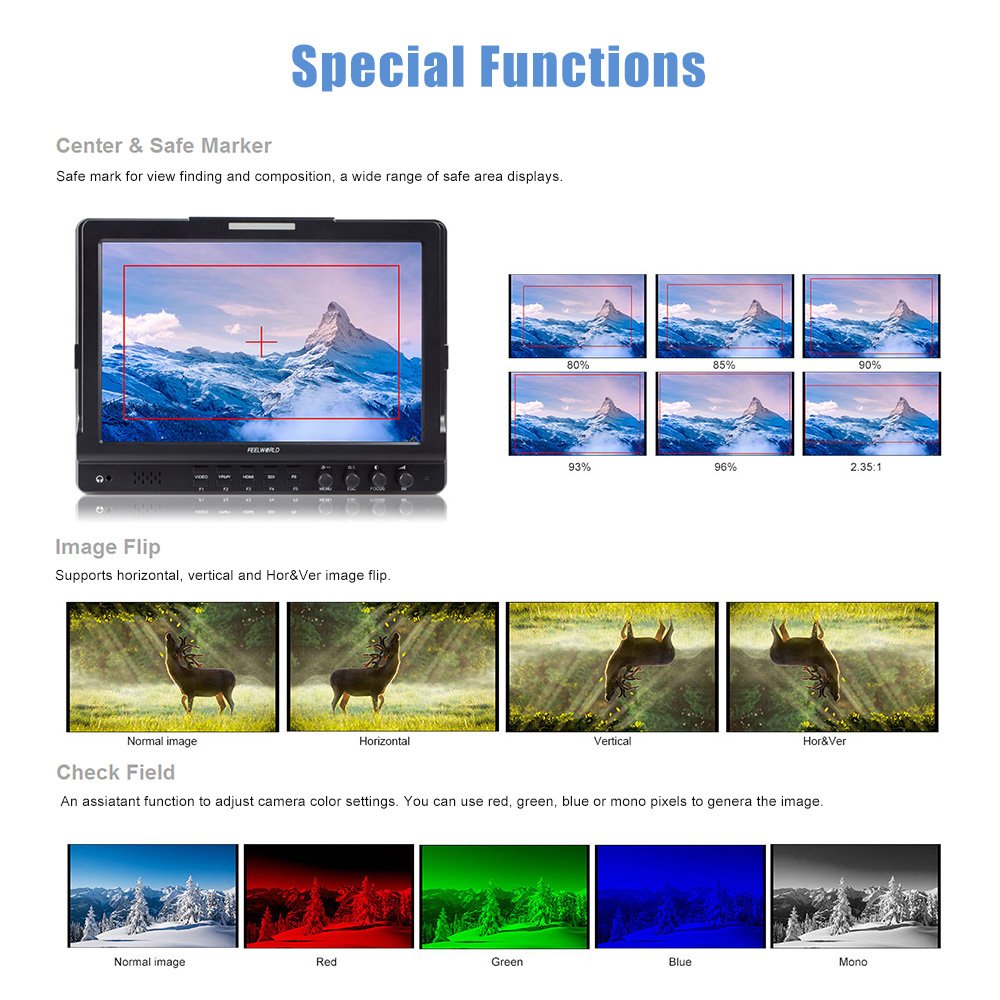

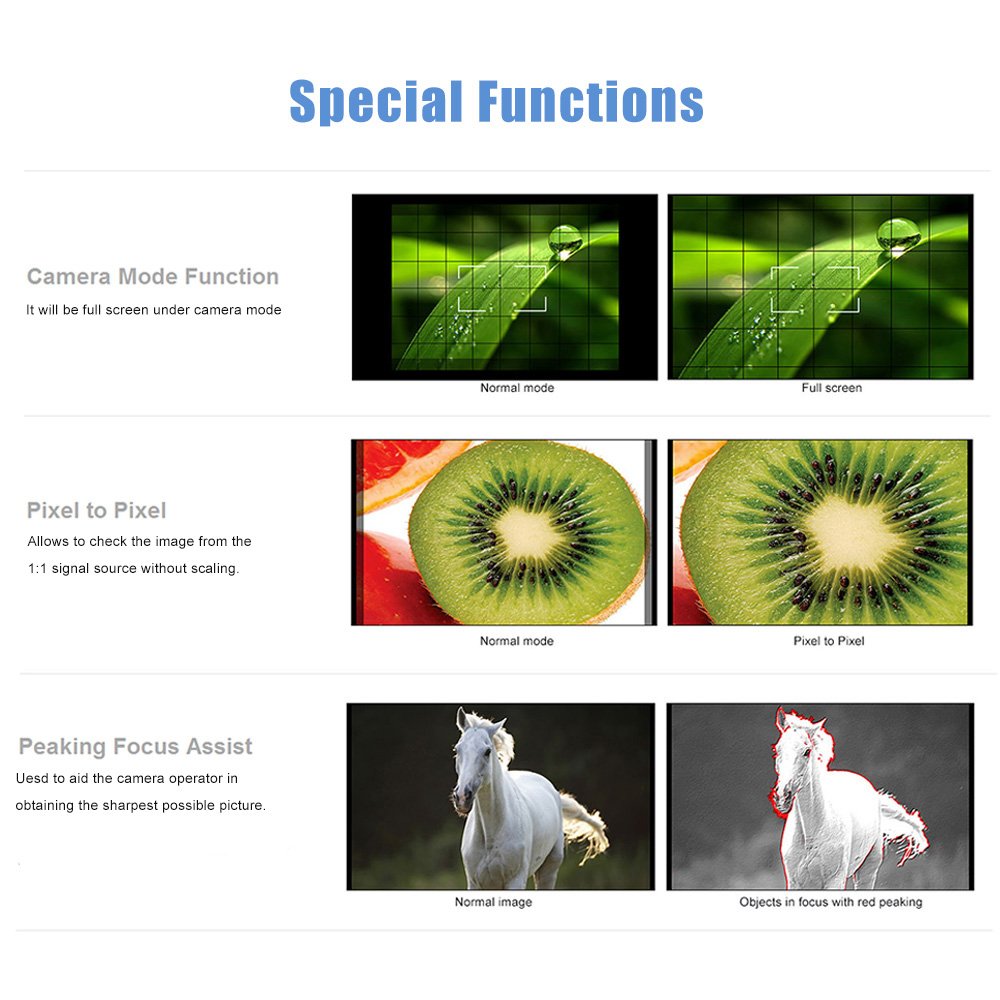

- Including various special functions: Peaking Focus Assist (red highlight above the part of the focused monochrome image).
- Check field (red, green, blue, mono).
- Camera mode.
- Center marker.
- Safety markers (80%, 85%, 90%, 93%, 96%, 2.35: 1).
- Image Flip (Horizontal, Vertical, Hold & Version).
- Image freeze.
- For flexible power supply systems, it can be powered from a 4-pin XLR connector, 12V DC power adapter, or F970 battery.
- (Not included).

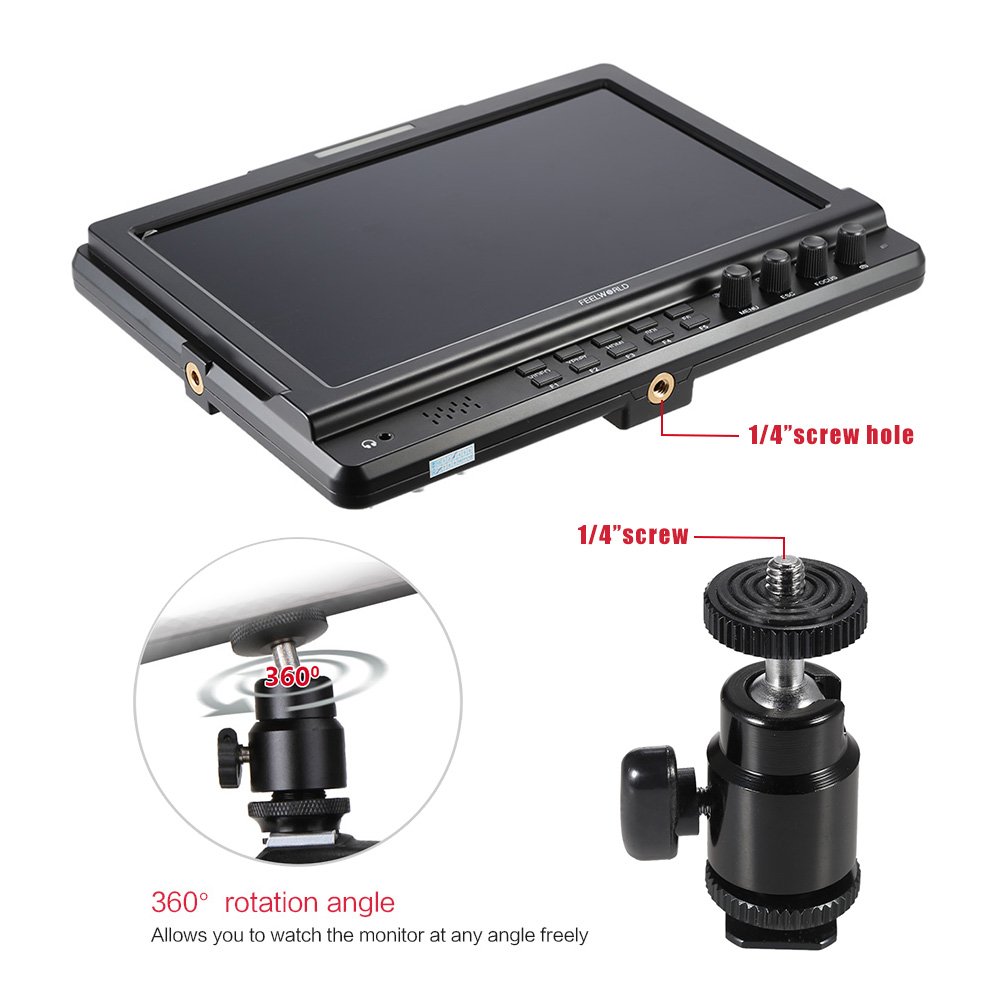

- Hot shoe mounted, U shape bracket comes with the shape of the sun to use the monitor in various situations.
