Product Description

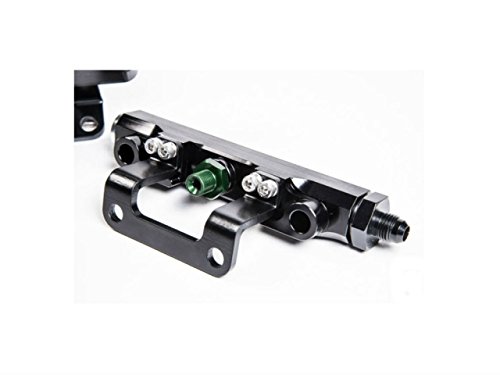

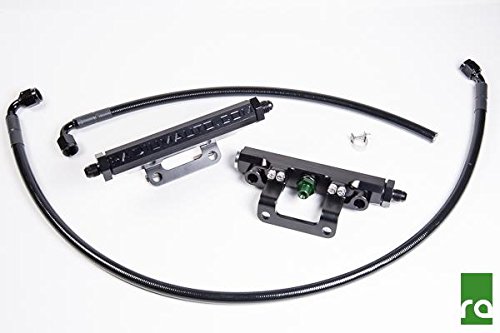

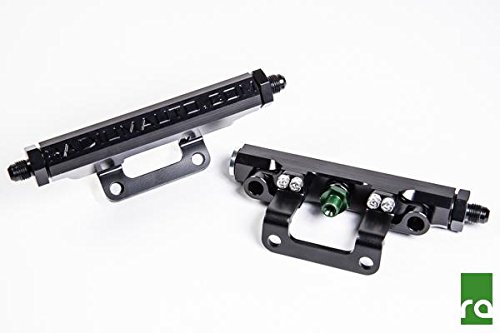

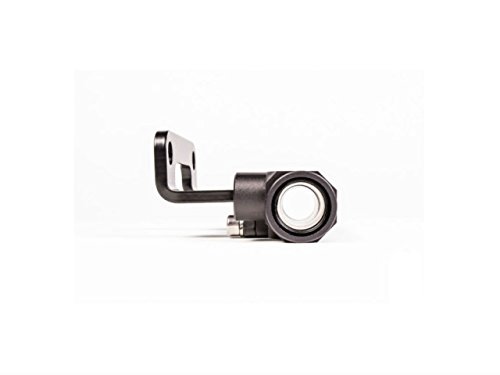

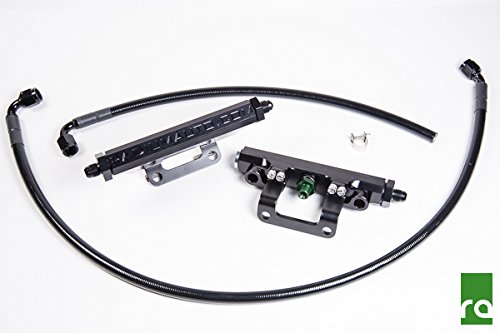

This 0.69" ID?big bore fuel rail kit is designed for the FA20 engine found in the 2013 Scion FR-S, Subaru BRZ and Toyota 86 variants. The left/right rails are identical and feature anodized aluminum bodies and powder coated aluminum mounting brackets. The end ports of the fuel rails are female threaded for -8AN O-ring (3/4-16?thread)?fittings.??Each rail also has a center port that is threaded for -6AN O-ring (9/16-18 thread). A variety of common adapters can be used?in these ports to construct?a custom?high flow fuel delivery?system.

Necessary parts are included?to make this a direct bolt-on replacement for the stock rail. The kit includes billet aluminum adapters that allows the OEM fuel pulse dampers to be retained. Also included are two -6AN PTFE hoses which make this kit compatible with all fuel types including popular alcohol mixes, such as E85.

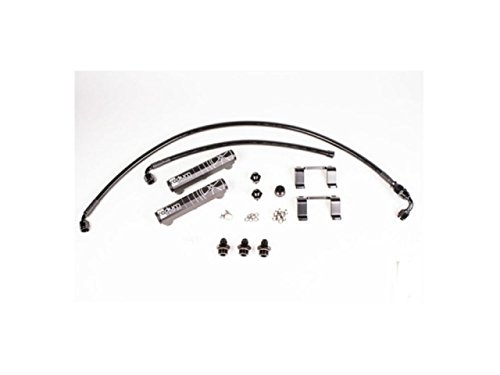

INCLUDES:
2x Anodized Billet Aluminum Rails, Black or Green?
2x Laser Cut Power Coated Mounts, Black
3x Anodized Aluminum -6AN Adapters, Black
2x Billet Pulse Damper Adapters, Green
1x O-ring 3/4"-16 (-8AN) Port Plug
2x PTFE -6AN Fuel Hoses
Stainless Steel Hardware?
?

NOTE:
Minor modification which includes cutting of the metal ECU mount is required for installation. Please download and read theInstallation Instructions (PDF).
