Product Description

True Capacity and C-Rating
Thick 12AWG Discharge Leads
Durable Hard Case
Traxxas High Current Style Connector
JST-XH Balance connector

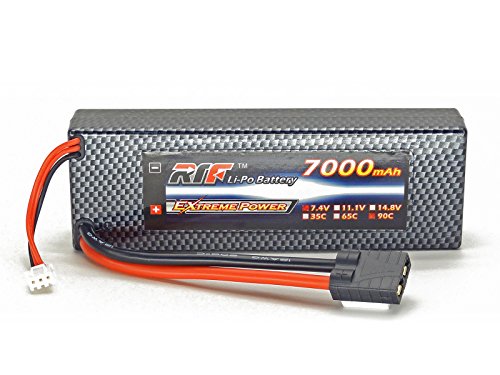

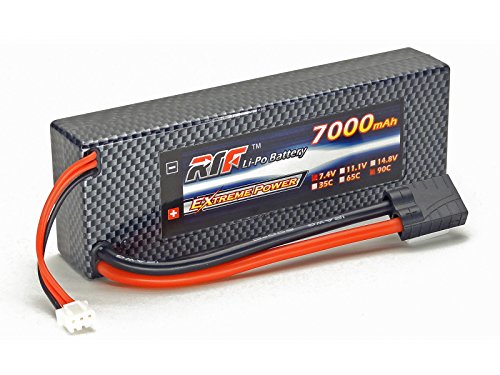

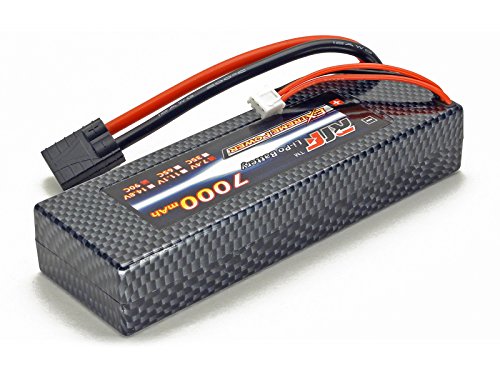

Capacity: 7000mAh
Voltage: 2S /?2 Cell / 7.4v
Discharge Rate: 90C Constant (630A) / 180C Burst (10 sec) (1260A)
Charge Rate: 5C max (35.0A), 1C recommended (7.0A)
Watt Hours: 51.80Wh
Weight w/ Wiring: 11.0oz / 311.84g
Dimensions LxWxH: 138.2 x 46.5 x 25.0mm
Dimensions w/ Wires Bent Flat LxWxH: 138.2 x 46.5 x 30.0mm
Discharge Plug: Traxxas High Current Style Connector
Balance Plug: JST-XH

Equipment Needed: LiPo Balance charger capable of charging 2 cell LiPo batteries, Or a LiPo charger with an External Balancer
Equipment Recommended: LiPo Safe Charging Bag/Sack/Pouch, Cell Voltage Reader

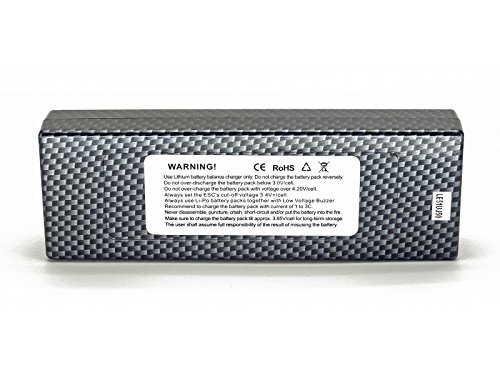

Safety Notes Warnings:
LiPo batteries are potentially hazardous. Improper usage can cause fire or explosion.
Charge and Store battery in LiPo-Safe Bag away from flammables on a concrete surface.
Charge using a LiPo compatible Balance Charger ONLY!
Never Charge above 4.2V per cell.
Never Discharge below 3.2V per cell.
Always use under adult supervision.
Store the battery in a place not accessible by children or infants.
Do not short the battery's positive and negative terminals.
Stop use of the battery if it expands or the temperature reaches above 70° Celsius / 160° Fahrenheit.
The end-user is fully responsible for any results in using this battery pack.
