Power:
Low Power
Frequency:
Low Frequency
Type:
SCM
Model Number:
Marsboard RK3066
Support system:
Linux， android， uCos-II， Ubuntu OS and etc
CPU:
ARM Cortex A9 Dual core @1.6GHz
GPU:
Mali-400 MP Quad core @400Mhz
RAM types:
DDR3， DDR2， LPDDR2， etc.
Camera:
Supports dual cameras
Boot devices:
NAND， eMMC， USB， serial
Display outputs:5 layers， 2 flat panel， HDMI 1.4a (3D)
Quality control:Tested one by one before shipping
Nand Flash & eMMC FLASH:4GB
DDR3 SDRAM:1GB DDR3 SDRAM (up to 2GB)

100% Original Mars Marsboard RK3066 Quad core Mali-400 MP GPU， Super Raspberries Dual core ARM Cortex A9 Development Board Kit

MarsBoard RK3066， Flexible Designed development board powered by Rockchip SOC， Dual core ARM Cortex A9 CPU， Quad core Mali-400 MP GPU

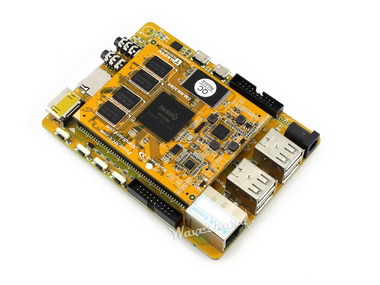

MarsBoard-RK3066

Overview

The MarsBoard RK3066 is a flexible Designed development board powered by the popular Rockchip dual core SOC combining a power dual core ARM Cortex A9 CPU and Quad core Mali-400 MP GPU.

The MarsBoard RK3066 consists of a base board and and a CPU module， comes with various interfaces like USB， HDMI， IR， USB Debug serial， Ethernet， MicroSD slot， LCD connectors， Audio Codec， Camera 20 pin extended port.

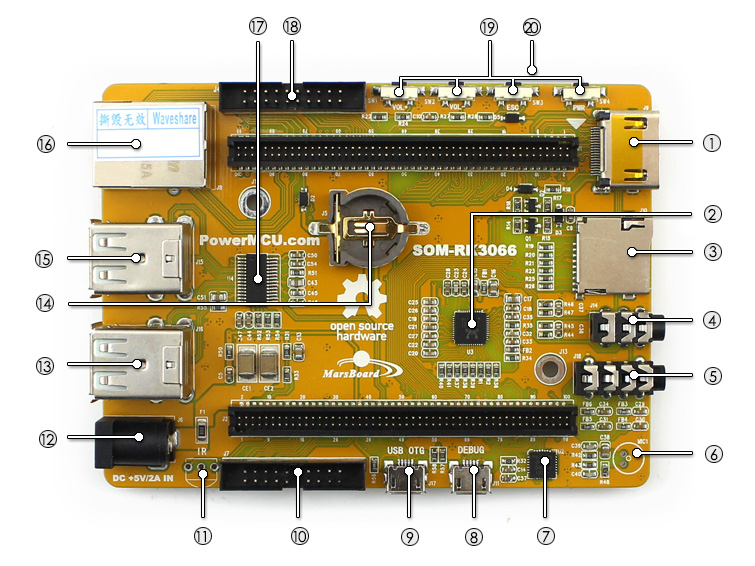

What\\\'s on the Base Board

SOM-RK3066 on board resource
  1. HDMI A Type interface
  2. Audio Codec IC: ALC5631Q
  3. Micro SD card (TF card) slot
  4. Heardphone output
  5. Speaker output
  6. Microphone (not soldered)
  7. DEBUG: CP2102
  8. Micro USB DEBUG port
  9. Micro USB OTG port
  10. Expansion header
  11. IR receiver (not soldered)
  12. Power supply: 5V/2A
  13. 2 x USB 2.0 Host port
  14. CR1220 RTC battery holder
  15. 2 x USB 2.0 Host port
  16. 10/100M Ethernet RJ45 connector
  17. USB 2.0 HUB IC: FE1.1S
  18. Expansion header: Camera CIF interface
  19. User keys (from left): VOL+ (Reset)， VOL-， ESC， Power KEY
  20. LCD interface

What\\\'s on the CM-RK3066

CM-RK3066 on board resource

22jpg

Photos

Development Resources

Compatibility

MarsBoard RK3066 supports 7inch Capacitive Touch LCD (D).

HTB1t3bCGpXXXXbNXXXXq6xXFXXXg

';
Unit Type:
piece
Package Weight:
0.190kg (0.42lb.)
Package Size:
20cm x 18cm x 10cm (7.87in x 7.09in x 3.94in)
