Item Descriptions:

Product introduction

◆ Adopting a "new material" claw that does not break even when bent 180 degrees ◆ (patent pending) ◆ Connector design that is easy to hold and easy to insert and remove ◆ Category 6a best suited for high-end users and offices sticking to speed

From Amazon

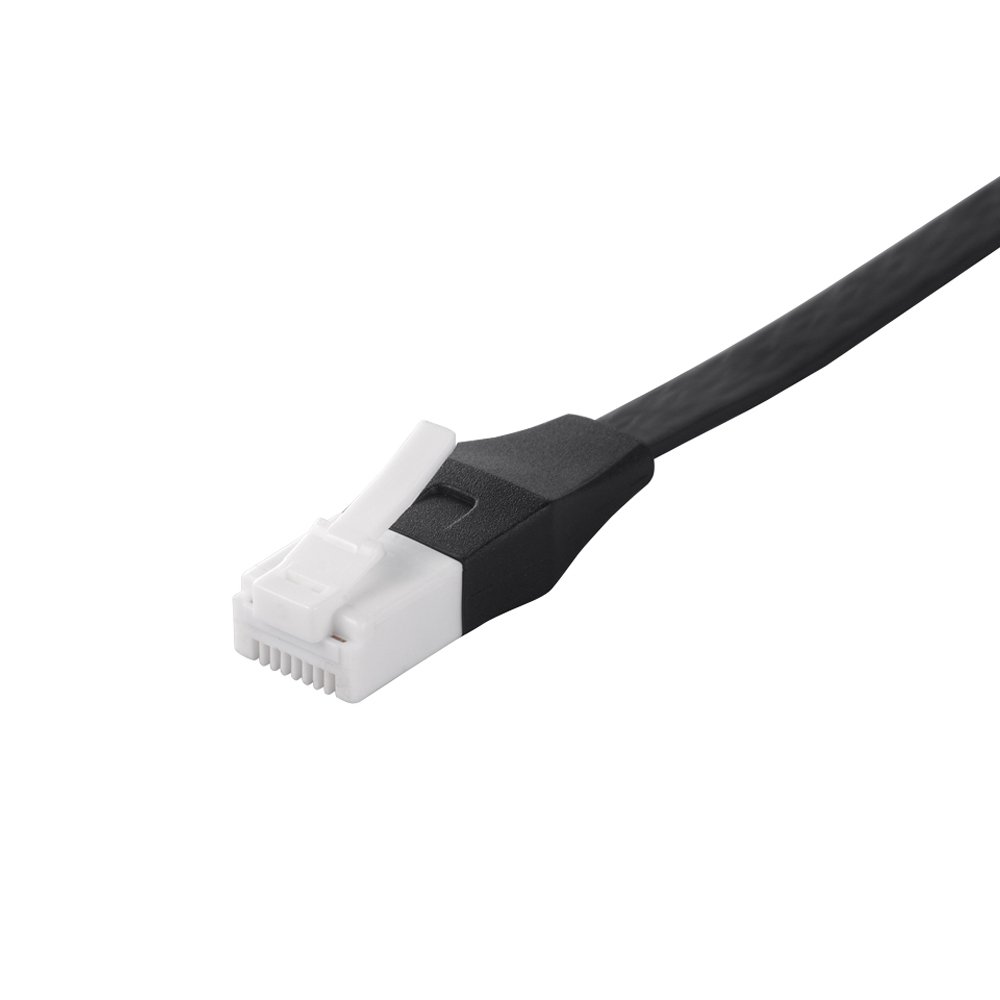

LAN cable cable claw none Category 6a straight flat type

Adopted "new material" claws that will not break even when bent 180 degrees

It is "claw (latch)" to fix the LAN port of a personal computer or the like and the connector of the LAN cable.

With conventional LAN cables, this claw could break apart

Exchange of the LAN cable broken by claw is necessary because it becomes easy to come off.

This product adopts a claw of "new material" that does not break even if it is bent 180 degrees (patent pending)

Even in applications that require frequent insertion and removal, damage to the claw does not occur and it can be fixed firmly.

【Ideal for this type】

● People who frequently connect and disconnect the LAN cable of the personal computer at the office or at home.

● Person who connects troublesome place or long distance for exchange, such as under carpet, ceiling and wall.

● Experienced people who have pulled the cable in the installed state and have broken the claws.

● Those who feel that cables are difficult to remove

Connector design facilitates easy insertion and removal

Adopted an original design connector with a slope so that the cable can easily be held.

You can do smoothly when you frequently insert or remove, or if you are trying to pull in and out.

Category 6a best suited for high-end users and offices focused on speed

It realizes 500 MHz which is the transmission band of the next generation LAN standard, and the maximum transmission speed of 10 Gbps.

It also firmly supports high-speed LAN such as 1000BASE-TX / 10GBASE-T.

5 times the category 5e, twice the transmission band of Category 6 reduces the noise in the cable.

As shown in the figure on the right, when comparing the size of the area of ​​PSACR * which shows the performance of the LAN cable,

Category 6a proves to be more stable than conventional cables.

※ Electric power sum declined crosstalk ratio (dB in LAN cable performance in decibels)

Supple and thin flat type (thickness 1.5 mm)

A flat cable with a thickness of 1.5 mm that does not matter the thickness even if it is placed between the floor and the carpet.

※ The image is blue.

Features:

• Please enter model number Confirm this is compatible:
• Absolutely never broken LAN cable! Cable easy to insert and remove easily.
• ● Adopts a claw that does not break even when bent 180 degrees ● Connector design that is easy to hold and easy to remove and insert
• ■ Compatible equipment 1: ADSL modem, CATV modem
• ■ Compatible models 2: FTTH (ultra high speed optical internet), digital television
• ■ Supported models 3: Hard disk recorder (model with RJ - 45 connector), INS64 (30 m or less)
• ■ Cable structure: straight all connections ■ Connector shape: RJ - 45 slim connector
• ■ Supported transmission band: augmented category 6, category 6, enhanced category 5, category 5, category 3
• ■ Transmission bandwidth: 500 MHz ■ Operating environment: Temperature -20 degrees to 75 degrees Humidity 20% to 80% (no condensation)
• ■ Cable Diameter: 6.0mm ■ Product Structure: Main Unit

Product information:

Shipping Weight: 158 g

Package Dimensions: 1.40 x 21.01 x 27.00 cm
