Product Description

Each DMX common controller occupied 3 DMX addresses, adop coding switch set address, it is a Binary numerical code switch which is setting SMX original address code from 1 to 9, 1 is the lowest, and 9 is the highest, 511 address codes could be setted in all.

Work temperatire:-20~60℃
Supply voltage:DC5V-24V

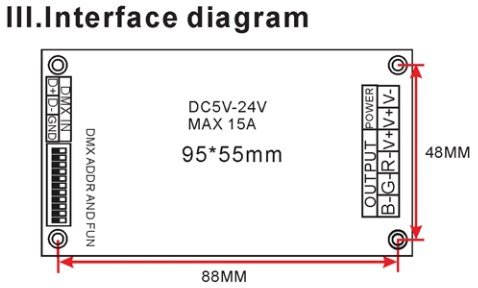

Product size:L95*W55*H15mm
Output:CMOS drain-open output
Connecting Mode:Common anode
Max output currengt:5A each color
Weight:100g

Feature

Automatically adapt to DC 5V-24V
Standard DMX512 Signal
3 Channel RGB RGBW LED Light. . 5A each channel max 15A.
Equiped with DMC standard XLR-3, RF45, Green Terminal interface, easy to operate.
Brand : RGBSIGHT
EAN : 0710185419053
