1. Charging type: battery (one-to-one charging )

2. Charging frequency: 100-200KHz

3. Power distance: 5mm

4. Dimension: Diameter: 65mm,Min-height: 25mm,Max-hight: 60mm

5. Electric energy transition: ≥72%

6. Input: 5V-2A (Please make sure the input electricity greater than 1.5A)

7. Output: 5V-1A

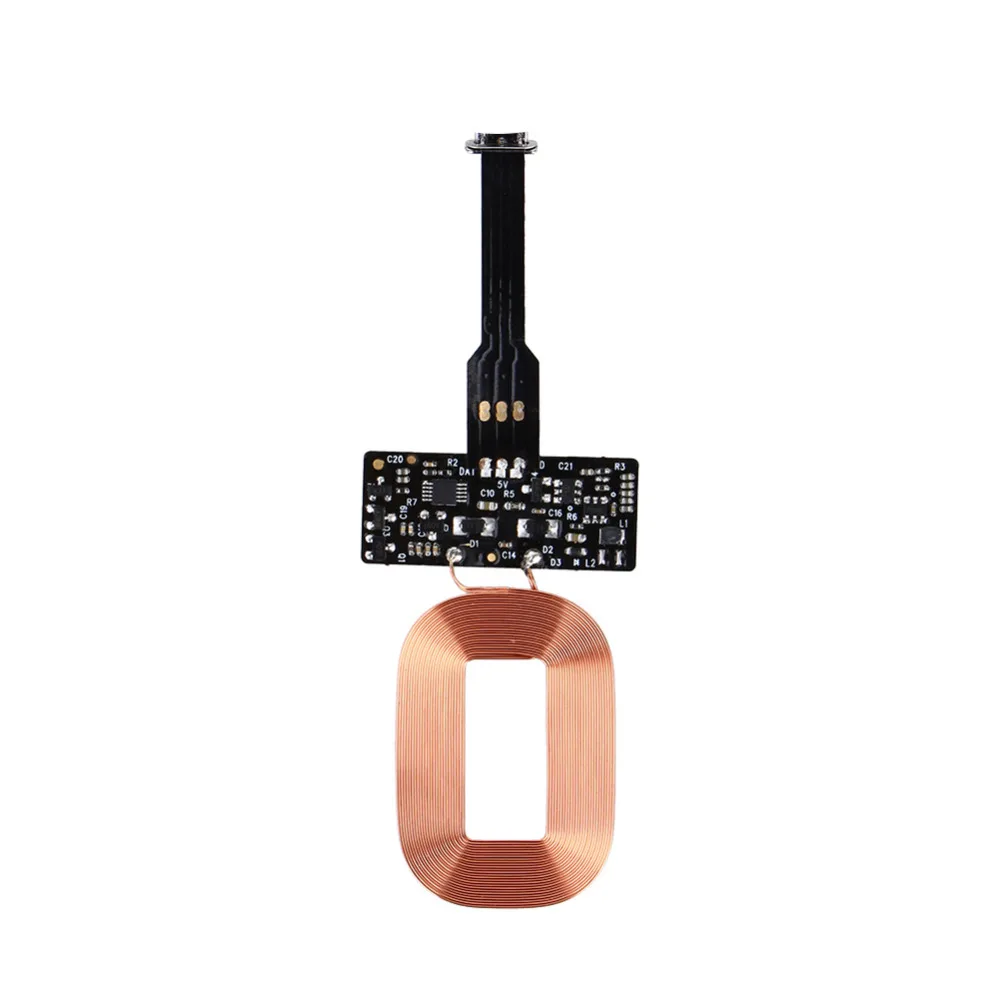

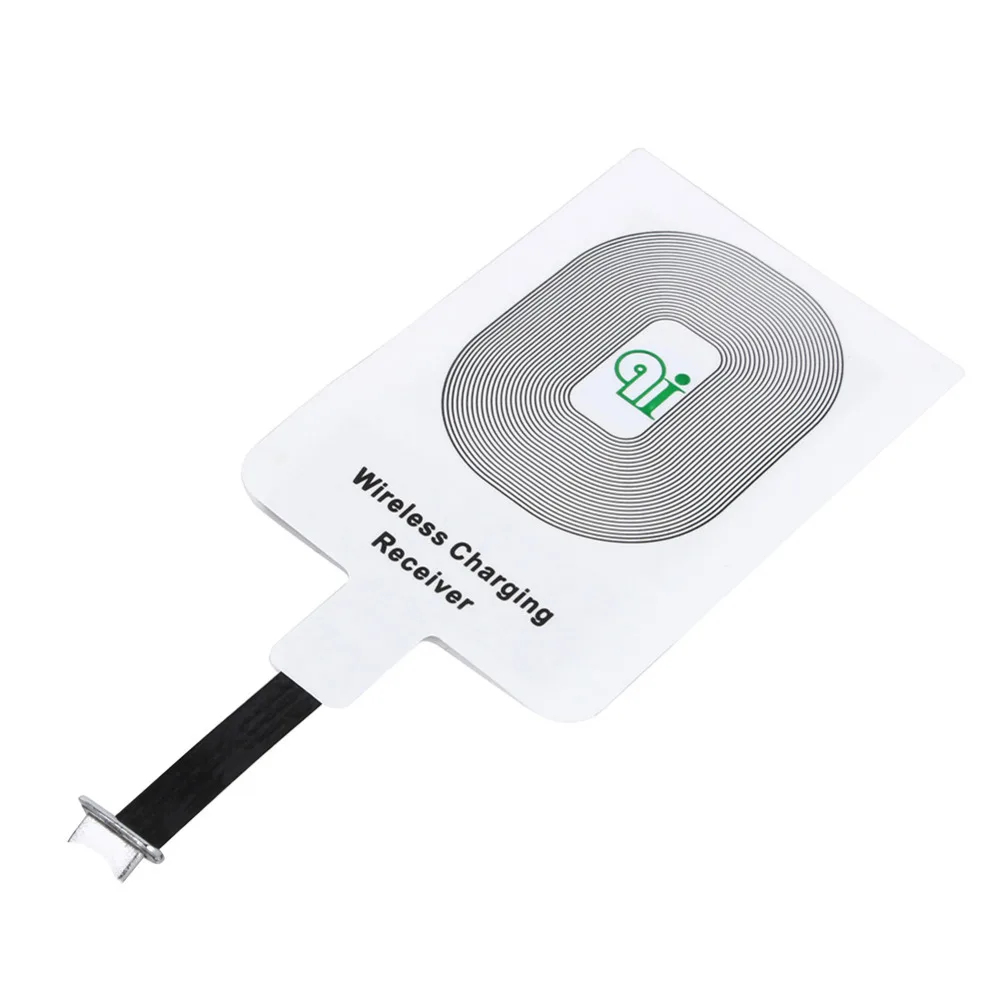

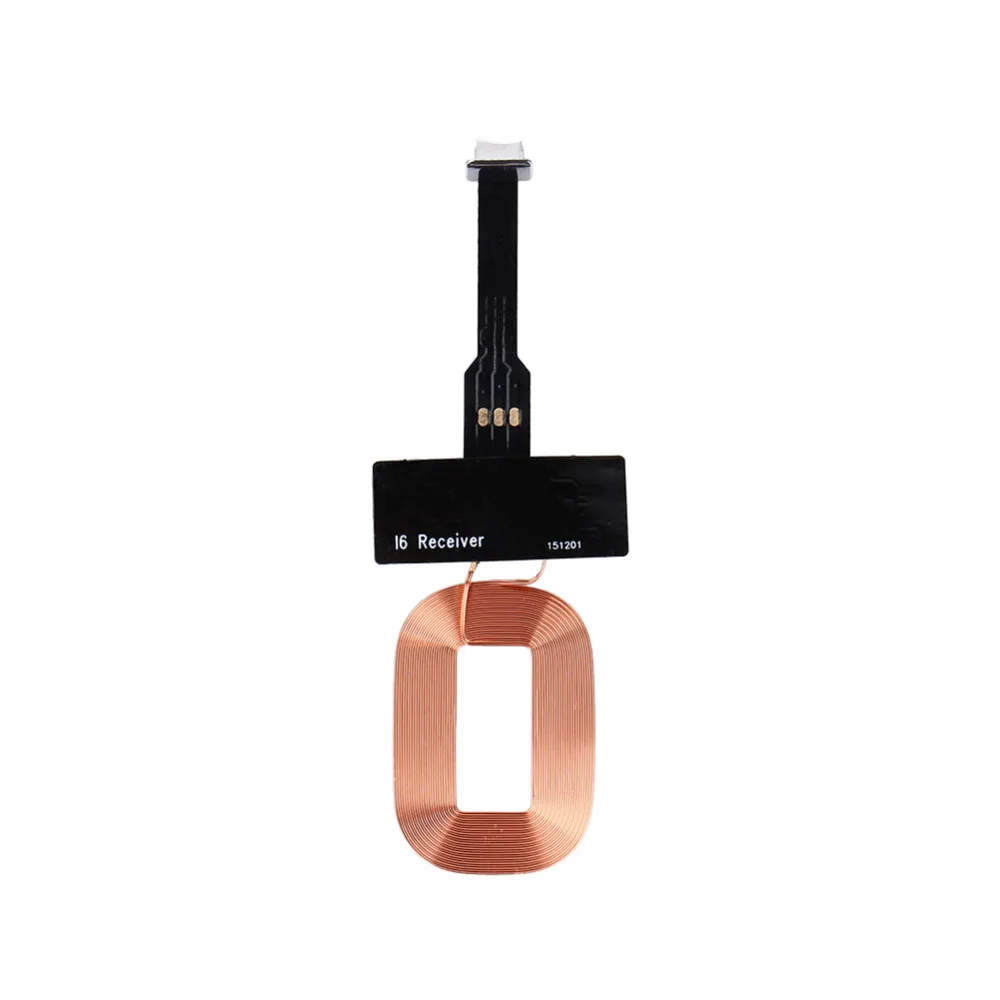

Receiver:

1. Ultra thin and light weight design, no need change your phone cover

2. Turn on your for Iphone 7 plus/7/6s/6s plus/6/5/5s wireless charging function

3. Will not interfere with other functions on your phone

4. Built-in NFC(near field communication) technology

5. Receiver weight approx: 7~10g

6. Input: Self-adaptation

7. Output: 500~800mAh



How to use:

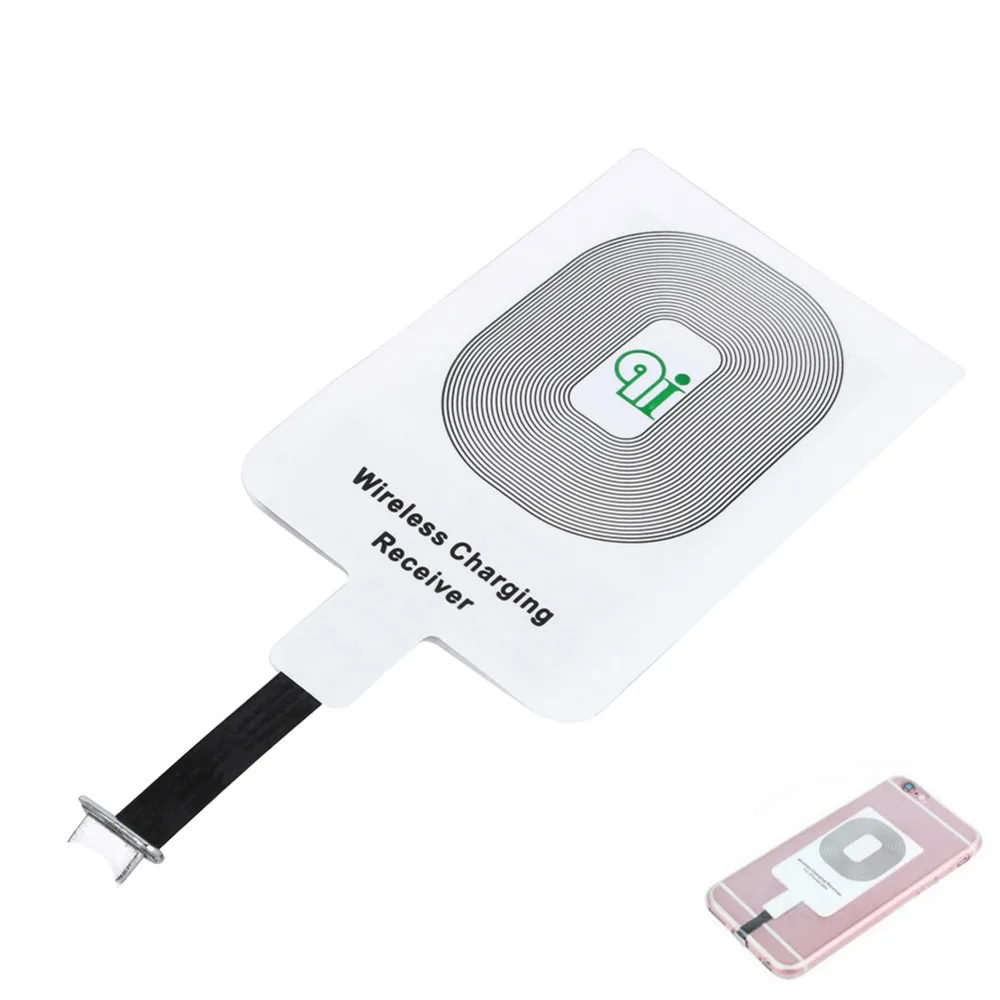

1. pls connect the charging receiver to your smarphone correctly as the first photo attached shows.

2. The charging receiver's sensing area should be above the charging pad's sensing area, shows as the 2cd photo.

If the sensing area hasn't been correspond well, it will be disconnected.

3. Suggest use a good charger plug adapter whose current must above 800mAh to connect the USB cable or just plug the USB cable to a computer to gain a stable current.



Compatible with:

for iphone 6s Plus ,for iPhone 6 Plus, for iPhone 6 6s ,for iPhone 5 5s 5c

Note: when in use, please remove the phone case, this will increase the transmitter and the receiver contacts.

Questions and Answers:

Q:Which systems can match with this product?

A:This product is suitable for iOS. All the systems of iOS currently on the market can be used.

Q:How to place this product? Which side is toward the phone? Which side is facing the transmitter?

A:Signal must face transmitter,parameters toward the phone.

Q:Why sometimes the phone displays"This cable or accessory that is not certified and may work well with this for iPhone"?

A:Because it is mass production, some cable contacts may be crooked. Under normal circumstances, you can pull out of this product, then plug into it.
