Features:

Improve wireless coverage in all WLAN networks.

Access to the Internet for computers located on the for edge or outside of the range of your access point.

Complies with IEEE 802.11n， IEEE 802.11g， IEEE 802.11b standards.

Provides up to 300Mbps transmission rates.

Support 2.4GHz WLAN networks.

Maximum WLAN security with WPA2， WPA and WEP (128/64).

Software wizard for simple setup.

2dBi antennas integrated.

Support Wireless Repeater Mode and Standard for AP Mode.

Provides one 10/100Mbps Auto-Negotiation Ethernet LAN ports.

System requirements:

WLAN access point/client according to IEEE 802.11n， g， b.

110 230-volt socket.

The WLAN client must support at least the WPA encryption standard.

WLAN access point and the WLAN client with automatic IP address assignment(DHCP).

Forwarding of IPv4-based protocols/Address Resolution Protocol.

The network name (SSID) of the WLAN access point must be set to "visible".



Specifications:

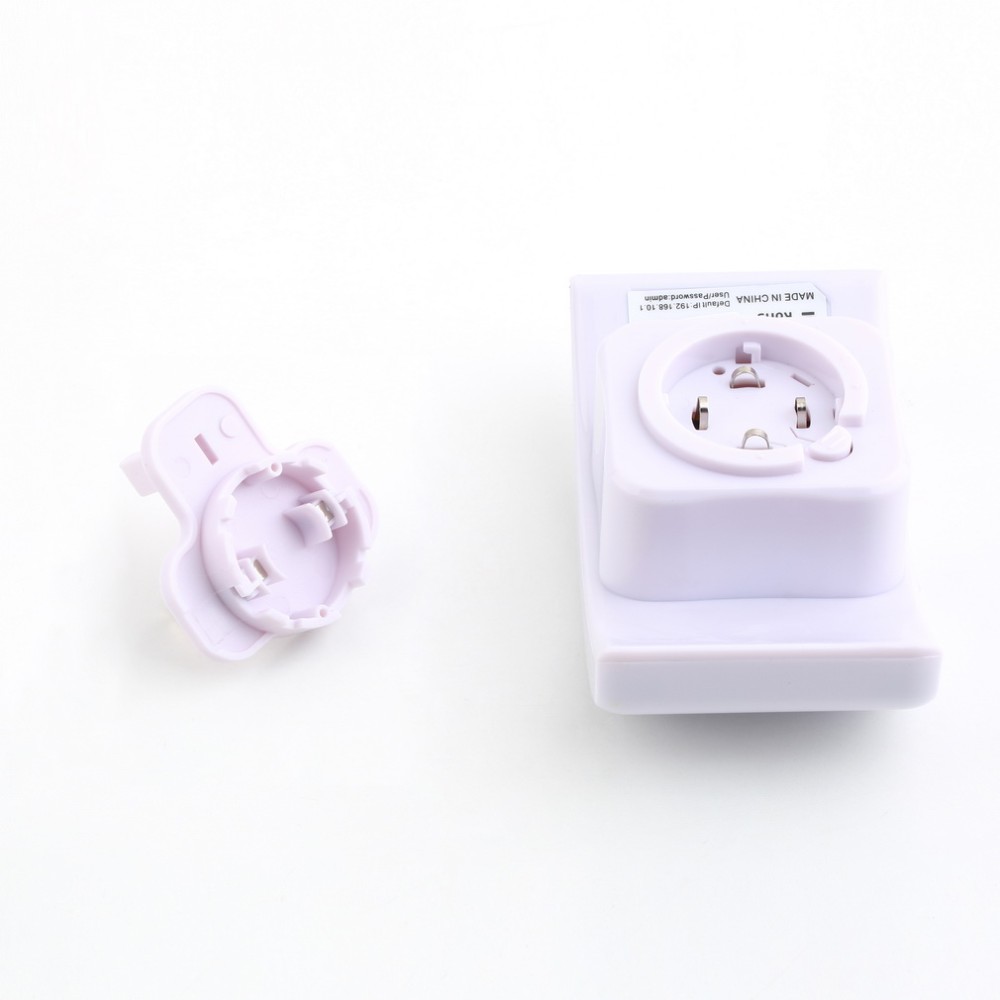

Plug:EU Plug，US Plug，UK Plug，AU Plug

Color: Black，white

Frequency range: 2.4-2.4835GHz

Wireless transmit power: 14 ~17 dBm (Typical)

Power supply unit: 100V-240V AC

Operating temperature: 0degree~40degree (Fahrenheit32~104)

Storage temperature: -40degree~70degree(Fahrenheit-40~158)

Relative humidity: 10% ~ 90% (Non Condensation)

Networking cable: 1M

Net Weight:196g

Package weight: 216g



Package Contents:

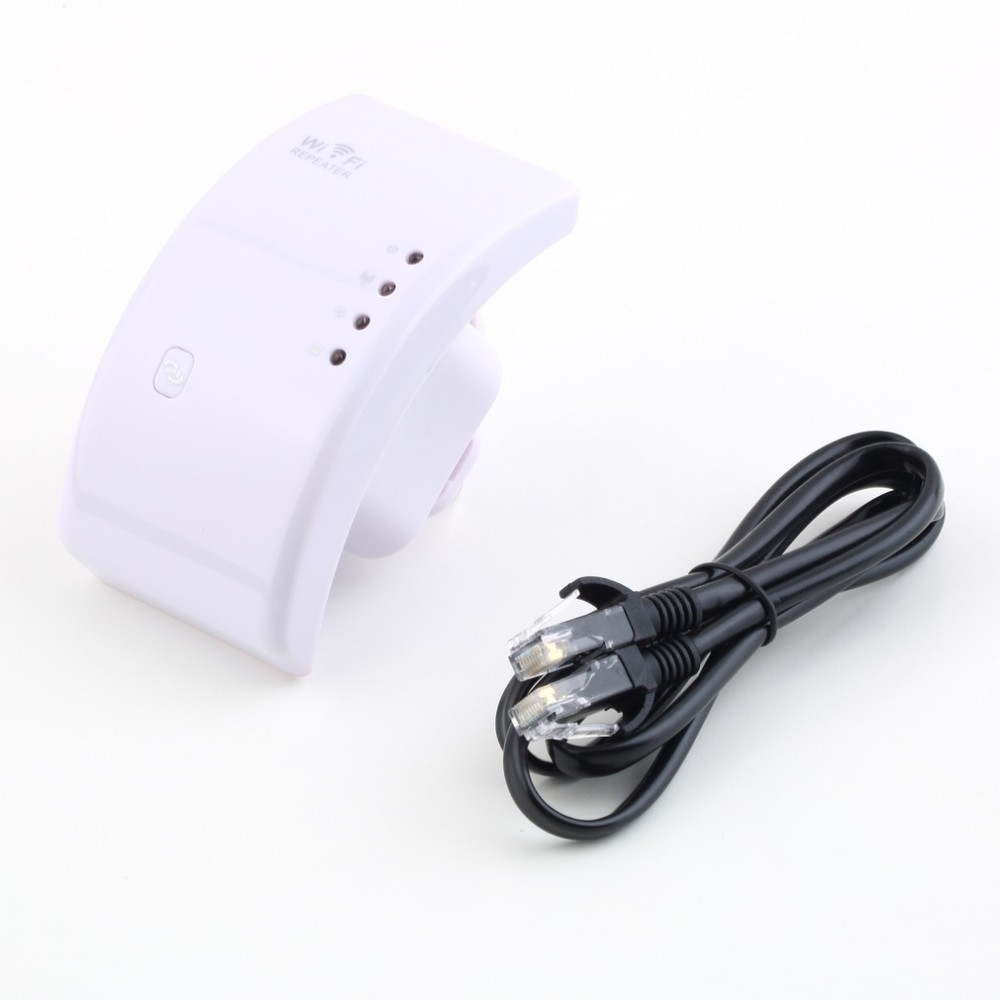

1 * Wireless-N repeater

1 * RJ-45 networking cable

1 * Quick installation guide
