Item Descriptions:

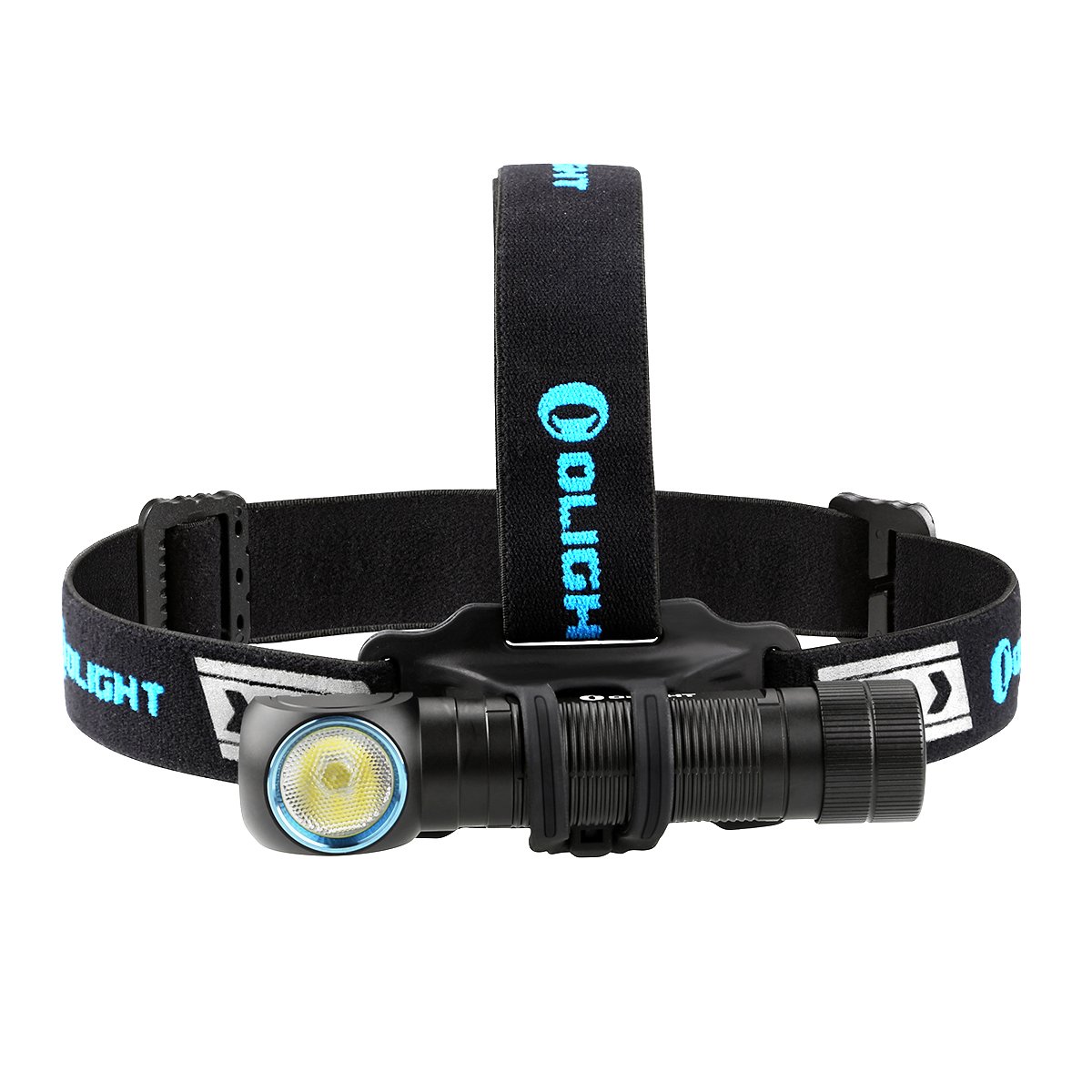

With significant evolution, 2,300 lumen class multifunctional headlight, Olight H2R NOVA!

Specification:

The Cree XHP 50 LED chip was mounted and finished in explosive headlight and task light which realized high output as high as 2300 lumens (CW version) at the maximum.

Since it is possible to adjust the brightness of 5 stages, it is very useful in every place.

Aircraft aluminum alloy construction, protection class IPX8 (2M), the impact resistance is also strong.

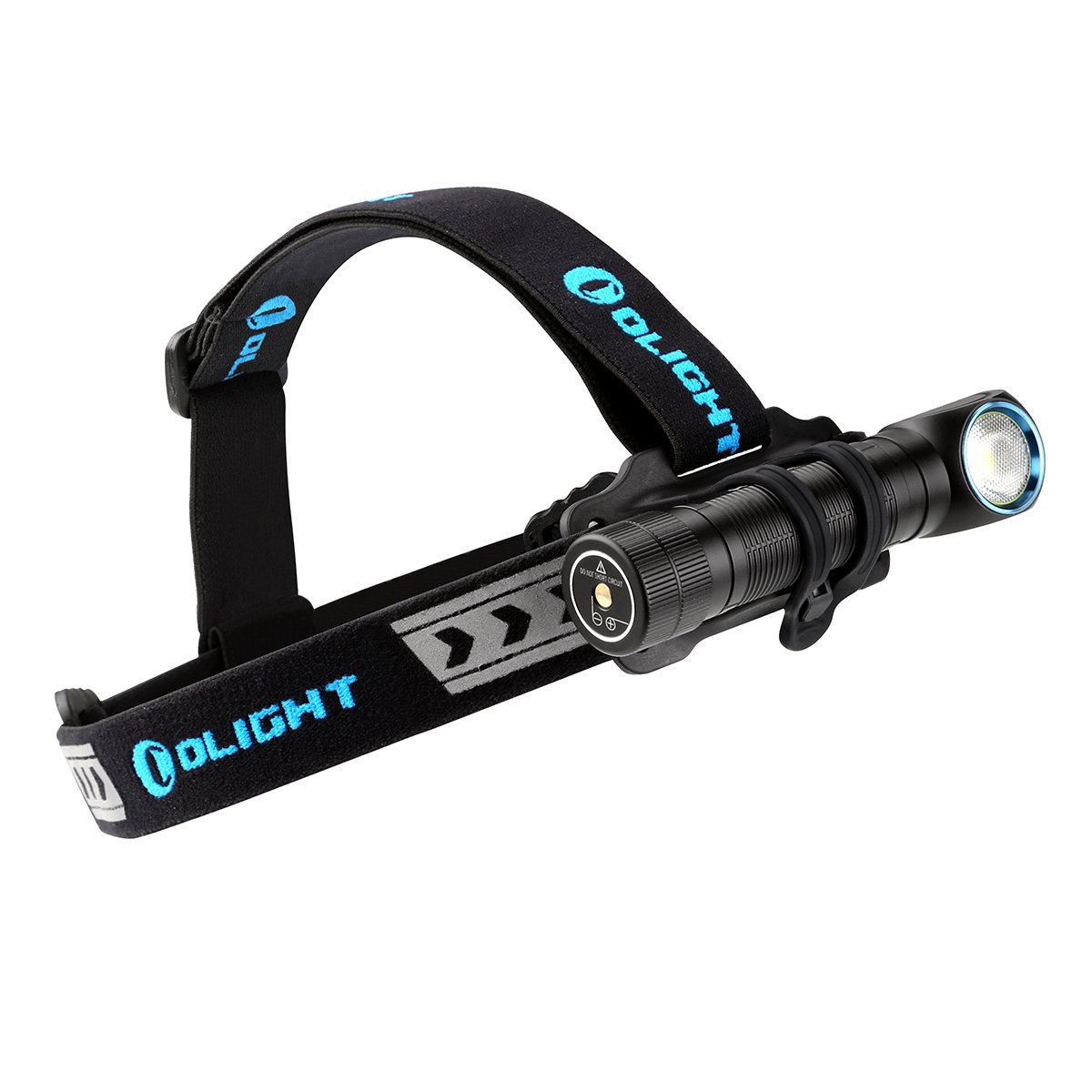

Small size, light weight, angle can be adjusted freely, weight does not matter even if batteries are inserted, adjustment of the headband can also be worn on the head.

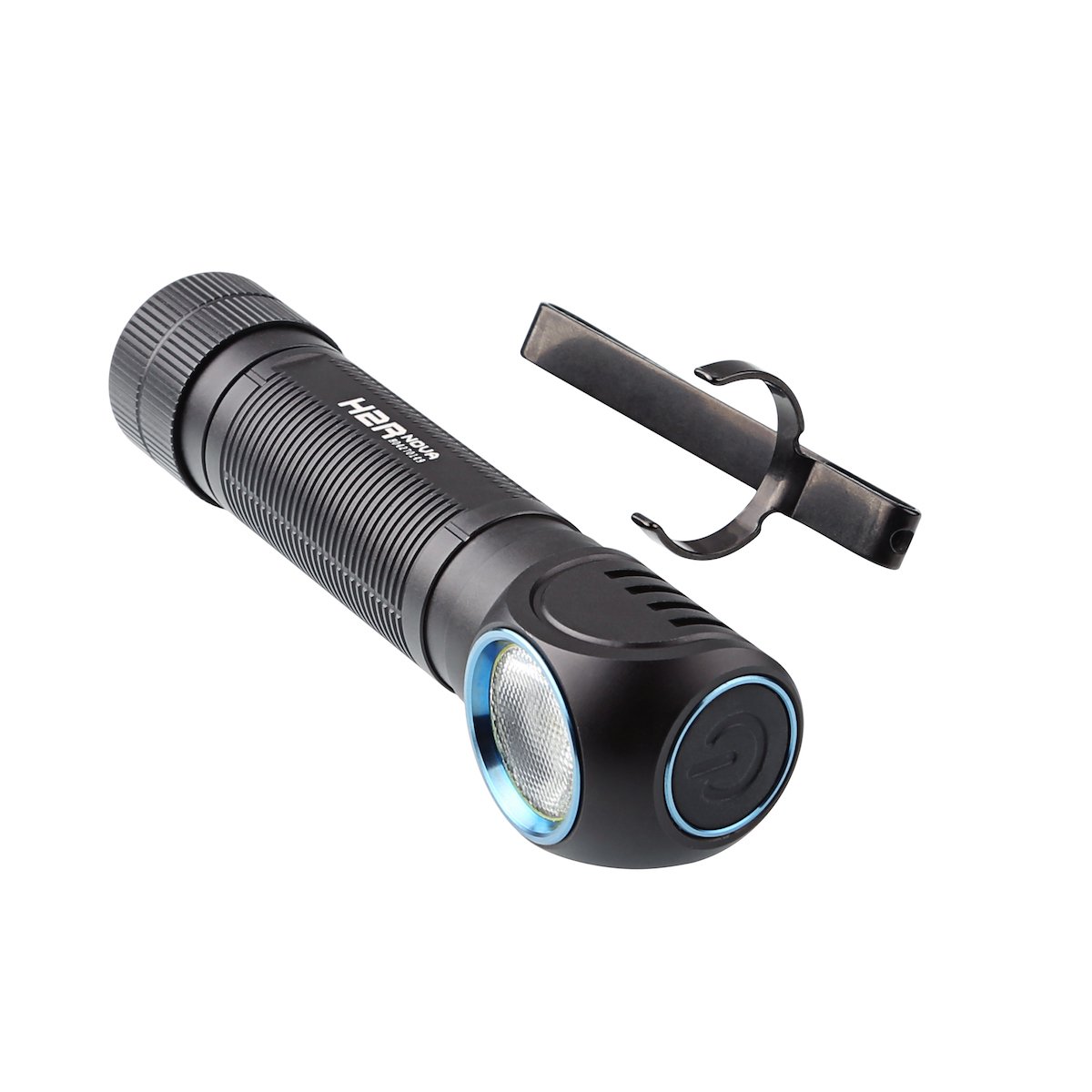

Removable light body, you can attach to the clothing pocket with attached clips attached

Usage: Ideal for night activities such as jogging camp, fishing, hunting & shooting, running reading, hiking, caving, climbing, cycling, kayaking, housing, construction work, car repair ♪

There are NW and CW 2 weekly LED types, you can choose according to your preference!

(Values ​​will change between CW version and NW version)

LENS: TIR Optic Bead Lens

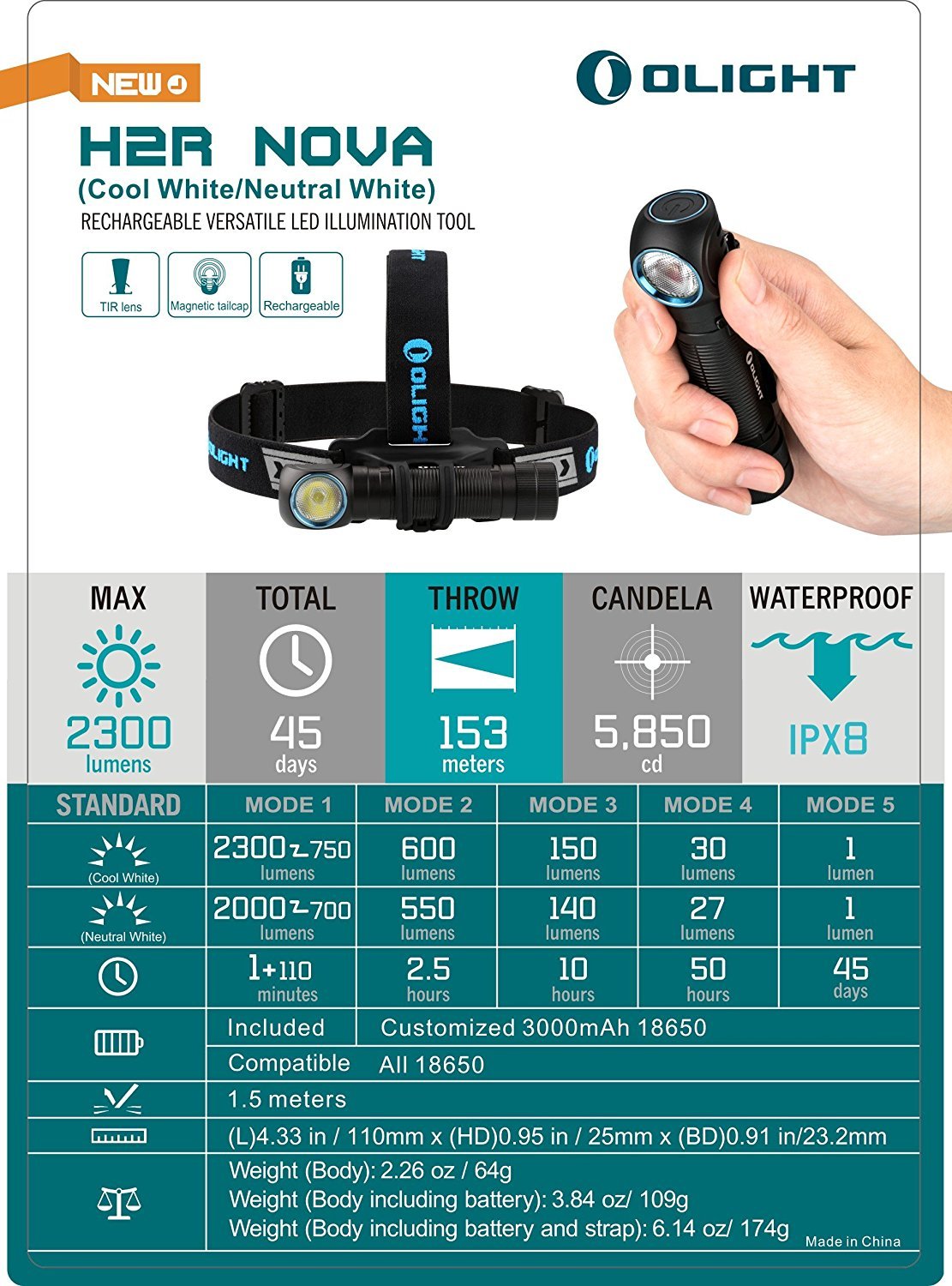

Cree XHP 50 CW (cool white)

Body material: AL6061-T6 Aluminum alloy

MAX

2300 lumens

, 5 kinds of brightness

+++ Mode 1: 2300 lumens (1 minutes) - 750 lumens (110 minutes)

+++ Mode 2: 600 lumens, 2.5 hours

+++ Mode 3: 150 lumens, 10 hours

+++ Mode 4: 30 lumens, 50 hours

+++ Mode 5: 1 lumen, 45 days

Cree XHP 50 NW (neutral white)

Body material: AL6061-T6 Aluminum alloy

MAX

2000 lumen

, 5 kinds of brightness

+++ Mode 1: 2000 lumens (1 minutes) - 700 lumens (110 minutes)

+++ Mode 2: 550 lumens, 2.5 hours

+++ Mode 3: 140 lumens, 10 hours

+++ Mode 4: 27 lumens, 50 hours

+++ Mode 5: 1 lumen, 45 days

Waterproof rating: IPX 8

Battery: 1 x 3000 mAh with 18650 rechargeable battery

Light irradiation intensity: 5850 CD

Irradiation distance: Approximately 153 m (MAX)

Total length: about 110 mm

Diameter: about 25 mm

Weight: Approx 109 g (including batteries)

Warranty period: 5 years

Method of operation:

H2R is equipped with 5 modes of constantly lighting, and [SOS] of 6 other modes.

* ON / OFF with one click.

* Lights with [Moon] for a long press from the moment of turning off, and turns off with 【Moon】 as it is. When re-lit, it lights with 【Moon】 with one click.

※ While lit, the mode shifts in the cycle of [Low] → [Med] → [Hi] → [Low] ... with long press.

It has a mode memory and lights up again in the mode when it is off.

* Turbo with double click, regardless of the ON / OFF state, 【SOS】 with triple click.

Lockout function

* When you press and hold the switch for a long time, it lights with [Moonlight], but if you continue to keep it pressed it will be set to lockout mode to prevent accidental lighting after turning off [Moonlight].

* When the switch is pressed in the lockout state, the main light illuminates once.

* To cancel the lockout mode, press and hold the switch again.

※ When you release lockout you surely start with 【Moonlight】.

It's a practical light!

Magnet

A strong magnet is built in the holder part of the headband and it can be provisionally fixed with a magnet when mounting the light body.

The weight of the headband increases by the magnets, but it is designed to allow you to remove the magnet depending on the user's preferences and uses.

The removal method is very easy, and the EVA pad on the back of the holder

Slowly peel off

Just take out the magnet, set the included liner and then paste the EVA pad again.

When detaching or setting it many times, since the adhesive strength of the EVA pad disappears, in that case, replace it with a spare EVA pad.

I think that it is better to leave the magnet built-in when giving priority to the convenience at the time of mounting, but it is easy for the user to detachably attach the magnet even if it is troubled by weight reduction or if it is affected by magnetism

I think it's a good idea.

Charging:

The rechargeable battery is built into the main unit and shipped.

Remove the insulating sheet before use,

It is not shipped in the fully charged state according to the international regulation concerning the distribution of Li-ion rechargeable batteries

In the initial state it can not be lit by 【Turbo】.

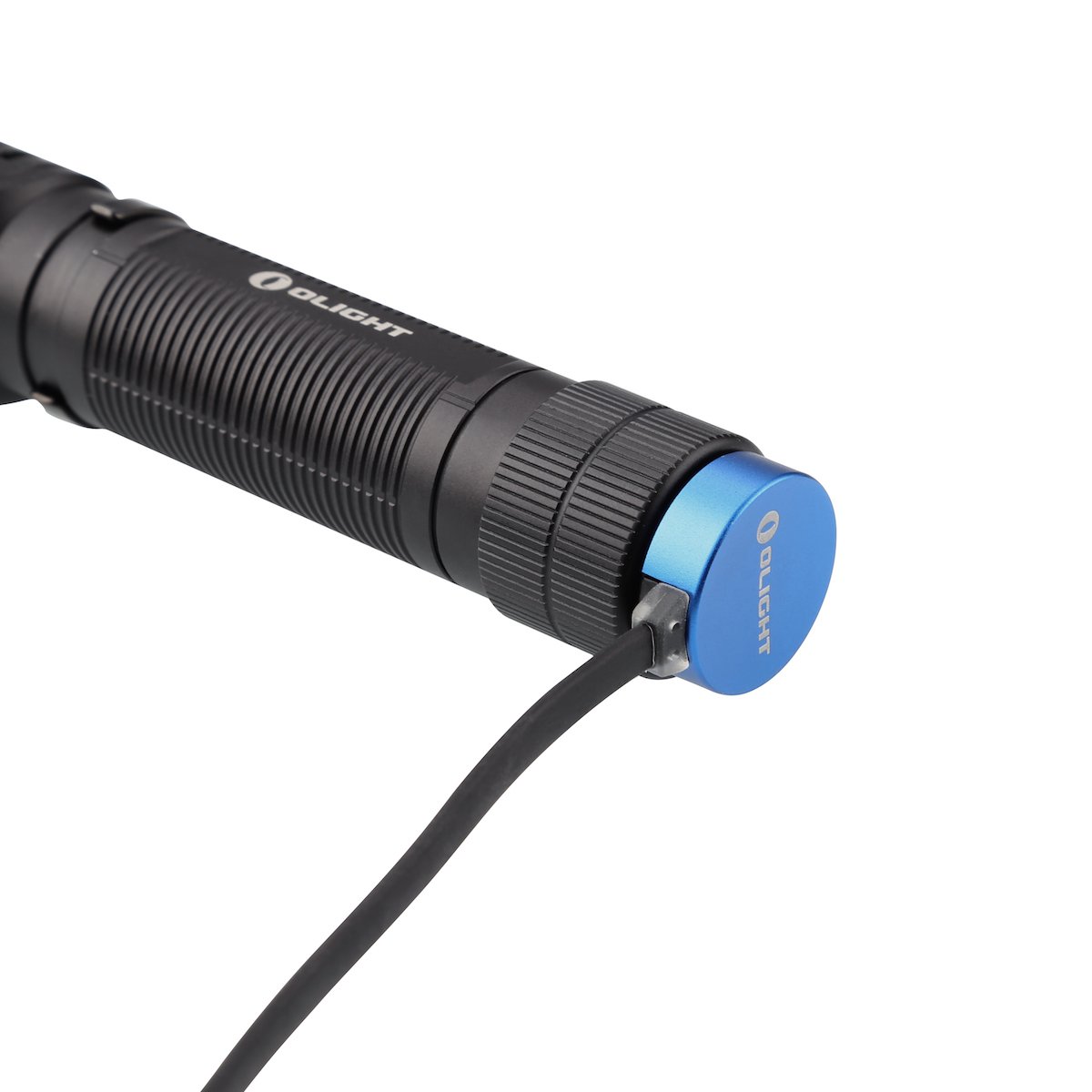

To charge the battery charger, connect the PC or mobile battery with the 5V output USB-A port and attach the pad to the bottom of the light.

There is no need to turn on / off the switch, etc. If the power supply side is online, charging will start simultaneously when attaching the pad.

When charging starts, the pad indicator lights with [Red], and when charging is completed, it lights up with [Green].

If the battery is not set on the light body or if it is not a dedicated rechargeable battery, the indicator flashes to inform you of abnormality.

Since the included charger is the same as OLIGHT MCC (S size), other models can be used as long as MCC is compatible with the model.

In addition, H2R can be charged even with MICRO - DOK III attached to S30R BATON - III and S10R BATON - III.

(We can charge even MICRO-DOK III which we sell)

In case

note:

Attention is required for the direction of the battery

: Unlike ordinary light, the direction of the electrode is reversed.

If the direction is reversed, it will not light, - Please note that it will be head oriented, please understand.

For safety, please use the supplied genuine battery.

Although there is a problem of warranty, using a battery that is not suitable may lead to an accident such as explosion at its worst.

Olight has absolute confidence in our products.

For that reason, we offer 5 year warranty and high quality customer support for all products.

※ Note: Please buy Olight products from Olight Authorized Dealers

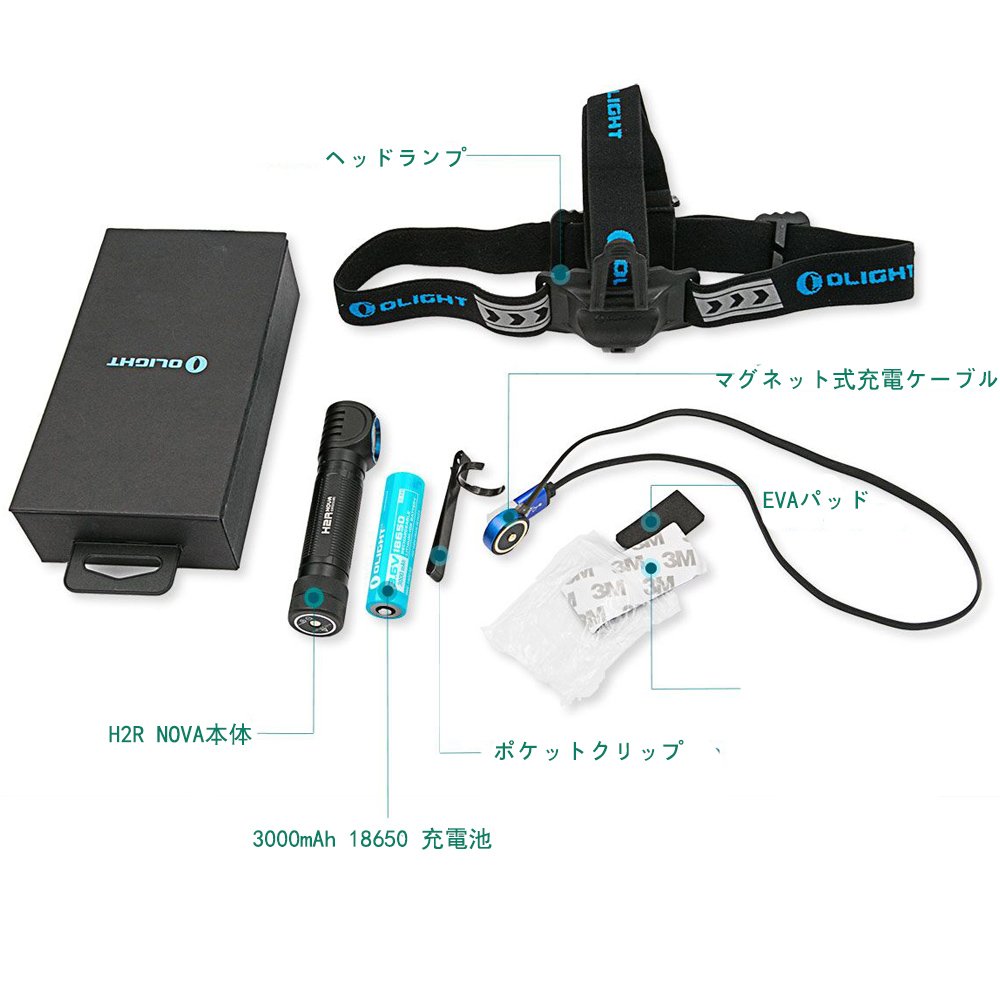

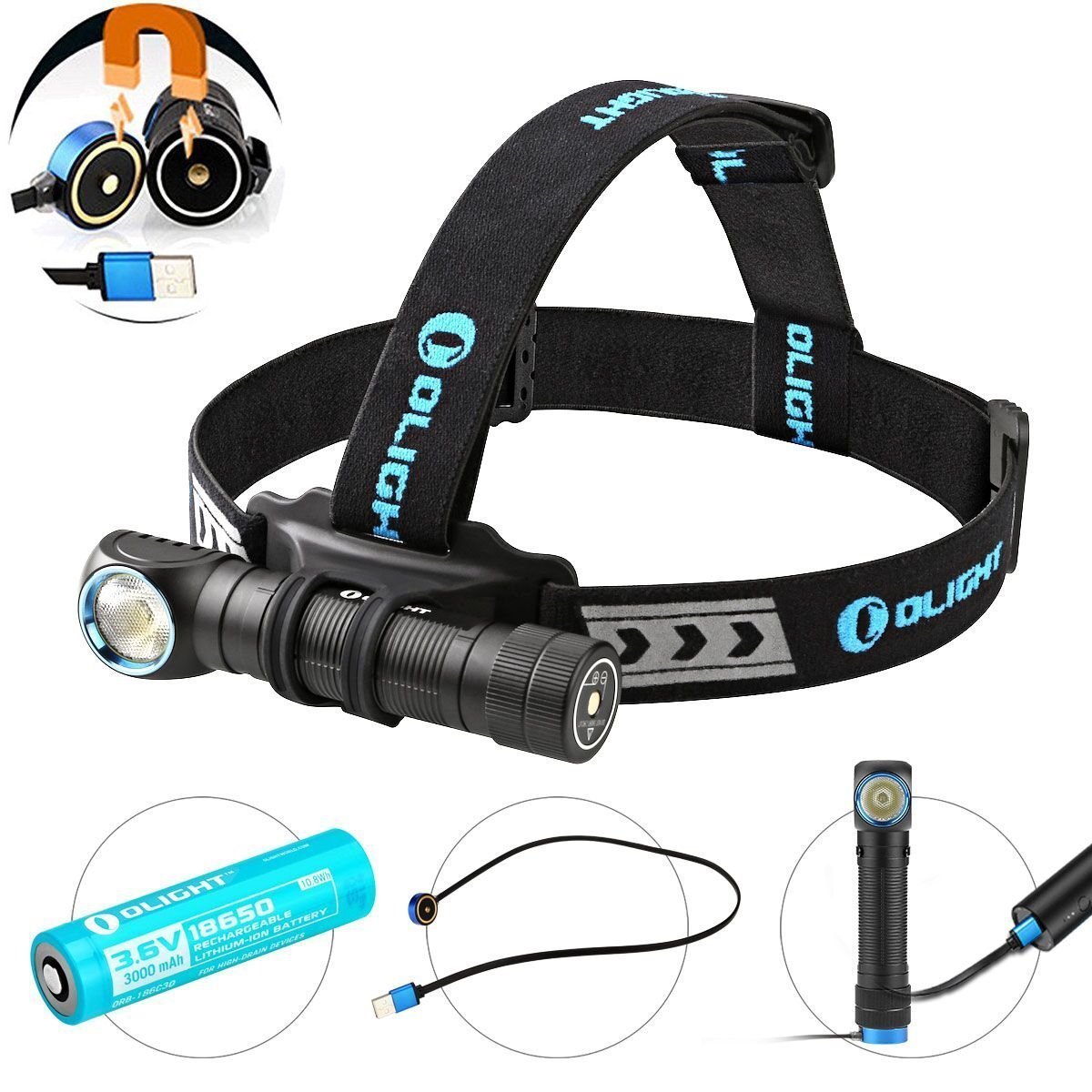

Package list:

H2R NOVA main unit

head lamp

3000 mAh 18650 Battery

Pocket clip

Magnet type charging cable

EVA pad (substitute for magnet)

Instruction manual (with Japanese manual)

Features:

• ❤ H2R is equipped with CREE XHP50 LED, it is useful for TIR lens, uniform light output, export 1 ~ 2000 lumens, outdoor near distance lighting.
• ❤ Body material: AL6061-T6 Aluminum alloy, waterproof protection grade is IPX8.
• ❤ The light body can be detached, it can be attached to the pocket of clothes by attaching the attached clip.
• ❤ Purpose: Ideal for night activities such as jogging camp, fishing, hunting & shooting, running reading, hiking, caving, climbing, cycling, kayaking, housing, construction work, car repair ♪

Product information:

Shipping Weight: 340 g

Package Dimensions: 4.39 x 9.40 x 18.29 cm
