Specialized function

*Easy installation as here is no need to make additional holes.
*A Push and pull method is convenient to use
*The first door lock with a one-step fingerprint recognition system on the back of the handle
*The first door lock with a pattern authentication system
*Anti-crime locking mode that is set up by pattern locking and safety handle mode enhance security.
*A Bluetooth compatible door lock that allows users to authenticate on their smartphones
*All in one handle is easy to installation and protects dew condensation.

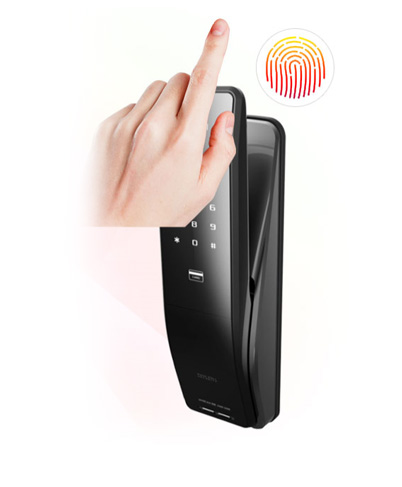

Finger print recognition on the back side of the handle (option)

A one-step unlocking mechanism that allows users to securely confirm their identity with their fingerprints

Finger print recognition on the back side of the handle

- The first Digital door lock applies all in one handle with fingerprint authentication.

- Fingerprint module is the back side of the handle and is designed for slope of fingers, so it prevents pollution on the module. It enhances convenience through authentication and unlocking coincides at the same time as one step style.

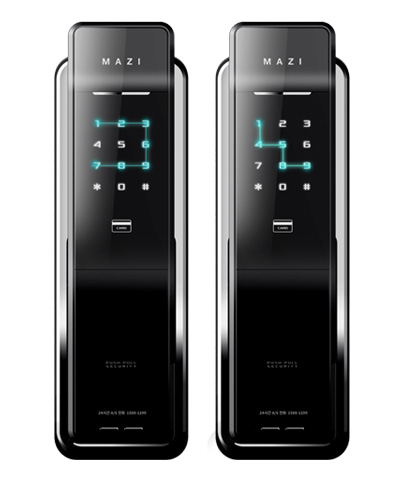

Pattern Authentication

A Smart door lock is able to use user’s own pattern easily and conveniently as smart phone pattern.

- The first Digital door is applied pattern authentication

- Convenient and speedy access without push passwords.

- It does not need (*) confirm key when user accesses.

- It is able to use several patterns consecutively

- For preventing unveiled a pattern mark on the panel of the door lock, user can randomly draw several patterns than draw authentication pattern at last time.

- When anti-crime locking mode set up, pattern authentication prevents an erroneous set up.

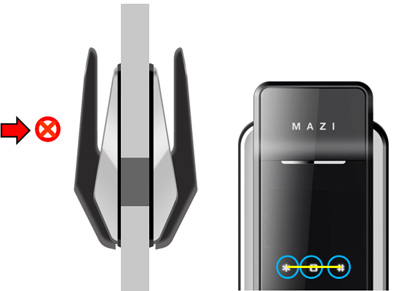

Functions of Anti-crime pattern locking mode and safety handle.

A completely new pattern-based authentication system unlike the conventional method of pressing a single button to switch to the anti-crime locking mode, a pattern lock can be used to prevent an erroneous setup. The safe handle, which automatically locks the handle from the inside, also helps improve security.

- The first time to set up anti-crime mode

- When users close a door, * 0 # keys are lighting on 3 seconds.

- Anti-crime mode set up when users draw * 0 #

- Anti-crime pattern locking mode lifts by authentication of passwords, card, pattern or finger print.

- When anti-crime mode is setting up, the safe handle function operates and protects unlocking by external force.

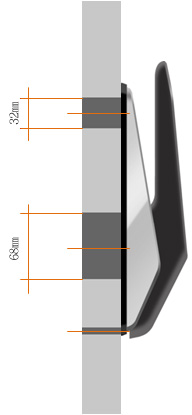

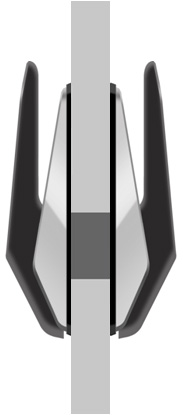

Hole-less PUSH PULL Main Door Lock

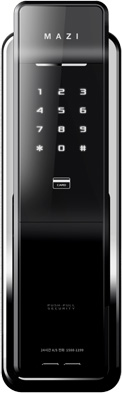

All in One Handle Main Door Lock

Easy installation as here is no need to make additional hole and convenience open and close with push pull method

It possible to alternatives of exiting door locks and without back up plates, and structure of the door lock is designed for preventing condensation.

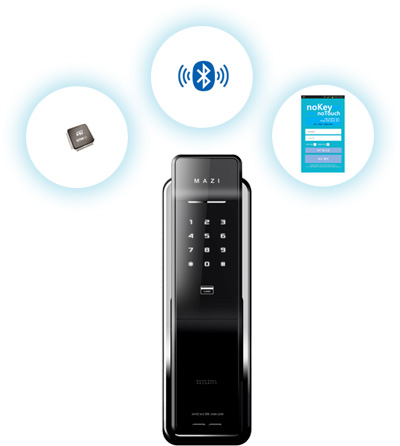

Convenience Blue tooth communication (option)

- Access is able to control by smart phone blues tooth communication.

- Diversity APPS functions as Messages, records, door lock setting

- Interlocking with Smart home system (Prior consultation)
  -Anti crime locking mode for 2 step security.
  -Black box function and external monitoring function
  -Status Notification

RF Specification

item	Using frequency code	Type of radio wave	Modulation format	Communication format	Form of use
RFID	13.56MHz	A1D	ASK	simplex operation	DC6V (1.5V AA x 4EA)
Safety System	447.275MHz	F1D	FSK	simplex operation
RFID/USN Wireless devices	920~923MHz	F1D	FSK	semi-duplex operation
Bluetooth LE	2.4GHz	F1D	GFSK	duplex operation
