[Product Information]

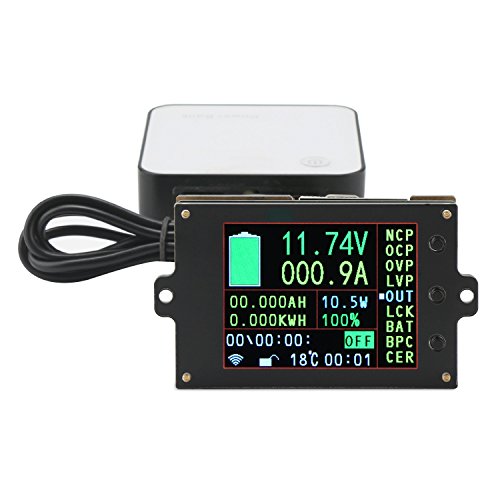

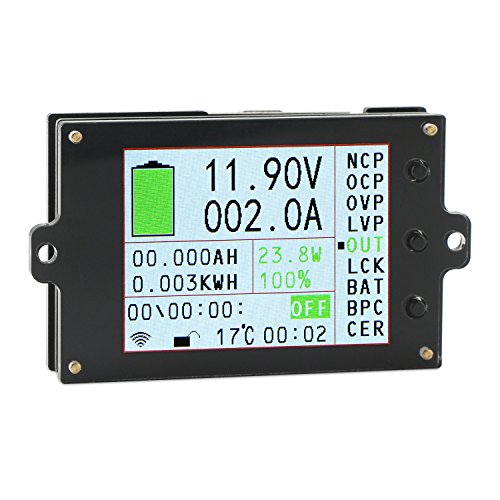

Multifunctional Meter: DROK digital multimeter panel can real-time display voltage, current, power, capacity, energy, temperature, operating hours and other physical parameters with 2.4inch color LCD; with overvoltage & overcurrent protection for charge, undervoltage & overcurrent protection for discharge.
Measurement Range: its voltage test range is DC 6-80V(powered by itself), if offer external power supply, voltage test range is DC 0-120V; current test range is 0-300A, capacity test range is 0-65000AH, energy test range is 0-9999KWH, time range is 0-100hours, temperature test range is 1-100℃.

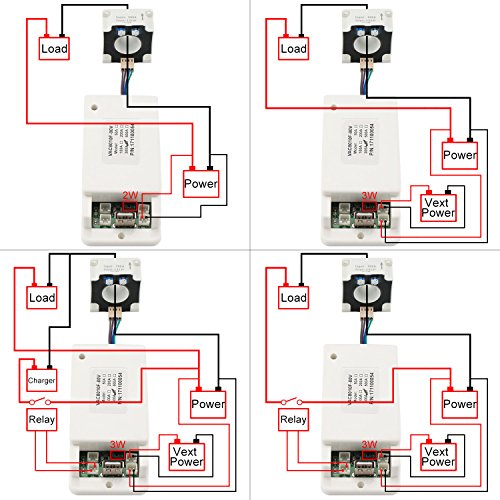

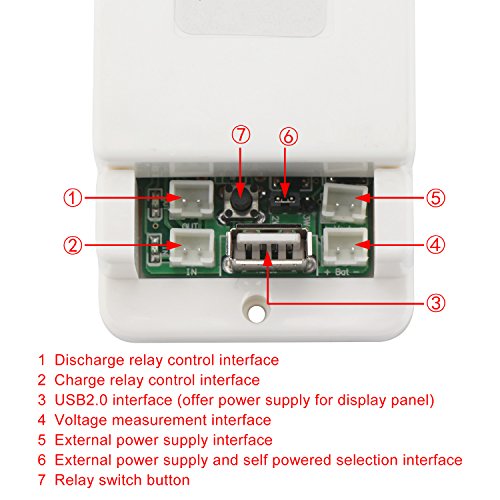

2 Reserved Relay Interfaces: the voltmeter ammeter is equipped with two relay interfaces, which are reserved for the battery charge and discharge management and overvoltage, undervoltage, overcurrent protection. Note: when relay control circuit 1 is ON the other is OFF and vise-versa with no way to have both ON or both OFF at the same time.
Wireless Data Transmission: wireless data transmission to avoid interference with the complex wiring between the display and the detection module, while making wiring easier, transmission distance is 10 meters for single group in open space.
Hall Sensor: the detector gauge is equipped with hall sensor, which can achieve non-contact detection of current, without breaking the wire, more safe, reliable and convenient.
