Product Description

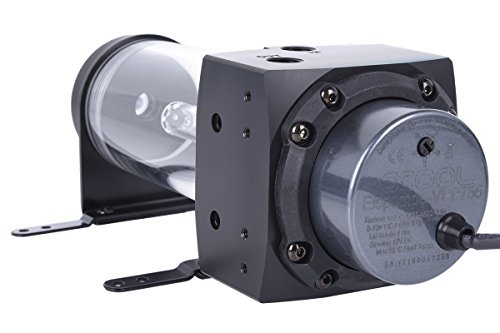

This Eisbecher reservoir features a built-in VPP755 Pump system and configurablemounting brackets for a quick and easy installation into your PC.This Eisbecher is the big brother of the DDC version. The pump can be attached using a mounting ring and eight screws to hold it. The plexiglass version can be illuminated with four LEDs, which are placed into the pump socket. The lighting module illuminates from above. Small riser pipes and Bubble Down also do their work faultlessly here. The Eisbecher can be mounted either with the mounting bracket or with the included stands. If there is room in the 3.5" hard drive cage inside the case, the pump socket also has threads for this (requires pump decoupling with M4 inner and outer threads - Art. no. 52007).

Dimensions (DxH): 60 x 53.5mm
Cable length: 50cm
Standard voltage: 12V DC
Power consumption: 14W
Permissible voltage: 8-13V DC voltage
Pressure at 12V: 4m water column
Maximum flow: 350l / h
Pump medium: water, water / glycol mixture
Maximum system temperature: 65 C
Power connection: 4 pin Molex
Tacho signal: 3Pin
PWM signal: 4Pin

Special features: Adjustable in five steps
Step 1: 1800 rpm
Step 2: 2500 rpm
Step 3: 3200 rpm
Step 4: 3900 rpm
Step 5: 4500 rpm

CAUTION
Removing the impeller from the ceramic shaft will cause the upper ceramic clamping ring to over-expand, which will destroy it Removal will void the pumps warranty

If the pump is put together again and put back into operation, the clamping ring will loosen, which is not accepted as grounds for a return or exchange...
