1. Product Overview

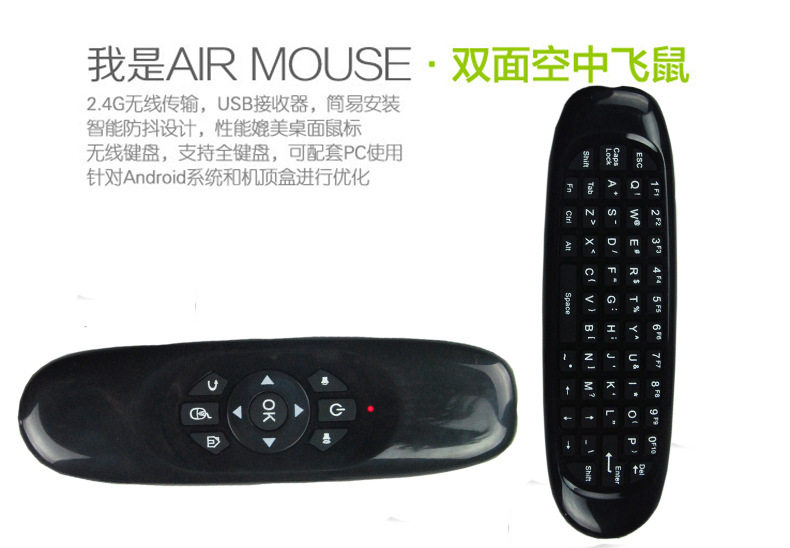

This product is a set of air mouse, keyboard, Andrews remote control and somatosensory control functions as one of the two-sided multi-function intelligent remote control.
2. Product Features
(1): perfect feel, classic double-sided, full keyboard curve design, user-friendly design;
(2): low power 2.4G wireless connection, anti-dry ability, with LED connection status indication;
(3): support low voltage operation: 3.3-4.5V;
(4): intelligent anti-shake algorithm, the mouse cursor smooth and stable.

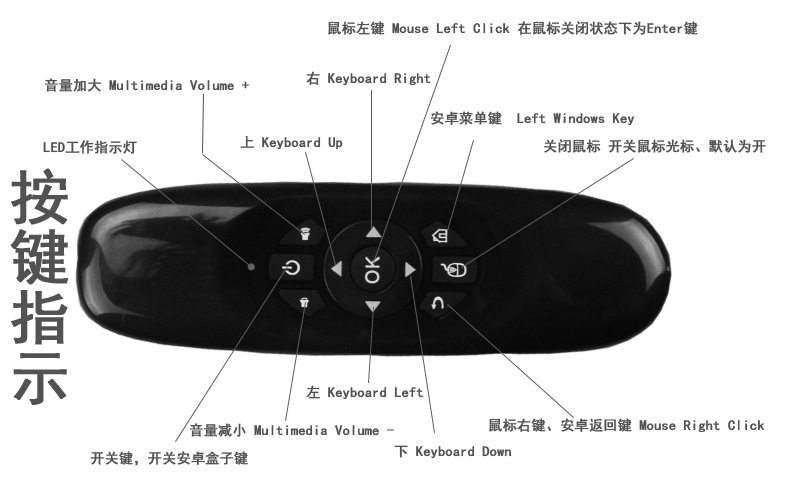

3. Functional description

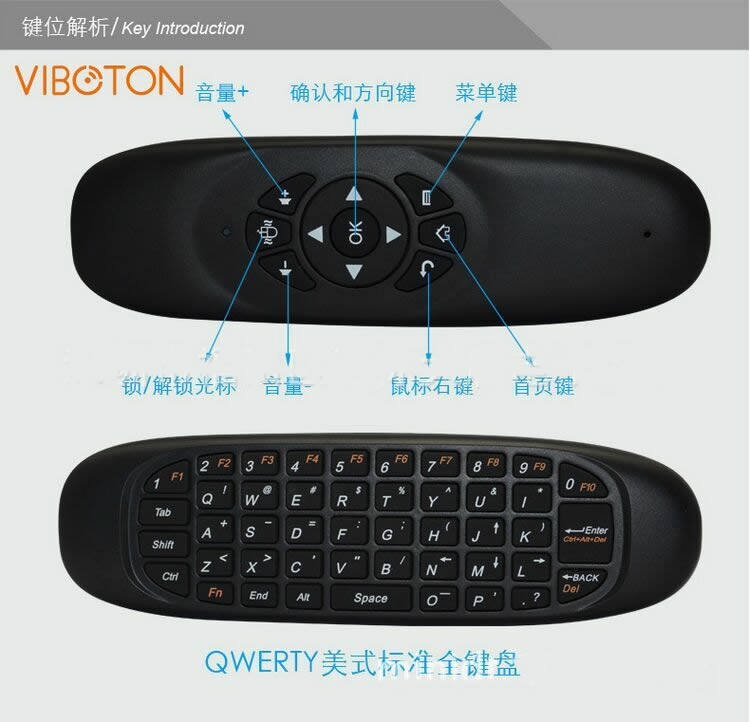

Key order function defines key values
1 LED work indicator
2 volume reduction Multimedia Volume -
3 volume increase Multimedia Volume +
4 shutdown key, off the security box button (part of the system is standby), please note that this button can not boot, can only shut down or standby.
5 on Keyboard Up
6 under Keyboard Down
7 Left Keyboard Left
8 right Keyboard Right
9 Mouse Left Click the Enter key when the mouse is off
10 right mouse button, Andrews return button Mouse Right Click
11 Andrews menu key Left Windows Key
12 Turn off the mouse switch Mouse cursor, the default is on
4. Specifications

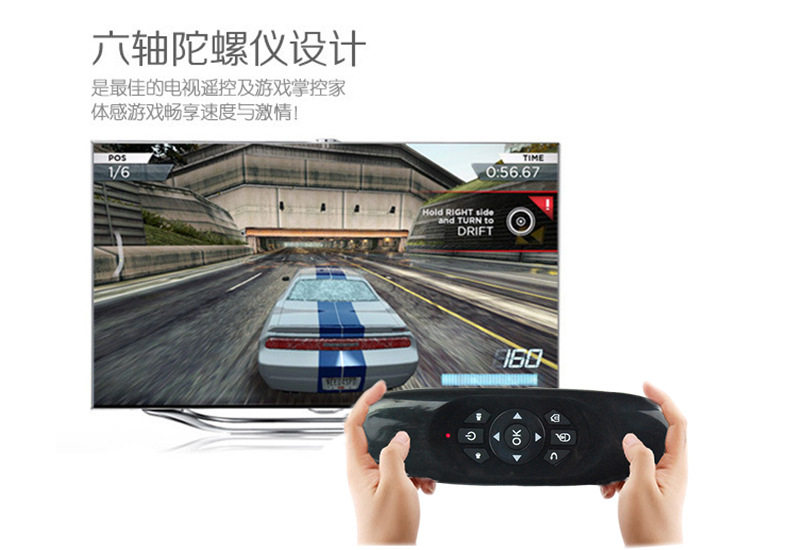

6-axis sensor solution, 3-axis G-Sensor + 3-axis gyroscope sensor
Wireless communication 2.4 Ghz
Wireless distance of 8-10 meters
Wireless frequency 2.402-2.483Ghz
Working current << 15mA
Standby current << 30uA
Battery Rechargeable lithium battery
Indicator Two-color LED
Remote control size 160 * 48 * 14mm (L * W * H)
Weight 75g
USB type USB2.0
System requirements compatible with Windows, Mac OS, Linux, Android
5. sleep and wake up
In order to save power to extend the battery life, in the remote control without any operation after 20 seconds into sleep, sleep any key to wake up the mouse.
6. Precautions
1. Battery charge: Please ensure that the battery is fully charged, when the battery low voltage, the cursor stability will be affected.
2. Use distance: the actual use of the product distance will be affected by the electromagnetic field changes, please ensure that the receiving end is not blocked by metal objects.
3: light: the left side of the product has a two-color LED indicator, respectively, indicating the running state of the red light and the state of the blue light:
Blue light: long light that is charging. Not bright, charging is complete
Red light: flashing that lost connection, please check whether the receiving head is connected to the host, or metal objects block.
In addition, in the working state of the connection, if there is insufficient battery power, the indicator light will be 1 / S speed flashing, prompting the need for timely charging, in fact, can still work for some time, but with the battery voltage is reduced, The rats may be working abnormally.

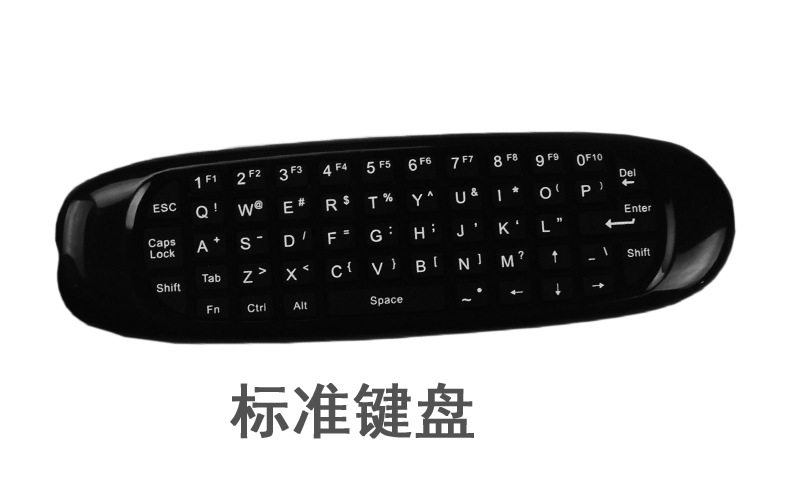

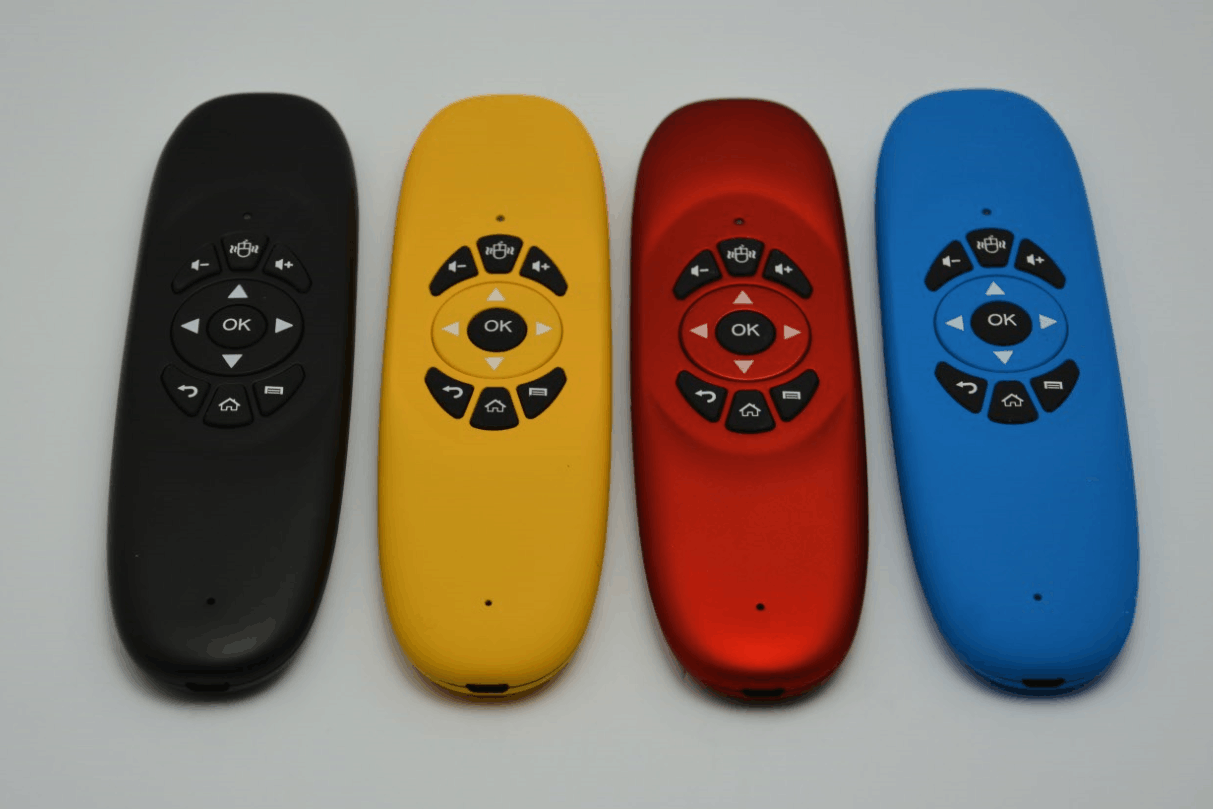

The following figure for the second generation
