Item Descriptions:

◆ Movie resolution: 1920 * 1080pix 30fps ◆ Movie format: AVI (motion JPEG) ◆ Voice recording time: Approximately 100 minutes ◆ Audio: Monaural sound ◆ Built-in battery: Li-ion battery ◆ Backup battery capacity: 300 mAh ◆ Video proportional: 16: 9

◆ Charging voltage: DC-5V ◆ Interface type: Mini 5Pin USB ◆ Recording media: SD 32GB compatible (SD is not included) ◆ Size: approx 75mm x 25mm x 10mm ◆ Weight: Approx 20g (including battery) ◆ Support OS

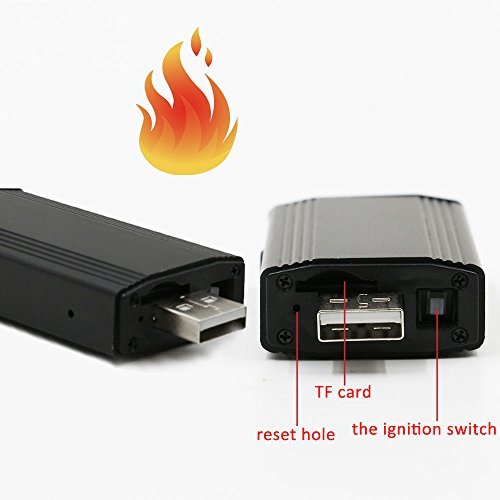

How to use microSD card insertion microSD card (sold separately) is TF card next to product USB

Please insert it in the holder.

Please push it once again when you take out.

Malfunction may occur if the microSD card is not inserted. Always turn on the power of this product after inserting the microSD card.

Connecting to PC You can use it as a U disk if you connect to a PC without being disconnected regardless of switch ON standby or switch OFF status.

Copy files, cut and paste, delete, U disk initialization, etc. can be operated freely.

When this device is inserted into the USB interface of the PC, the PC pops up the mobile disk icon after a few seconds.

When the blue lamp flashes, USB equipment is recognized and data can be transmitted.

Caution: a. If you can not recognize the PC after connecting this equipment to the PC or do not pop up the mobile icon even after 30 seconds, please reset and insert this equipment again.

b. We recommend that you use the card reader of T card to directly read and play the video file.

When playing directly the video file saved in the internal memory of this recorder by USB concatenation, the data quantity may be excessive, the transmission speed may be slow, and the playback may not be performed smoothly.

Charging method 1) You can connect to the computer and charge it with the power off.

2) You can charge the 5 V charger separately when the power is off.

When the red lamp flashes, charging is in progress, red lamp is on, charging is completed.

Caution: Even if you do not use the product, the battery may be exhausted Please check the battery remaining before using, Remarks: Please charge after using the batteries every time.

Charging is completed in about 2 to 3 hours.

When charging is completed, after the red lamp lights up, continue charging for 30 minutes, please use after completion of charging.

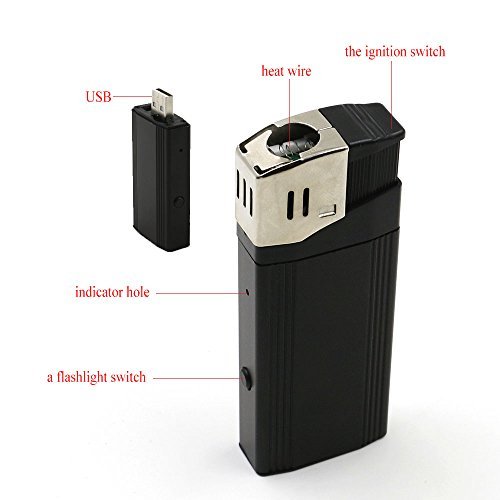

Heating wire type writer function ※ Please note that the heating wire becomes very hot.

※ The battery will be quickly drained during ignition.

LED lighting function In dimly lit places, you can push the LED on / off button, LED lighting is possible, 1 lux only There is no night vision correction lens that can shoot even in the dark!

Features:

• Please enter model number Confirm this is compatible:
• 【Product function】 Movie shooting · Recurrent recording · Vibrating action · Heating wire type writer function · Night vision correction function
• 【High Image Quality & High Resolution】 Realize "1920 × 1080pix" movie of compact camera.
• High image quality & high resolution realized an overwhelming beautiful movie shooting which has never existed before.
• [Repeat Recording] Overwrite recording function, which is overwritten from the old file even when the memory card becomes full.
• Easy data transmission can be done simply by connecting to the PC's USB terminal, shooting for about 80 minutes with 2 hour charging, micro SD card 32GB compatible.
• 【Night vision compensation lens installation】 1 lux only There is a night vision compensation lens that can shoot even in the dark, freely adjusted with LED lighting function.
• With a dark place it has a strong night vision correction function!
• Heating wire type writer function!
• The electric heating wire that can actually ignite cigarettes is installed.
• ※ Please note that the heating wire becomes very hot.
• ※ The battery will be quickly drained during ignition.

Product information:

Shipping Weight: 113 g

Package Dimensions: 4.32 x 9.40 x 12.70 cm
