Item Descriptions:
merit:
① Three-sided design, COB chip mounting, light intensity as high as double the halogen has become as bright as cars.
Light color is too white and it is quite nice feeling.
② When the optical axis is aligned with the Lo position of the halogen lamp, the Hi side is too upward, so it is possible to adjust to the optical axis with almost no problem by adjusting the projection of the light emitting surface to the reflector side (back) as much as possible.
(The adjustment width in the front and rear is about 10 mm.)
③ Easy installation!
Easy installation is possible simply by cutting the interference part (rubber) of the valve rubber cap and the fixed spring a little.
The controller can be stored in the light case with easy victory.
④ The sound of the cooling fan can hardly be heard even after the engine is started.
You can hear it when you approach the ear.
So, the sound of the fans is very quiet and I do not mind at all.
① Heat radiation performance Special aluminum alloy
Characteristics used for three-sided led headlight body Aluminum alloy is excellent in heat conductivity and heat resistance so that other metals can not be compared.
A material with good heat dissipation is the guarantee that light can always be lit normally.
② Heat sink Heat sink
The wider the heat dissipation area, the faster the heat dissipation speed.
The three-sided LED headlights did not destroy the original shape of the light body, but by inserting a ventilation port throughout, it became much faster with the convection of heat while increasing the heat radiation area.
In case

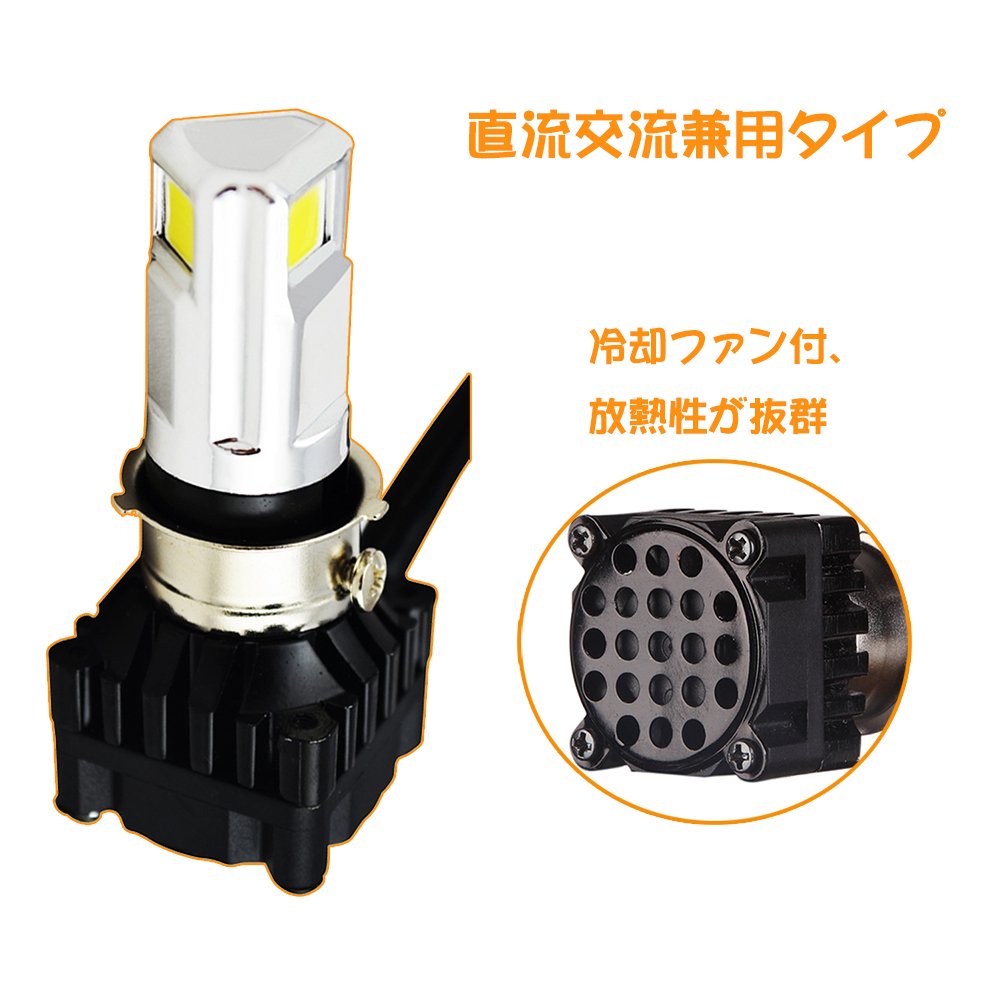

③ Heat dissipation speed cooling fan
A mechanical double ball bearing fan excellent in wear resistance is carried.
A fan that rotates at a high speed turns the air more and can diffuse heat quickly.
In addition, the cover of the pedestal also has some ventilation openings, so the heat dissipation speed became much faster with air convection.
Easy to install!
Remove the genuine halogen bulb.
Select the socket suitable for the bike and attach it to the bike.
Remove the valve socket.
Insert the LED headlight and fix it with bolts.
Tighten the bolts and connect the wires.

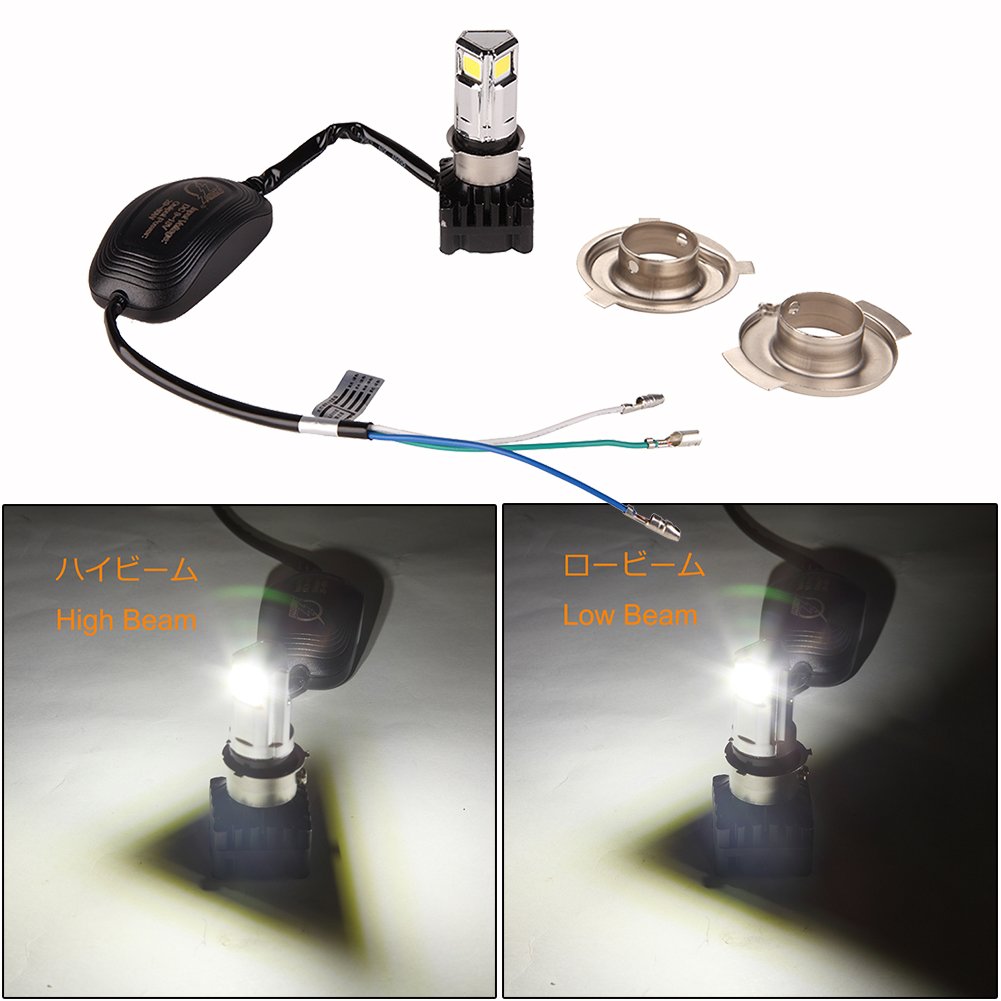

Blue / white / green / red 4 wires connect to the bike light switching line.
Blue line Hi light
White line Low light
Green line minus / earth

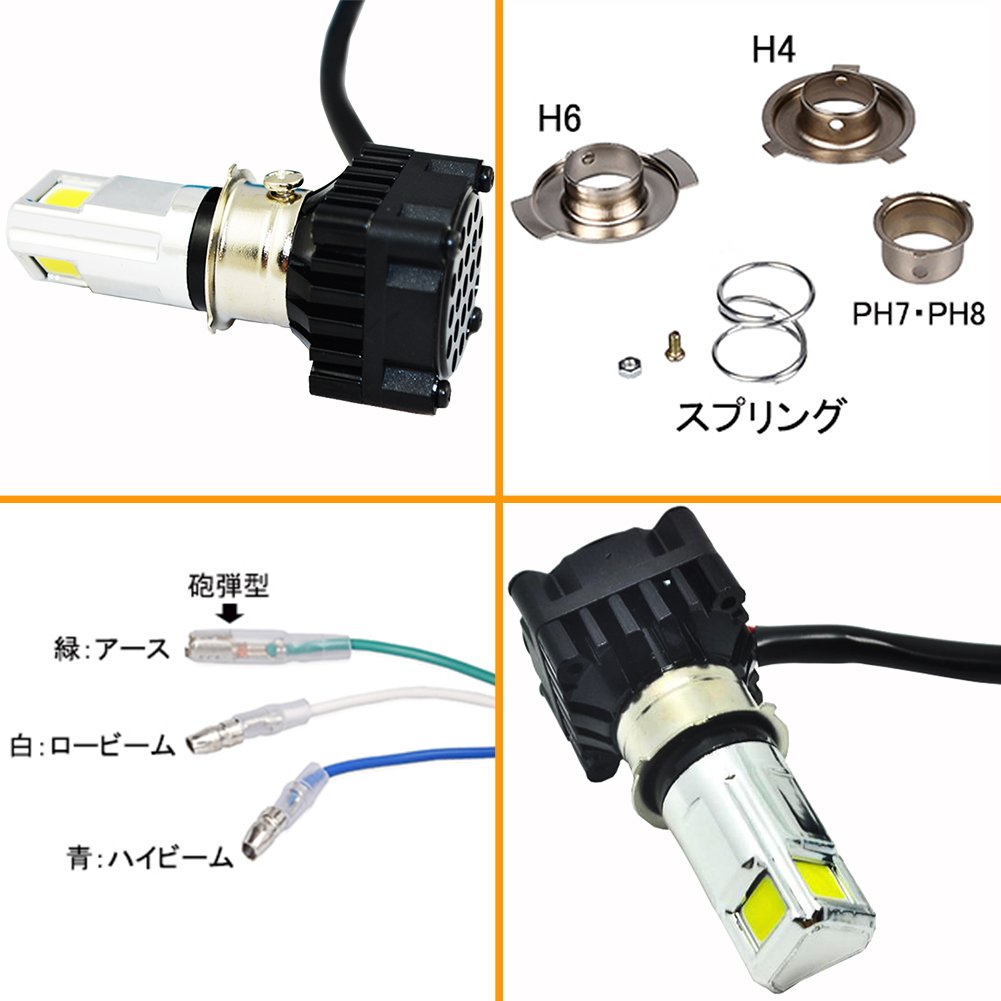

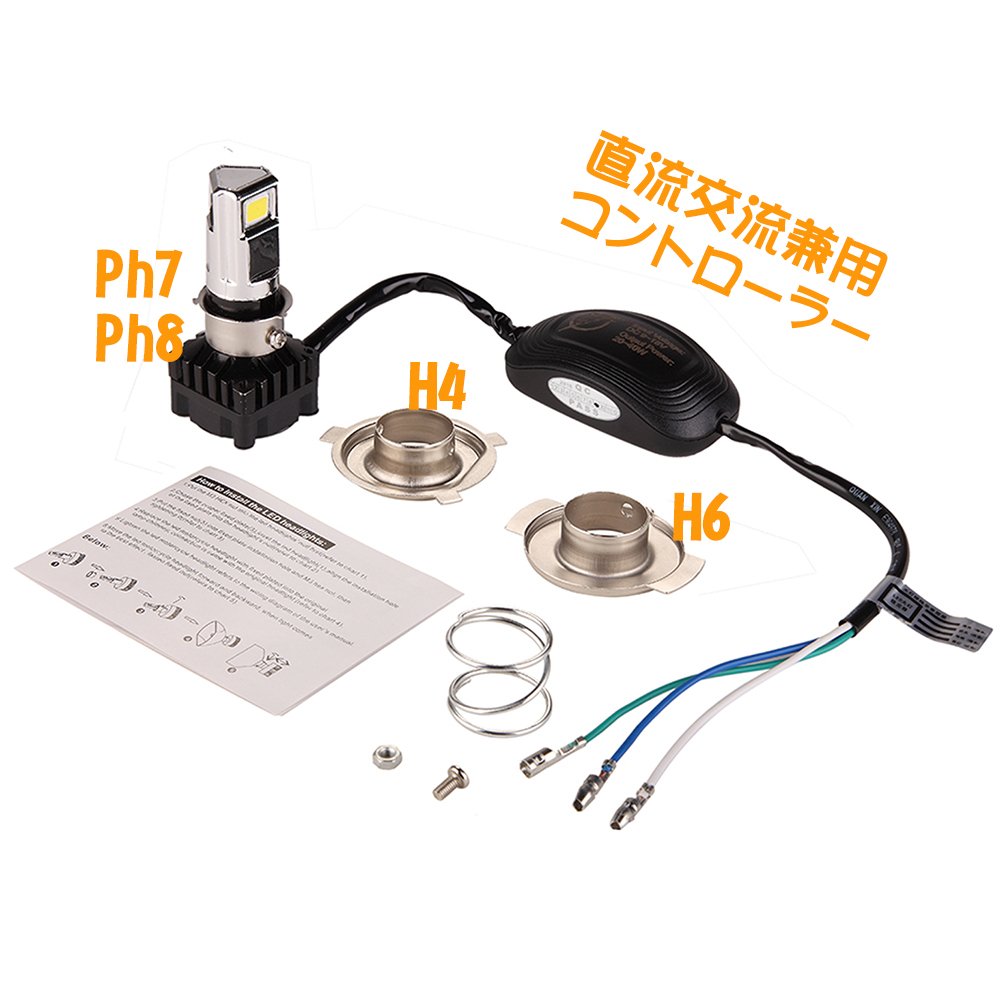

set content
One LED bulb x 1
One controller x (Connect with the main unit)
Sockets x 3 (H4 & H6 & PH7 / PH8)
1 Spring
1 bolt
English simplified operation manual x 1

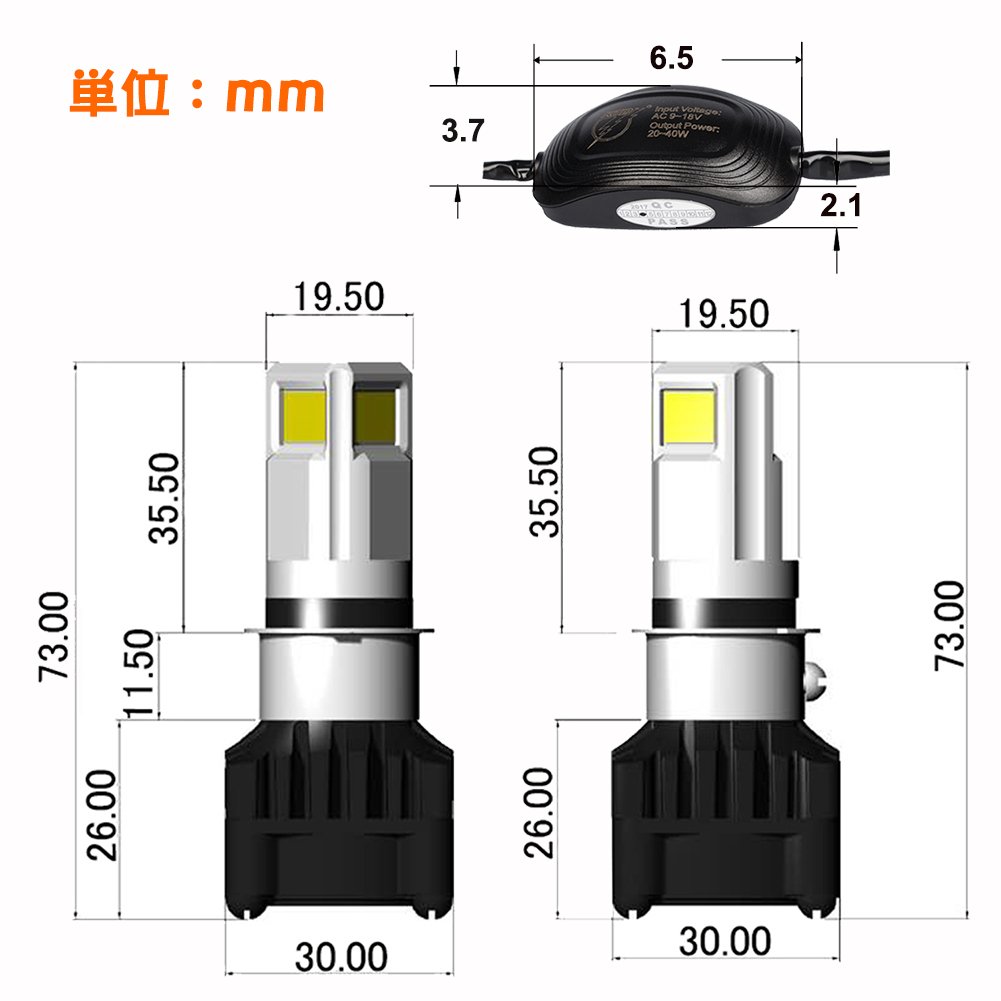

specification
Operating voltage: DC & AC 9V - 18V
Power consumption: 30 W
Lumens: Hi 3000 LM / Lo 2000 LM
Light Color: White (6000 K ± 500)
Main body: Aviation aluminum material
Chip: COB CHIP
Waterproof Classification: IP65
Product life: over 30000 hours
Notes
Before purchasing please be sure to check the shape of the vehicle, please check the measurement before purchasing.
Although there is an English manual, if you are concerned about installation, please ask a special shop such as a motorcycle shop near you.
Although we are shooting actual products, there may be cases where the color tone appears wrong due to the monitor environment of the personal computer.
For very strong light emission, please install so as not to look directly at the time of wearing.
Features:
- 1 year warranty!
- !
- !
- Ultrahigh luminance COB LED chip mounted, three-sided emission, 30 W, the luminous flux amount of the LED bulb increases, the irradiation distance is brighter and longer than the halogen lamp, up about 30%.
- It was as bright as cars with the light intensity as high as that of halogen.
- Light color is too white and it is quite nice feeling.
- Brightness of 3000 lm is 2 - 2.5 times brighter than halogen and safe at night.
- Easy installation!
- Easy installation is possible simply by cutting the interference part (rubber) of the valve rubber cap and the fixed spring a little.
- The controller can be stored in the light case with easy victory.
- It is a high-performance controller tailored to the original electric circuit board design, and it can be used for motorcycles such as Honda, Yamaha, Kawasaki, BMW, KTM.
- The sound of the cooling fan can hardly be heard even after the engine is started.
- You can hear it when you approach the ear.
- So, the sound of the fans is very quiet and I do not mind at all.
- Heat-resistant design is applied, the aluminum heat sink is mounted on the entire light emitting surface, a cooling fan is adopted, and the durability of the valve improves.
- Achieve a long life of over 30000 hours!
- When the optical axis is aligned with the Lo position of the halogen lamp, the Hi side is too upward, so it is possible to adjust to the optical axis with almost no problem by adjusting the projection of the light emitting surface to the reflector side (back) as much as possible.
- (The adjustment width in the front and rear is about 10 mm.)
- Notes: I will explain that the plating cover that covers the LED from the customer drops out in the review.
- Actually, the plating cover that covers the LED on the main body is removable, I am making plating cover design for fashion appearance and socket exchange convenience.
- Also, since this product comes with 3 types of sockets (H4 / H6 / PH7 / PH8 compatible), you can replace the socket that you apply easily after removing the plating cover first by motorcycle.
Product information:
Shipping Weight: 199 g
Package Dimensions: 6.20 x 10.01 x 14.20 cm
Customer reviews from Japan:
Bright!
Installed on TZR50R 4EU. As for 50cc motorcycle, since head light is exchanging, I bought this item of correspondence for exchange. I think that it is better to have people who are not good at wiring as long as wiring processing is done so that they can be attached to a shop or a good friend of electrical related. Brightness is bright without problems. However, when the high beam is too high and it turns into a high beam, it is high enough to illuminate signs or signs at intersections. Even without entering the high beam it is bright enough so we do not feel particularly dissatisfied. However, the part of the plating with the LED chip will be popped out immediately. It is recommended to fix it with bond or remove it so as not to fall into the headlight. Inevitably the idling state flickers because the voltage is low, but as raising the rotation it will be fine so it will be fine. I think that COSPA is pretty good!
KR15 replaced with headlight
3kj It attached to the jog. Since there is no matching terminal, it was newly machined with sleeve terminal and it was able to install safely. In the idling state, it gets flickering, but it stabilizes when the voltage rises. After all, it is ☆ -1 because the Hi side is lighting up considerably. In addition, ☆ 5 may be good because I think that Hi will not be used if adjusting the optical axis with Lo. I am worried about life only.
It is a good substitute though it is inexpensive.
I installed it in AF61 (Today). Because the space of the headlight is narrow, it was difficult to close because the heat sink was large, but it managed to close somehow. But since it is this moped, H I and LO will come to the contrary. why? What? After opening it again and checking the metal fittings, the installation was correct, but it was forced to flip it in place and it came down somehow. I think that the light source part is an isosceles triangle, the isosceles part is LO, and the remaining side is HI. It is a fairly dazzling light source and it is perfect as a master. Is it only durability afterwards? !
It is very bright
It attached to the headlight of PH7. Since the attached spring was a little long, I cut it a little. Other than that, installation is completed without any problems. The brightness of the low beam is more than twice the brightness of halogen. However, I tried various adjustments only for the high beam, but I will light up considerably high. Therefore I made 1 minus ☆.
Bright, easy ♪
Easy to install, I got a preeminent brightness. The high beam was somewhat subtle, but I managed to do it by adjusting the optical axis and changing the valve fixing position. I installed it because it is a two-kind scooter with no magazines, I think that it should be usable normally. (Haha) Replace the terminal with a flat male, plug it into the connector of H4, it is waterproof with vinyl tape. From the sideways, passenger cars with unknown distance feel less out, so it will be able to secure safety aspects as well.
Bright !!
As for installation, I reviewed the review of the other person. Regarding brightness, no complaints !! I chose the correct answer. After all, how much do you have? Would you like to rip it again?
Pretty bright!
I mounted it on a buggy headlight with a small amount of electricity generation. I am satisfied very much because it is quite bright even during idling. Just high beam is illuminating the night sky far way as you all say (laugh) After that it is with an LED headlamp that is compatible with AC, but as long as you see the reviews of other people, explosion or life span is Since it is short, my buggy is also exchanging, but I take the power of the LED headlight from the direct current of the black wire after the key ON switch and connect it. I do not know if it will last long, but I would like to try it.
