Product Description

Overview

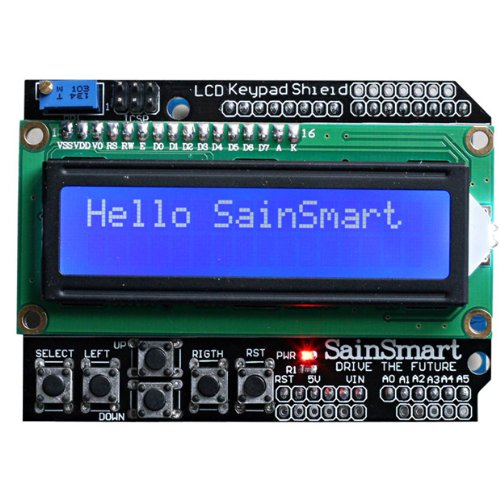

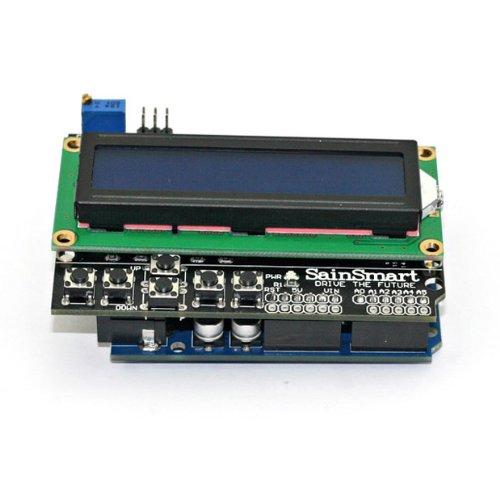

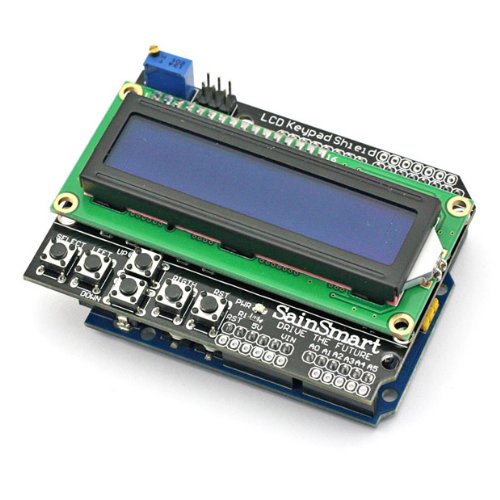

SainSmart LCD Keypad shield for Arduino: This SainSmart LCD Keypad Shield includes a 16x2 HD44780 White on Blue LCD module and a 5 push button keypad for menu selection and user interface programming. Fully assembled. On-line Arduino tutorial and example code. Compatible with Arduino Uno, Mega, Duemilanove. Uses digital pins 4 - 10, and analog pin 0.

The SainSmart Uno Board for Arduino: This is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega8U2 programmed as a USB-to-serial converter and has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.

Package Content

1 x LCD Keypad Shield
1 x UNO Board

NOTE: Please download here for the documentation.
https://s3-ap-northeast-1.amazonaws.com/sain-amzn/20/20-011-901/LCD1602.rar
https://s3-ap-northeast-1.amazonaws.com/sain-amzn/20/20-011-901/LCDkeypad1.0.rar

Feature

The 16x2 LCD Keypad module is for Arduino Diecimila Duemilanove, UNO, MEGA1280, MEGA2560 board.
Blue Backlight with white words, adjustable backlighting;4 Bit Arduino LCD Library
The SainSmart Uno board features the Atmega8U2 programmed as a USB-to-serial converter
Simply connect Uno board to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
Buy them TOGETHER and get at the REDUCE price. It is a big bargain!!!
Brand : SainSmart
Item model num : C00
EAN : 6955170804160
