Item Descriptions:

color:

black

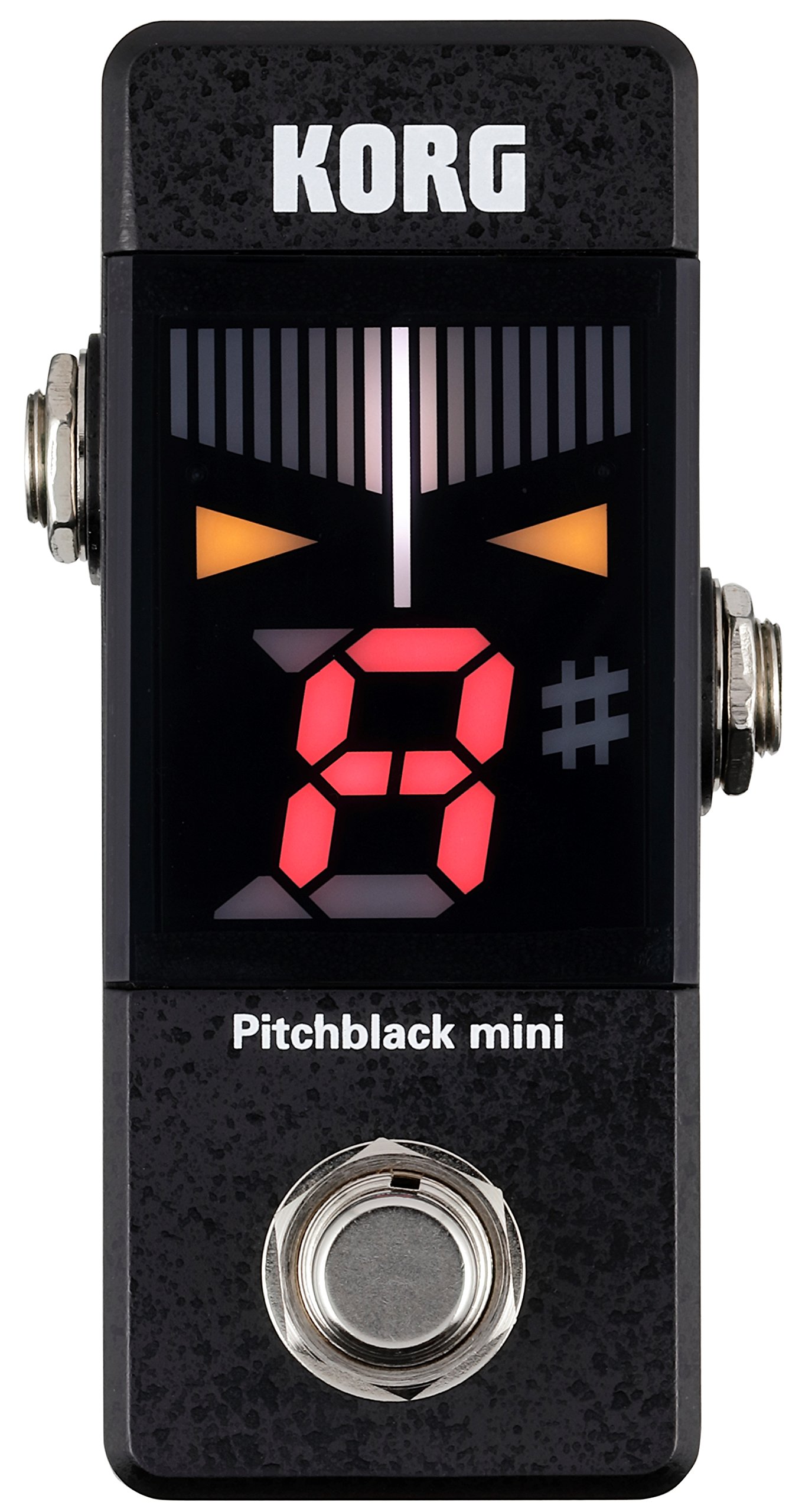

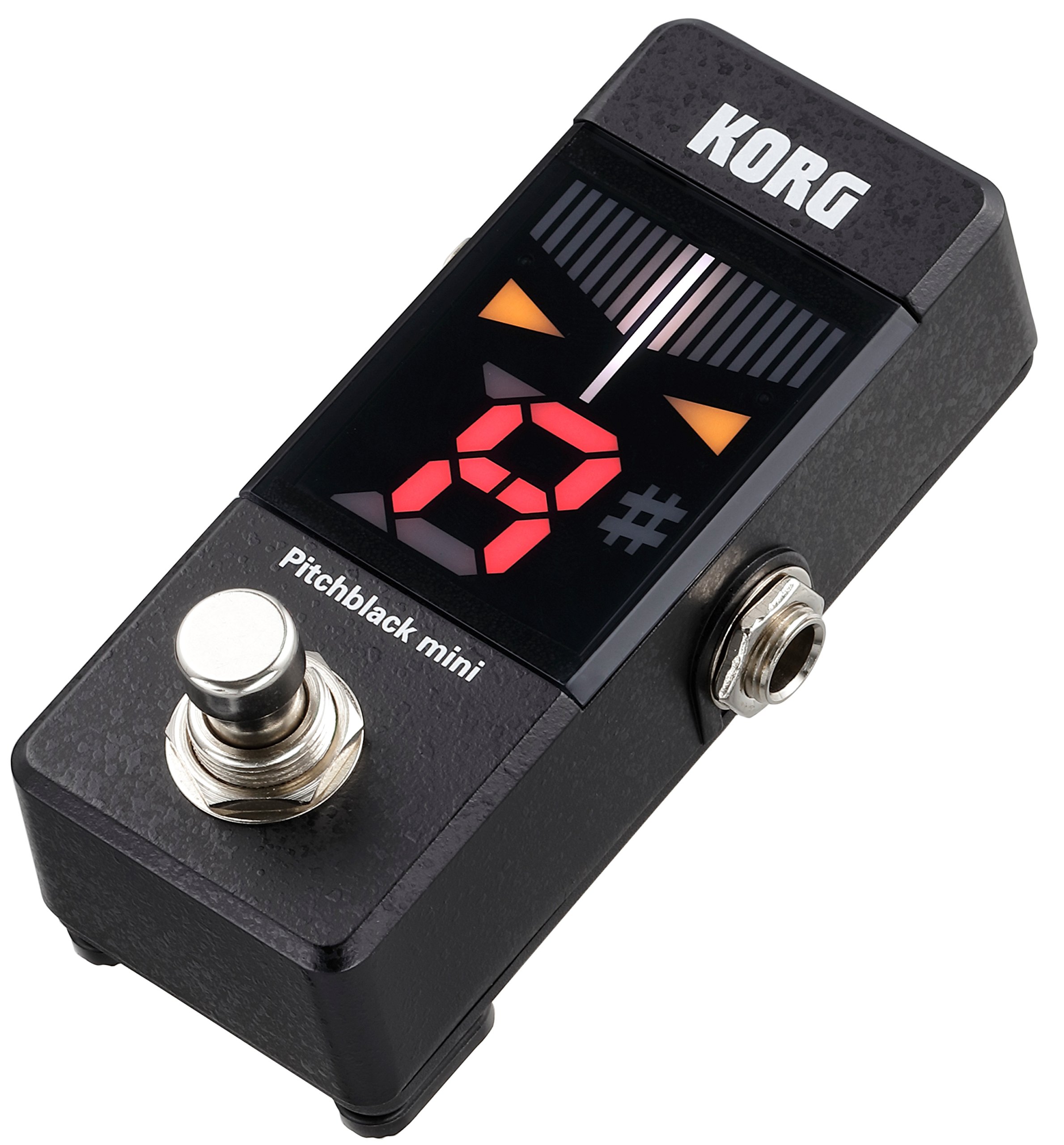

Korg's pedal tuner Pitchblack gathers trust from guitarists / bassists around the world due to its high sensitivity, visibility and robustness.

The latest model is Pitchblack mini which became easier to use with mini size.

Pitchblack mini minimizes the body, keeping excellent performance as a tuner.

You can easily set it in a narrow effect board.

Also equipped with a large-sized LED display that is easy to see, it is compact while supporting battery driving.

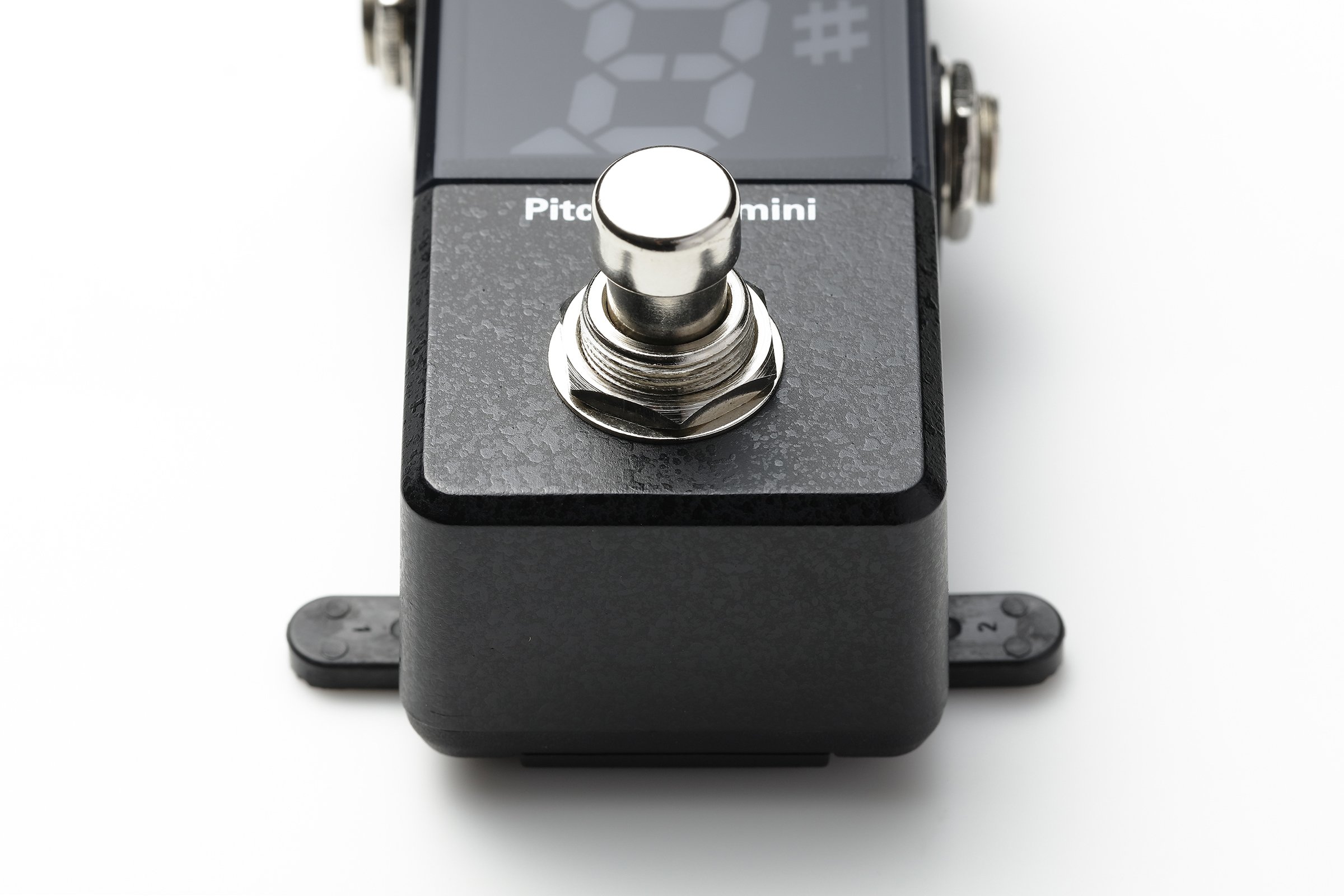

We also provided a stabilizer for rollover prevention.

It is a small but powerful pedal tuner that meets the needs of all players.

According to the style of the player, three types of meter display method can be selected.

In addition to the orthodox "regular mode", it shows the pitch change with the flow direction and speed of the meter, and features the "strobe mode" and "half · strobe mode" that make it easy to see small errors.

Pitchblack mini can tune ultra-high precision of ± 0.1 cents in strobe mode.

You can also be active in severe scenes where detailed errors such as professional recordings and stage scenes can not be overlooked.

While miniaturizing Pitchblack mini, it is a high quality design similar to other Pitchblack series.

It is also possible to set the calibration corresponding to various concert pitches, keeping the precision unique to Korg tuner and overwhelming ease of use.

True bypass specification (when the tuner is off) that can output the same sound without affecting the input sound.

There is no change or deterioration of sound by the tuner circuit at all.

Moreover, since the input sound is muted when the tuner is ON, it is best for use on the stage.

<br [Specifications]

Temperament: 12 equal temperament

Measurement range: E0 (20.60 Hz) ~ C8 (4186 Hz)

Reference pitch range: A4 = 436 to 445 Hz (1 Hz step)

Measurement accuracy: ± 0.1 cents

Input impedance: 1 MΩ (when tuner is on)

Display mode: regular, strobe, half strobe

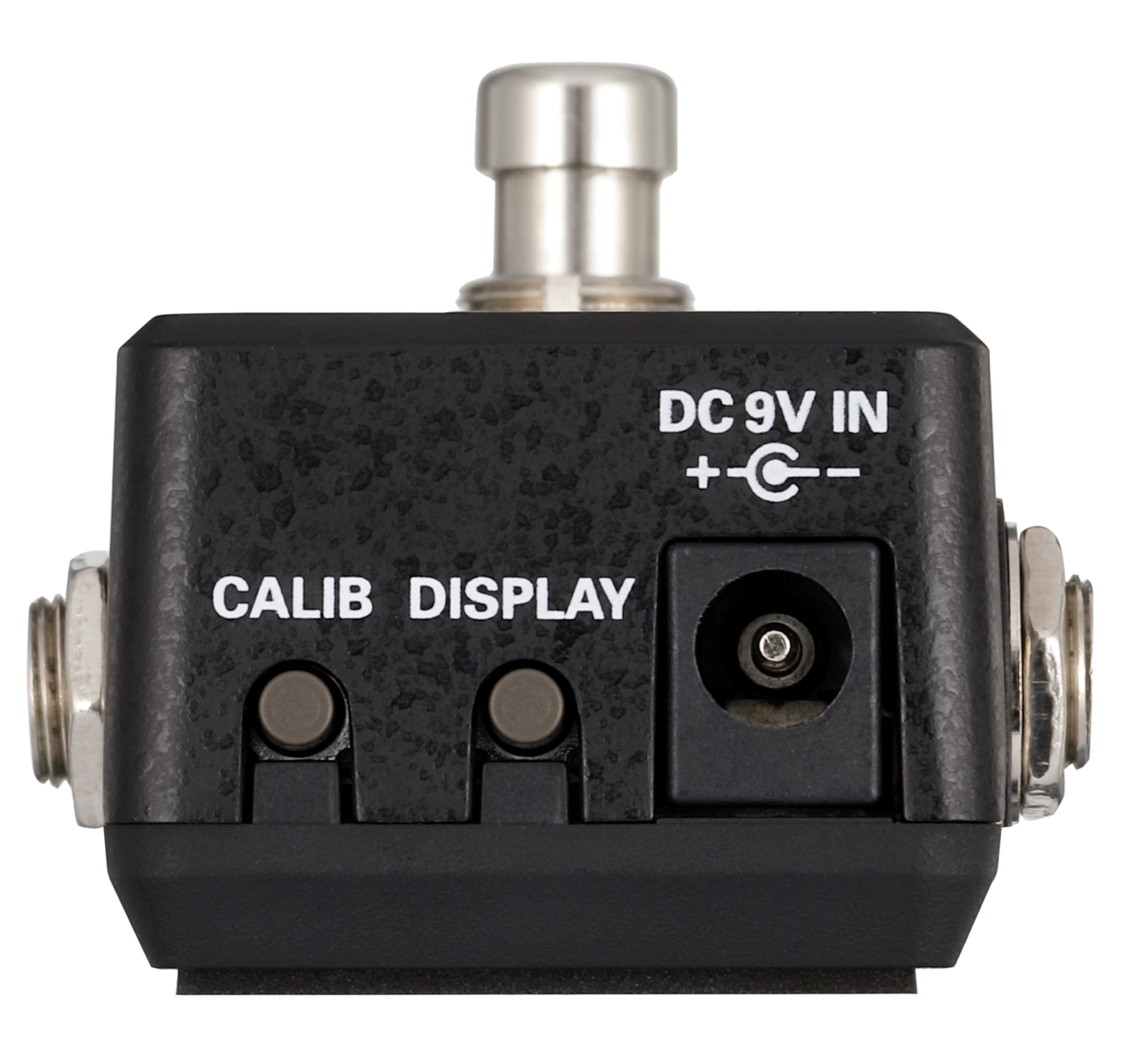

Connection terminal: INPUT (mono standard jack), BYPASS (monaural standard jack), DC 9 V IN

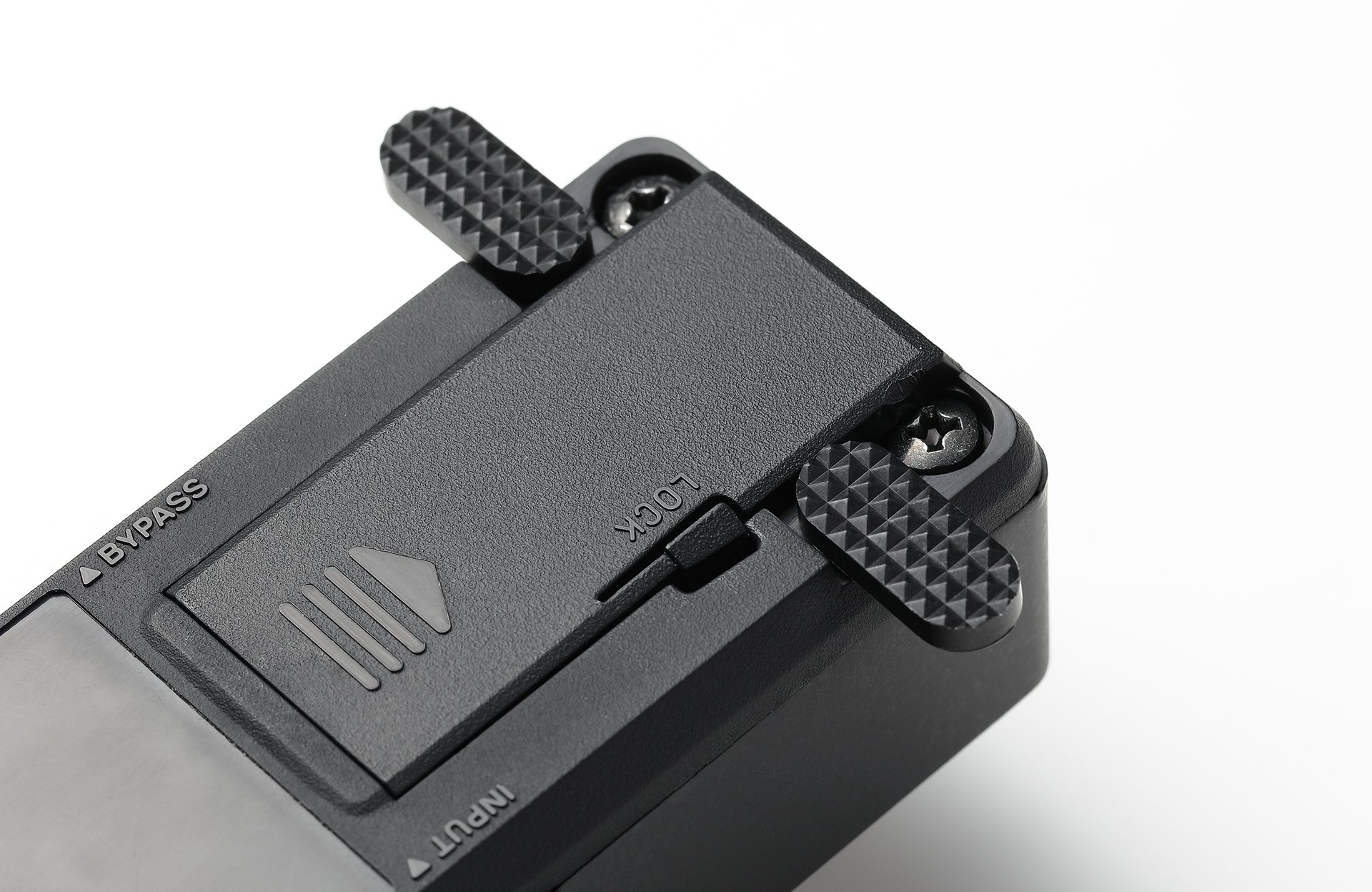

Power supply: CR2032 lithium battery (3 V) × 2, or optional AC adapter KA 181 (9 V)

Battery life: When the tuner is on, continuous 3 hours (A4 continuous input, display mode: regular)

Current consumption: maximum 40 mA

External dimensions: 45 (W) x 93 (D) 43 (H) mm (including rubber feet)

Weight: 129 g (including batteries)

Accessory: CR 2032 type lithium battery (3 V) × 2 for operation check

Optional accessories: AC adapter KA181 (9 V)

■ All product names or standard names are trademarks or registered trademarks of related companies.

■ Product appearance and specifications are subject to change without notice.

■ The color tone of the product may differ slightly from the actual color.

Features:

• Please enter model number Confirm this is compatible:
• Mini size that can be easily incorporated into the board
• True bypass not affecting sound at all
• Ultra high precision tuning that can be driven to ± 0.1 cents
• Three types of meter display modes
• Battery can be driven

Product information:

Shipping Weight: 176 g

Package Dimensions: 5.89 x 8.51 x 13.59 cm
