Product Description
There are normal wear items on all vinyl cutters. Blade holders is one of them.

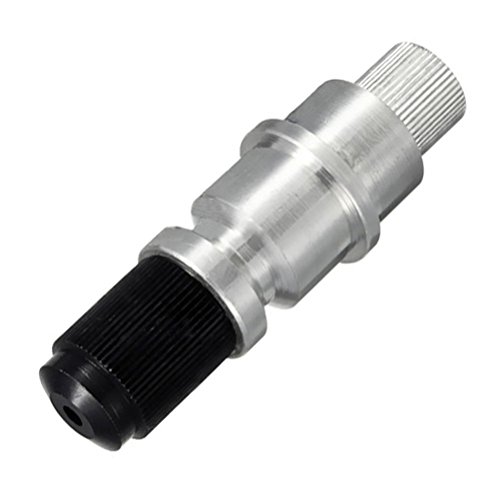

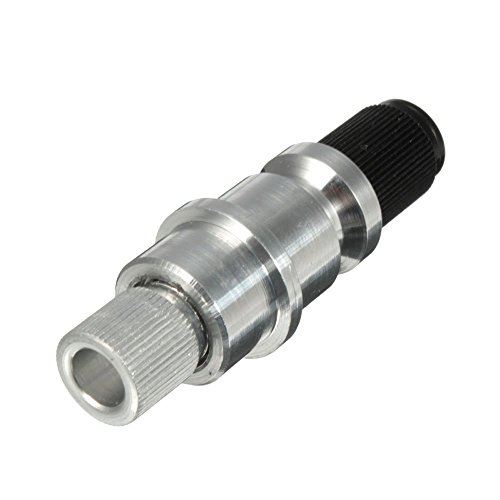

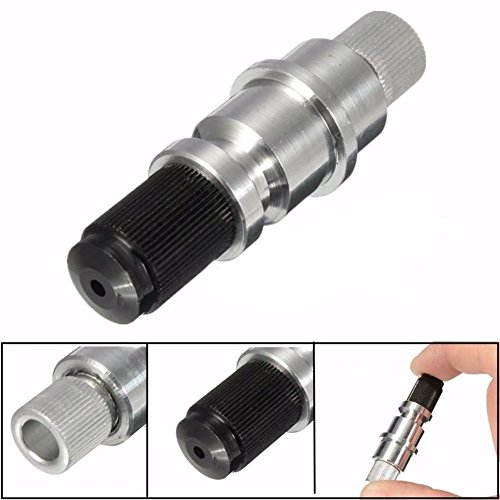

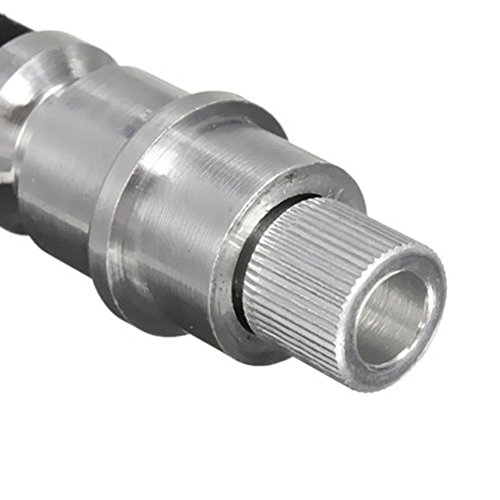

The blade holder (referred to as a "pen plunger" in the Graphtec user's manual), holds the plotter blade during operation. Hence, the term blade holder.

Over time, the holder's grip weakens and the blade begins to tilt slightly off-center during use.

There are two signs of a worn-out blade holder. One indicator is the failure of the plotter to completely cut characters with corners. There will be slight gaps where the corners should meet. The other indicator, seen more frequently, is the failure to join the beginning and end of circular paths. Circles will begin to look like open arcs

Once you've determined that you do have a blade holder that's ready for retirement, the solution is simple. Buy a new one. Just make sure you get the correct replacement.

The following information will tell you if this is the correct one.

Specifications:
Material: Aluminum Alloy and Resin
Length: 51.8 mm(2.04 inches)
Color: Sliver, Black
Compatible with: Graphtec CB09U CB09
Aluminum precision vertical adjustment

Fit Blade:
Diameter (Clamp): 11.5 mm
Diameter (Blade): 0.09 mm

What you'll get:
Blade holder × 1pc
Reusable plastic case × 1pc
