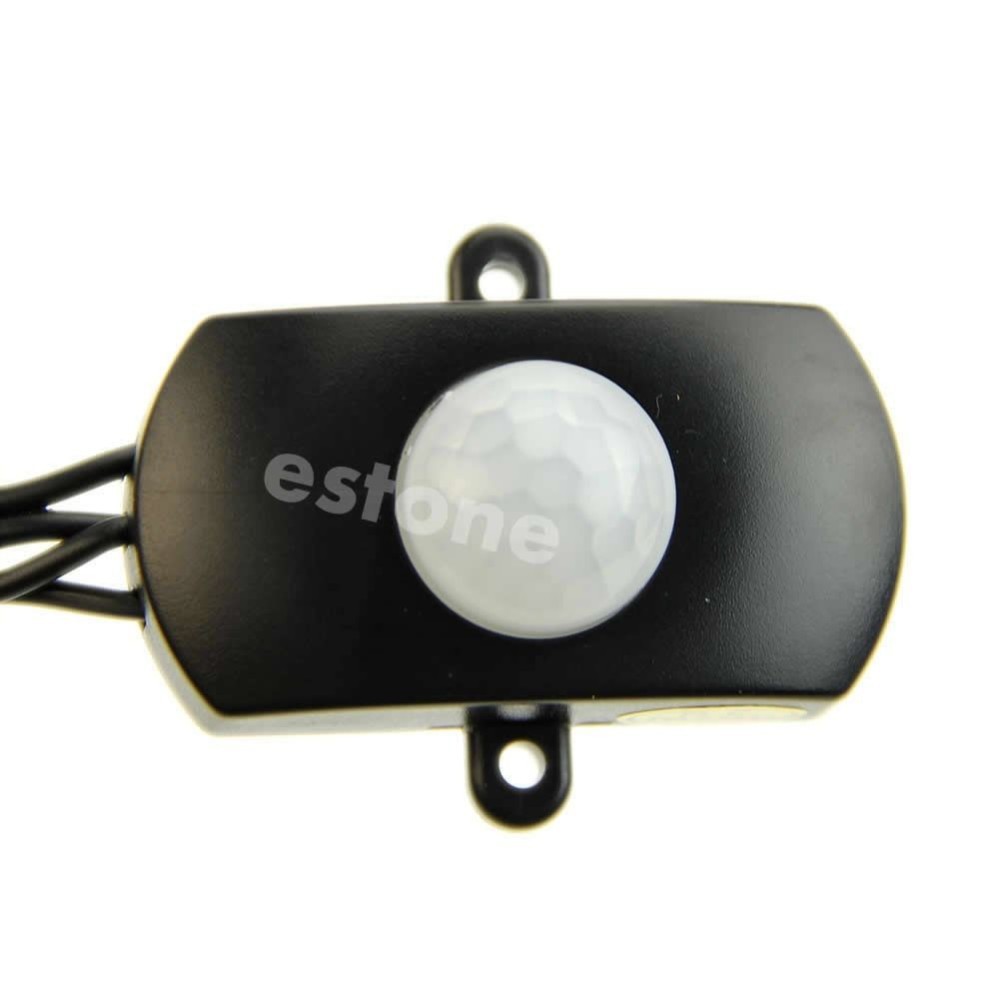

• PIR (Passive infrared) Motion sensor is pyroelectric device can detect human movement by detecting infrared ray emitted by human body
  • Operating voltage is 5~24VDC， and output voltage is equal to input voltage
  • High sensitivity， easy for installing
  • Widely used on the Motion-activated lighting， LED strips security system， automatic sensory device and more


    Specifications:
    Description Passive Infrared Motion
    Operating voltage  DC 5~24V
    Output voltage  Equal to input voltage
    Load current 5A
    Sensing method Passive
    Detecting range   120 degrees cone angle
    Trigger way  continuous triggering
    Detecting distance 5M~7M
    Size (L*W*H) 50*26*21mm


    Note:

  • Please allow 0-2mm error due to manual measurement， thanks for understanding.
  • Due to the difference between different monitors， the picture may not reflect the actual color of the item. Please understand， Thank you!
  • package includes:

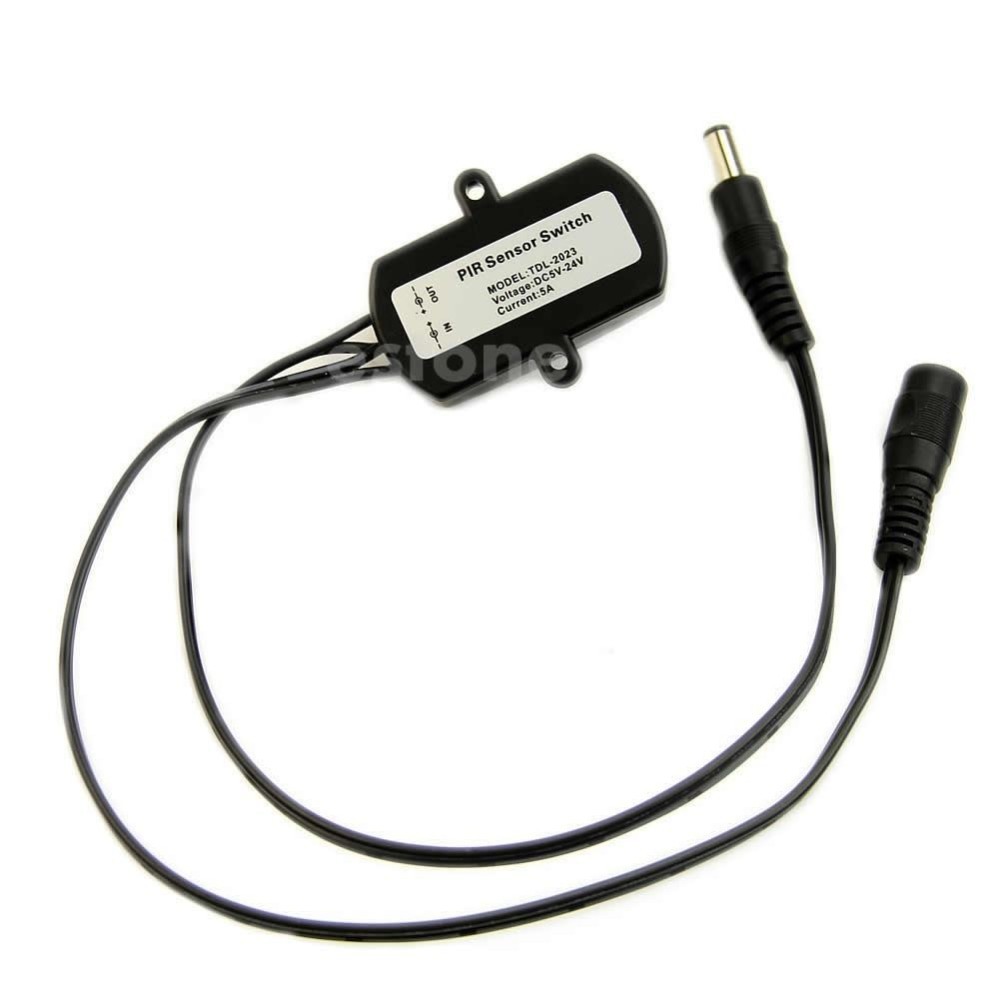

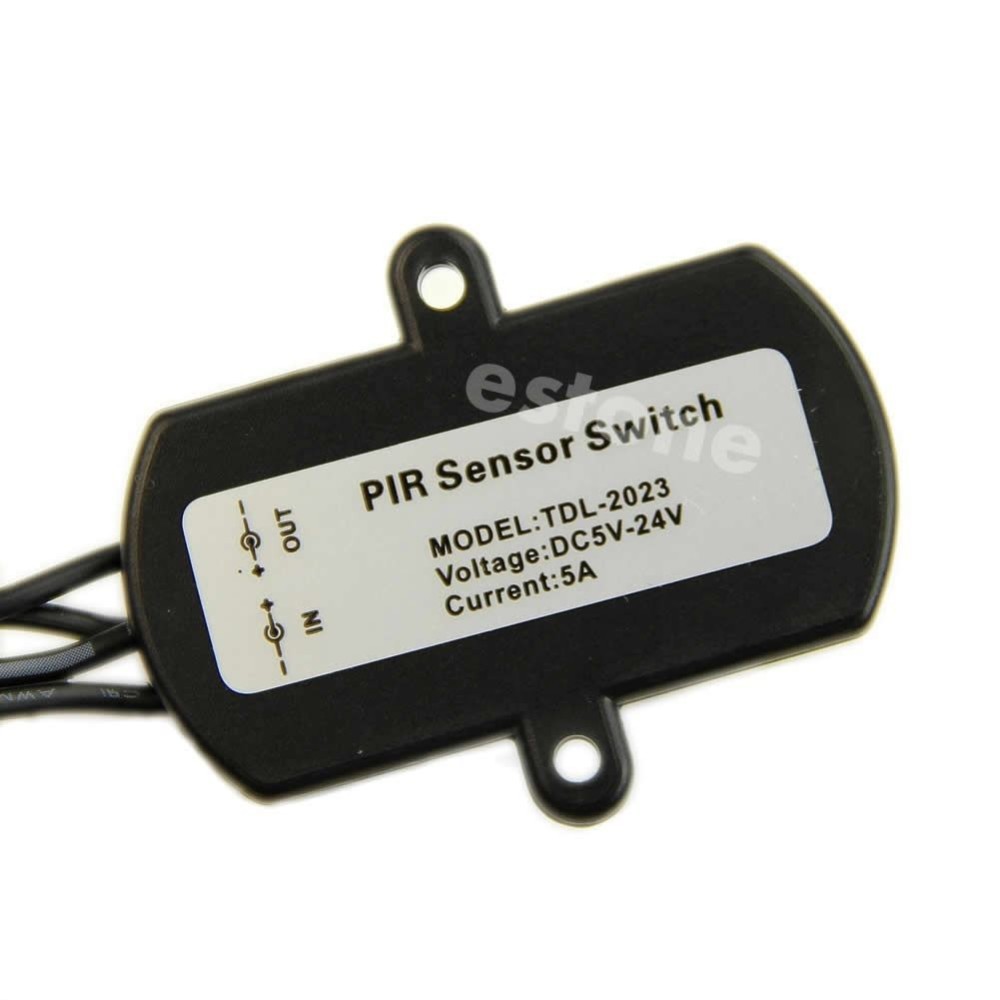

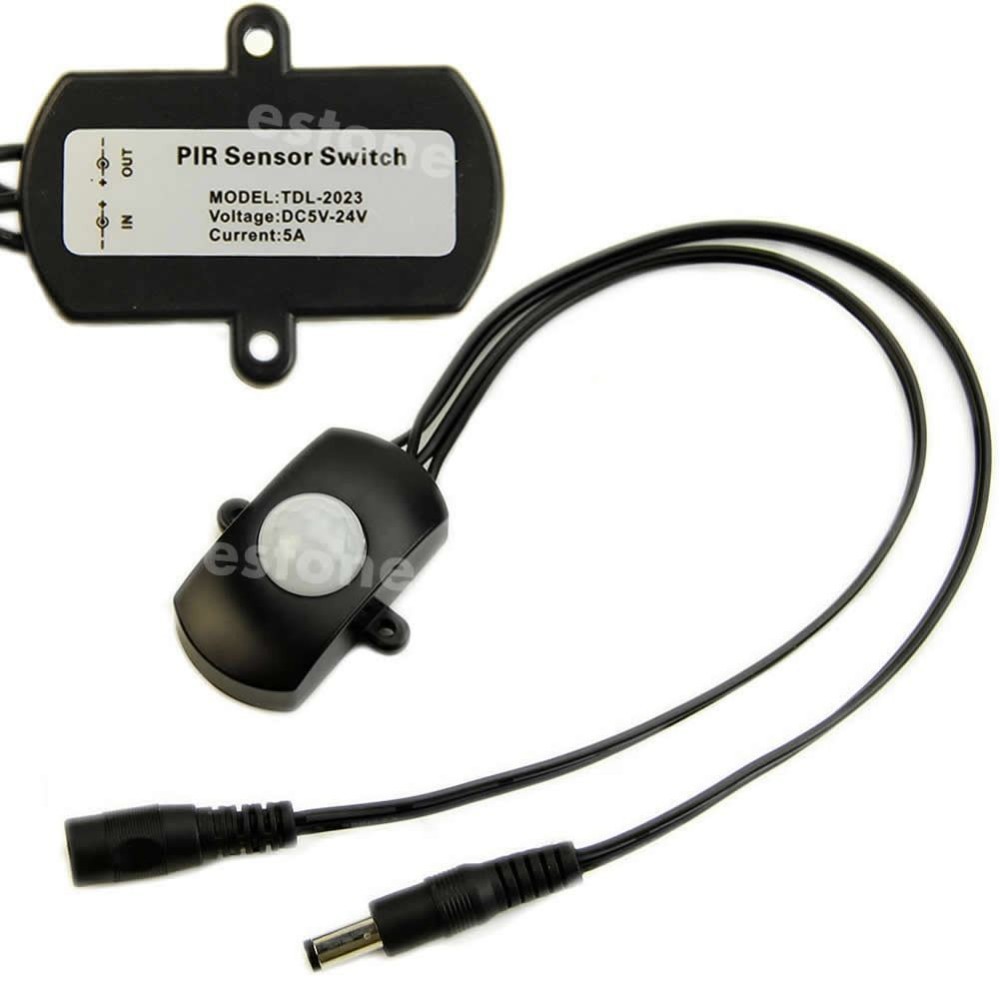

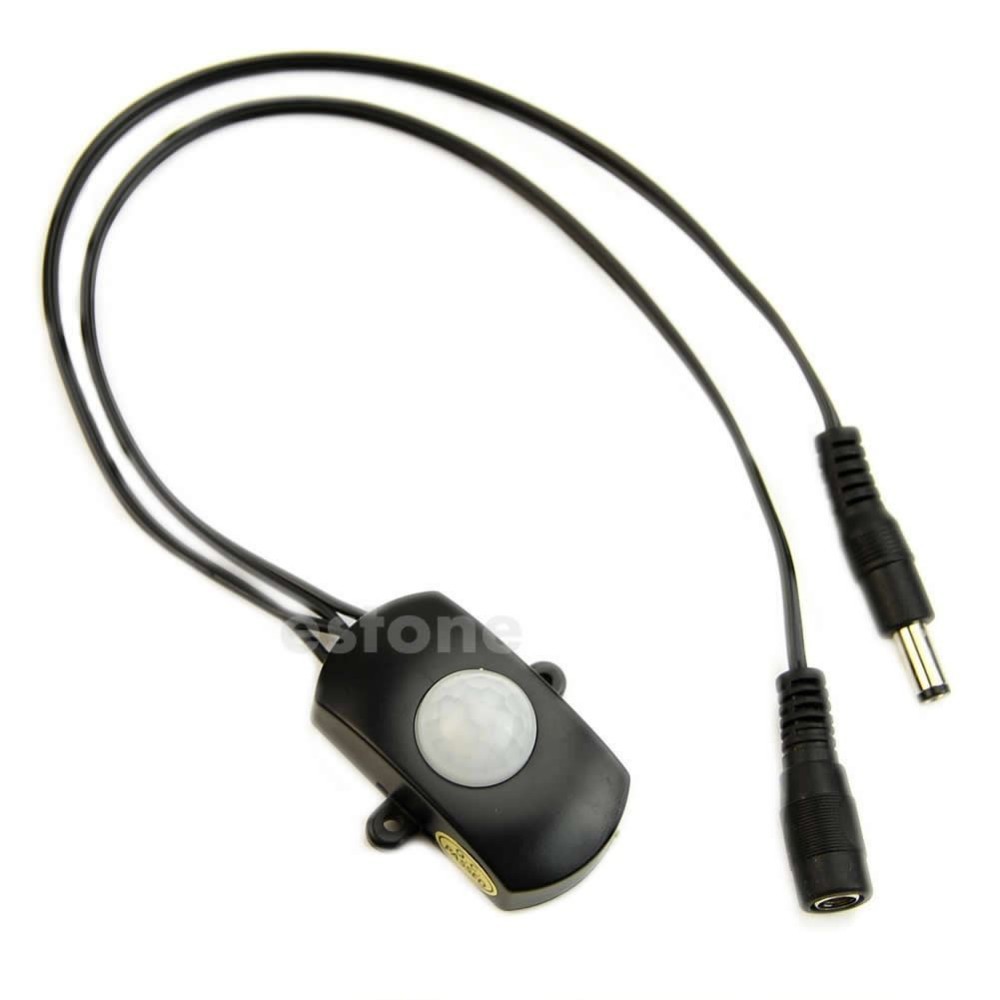

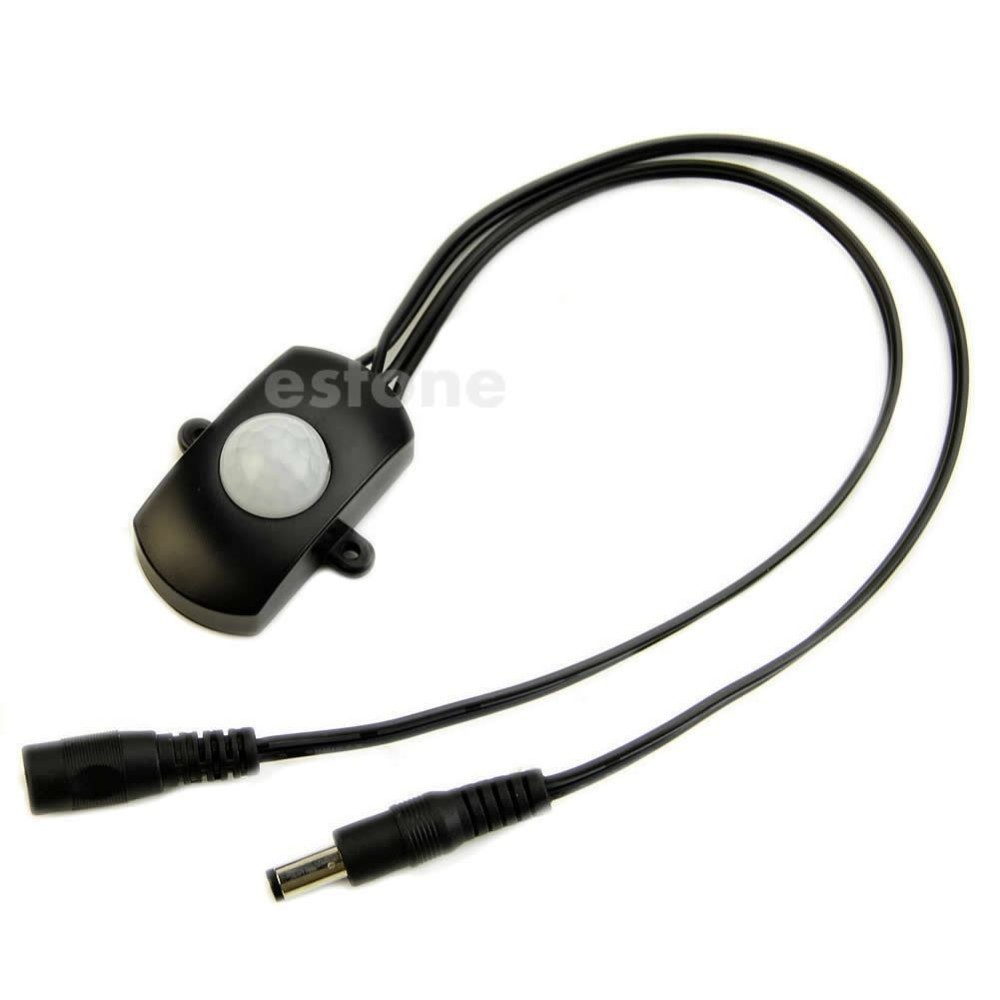

  • 1 x  LED Strip Automatic MINI DC5-24V PIR Infrared Motion Sensor Detector Switch 5A
