Item Descriptions:

Product specification

Function: Recording, taking still pictures, recording, led light, motion detection, recording time setting, resolution setting

Movie resolution: 1280 * 720 pix Approx 30 fps

Still image resolution: 4032 * 3024 pix

Operating time: Up to 8 hours (recording)

TF card: up to 32 GB (Please prepare MicroSD card separately)

Please note: We recommend TF card of Class 10 level.

(There is concern that data will not be saved if Class 10 or less)

Supported OS: Windows me / 2000 / XP / 2003 / Vista; Win 7

Packing size: 175 * 160 * 51 mm

Packaging Weight: 55g

◆ Product characteristics

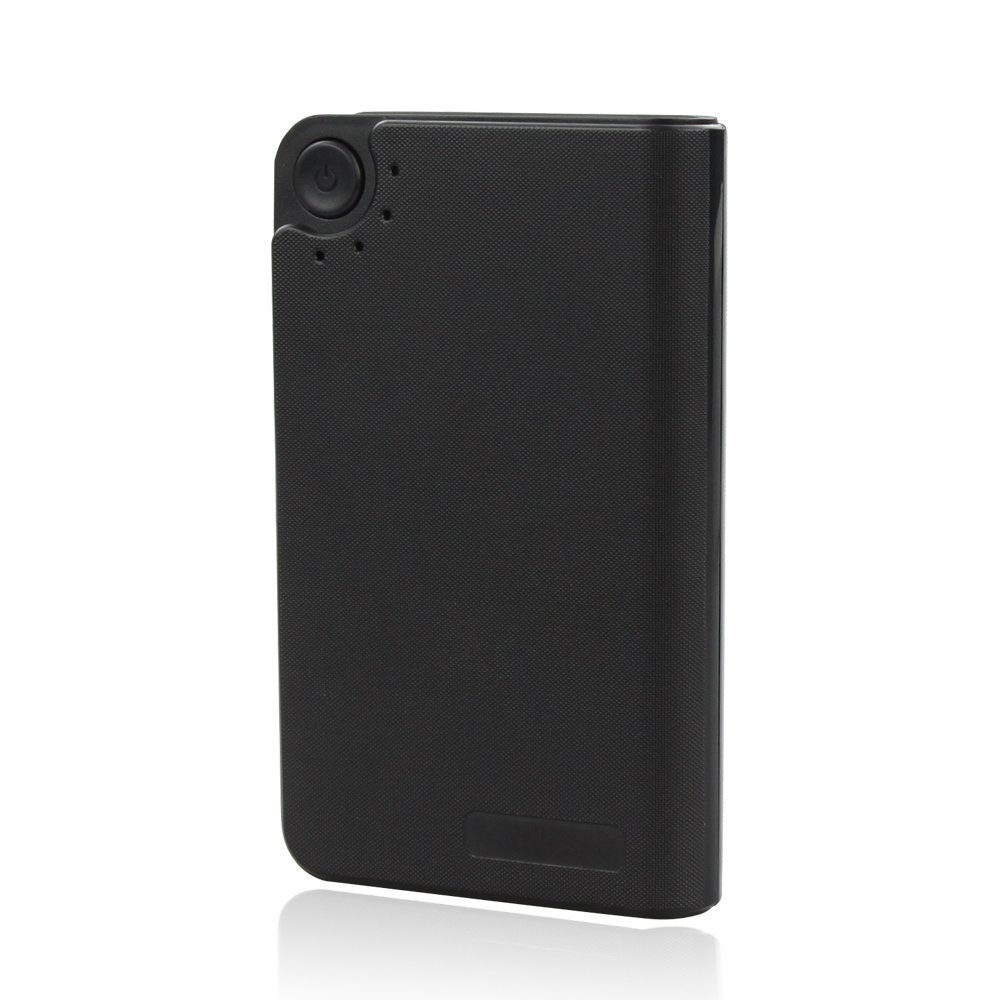

【Easy operation】 Operate with one button.

[High Image Quality] Improvement in shooting at high resolution with 1280 x 720 pixels for movies and 4032 x 3024 pictures for still images

[Multi-function] Recording, shooting still images, recording, led light, motion detection, recording time setting, resolution setting, etc. are equipped.

【With LED light】 Since it is equipped with LED light, it is possible to illuminate at night.

[Motion Detection] Recording is done when detecting moving objects, so it is used as crime prevention.

【Large Capacity Mobile Battery】 Since we have a large capacity mobile battery, we can supply not only small cameras but also various smart phones such as iPhone.

[MicroSD card] microSD supports up to 32GB.

(It is necessary to prepare separately)

Note: Please insert the SD card before using.

Also, if the free space is small, you can not shoot, please delete the remaining data and check the operation again.

Power on

When the [POWER] button is pressed and the pilot lamp 3 lights up, the main unit enters standby mode.

Note: Please insert the SD card before using.

Power off

Long press the [Power] button, the pilot lamp goes out and turns off the power.

Recording

Press and hold the [Power] button and [Pilot lamp 3] lights.

When you press the [Power] button briefly, recording starts.

(Pilot lamp 3: Flashing 3 times ⇒ Disappearing ⇒ Recording start)

When you press the [Power] button once again, save the recording and return to standby mode.

※ Please take 0.5 second interval while pressing button continuously.

Please note that it may not be recorded if the operation of pushing the button is too fast.

The main unit automatically saves data every 10 minutes.

Shooting still images

Press and hold the [Power] button and [Pilot lamp 3] lights.

Touch the [Power] button twice (please wait for 0.5 second while pressing two consecutive presses) and take a picture.

(Pilot lamp 4: Flashing once ⇒ Shoot still images)

Note: Please keep 0.5 second interval while pressing 【Power】 button continuously.

recording

Press and hold the [Power] button and [Pilot lamp 3] lights.

Press the [Power] button three times (please keep 0.5 second interval between 3 consecutive presses) Press to record.

(Pilot lamp 3 lights up, pilot lamp 4 flashes ⇒ recording)

Press the [Power] button again to save the data and stop recording.

Note: Please keep 0.5 second interval while pressing 【Power】 button continuously.

Playback

Please connect with the personal computer using the included USB cable.

Please note: Please note that it may take up to 20 seconds to recognize the main unit.

Motion detection

When the pilot lamp 3 and the pilot lamp 4 continue flashing at the same time by pushing the [power] button continuously four times in the standby mode (the pilot lamp 3 is lit), and the moving object is detected, the pilot lamp 3 turns off

, The pilot lamp 4 continues to blink and the main body starts recording.

Press the [Power] button once again to save the data and stop recording.

Automatically save data every minute.

Note: Please keep 0.5 second interval while pressing 【Power】 button continuously.

LED lighting

With the standby mode (pilot lamp 3 lit) press the [Power] button five times in succession to turn on the lamp.

Note: Please keep 0.5 second interval while pressing 【Power】 button continuously.

Recording time setting

With the power on, connect the unit to the computer using the USB cable.

A removable disk (temporary) is detected and timeset.txt in the root directory

Create a new text file named 2016.01.01 13:30:30, write the current time in Y format, save it in the TF card directory of the main unit with timeset.txt file name, then mount the PC mount

Release it.

In case of non-display 2016-07-01 01:01:01 Change N and Y to N.

charging

Charging to the main unit: Connect to the Ac adapter slot or the USB port of the personal computer using the supplied USB cable exclusively.

Charging: Pilot lamp 2 lights up

Full charge: Pilot lamp 2 turns off

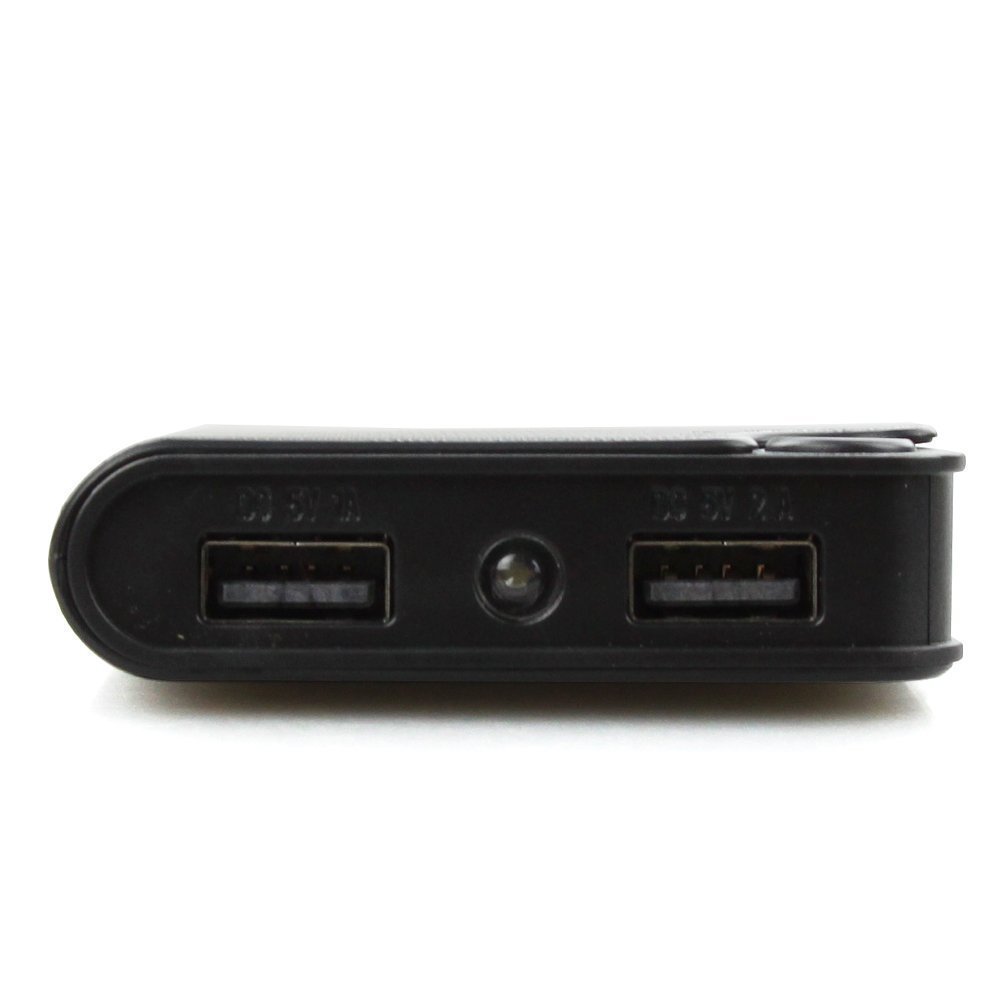

Power supply to other equipment: Use the supplied USB cable to connect to "Power supply output (DC 5 V 1A)" or "L power supply output (DC 5 V 2 A)" to supply power.

Setting resolution

With the power on, connect it to the computer using the USB cable.

A removable disk (temporary) is detected and sizeset.txt in the root directory of the TF card

Create a new text file, enter a single number from 1 to 4 half-width alphabetical characters 1 to 4, save it, then restart the unit, the setting will be reflected.

Resolution varies depending on the number you entered.

1: 320 * 240

2: 640 * 480

3: 1280 * 720

4: 1920 * 1080

For example, after writing a half-width alphabet 4 in a newly created sizeset.txt text file and saving it in the directory of the main TF card, the video format becomes 1920 * 1080.

Note: If USB is not recognized, check the PC side by the following procedure.

If there are any unclear points, please contact VANZ SHOP as soon as possible.

Confirmation 1: Check the device manager.

Confirm 2: Change the drive letter (drive letter).

Confirmation 3: Temporarily disable resident software.

Confirmation 4: Remove the other USB device.

Confirmation 5: Change the USB port and confirm.

Confirmation 6: Connect to another computer.

Features:

• Please enter model number Confirm this is compatible:
• 【Easy operation】 Operate with one button.
• Recording, taking still pictures, recording, led light, motion detection, recording time setting, resolution setting, etc. are equipped.
• [High image quality] Resolution is movie "1280 × 720 pix", still image "4032 × 3024 pix"
• [Motion Detection Function Installed] Since it will record when detecting moving objects, it is used as crime prevention.
• [Power supply to smaho] Since we have not only a compact camera but also a built-in battery, we can supply power to various smartphones such as iPhone.
• 【With LED light】 It is possible to illuminate at night.
• MicroSD supports up to 32GB.

Product information:

Shipping Weight: 195 g

Package Dimensions: 4.70 x 13.41 x 19.10 cm
