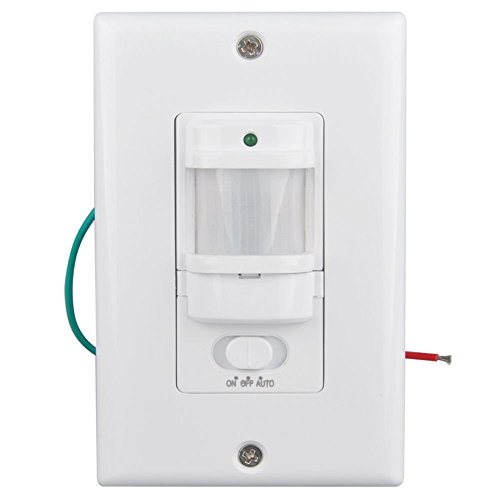

Product Description

As there is a photosensitive internal, switch only allows the light switch to be activated on in dark condition.
So when you test the switch on "auto" function in a very bright environment (Ambient Light: > 5-10LUX) , It won't work ( Even movement sensed).
In this condition, Please do Cover the detection area with your hand for about 30 seconds then test again.

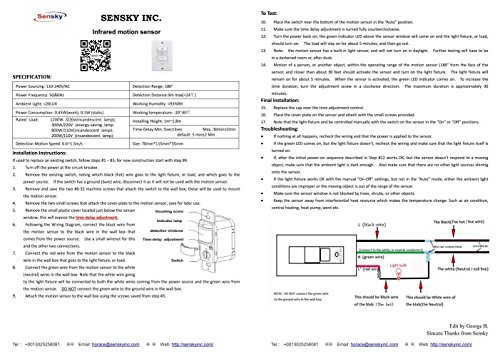

Specification

Input Voltage :110V/AC-240V/AC
Power Frequency :50/60Hz
Detection Range :180 degree
Detection Distance :9m max(less than 24°C)
Ambient Light:Work in LUX less than 20LUX (switch on the "Auto" position)
Time-Delay Min :10sec(more or less) Max.:30min
Working temperature :20~40°C
Working Humidity : higher than 93%RH

Rated Load :
1200W/220v (incandescent lamp)
300W/220V (energy-saving lamp)
800W/110V (incandescent lamp)
800W/110V (incandescent lamp)

Power Consumption :
0.45W(work)
0.1W (static)

Detection Motion Speed :0.6~1.5m/s

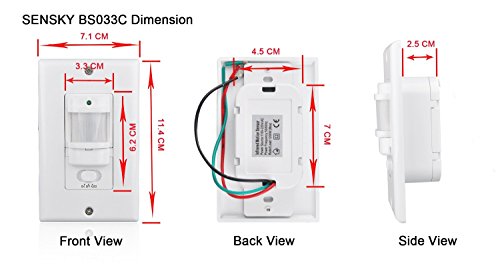

Size :70mm*115mm*35mm

Function:

1.The Motion Sensor Switch works in the ambient light less than 20LUX (dark condition).
2.Time -delay is added continually: When it receives the second in induction signals after the first induction, it will compute time once more on the rest of the first time-delay basic (set time).

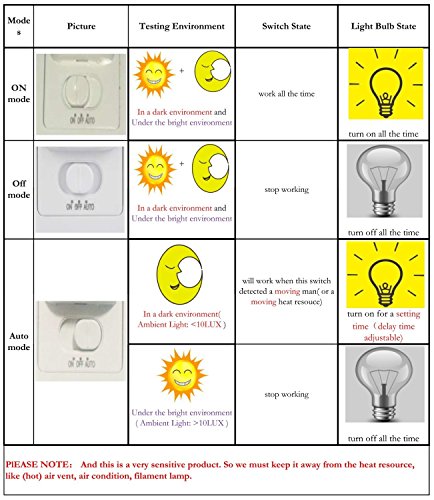

3.Switch: "ON" "OFF" "AUTO"

Feature

Working Voltage:110 -240V/AC Detection Range: 180 degree 9M (Max)

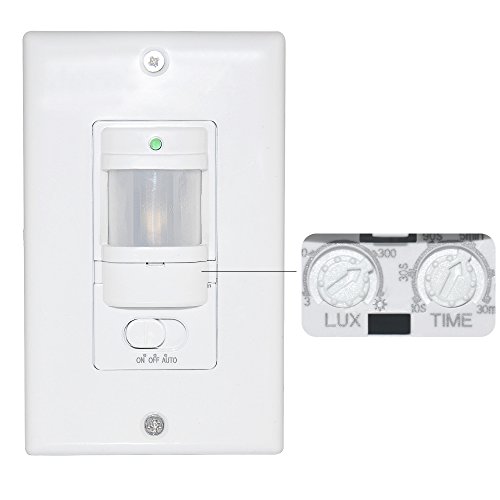

Adjustable Time-Delay: Min:10sec±3sec Max.:30min±2min
Rated Load: 800W/110V (incandescent lamp)
Detection Motion Speed:0.6~1.5m/s Note:This is an energy saving product. When you test the "auto" function of this switch in a very bright environment (Ambient Light: > 5-10LUX) , It's won't work, Even if there is a moving man. At this condition, Please do cover the detection area with YOUR HAND about 30 seconds.

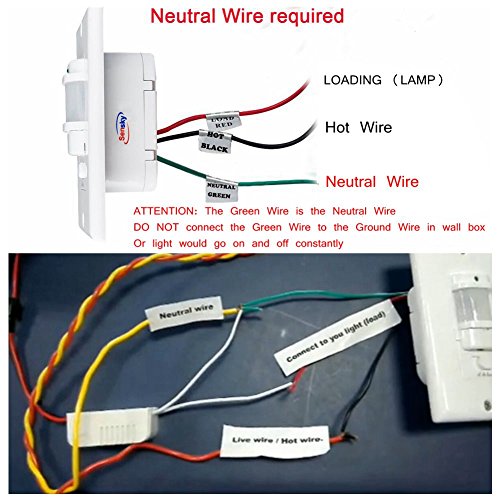

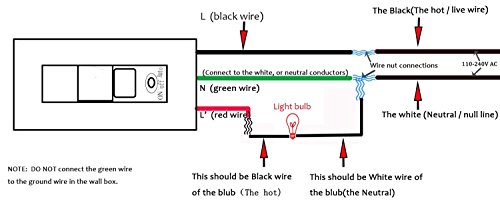

Three wires (Black, Green, and Red). Black wire goes to Hot; Green wire goes to Natural; Red wire goes to the hot end of your light (the load). Then the other end of the light and the green wire of the switch go to the Natural.
Brand : Sensky
Item model num : BS033C
MPN(PartNumber) : GKG0330W0C000-MFN1
EAN : 0700646315673
