Product Description
Introduction:
The UPS applies chargeable lithium ion batteries, which possesses the functions of safety, high capacity, high compatibility super thin and incredibly light etc. Thus product not only can supply to most part of internet and digital products, but also can be used as product power supply.


Specification:

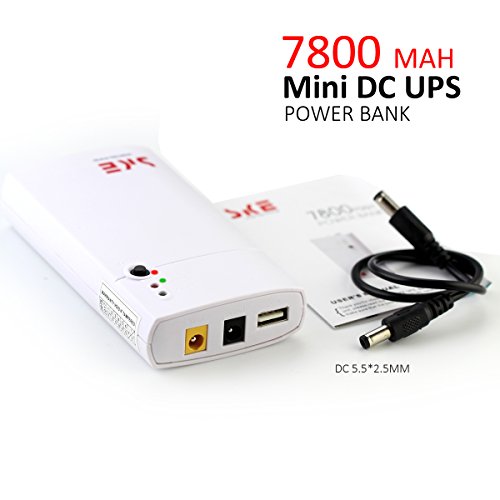

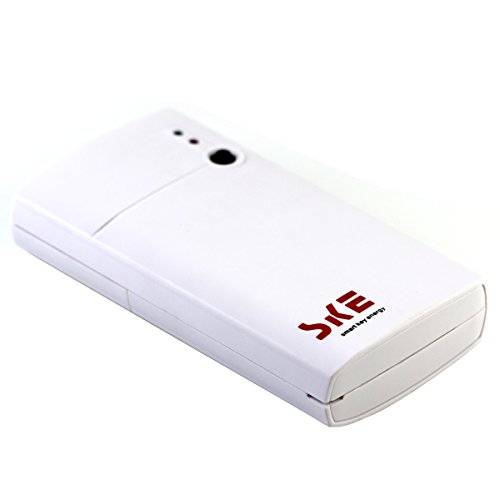

Model：iHomepack GM 312 Mini DC UPS
Input voltage range: 11~13v dc?
Battery capacity: 7800mah
Environment: Temperature -20℃~ 45℃
Charging period: 8 hours
Dimension(mm): 12.6×6.8×2.5 cm
Weight(kg): 0.27


Suitable adapter:
The input voltage range must be 11~13V and the output polarity should be confirmed. These specifications can be found on the label of the adapter. It may damage the UPS if out of range or polarity reversed.
Confirm the power of the device which connected to the adapter. These specifications can be found on the label of the device.
Applies the adapter which power is above 1.5A when the device power is 12W. If the device power is 24W, applies the adapter which power is above 2.5A, in this way, it can both change and load.


Method of use:
Connect the electric equipment t the output port of UPS through the marching wire.
Turn on the UPS power switch.
Insert the DC plug of the adapter into the power output port of the UPS. Then insert the adapter into the AC socket to supply the electric equipment uninterrupted.


Safety Features and Notes:
Do not let the products and accessories contact with liquid or under humid environment.
Do not try to disassemble and repair by yourself, as the security device configured inside the product. It may destroy the device if it disassembled.
Do not throw into the fire or water, it will cause unnecessary danger.


Package Included:
1 × Mini DC UPS
1 × Connection Line
1 × Manual User?
