Product Name Samsung HDMI output HD Converter
Chip original chip， absolutely easy to use
Product use Samsung mobile phone screen (images， video， slides， games， desktop， sound) synchronized to the high-definition television
Features Support phone 1920 × 1080P full HD output format (output 7.1 surround sound， 192KHz audio transmission)
Product Interface A Samsung micro connector plug an HDMI interface (connect a TV or other devices require high-definition interface to USB charging cable， cell phone Original USB data cable and charger will be able to note: remember to take the charger unplugged no output!)
Material quality materials， the line is soft， easily oxidized
Applicable Model
i9300 / 9308 / I939 / note2 / N7100 / S4 / I9500 / N5100 / n9002 / n9006 / n9008 / n9009
NOTE: 7102/7108/9502/959/5110 / N9008V / N9008Z not support MHL function no
Special Note:
1) Support Samsung S3， S4， S5， Note2， Note3 other new series models:
S3 / I9300 / I9308 / I939;
S4 / I9500 / I9508;
S5 whole series;
Note2 / N7100 / N7105;
Note3 / N9000 / N9002 / N9006 / N9008 / N9009;
2) .N7102 / N7108 / N719 / I9502 / I959 / N9008V / N9008Z does not support， no MHL function.

I9220 connection MHL cable， first connect the TV has shown over two days in connection is not displayed. I ask how else ah?
Pay attention to the following questions:

1， MHL must be an external power supply (5V 1A above)， or may not be output to HDMI，
2， connected to the line after the MHL， you must restart the phone， remember， the first time must take the above MHL line inserted in the phone restart the phone， or it may no HDMI output
3， MHL output does not need any setup， it will automatically restart the phone after output
4， after the MHL cable connected， the phone will be displayed above the HDMI logo (part of the phone will not display)， will display on the phone is charging.
5， MHL is a universal standard， are common! (As long as you have a cell phone can support MHL protocol)
6， such as a mobile phone may not support MHL output after brush off ROM. (You may need to ask the sale)

Another possible MHL adapter cable compatibility issues: 1. Can the TV again switch the power 2， phone restart sequence under 3. adapter cable connections on power-up sequence， plug end of the phone line and television terminal HDMI cable.



01

◆ Tips

1， HDMI adapter must be an external power supply (5V 1A above)， it is best to use the phone comes with original charger for work， or can not output to the monitor
2. Make sure that your phone uses the original ROM， if you brush or cracked ROOT permissions， it may lead to unusable， if you can not connect， please visit the official forum， Baidu Samsung own brush back the original ROM， before use
3， the perfect support 1080p output， download HD video format if it is， then the output video or pictures must also be high-definition.
4， MHL output does not require any set up， how did not respond， the phone can be connected again after the restart to complete the connection.

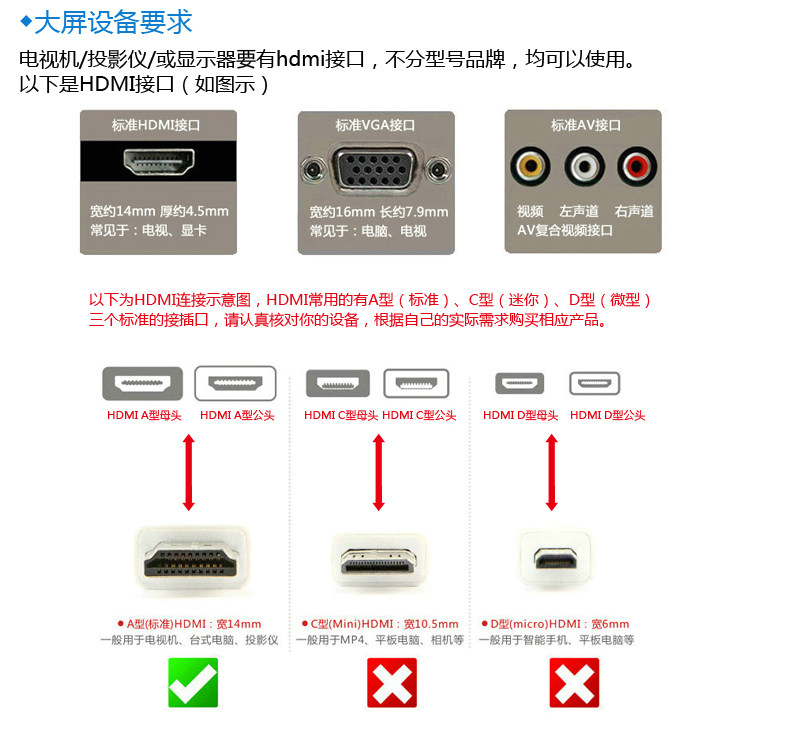

5. Please confirm your TV / projector / monitor has HDMI Interface

If you do not use， promptly contact with our Customer Service. Happy shopping!

◆ Notes





 MHL special type: Only Samsung S3， S4， S5， NOTE2 / 3 series and other new models.
(Such as S3 / i9300 / 9308 / I939te2 / N7100 / S4 / I9500 / N5100 / n9002 / n9006 / n9008 / n9009)
7102/7108/9502/959/5110 / N9008V / N9008Z not support MHL function no
