Item Descriptions:

Product introduction

MTR mode, eBand mode, Live Rec mode.

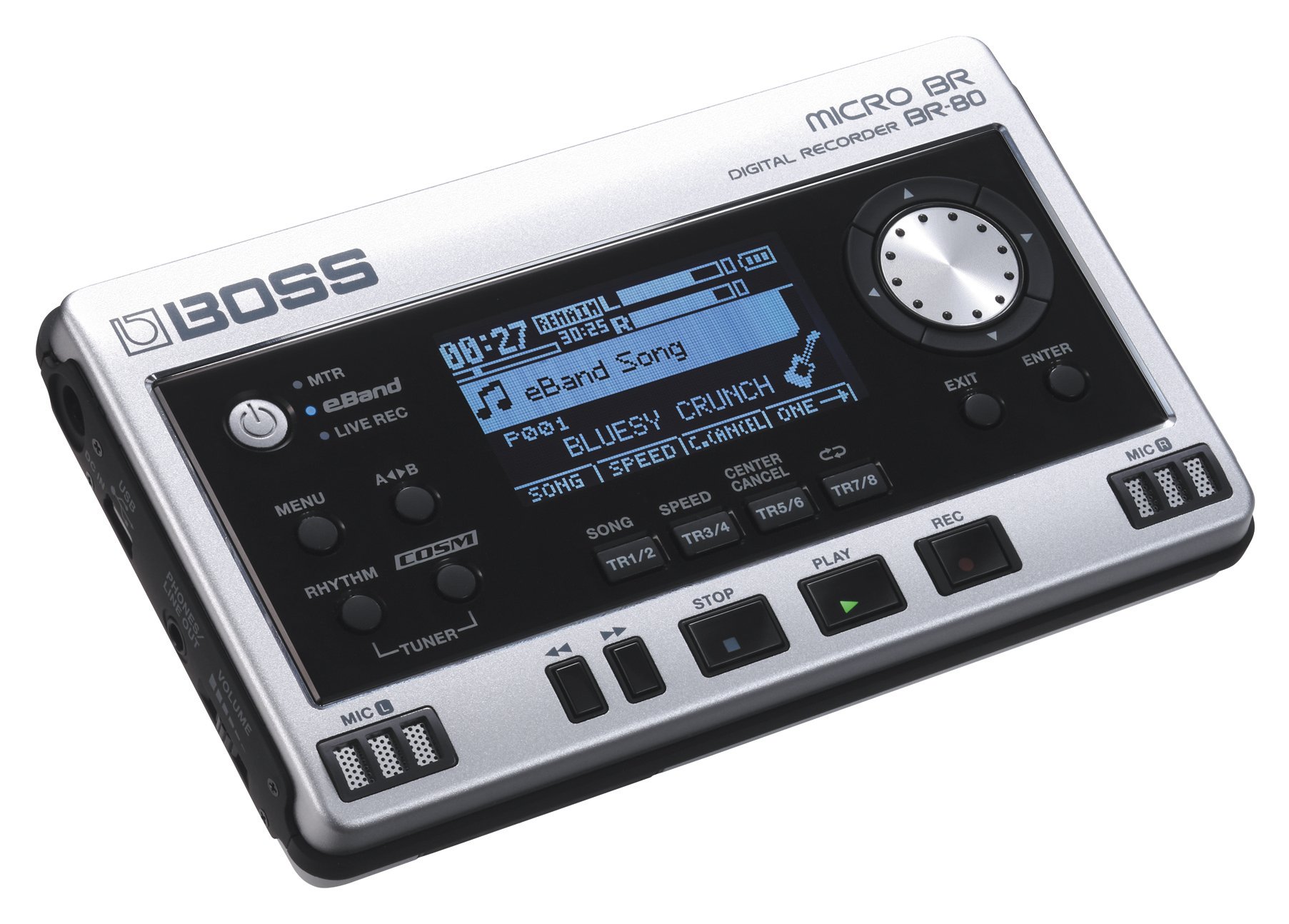

A digital recorder that realized multifunction / high quality in the palm-sized body.

MTR mode of 64 V track, simultaneous reproduction 8 tracks.

EBand mode which allows you to practice sessions and phrases according to existing songs.

Live Rec mode which enables you to record stereo quickly when you want to record.

Equipped with COSM effect with DSP chip.

USB audio interface function, DAW software "SONAR X1 LE" also included.

From Amazon

MTR mode is equipped with 64 V track, simultaneous playback 8 tracks

MTR mode supports 2 track simultaneous recording / 8 track simultaneous playback.

8 tracks are equipped with 8 V tracks, so full-scale recording with a total of 64 V track configuration is possible.

Rhythm tracks are stereo, independent equipment, rhythm patterns are recorded a lot, powerful rhythm function built in.

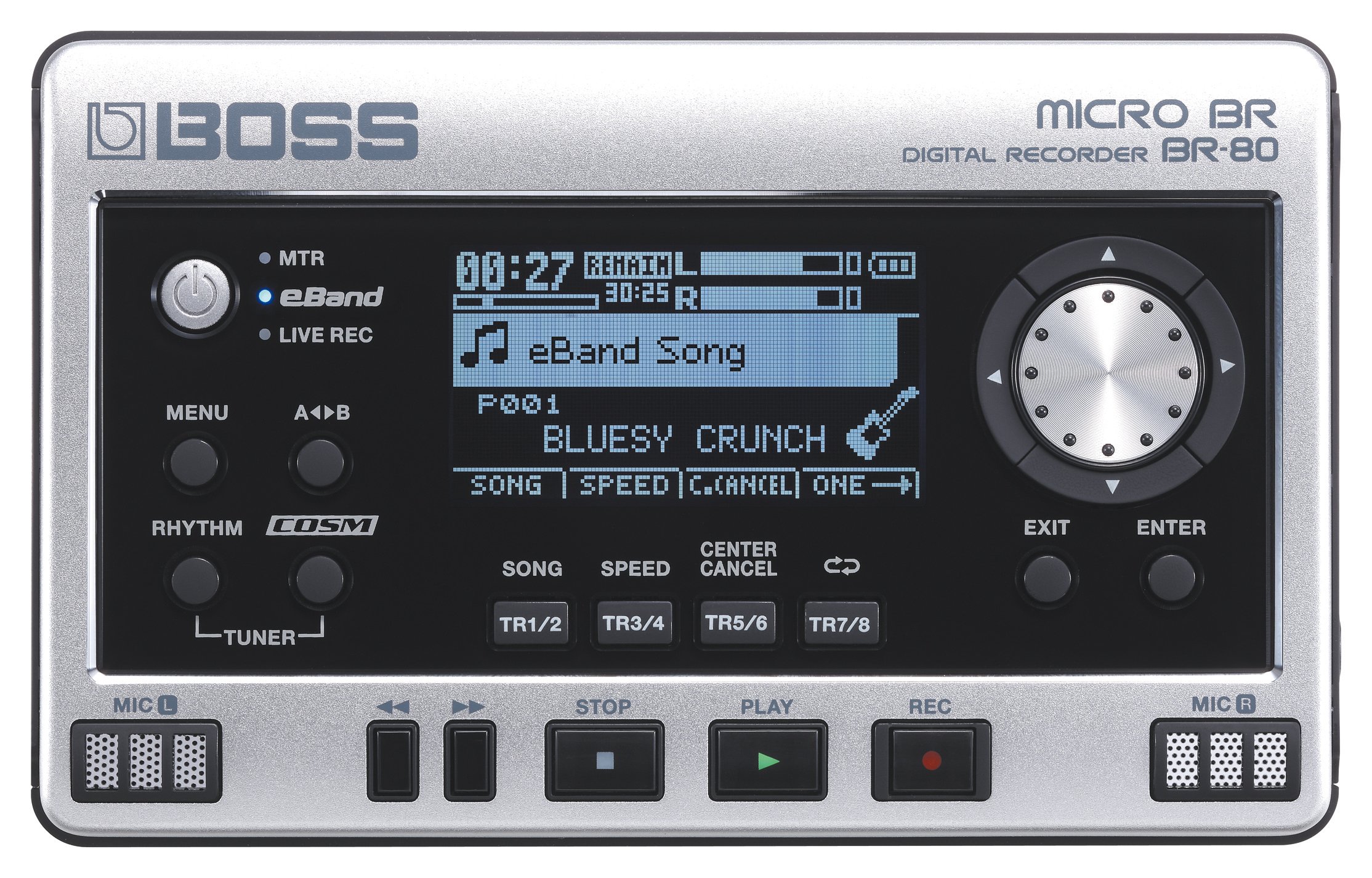

Moreover, graphic LCD is adopted as a display.

The user interface that inherited the usability of the BR series realized intuitive operation.

It is possible to freely control the operation screen like the recording console by using the rotary encoder of the main body and the cursor.

In addition, it incorporates 3 bands equalizer and reverb, as well as effects necessary for mixing, even mastering effects.

Anytime, anywhere, anywhere, full-blowing music production is complete with one BR-80.

In eBand mode you can practice sessions and phrases according to existing songs

BR - 80 is equipped with eBand mode.

By incorporating the included backing pattern (about 400 types) and favorite existing songs, connecting the guitar and headphones to the main body and playing back the songs, you can easily enjoy guitar playing and jam sessions.

It also has a center cancellation function that makes it difficult to hear the sound localized at the center, so it can be conveniently used for practicing guitar solos.

Of course, it is also possible to record on the BR-80 a performance that matches the song, because it also supports speed and pitch change and repeat playback, it is also useful for phrase training.

Also easy to download music from music CD Includes dedicated software "eBand Song List Editor" (Win / Mac) which can automatically acquire artist name and song title from the Internet (compatible with Gracenote MusicID).

Quick recording stereo recording "Live Rec mode"

The Live Rec mode which can record quickly when wanting to record is carried.

Recording format corresponds to WAV and MP3 ※.

High-quality condenser microphone is equipped with stereo, so you can record high-quality sound immediately with simple operation such as playing an acoustic instrument, vocal, band practice.

And they can be imported into MTR mode.

Recording phrases that you come up with as a memo, importing into MTR mode and doing full-scale music production, etc. will further expand the usage of the recorder depending on the idea.

COSM effect with the latest DSP chip

The BR - 80 is equipped with a high - quality COSM effect based on the newly developed custom chip.

From amp modeling by COSM with more than 40 types, you can get powerful guitar / bass sound.

Since many presets / patches that become immediate fighting ability are prepared, even those who are unfamiliar with the operation of multi effect, it is possible to immediately play the sound of professional quality.

Also, VE-20 Yuzura's vocal exclusive effect is also on standby.

Various vocal sounds and make-ups, such as addition of harmony and doubling, as well as real-time pitch correction can be performed.

USB audio interface function installed

BR - 80 body side is equipped with a USB connector.

It can be used not only as a single recorder but also as an audio interface if connected to a PC.

Recording using COSM effect realized without latency.

Also, it is easy to back up musical data recorded with MICRO BR BR - 80.

In addition, the recorded data is the included "BR Series Wave Converter", which also supports WAV import / export.

We also make music production in collaboration with PC such as further editing work with the enclosed DAW software "SONAR X1 LE" (for Windows).

Also, since it is also possible to transfer audio files from the PC side to the BR - 80, it brings backing tracks to studio and live stage and plays it widely.

Battery / USB bus · Power-driven, compatible with SDHC cards up to 32 GB

In addition to using the AC adapter (sold separately), it also supports driving with two AA batteries, USB bus · power, demonstrating its power to select any location.

In addition, the storage medium is an SDHC card and supports up to 32 GB.

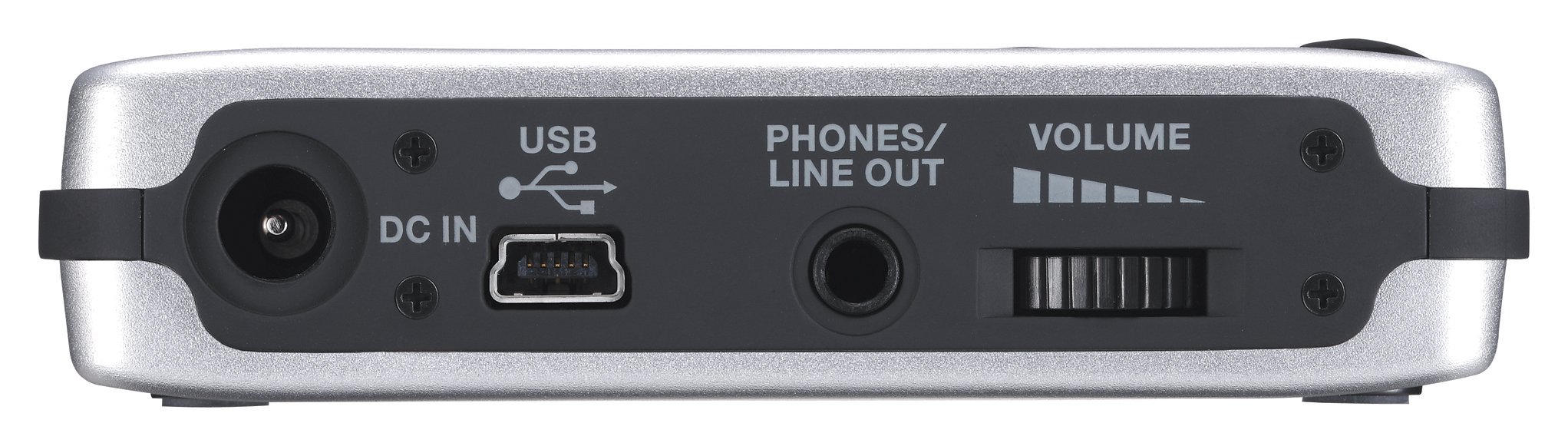

Side panel (left side)

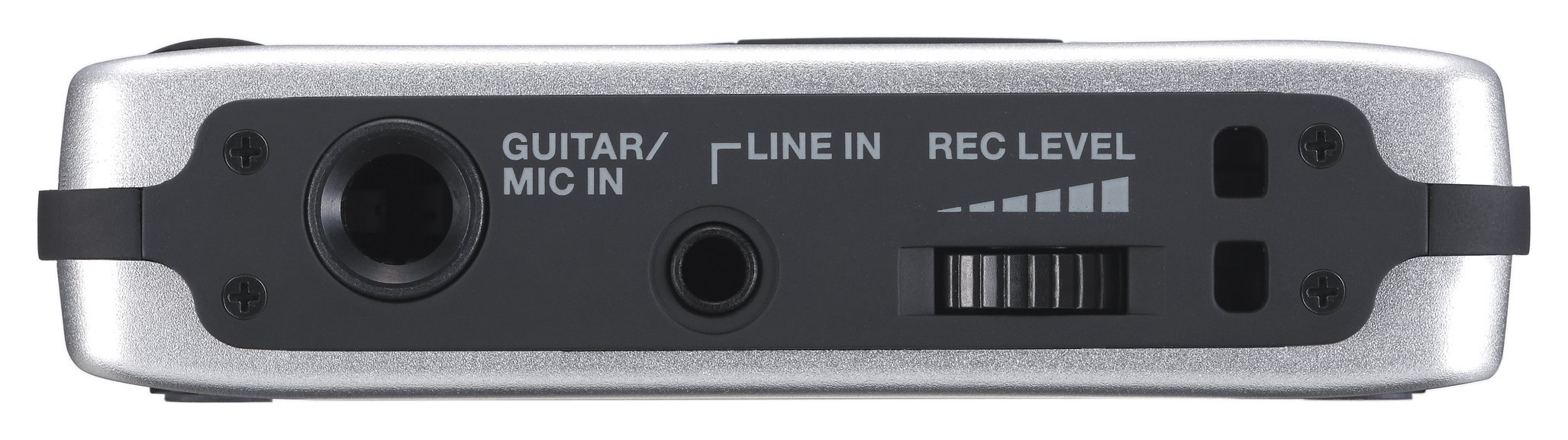

Side panel (right side)

Main Specifications

Number of tracks

○ eBand mode: playback = 2 (stereo), simultaneous recording = 2 (stereo) ○ LIVE REC mode: playback = 2

(Stereo) or simultaneous recording = 2 (stereo)

Storage capacity

SDHC card (4GB to 32GB), SD card (1 to 2GB)

data type

○ MTR mode: uncompressed, the number of quantization bits = 16 bits ○ eBand mode: eBand song (recording and reproduction), WAV = quantization bit number 16 bits (reproduction only), MP3 = bit rate 64 kbps to 320 kbps

○ LIVE REC mode: WAV = quantization bit number 16 bits (recording / reproduction), MP3 = bit rate 64 kbps to 320 kbps (recording / reproduction) *

AD conversion

24 bits

DA conversion

24 bits

Sampling frequency

44.1 kHz

Recording time

○ MTR mode: SD 1GB = about 3 hours, SDHC 32GB = about 100 hours ○ eBand mode: 【eBand song (recording / playback)】 SD 1GB = about 4 hours, SDHC 32GB = about 130 hours, 【WAV

SD 1GB = about 1.5 hours, SDHC 32GB = about 50 hours, 【MP3 <bit rate: 128 kbps> (playback only)】 SD 1 GB = about 16 hours, SDHC 32 GB = about 550 hours ○ LIVE REC mode: 【WAV

· SD 1 GB = about 1.5 hours, SDHC 32 GB = about 50 hours, 【MP3 <bit rate: 128 kbps> (recording and playback)】 SD 1 GB = about 16 hours, SDHC 32 GB = about 550 hours * The above recording time

Is a standard.

Depending on the number of songs created, the actual recordable time will be somewhat shorter.

* The above numbers in MTR mode are the total of used tracks.

If data is evenly written in eight tracks, the length of the completed song will be about 1/8 of the above.

Specified input level

GUITAR / MIC IN terminal = -20 dBu (GUITAR / MIC switch = GUITAR), - 40 dBu (GUITAR / MIC switch = MIC), LINE IN terminal = - 10 dBu

Input impedance

GUITAR / MIC IN terminal = 1 MΩ (GUITAR / MIC switch = GUITAR), 6 kΩ (GUITAR / MIC switch = MIC), LINE IN terminal = 10 kΩ

Specified output level

PHONES / LINE OUT terminal = -14 dBu

Output impedance

PHONES / LINE OUT terminal = 22 Ω

display

Graphics LCD 128 x 64 dots (with backlight)

USB function

24 bits / 44.1 kHz USB-AUDIO (Hi-Speed ​​USB), USB mass storage class (Hi-Speed ​​USB), bus power operation

Connecting terminal

PHONES / LINE OUT terminal (stereo mini type), USB terminal (mini B type), DC IN (standard type), LINE IN terminal (stereo mini type), PHONES /

Power supply

DC 9 V = AC adapter (sold separately), alkaline battery or rechargeable Ni-MH battery (AA type) × 2, USB bus · power

Current consumption

130 mA (When using the AC adapter) Alkaline battery Approximately 6 hours (8 tracks continuous playback, when using power save) * It depends on use condition, battery, SD card type.

accessories

SD card, SONAR X1 LE DVD-ROM, USB cable (mini B type), alkaline battery (AA type) x 2, instruction manual, warranty card, Roland user registration card

Optional items

AC adapter (PSA - 100), silicon case = BA - BR 80 S

Windows operating conditions

Supported OS

Microsoft Windows 7 / Windows Vista SP 2 or later / Windows XP Home SP 3 or later / Windows XP Professional SP 3 or later * Windows XP Media Center Edition / XP Professional x64 is not supported.

Supported computer

Windows compatible PC equipped with USB 2.0 port as standard

CPU / clock

Intel Core, Pentium processor, or compatible processor / 1 GHz or higher

Memory

1.0 GB or more

Screen resolution / number of colors

1024 x 768 dots / 65,536 colors (High Color 16 bits) or more (when using attached application software)

Required Hardware

CD-ROM drive (when importing Audio CD in eBand Song List Editor)

Remarks

* It has been confirmed that PCs equipped with AMD's M780G chipset and AMD's M780V chipset may not be used properly, such as sound breakdown.

Macintosh operating conditions

Supported OS

Mac OS X v10.4.11 or higher

Supported computer

Apple Mac series with USB 2.0 port as standard

CPU

Intel processor

Memory

1.0 GB or more

Screen resolution / number of colors

1024 x 768 dots / 32,000 colors or more (when using attached application software)

Required Hardware

CD-ROM drive (when importing Audio CD in eBand Song List Editor)

SONAR X1 LE operating condition

Please check on the page of SONAR X1 LE of Roland website

External dimensions / mass

Width (W)

138 mm

Depth (D)

86 mm

Height (H)

22 mm

mass

140 g

※ This product has been confirmed to operate on a standard computer that meets the above conditions, but not all operations under this condition are guaranteed, even under the same conditions, different computer design specifications and usage environment

May have different processing capabilities.

※ When connecting to the USB 3.0 port and not working properly, it is necessary to connect to the USB 2.0 port.

* It can not be used with a USB 3.0 port incompatible with USB 2.0.

* Adobe Reader is necessary to view online manual of attached application software.

Features:

• Please enter model number Confirm this is compatible:
• Recording file format: MP3 / WAV, reproduction file format: MP3 / WAV, sampling rate: 44.1 kHz / 16 bit
• Memory capacity: None, compatible memory card: SDHC
• Built-in microphone number: 2, microphone movable: not supported, directivity switching: non-compliant, external microphone: compatible
• Low cut filter: Not supported, Noise cancellation: Not supported, Automatic recording: Not supported
• USB direct connection: non-compliant, battery type: AA 3 x 2, battery operating time (regeneration): 6 hours

Product information:

Shipping Weight: 621 g

Package Dimensions: 9.19 x 16.00 x 22.00 cm
