Item Descriptions:

size:

Stand type with cooling fan

Already charge cable and goodbye!

!

!

You can charge your smartphone just by placing it.

Product Features

1. Smart fast charge

■ Maximum input 9V / 1.67A, output: 10W (Max) enables charging faster than conventional wireless charger.

The charging time has been reduced significantly.

2. Two charging modes

■ Quick charge: Quick Charge 2.0 compatible models Galaxy Note 5, Galaxy S6 Edge +, Galaxy S7 / S7 Edge, Galaxy S8 / S8 +, Galaxy Note 8 can be used for quick charge (output: 10 W)

I will.

■ Normal charge: Wireless charging (output: 6W) can be done immediately by placing other models with Qi compatible equipment or QI compatible cover.

3. Stylish design

■ It can be installed freely, vertically, horizontally, in a stand type design.

It provides exactly good stability for curved phones and never goes down.

4. Charging to a wide range

■ Unlike the single-coil wireless pad, the two built-in coils give a wider charging area and save the time to charge by placing the phone in the middle of the charger.

5. Intelligent Display

■ Smart LED light indicates charging status.

When the device is properly matched, the LED indicator will light up in the green light.

6. Stylish gadget

■ With this stylish gadget, you can charge Qi-compliant smartphones and other Qi-compliant devices.

■ By charging the device without plugging in the plug or usb charging port, this charger looks stylish.

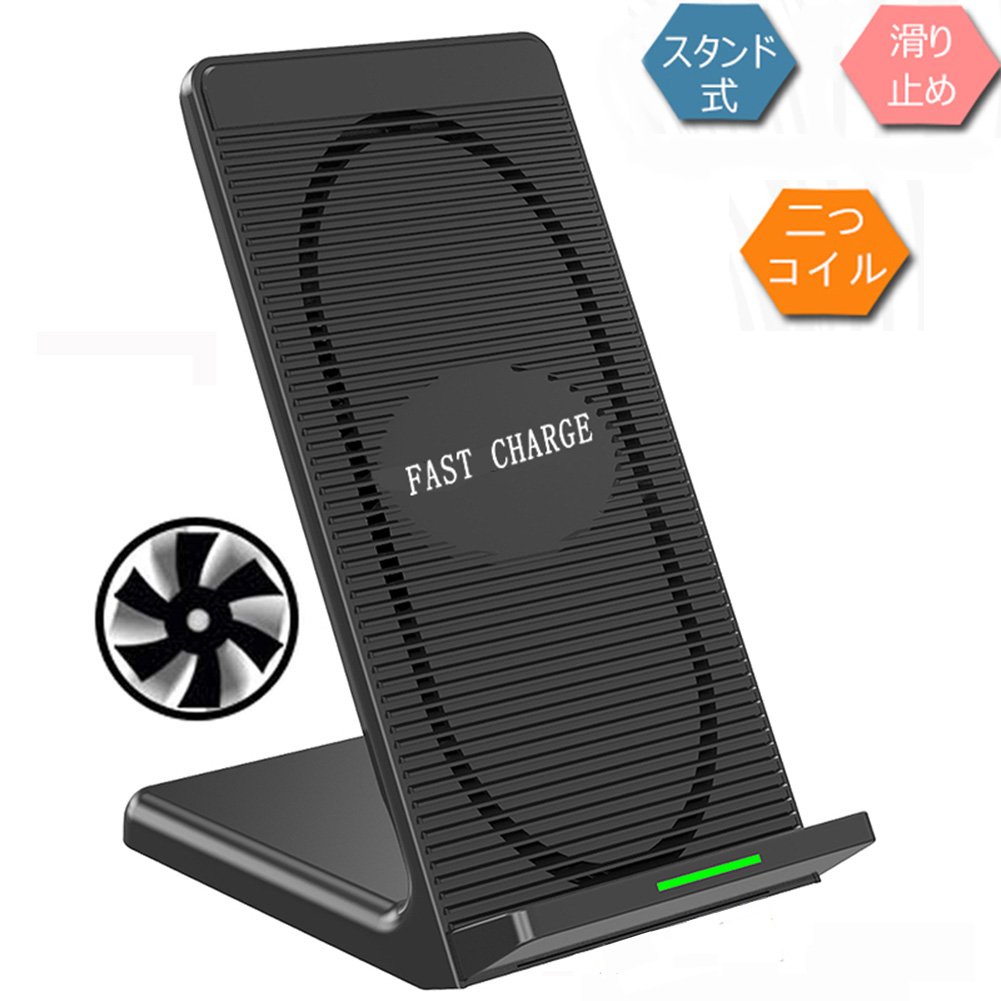

7. With cooling fan * Exhaust heat function

■ A quiet fan blows strongly back and forth, and has excellent heat dissipation performance.

It is possible to cool the smartphone and charger efficiently and simultaneously.

(* Attention: When you charge the smartphone, blowing begins.If you do not charge the smartphone, you can not blow air)

【specification】

■ Compatible models: QI compatible smartphone

■ Charging standard: QI (Qi) standard

Charging efficiency: ≥ 73%

■ Input voltage: DC 5V / 2A

■ Output current: DC 9 V / 1.67 A

■ Transmission power: 10W

■ Charging frequency: 100 - 150 KHz

■ Charging distance: 4 to 8 mm

■ Body size: 70 * 90 * 118 mm

■ Body Weight: 107g

【Wide charging contact surface】

■ 2 coils are installed, charging contact surface is wider than conventional single coil, you can charge by placing it vertically or horizontally freely without having to fit perfectly.

【Notes】

1, When using the case with a thick case such as a notebook type case, charging may be impossible.

2, Do not place chip card with magnetic stripe (IC card etc.).

3, Keep apart from medical equipment such as pacemaker by 20 cm or more.

4, If you notice any abnormalities such as unusual odor / body heat generation stop using it immediately, please contact our support.

5, Store in high temperature / humidity / near fire Please do not use.

6, This product is only Qi charger body.

Qi (Qi) not compatible models will not work.

A dedicated receiver is required.

Please check whether it is compatible model or not.

[Exceptional design]

■ Stand type design based on ergonomics, stylish and compact wire spikes.

There are tilted and non-slip brackets that provide good viewing angle, while charging the mobile phone wirelessly, to watch movies, listen to music, ease the game, and keep the mobile phone safe.

Watching movies with a casual angle as a stand is also the best!

It will not slip down with a slip stop mug on the bottom.

Both colors LED indicators show different charging status.

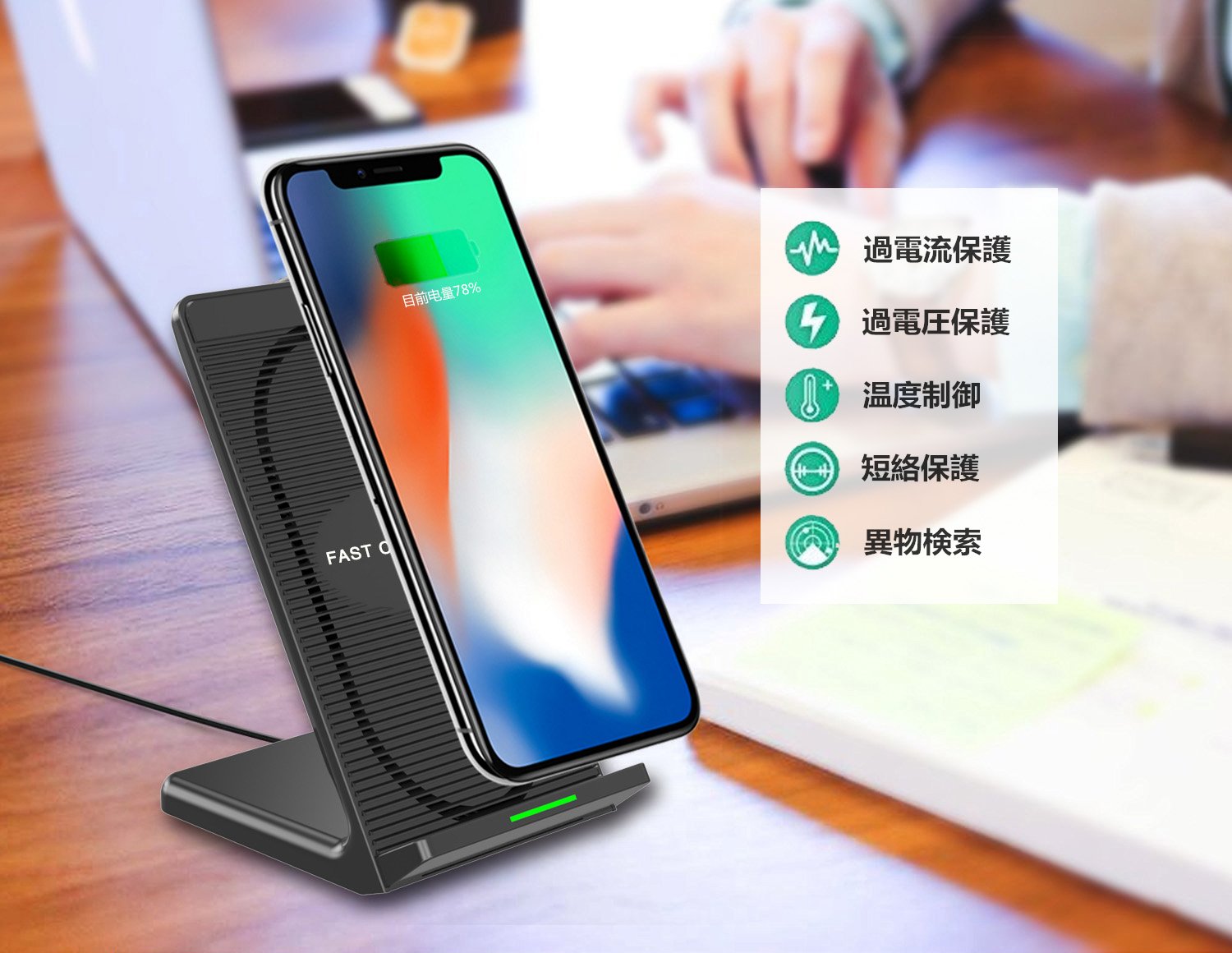

[Equipment safety and overheating protection]

■ Charger is certified by FCC, RoHS and CE.

It's built-in overvoltage, low voltage, and short circuit protection, providing the best security for smartphones.

If the temperature exceeds 50 degrees during charging of the device, the charging current automatically decreases, keeping the equipment safe.

[Cause unavailable]

■ A device with QI is applicable to this wireless charger.

If there is no QI function, we will purchase a wireless receiver.

■ The thickness of the wireless receiver does not exceed 8 mm.

The middle part of the receiver is not metallic lumber.

■ Use at least 2A adapter.

Since the current from the personal computer is 500 - 800 mA, it can not connect to the personal computer.

Features:

• Please enter model number Confirm this is compatible:
• 【Cooling Fan included * Exhaust heat function】 A quiet fan blows strongly back and forth, and has excellent heat dissipation performance.
• It is possible to cool the smartphone and charger efficiently and simultaneously.
• (※ Note: When you charge the smartphone, start blowing, there is a control fan on the bottom of the cooling fan.Turn on the switch when using.If you do not charge the smartphone, you can not blow air.
• 【Fast charge · Protect function installed】: With quick charge function, maximum output is 9 V / 1.67 A 10 W (Max), the power conversion efficiency is 73%, which is up to 1.5 times faster for conventional smart phones
• It is also possible to charge.
• Moreover, by adopting high quality coil and TI chip, it is equipped with overvoltage protection, low voltage protection, overheat temperature control, overcurrent protector, short protection function, and it is highly safe.
• And in standby mode the power consumption is very low.
• You can use it safely for a long time.
• [Charging only · two coils]: Qi Charging compatible device or QI charging case Just put on the attached smartphone, you can charge the device, there is no worry that the cable will get caught or get caught hooked.
• In addition, since the two coils are built in, the charging contact surface is wider than the conventional single coil, and it is possible to charge the smartphone vertically or horizontally without having to fit perfectly.
• While charging, you can enjoy movies and music.

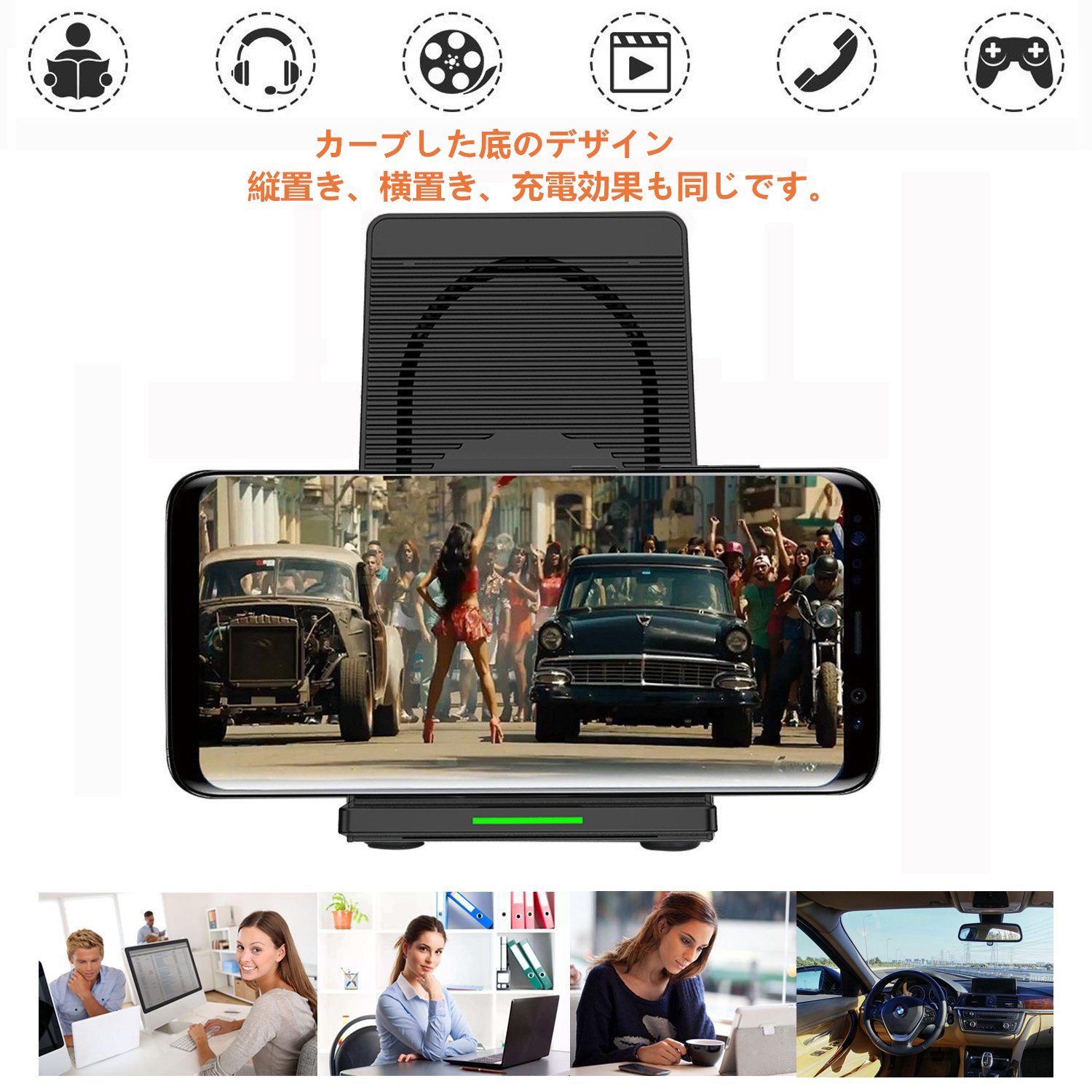

• [Exceptional design · anti-slip mat] 55 ° optimum viewing angle It is a stand type design, so you do not have to worry about putting direction.
• Watching movies with a casual angle as a stand is also the best!
• It will not slip down with a slip stop mug on the bottom.
• The intelligent LED indicator shows the safety charging status.
• The blue LED glows softly, the place to place the smartphone in the night is easy to understand, while charging: The light of the blue lights up, after charging is completed the light turns green.
• (Applicable only to SAMSUNG.)
• [Supported Devices]: Supported devices (can be charged directly): iphoneX / iphone8 / iphone8plus, Samsung Galaxy S8 / S7 / S7 Edge / S6 Edge / S6 Edge + / Note 5, Google Nexus 7 (2013)
• 6/5/4, Nokia Lumia 920/1020/928/1520, LG D1 L, LG LTE 2, LG G 2 (Verizon), Blackberry Z 30 (Verizon), Blackberry Z 30 (Verizon), Moto Droid Turbo / Moto Droid Maxx / Droid Mini
• , HTC 8X / HTC Droid DNA / HTC Rzound / HTC Incredible 4 G LTE.
• Supported devices (QI receiver required) · Samsung Galaxy Note 4 / Note 3 / S5 / S4 / S3 / Note 2, iPhone 7 / 7plus / 6 / 6Plus / 6S / 5C / 5S / 5/4 / 4S,
• Nokia 720

Product information:

Shipping Weight: 167 g

Package Dimensions: 8.10 x 8.79 x 14.10 cm
