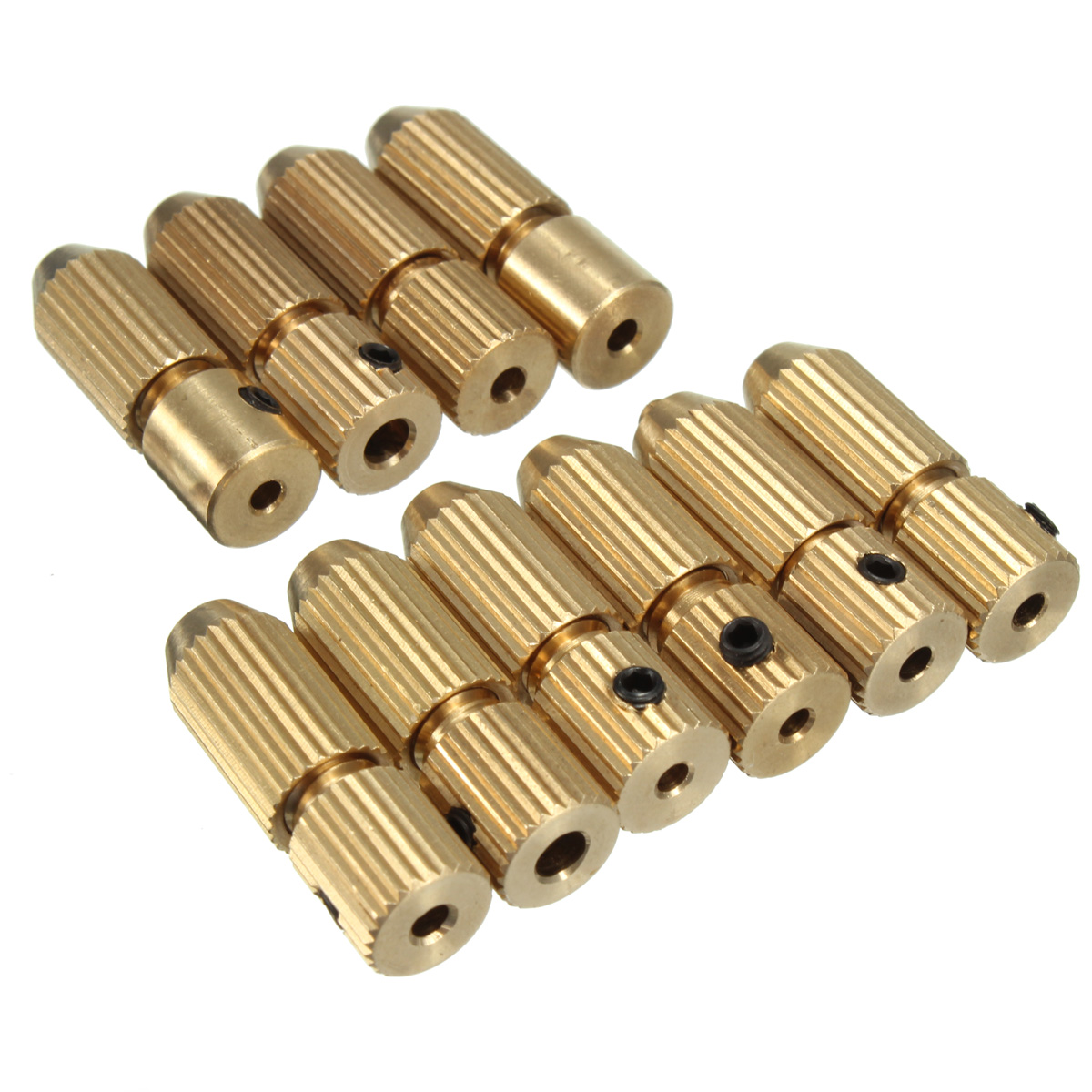

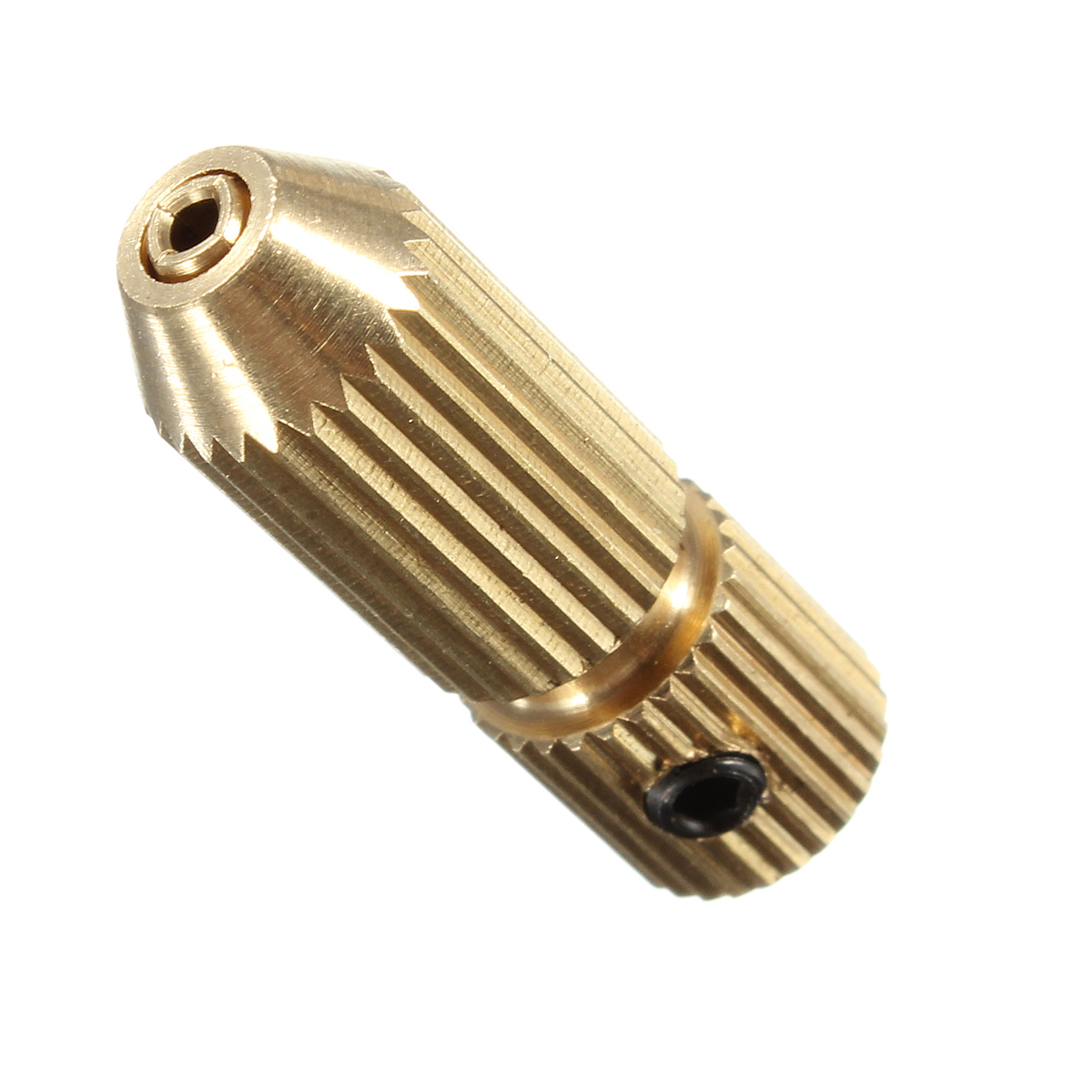

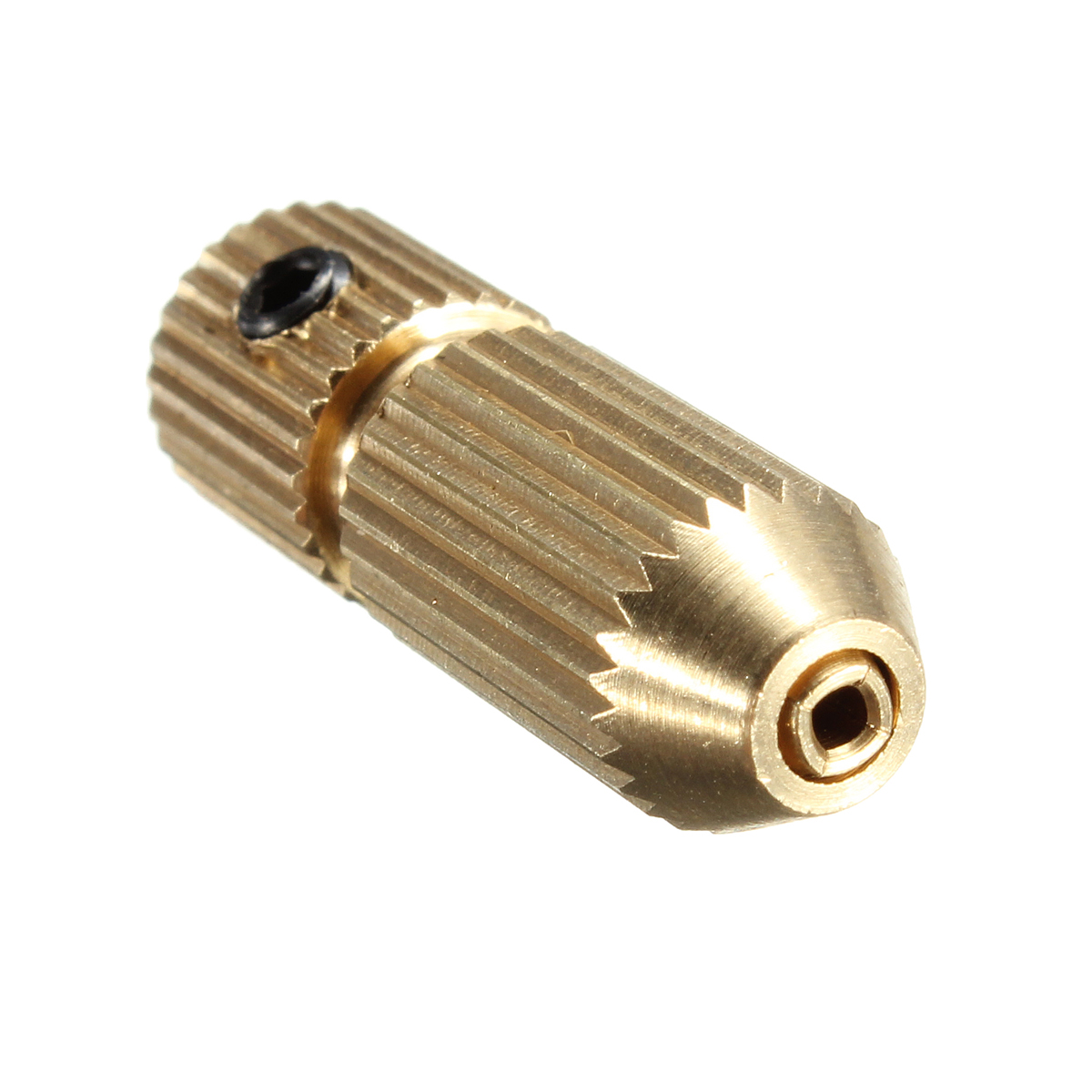

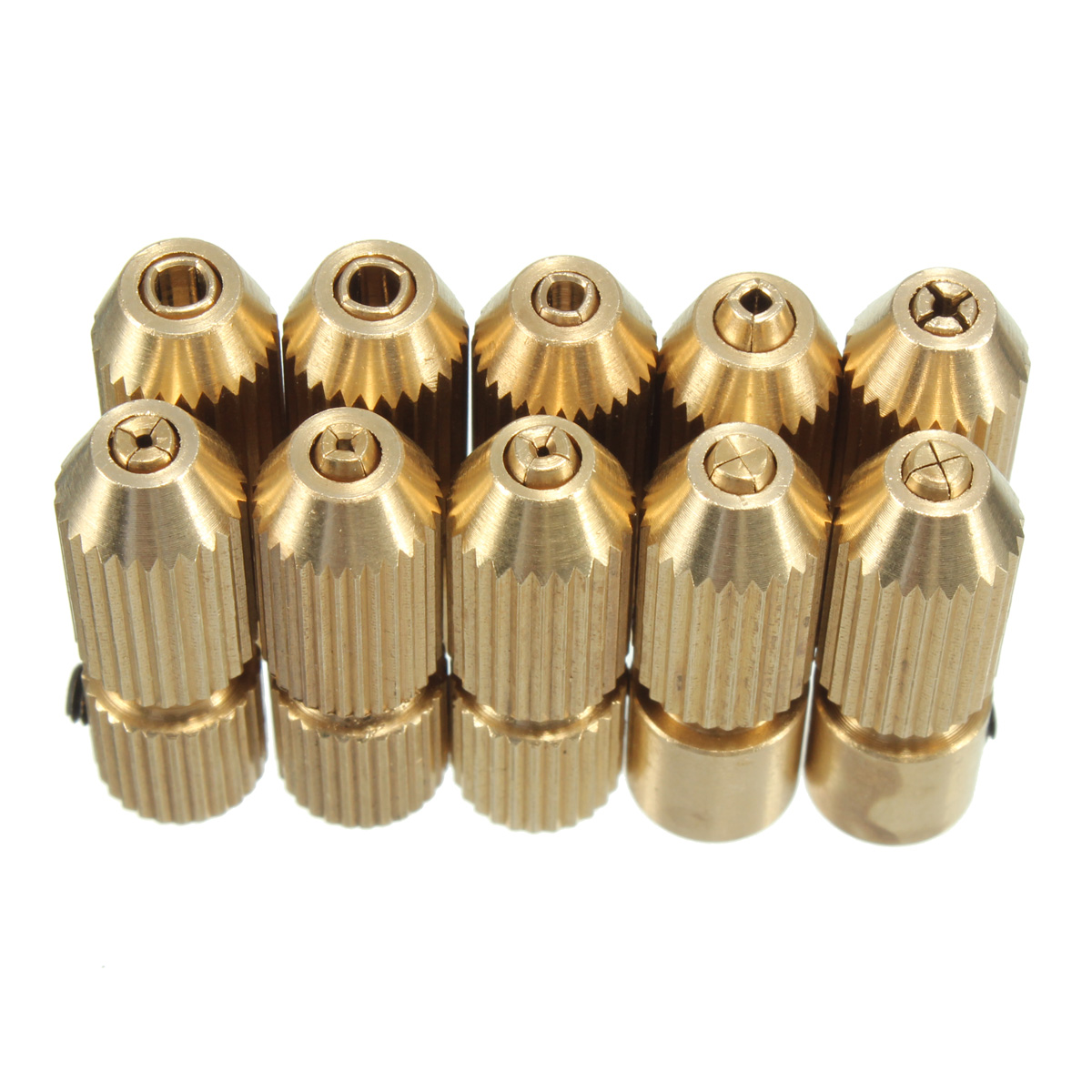

Product details of HKS 2mm-3.17 mm Electric Motor Shaft Clamp Fixture Chuck Mini For0.7mm-3.2mm Drill

Used for 2.0mm-3.17mm motor shaft.

A variety of models to choose from to facilitate your every need

Quality assurance you can buy at ease

Concentricity adjustment method: Before lock bit need to adjust the concentricity

otherwise there will be a violent vibrationpower on rotate awhile on the smooth

surface of the floor or glass lock bit after bit concentric.

Specifications

Material: Brass

Size: 25mm(L) x 8mm(Dia.)

Specific index:

Model      rear-axle-diameter      Clip drill diameter range

               (with the motor shaft)

2-0.7           2mm                         0.2mm-0.7mm

2-1.2           2mm                        0.7mm-1.2mm

2-1.5           2mm                         1.0mm-1.5mm

2-3.17         2mm                         2.5mm-3.2mm

2.3-0.7        2.3mm                      0.2mm-0.7mm

2.3-1.2         2.3mm                      0.7mm-1.2mm
2.3-1.5         2.3mm                      1.0mm1.5mm
2.3-2.3         2.3mm                      1.6mm-2.3mm

2.3-2.5        2.3mm                      1.6mm-2.5mm

2.3-3.17       2.3mm                      2.5mm-3.2mm

3.17-0.7       3.17mm                    0.2mm-0.7mm

3.17-2.0       3.17mm                    1.4mm-2.0mm

3.17-2.5       3.17mm                    2.0mm-2.5mm

3.17-3.17    3.17mm                    2.5mm-3.2mm

Package include

1x Drill chuck


Specifications of HKS 2mm-3.17 mm Electric Motor Shaft Clamp Fixture Chuck Mini For0.7mm-3.2mm Drill

• 1x Drill chuck
